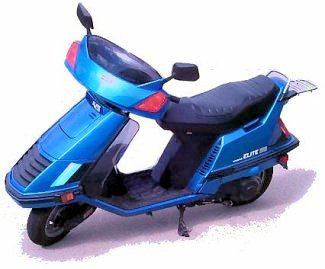

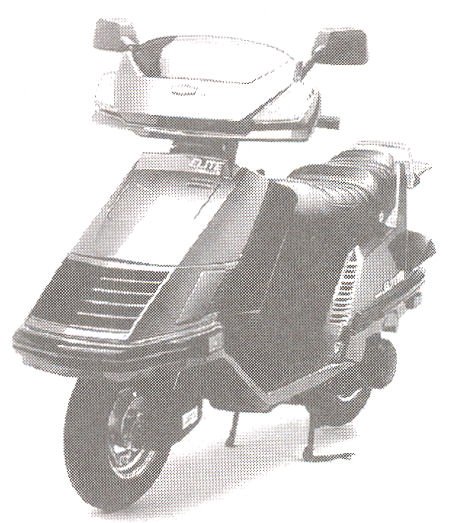

1985 Elite 150 Deluxe (CH150D)
Engine |
|
| Engine Type | Liquid-cooled, SOHC, Four-stroke |
| Displacement | 152.7cc |
| Bore & Stroke | 58 x 57.8mm |
| Compression Ratio | 10:1 |
| Fuel Delivery | 22mm, CV type |
| Ignition | CDI |
| Starting system | Electric |
DRIVETRAIN |
|
| Transmission | Variable Ratio, V-MaticTM |
| Clutch | Centrifugal, Automatic |
| Drive line | Belt |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Trailing-link type |
| Rear Suspension | Twin hydraulic shocks |
| Brakes | Drum (front and rear) |
| Tire | 3.50-10 (front and rear) |
DIMENSION |
|
| Dry weight | 105 kg (231.4 lb) |
| Overall length | 1940mm (76.4 in.) |
| Overall width | 655mm (25.8 in.) |
| Seat height | 760mm (29.9 in.) |
| Fuel capacity | 8.3 liters (2.2 US gal) (1.8 Imp. gal) |
OTHER |
|
| Colors |
|
| V.I.N | JH2KF012_FK000001 |
| Engine | KF01E-5000001 |
| Wheelbase | 1200mm (47.2 in.) |
1986 Elite 150 Deluxe (CH150D)
Engine |
|
| Engine Type | Liquid-cooled, SOHC, Four-stroke |
| Displacement | 152.7cc |
| Bore & Stroke | 58 x 57.8mm |
| Compression Ratio | 10:1 |
| Fuel Delivery | 22mm, CV type |
| Ignition | CDI |
| Starting system | Electric |
DRIVETRAIN |
|
| Transmission | Variable Ratio, V-MaticTM |
| Clutch | Centrifugal, Automatic |
| Drive line | Belt |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Trailing-link type |
| Rear Suspension | Twin hydraulic shocks |
| Brakes | Drum (front and rear) |
| Tire | 3.50-10 (front and rear) |
DIMENSION |
|
| Dry weight | 105 kg (231.4 lb) |
| Overall length | 1940mm (76.4 in.) |
| Overall width | 655mm (25.8 in.) |
| Seat height | 760mm (29.9 in.) |
| Fuel capacity | 8.3 liters (2.2 US gal) (1.8 Imp. gal) |
OTHER |
|
| Colors |
|
| V.I.N | JH2KF012_FK000001 |
| Engine | KF01E-5000001 |

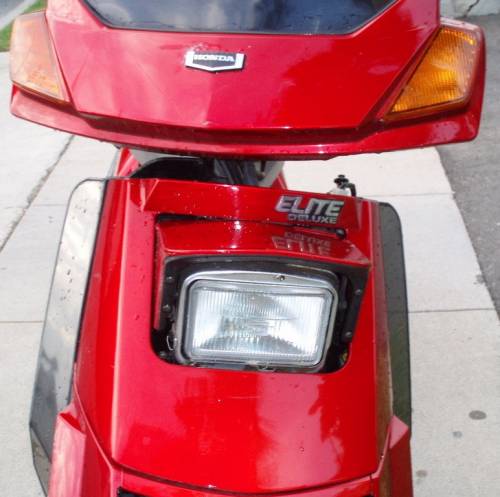

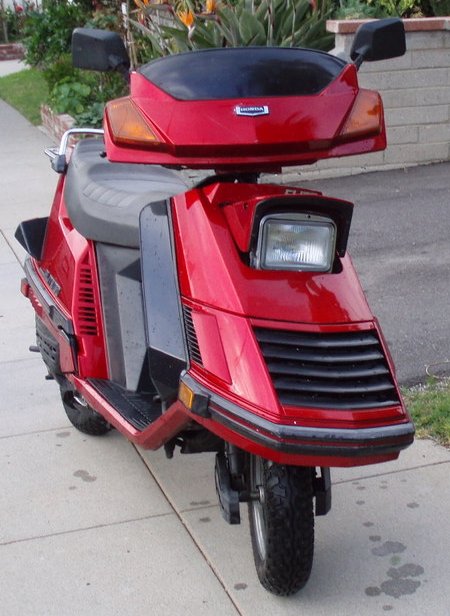

- Pop-up headlight on front body cowling
- LC digital speedometer

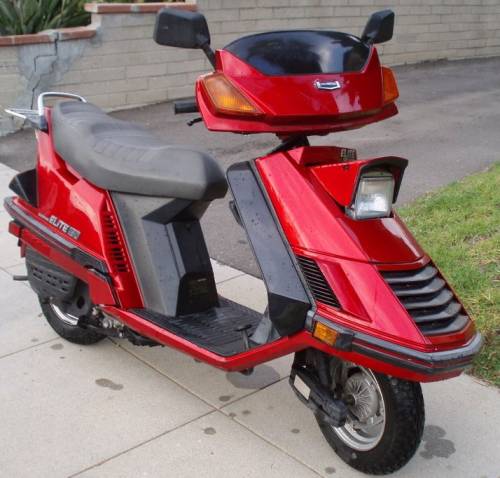

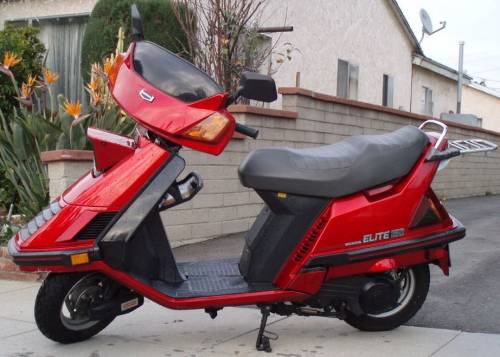

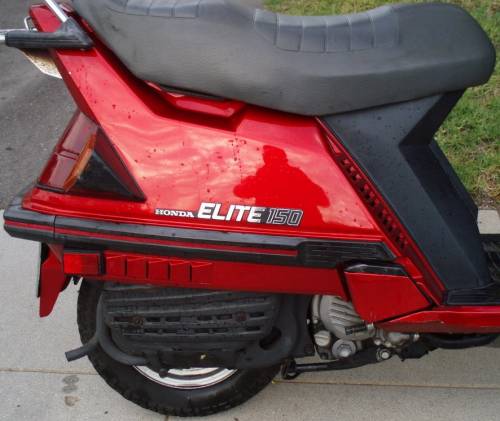

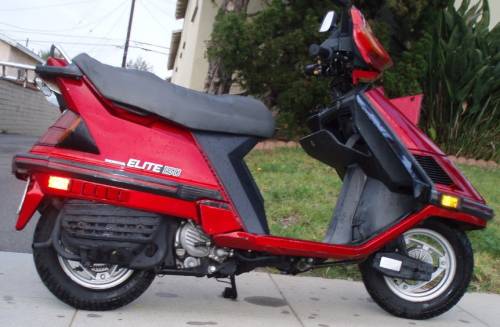

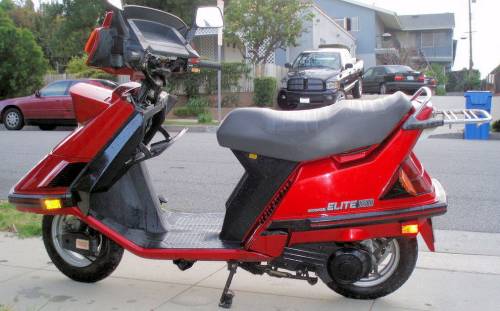

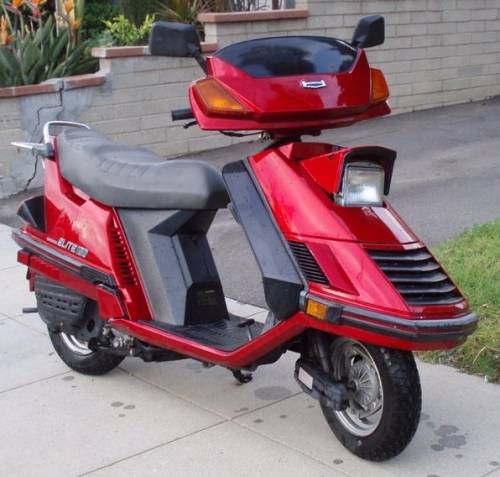

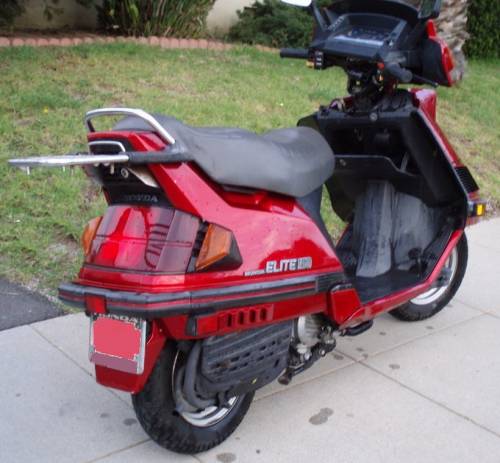

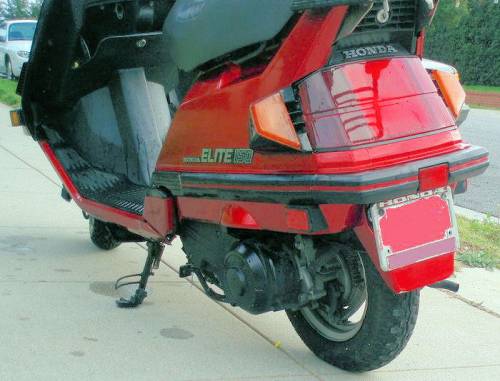

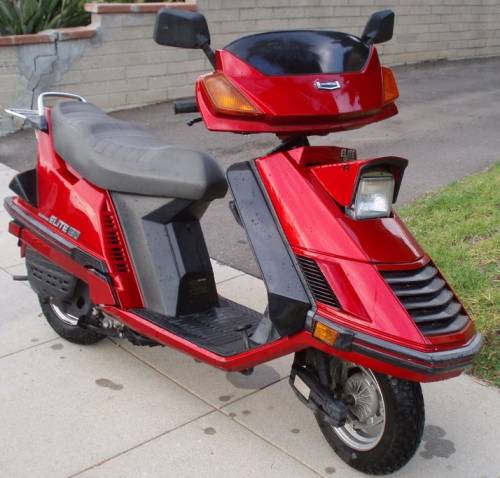

CH150D Image Gallery
