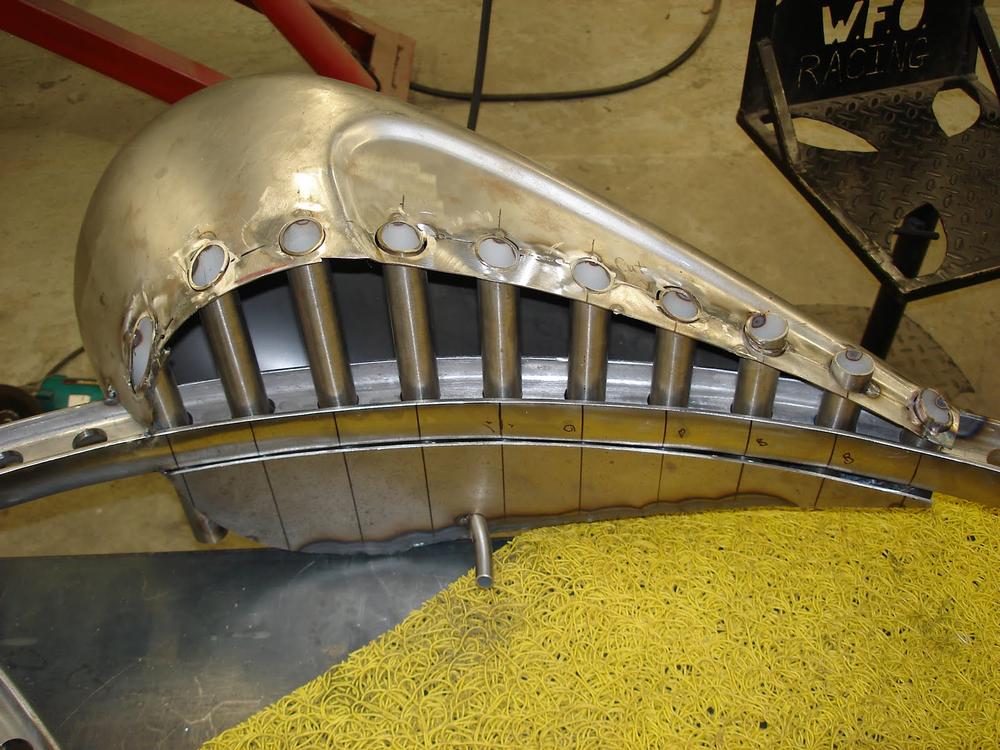

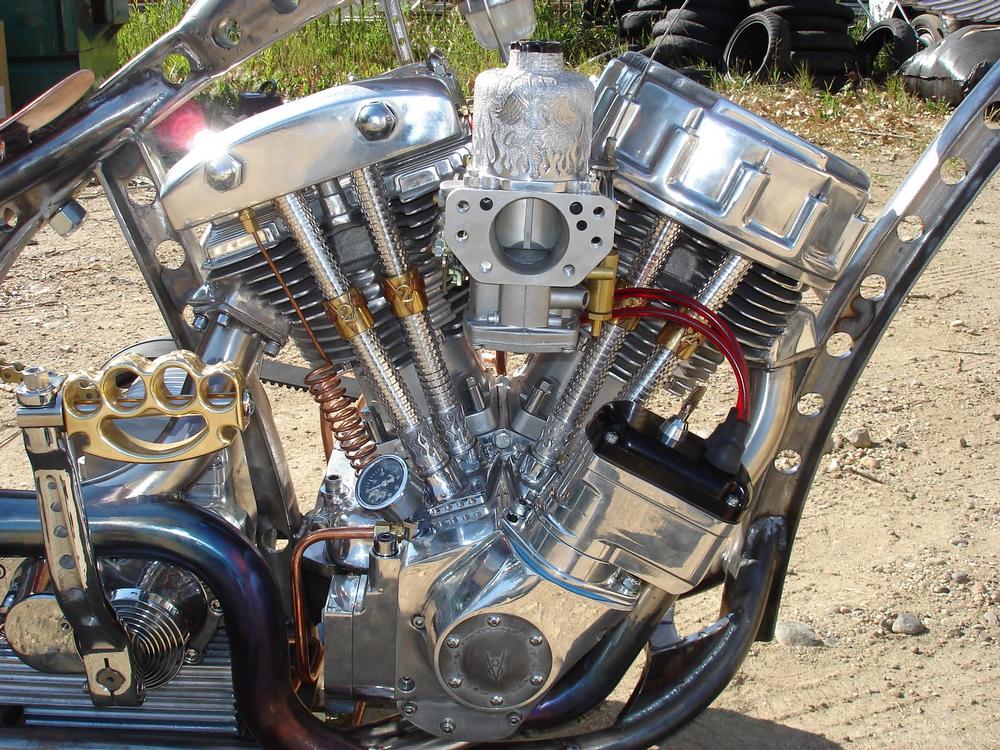

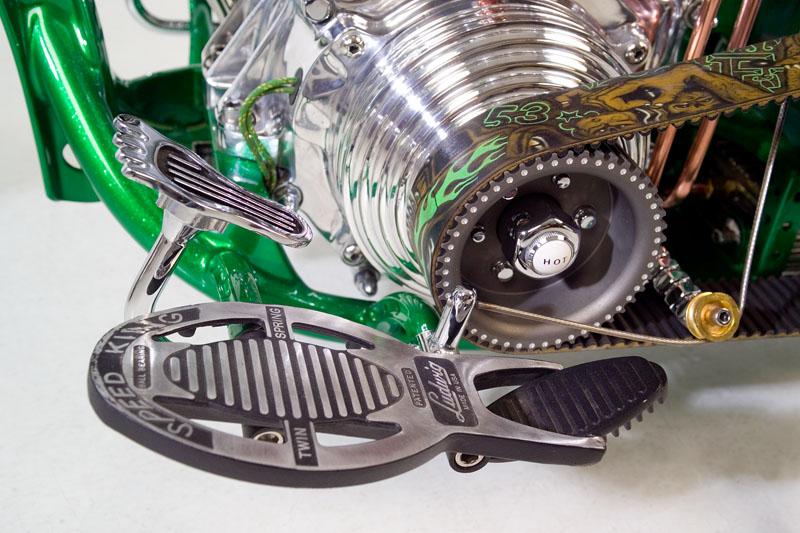

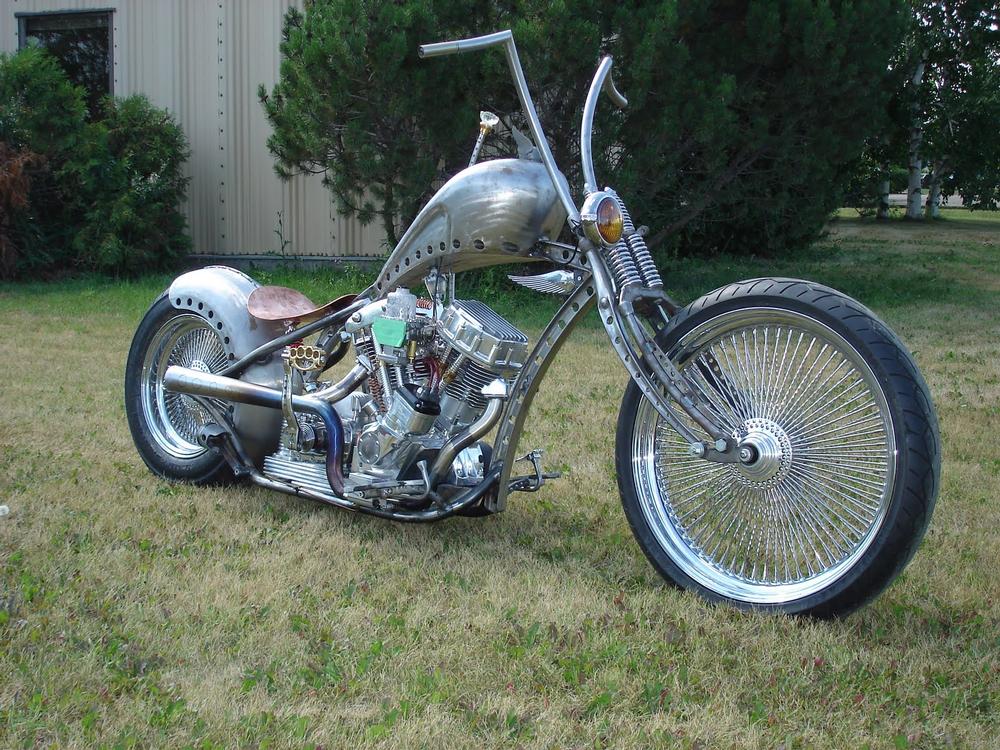

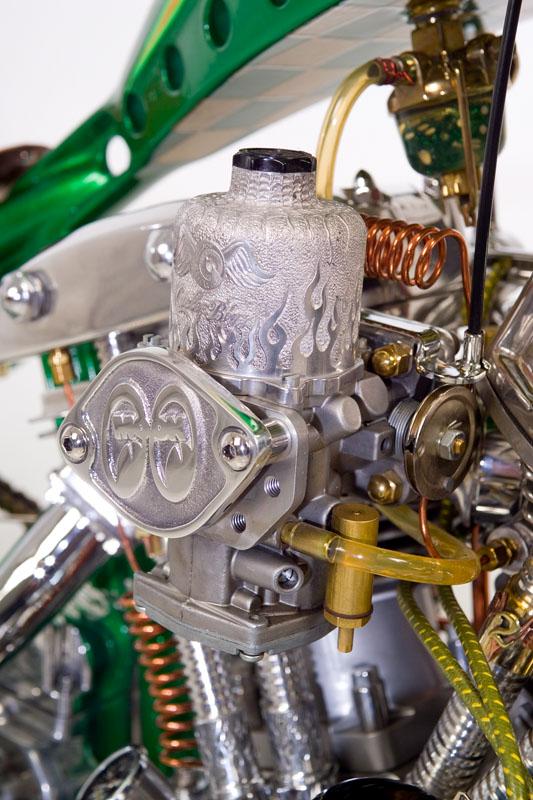

The rough beginings of a little pan/shovel combo we built in about 06. Stock HD cone shovel cases, 74″ rotating assembly with .010 over 80″ cylinders that we took the bottom three fins off. STD heads and SU carb. The frame was built from three original Ford straight axles that we added some more curve to. Tons of help on this frame from a good friend Carlyle or I should say I helped him.. Stainless sleeves welded through the tank and Ludwig “Speed King” bass drum pedals for floor boards with a pulley/cable clutch which at that time we hadn’t seen before.. Our plan was to nickel plate the frame on this bike and just paint the tank and fender but time didn’t allow.. I want it back! Posted by Cycleboyz
Built In: Canada Bike Style: Chopper
Image Gallery
Master Delux Bike Specifications – Cycle Boyz
| FEATURE | SPECS |
|---|---|
| Class Styling | Chopper |
| Engraving | Engraving by New Line – Heather |
| Featured Parts | Frisco Mount Gastank |
| Gastank | Villain Gastank |
| Handlebars / Risers | Ape Hangers |
| Motor Brand | Harley Davidson |
| Motor Config | Shovel Pan |
| Paint Color(s) | Green |
| Suspension Front | Springer |
| Suspension Rear | Rigid / Hardtail |
| Wheels | Standard 80-100 spokes |
