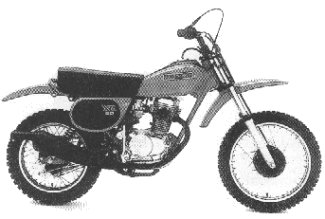

1979 XR80’79
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch. |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| N/A | |
OTHER |

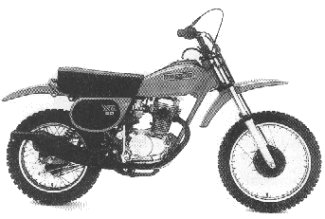

- The Honda XR80’79 was sold in 1979 and was available in one color: Tahitian Red
- The “HONDA” fuel tank decal was red outlined in white
- The seat was black without a side logo
- The side cover panels were black and the “XR80” logo on it was red and white
- The serial number began HE01-5000012.

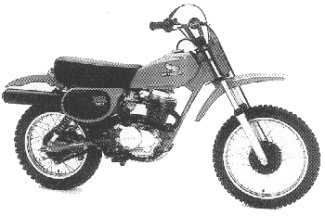

1980 XR80’80
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch. |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| N/A | |
OTHER |
- The Honda XR80’80 was sold in 1980 and was available in one color: Tahitian Red
- The fuel tank decal was a yellow wing with the word, “HONDA” beneath it
- The seat was black without a side logo
- The side cover panels were black and the “XR80” logo on it was red and white
- The serial number began HE01-5100003.
1981 XR80’81
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch. |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| N/A | |
OTHER |

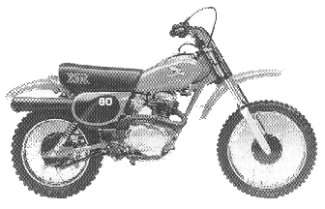

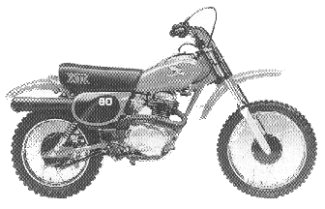

- The Honda XR80’81 was sold in 1981 and was available in one color: Tahitian Red
- The fuel tank decal was a yellow wing with the word, “HONDA” beneath it
- The seat was black with a red “XR” logo
- The side cover panels were black with a white “80” logo
- The serial number began JH2HE0105BK200003.
1982 XR80’82
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch. |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| N/A | |
OTHER |

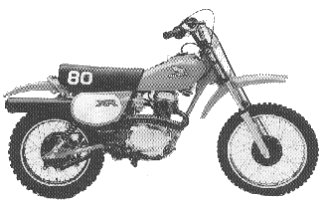

- The Honda XR80’82 was sold in 1982 and was available in one color: Tahitian Red
- The fuel tank decal was a yellow wing with the word, “HONDA” beneath it
- The seat was black with a white “80” logo
- The side cover panels were white with a red “XR” logo
- The serial number began JH2HE0105CK300004.

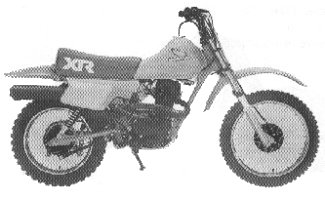

1983 XR80’83
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch. |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| N/A | |
OTHER |
- The Honda XR80’83 was sold in 1983 and was available in one color: Flash Red
- The fuel tank decal was a yellow wing with the word, “HONDA” beneath it
- The seat was black with a white “XR” logo
- The side cover panels were yellow with a white “80” logo
- There was a new shape for the fuel tank, fenders, and side covers
- The engine and crankcases were now black
- The serial number began JH2HE0106DK400004.

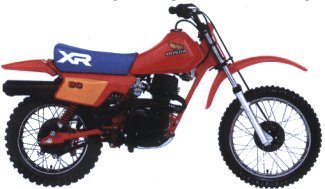

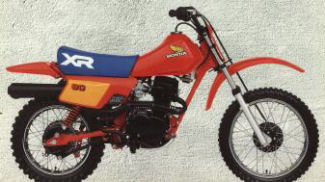

1984 XR80’84
Engine |
|
| Engine Type | 80cc OHC four-stroke, 2-valve, single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front sprocket | Leading axle front fork |
| Rear sprocket | Laid-down rear shocks |
DIMENSION |
|
| Wheelbase | 1140mm (44.9 in.) |
| Dry weight | 66.5 kg (146.6 lb) |
| Seat height | 725mm (28.5 in.) |
OTHER |
- The Honda XR80’84 was sold in 1984 and was available in one color: Flash Red
- The fuel tank decal was a yellow wing with the word, “HONDA” beneath it
- The seat was blue with a white “XR” logo
- The side cover panels were white with a red “80” logo
- The serial number began JH2HE0105EK500001.

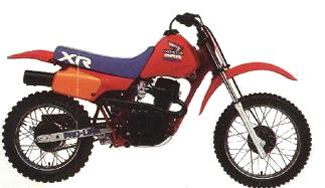

1985 XR80R’85
Engine |
|
| Engine Type | 80cc OHC four-stroke, 2-valve, single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A | |
OTHER |
- The Honda XR80R’85 was sold in 1985 and was available in one color: Flash Red
- The seat was blue with a white “XR” logo
- The side cover panel was yellow
- The fuel tank wing decal was now red, white, and blue
- The “80R” fuel tank decal was 2-tone white and blue
- The bike now had a plastic fuel tank which was shaped differently
- The serial number began JH2HE010XFK600001.
1986 XR80R
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A | |
OTHER |

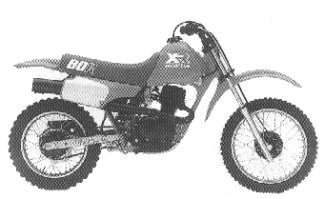

- The Honda XR80R’86 was sold in 1985 and was available in one color: Flash Red
- The seat was blue with a white “80R” logo
- The side cover panel was yellow
- The fuel tank “XR HONDA” decal was now white and red
- The serial number began JH2HE0104GK70001.

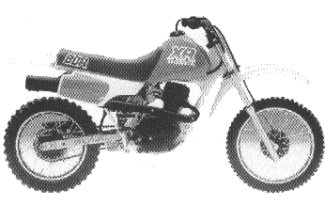

1987 XR80R
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’87 was sold in 1987 and came in just one color: Flash Red with Shasta White
- The fuel tank and number plate panels were red
- The fenders, frame, and number plates were white
- The seat was blue with a white outline “80R” logo
- The fuel tank decals were white
- The serial number began JH2HE0109HK800001.

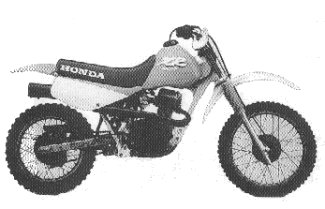

1988 XR80R’88
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’88 was sold in 1988 in one color: Flash Red with Shasta White.
- The fuel tank side panels and rear fenders were red
- The front fender, number plates, and frame were white
- The engine was silver and black
- The seat was blue with a white “HONDA” logo
- The fork boots were red while the handguards were white
- The serial number began JH2HE0108JK900001.

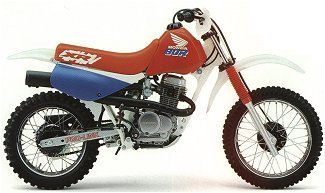

1990 XR80R
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’90 was sold in 1990 in Flash Red with Shasta White
- The fuel tank, seat, and fork boots were red while the fenders, frame, and handguards were white
- The “80R” logo on the tank and the side cover panel were blue
- The “PRO-LINK” swingarm decal had a red outline
- The serial number began JH2HE010*LK000001.

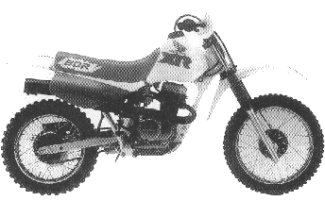

1991 XR80R
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’91 was sold in 1991 in one color: Shasta White with Rainbow Blue
- The seat was red while the fork boots and side cover panels were blue
- The “XR” logo on the fuel tank was red and blue
- The serial number began JH2HE010*MK100001.

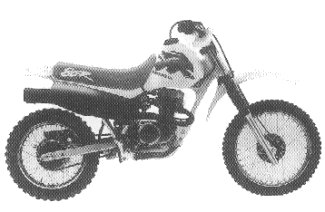

1993 XR80R’93
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’93 was sold in 1993 in one color: Shasta White with Rainbow Blue
- The fuel tank wing logo was deleted this year
- The “80R” decal on the seat was white
- The points ignition was replaced with a CD ignition
- The serial number began JH2HE010*PK200001.

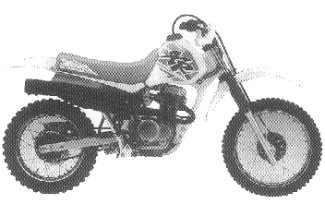

1994 XR80R’94
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |
- The XR80R’94 was sold in 1994 in one color: Shasta White with Rainbow Blue
- The fuel tank “XR” logo was redesigned, but the word “HONDA” on the tank was red
- The serial number began JH2HE010*RK300001.

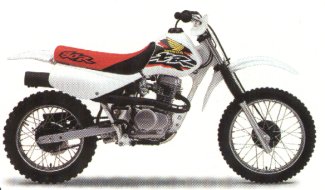

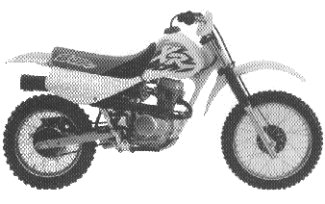

1998 XR80R’98
Engine |
|
| Engine Type | 80cc OHC single cylinder |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed transmission and manual clutch |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| The suspension was a Pro-Link | |
DIMENSION |
|
| N/A |

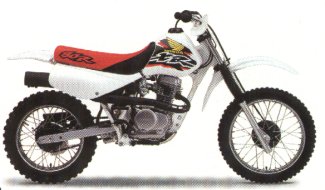

- The XR80R’98 was sold in 1998 and like the previous year it came in Shasta White
- The fuel tank logo was redesigned to include a yellow “HONDA” wing logo
- The “80R” logo on the seat was black
- The serial number began JH2HE010*WK700001.

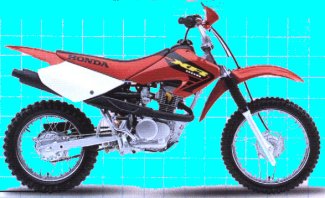

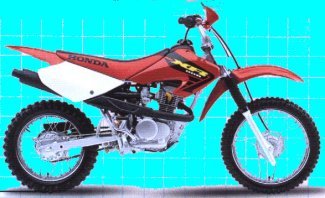

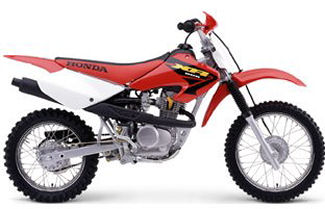

2002 XR80R’02
Engine |
|
| Engine | Air cooled, single cylinder four stroke |
| Displacement | 80cc |
| Bore & Stroke | 47.5mm x 45mm |
| Compression ratio | 9.7:1 |
| Spark plug | CR7HSA |
| Plug gap | .028 |
| Valve system | SOHC 2-valve |
| Fuel Delivery | Single, 18mm |
| Starting system | Kick |
DRIVETRAIN |
|
| Transmission | Close-ratio, 5-speed |
| Final drive | Chain |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front tire | 2.50-16 |
| Rear tire | 3.00-14 |
| Front suspension | 27 mm fork, 140 mm travel |
| Rear suspension | Pro-Link single shock 110mm travel |
| Front brake | Mechanical drum |
DIMENSION |
|
| Seat height | 727mm (28.6 in.) |
| Wheelbase | 1208mm (47.6 in.) |
| Dry weight | 70 kg (154 lb) |
| Fuel capacity | 5.6 liters |
OTHER |
|
| Color | Red |

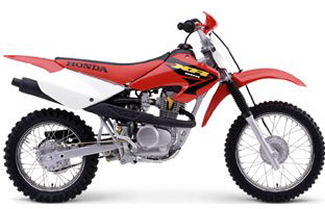

2003 XR80’03
Engine |
|
| Engine | Air cooled, single cylinder four stroke |
| Displacement | 80cc |
| Bore & Stroke | 47.5mm x 45mm |
| Compression ratio | 9.7:1 |
| Spark plug | CR7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final drive | N/A |
| Chain | #420 x 110 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front tire | 2.50-16 |
| Rear tire | 3.00-14 |
| Front suspension | 27 mm fork, 140 mm travel |
| Rear suspension | Pro-Link single shock 110mm travel |
DIMENSION |
|
| Ground clearance | 205mm (8.1 in.) |
| Seat height | 726mm (28.6 in.) |
| Wheelbase | 1168mm (47.6 in.) |
| Dry weight | 70 kg (154 lb) |
| Fuel capacity | 5.7 liters (including 1.1 liters reserve) |
OTHER |
|
| Color | Red |

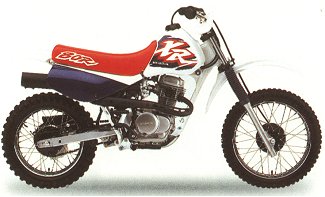

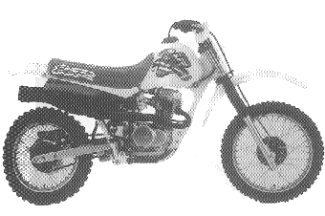

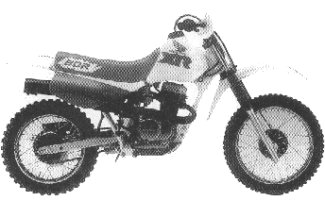

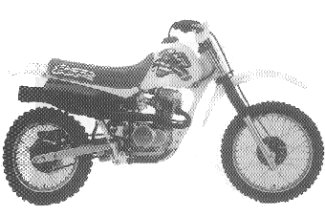

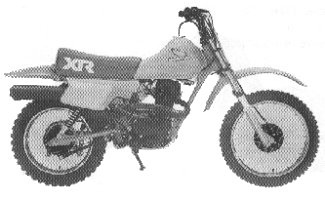

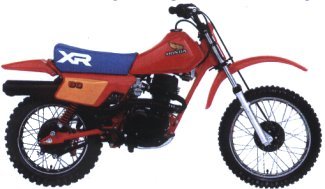

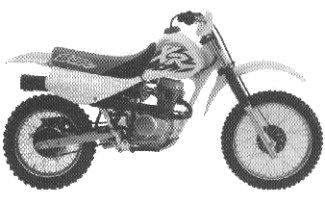

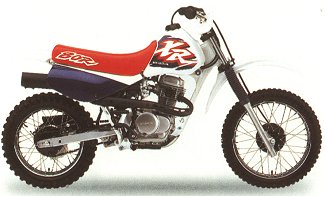

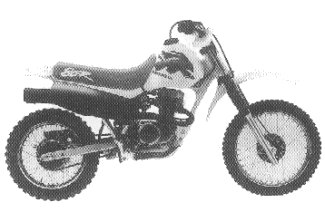

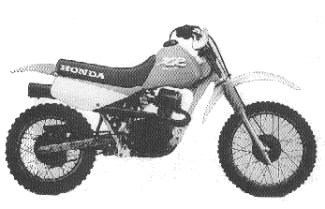

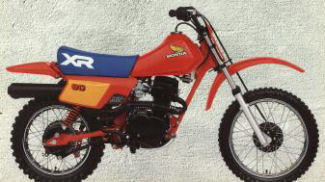

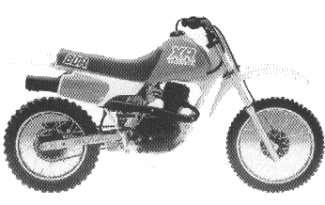

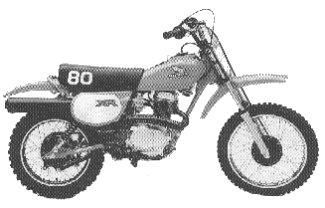

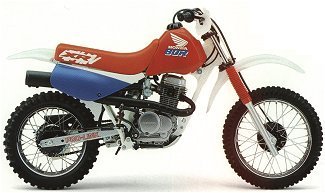

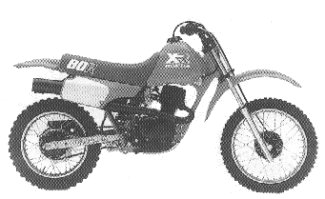

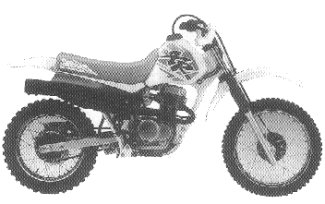

XR80R Image Gallery
