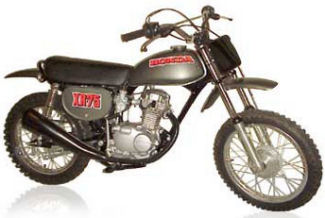

1973 Honda XR75K0
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Available color: Rubber Gray Metallic
- The “HONDA” fuel tank decal and top stripes were red
- The “XR75” number plate decals were red
- Fenders were metallic gray
- Serial number began: XR75-1000001

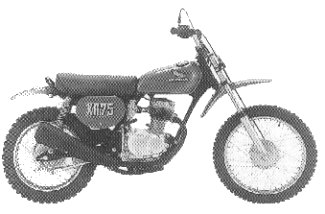

1974 Honda XR75K1
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Color: Rubber Gray Metallic
- Fuel tank decal was a Honda wing
- Fuel tank had a new shape
- The “XR75” number plate decals were yellow
- Fenders were metallic gray
- Serial number began XR75-1100001

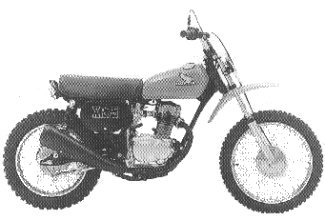

1975 Honda XR75K2
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Available color: Tahitian Red with Special Silver Metallic
- Fuel tank: red
- Fenders: silver
- Tank decal was still a Honda wing
- The “XR75” number plate decals were black, outlined in yellow
- The side plates themselves were black while the front plate was white
- Serial number began XR75-1200002

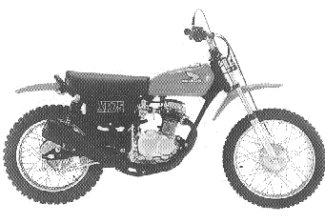

1976 Honda XR75-76
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Available color: Tahitian Red
- Fuel tank and fenders were red
- Tank decal was still a Honda wing
- The “XR75” number plate decals were black, outlined in yellow
- The side plates themselves were black while the front plate was white
- Serial number began: XR75-1300001

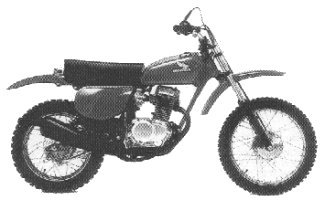

1977 Honda XR75-77
Engine |
|
| Engine Type | 75cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Available color: Tahitian Red
- The fuel tank and fenders were red
- The frame and side covers were red
- The front fork legs were black
- The hubs were silver
- The tank decal was still a Honda wing
- The “XR” number plate decals were red; but the “75” was white
- The top of the rear shocks were moved forward
- The side covers were of a different shape
- The fenders were larger
- Serial number began: XR75-1400013

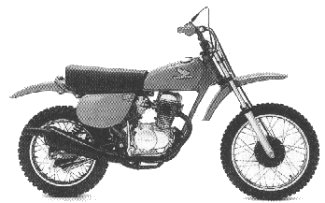

1978 Honda XR75-78
Engine |
|
| Engine Type | 75cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 5-speed with manual clutch |
| Chain | #420 x 100 |
| Front sprocket | 14 T |
| Rear sprocket | 46 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Available color: Tahitian Red
- The fuel tank and fenders were red
- The frame and side covers were red
- The front fork legs were silver
- The hubs were black
- The tank decal was still a Honda wing
- The “XR” number plate decals were blue; but the “75” was white
- The front number plate and handlebar grips were red
- Serial number began: XR75-1500013
