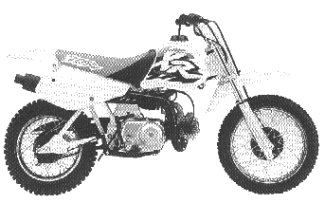

1997 XR70R’97
Engine |
|
| Engine Type | 70cc |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Drive chain | #420 x 86 |
| Front sprocket | 14 T |
| Rear sprocket | 49 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- A new off road model (i.e., no headlight or mirrors, etc.)
- Available color: Shasta White
- Serial number began: JH2DE020*VK000001.

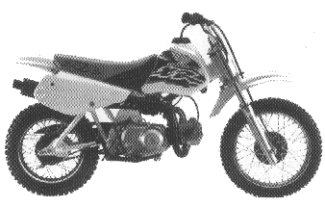

1998 XR70R’98
Engine |
|
| Engine Type | N/A |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Drive chain | #420 x 86 |
| Front sprocket | 14 T |
| Rear sprocket | 49 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
- Similar to the 1997 model except the fuel tank was redesigned to include a yellow “HONDA” wing logo
- Serial number began: JH2DE020*WK100001

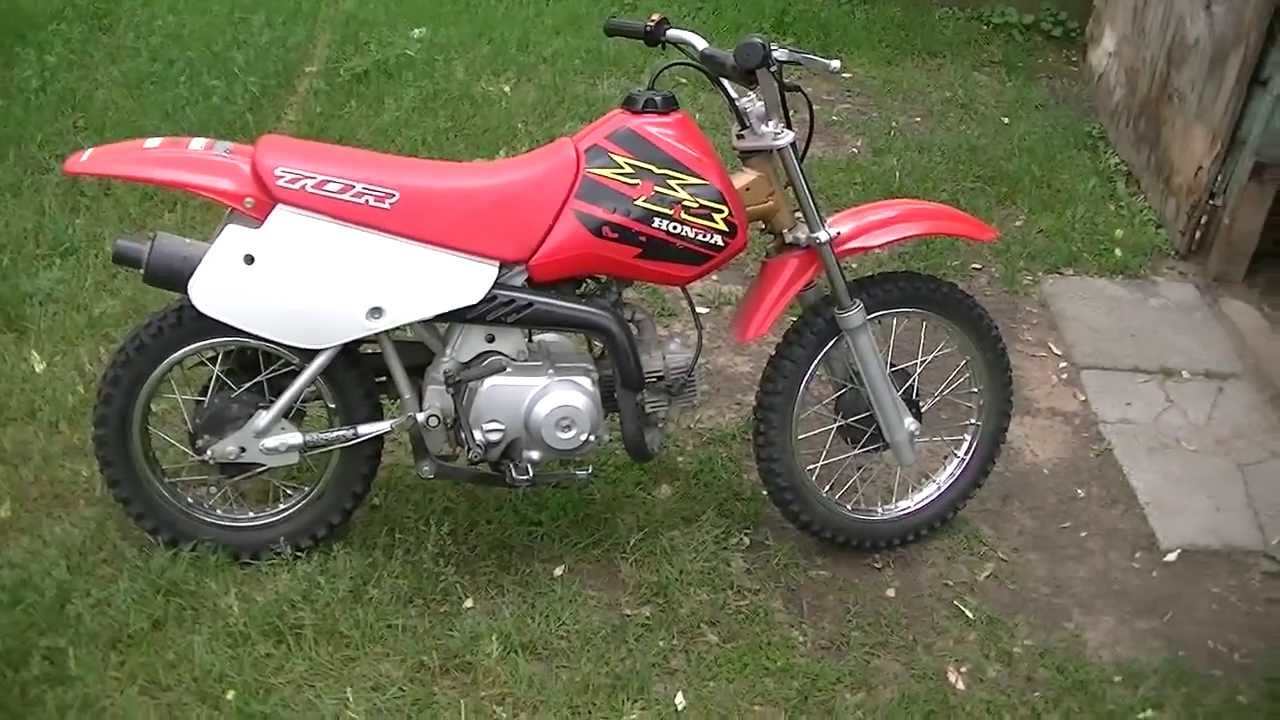

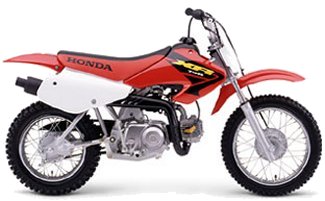

2002 XR70R’02
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 47.5 x 41.4 mm |
| Compression Ratio | 9.0:1 |
| Spark plug | CR6HSA |
| Plug gap | .028 |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Chain | #420 x 86 |
| Front sprocket | 14 T or 15 T |
| Rear sprocket | 49 T or 36 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27mm telescopic fork; 99mm (3.9 in.) travel |
| Rear Suspension | Pro-Link Showa single-shock; 89mm (3.5 in.) travel |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Ground clearance | 163mm (6.4 in.) |
| Seat height | 655mm (25.8 in.) |
| Wheelbase | 1067mm (42.0 in.) |
| Dry weight | 58 kg (128 lb) |
| Fuel capacity | 5.7 liters (including 1.1 liters reserve) |
OTHER |
|
| Color | Red |

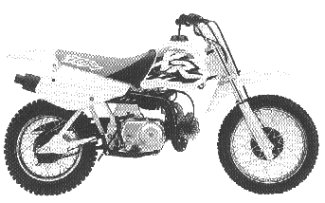

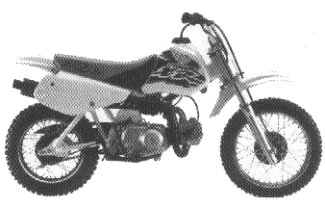

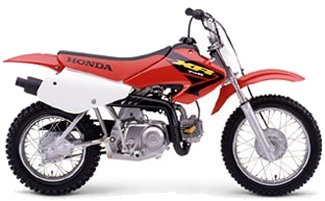

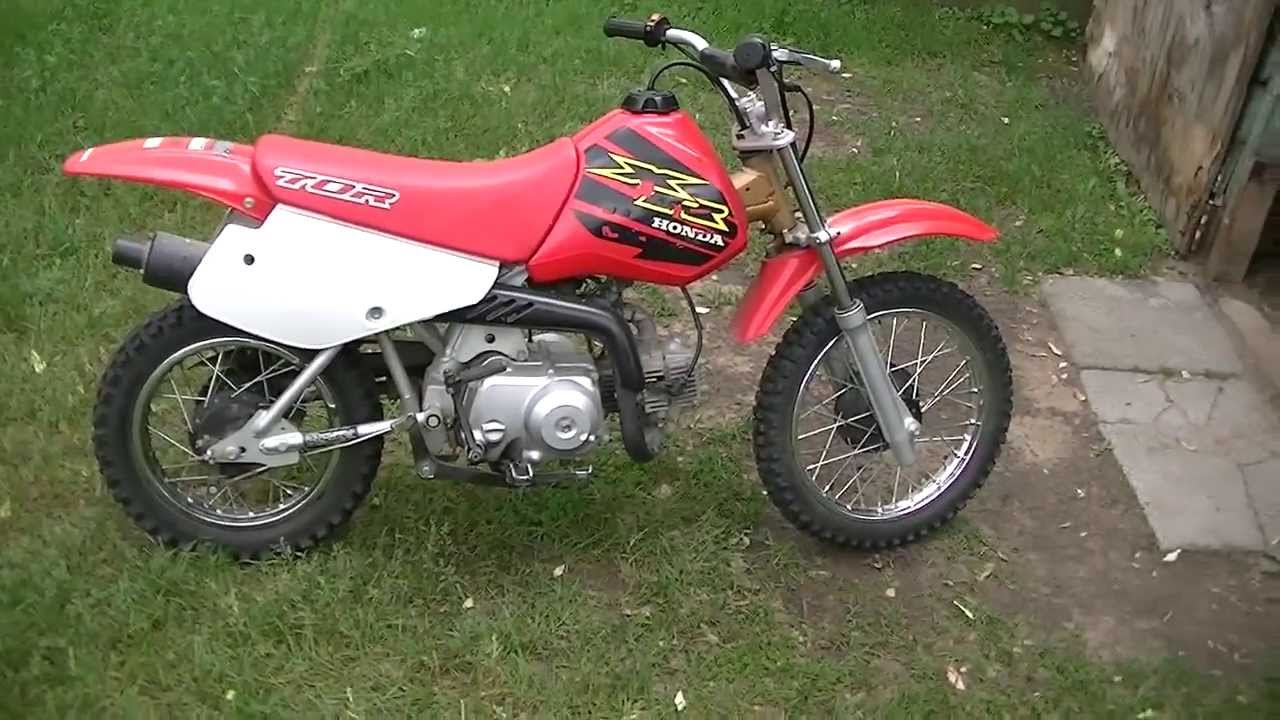

XR70R Image Gallery
