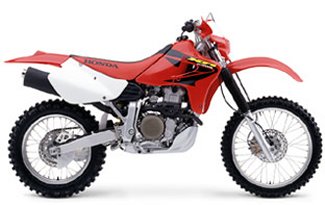

2003 XR650R’03
| Engine | 649cc Liquid-cooled single-cylinder |
| Bore and Stroke | 100.0 x 82.6 mm |
| Compression Ratio | 10.0:1 |
| Transmission | Five-speed |
| Ignition | Solid-state CD with electronic advance |
| Final Drive | O-ring sealed chain 14T/48T |
| Front Suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustment; 284mm (11.2 in.) travel |
| Rear Suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustment; 307mm (12.1 in.) travel |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Ground clearance | 305mm (12.0 in.) |
| Seat height | 935mm (36.8 in.) |
| Wheelbase | 1481mm (58.3 in.) |
| Dry weight | 125 kg (277 lb) |
| Fuel capacity | 9.8 liters (including 1.9 liters reserve) |
| Available color | Red |
| Honda Genuine AccessoriesTM | HRC power-up kit, 430mm work stand |

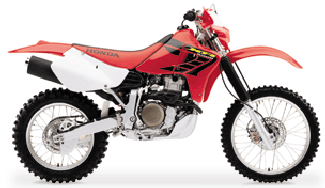

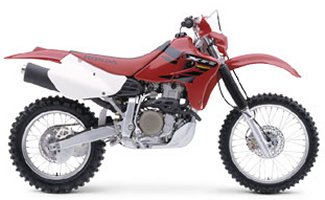

2004 XR650R
| Engine Type | 649cc liquid-cooled dry-sump single-cylinder four-stroke |
| Bore and Stroke | 100.0mm x 82.6mm |
| Compression Ratio | 10.0:1 |
| Valve Train | SOHC; four-valve |
| Ignition | Solid-state CD with electronic advance |
| Transmission | Five-speed |
| Final Drive | #520 O-ring-sealed endless chain; 14T/48T |
| Front Suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability; 11.2-inch travel |
| Rear Suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability; 12.1-inch travel |
| Front Brake | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc with single-piston caliper |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Rake | 27.8 degrees |
| Trail | 111.0mm (4.3 inches) |
| Seat height | 36.8 inches |
| Wheelbase | 58.3 inches |
| Dry weight | 277.0 pounds |
| Fuel capacity | 2.6 gallons, including 0.5 gallon reserve |
| Emissions | California version differs slightly due to emissions equipment. |
| Colors | Red |
| Model ID | XR650R |
| Warranty | 6 months |

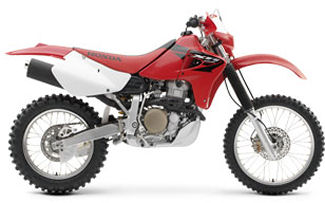

2005 XR650R
| Engine Type | 649cc liquid-cooled dry-sump single-cylinder four-stroke |
| Bore and Stroke | 100.0mm x 82.6mm |
| Compression Ratio | 10.0:1 |
| Valve Train | SOHC; four-valve |
| Ignition | Solid-state CD with electronic advance |
| Transmission | Five-speed |
| Final Drive | #520 O-ring-sealed endless chain; 14T/48T |
| Front Suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability; 11.2-inch travel |
| Rear Suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability; 12.1-inch travel |
| Front Brake | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc with single-piston caliper |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Rake | 27.8 degrees |
| Trail | 111.0mm (4.3 inches) |
| Seat height | 36.8 inches |
| Wheelbase | 58.3 inches |
| Dry weight | 277.0 pounds |
| Fuel capacity | 2.6 gallons, including 0.5 gallon reserve |
| Emissions | California version differs slightly due to emissions equipment. |
| Colors | Red |
| Model ID | XR650R |
| Warranty | 6 months |

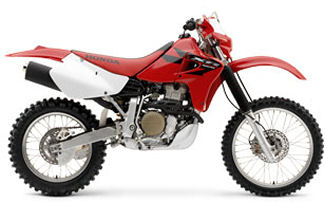

2006 XR650R
Overview: The undisputed king of the desert: multi-time Baja champ XR650R. Does its lightweight aluminum frame and potent liquid-cooled engine have anything to do with it? You better believe it. It’s not just a premier open-class, four-stroke dirt bike. It’s THE premier open-class, four-stroke dirt bike. Period.
| Engine Type | 649cc liquid-cooled dry-sump single-cylinder four-stroke |
| Bore and Stroke | 100.0mm x 82.6mm |
| Compression Ratio | 10.0:1 |
| Valve Train | SOHC; four-valve |
| Ignition | Solid-state CD with electronic advance |
| Transmission | Five-speed |
| Final Drive | #520 O-ring-sealed endless chain; 14T/48T |
| Front Suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability; 11.2-inch travel |
| Rear Suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability; 12.1-inch travel |
| Front Brake | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc with single-piston caliper |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Rake | 27.8 degrees |
| Trail | 111.0mm (4.3 inches) |
| Seat height | 36.8 inches |
| Wheelbase | 58.3 inches |
| Dry weight | 277.0 pounds |
| Fuel capacity | 2.6 gallons, including 0.5 gallon reserve |
| Emissions | California version differs slightly due to emissions equipment. |
| Colors | Red |
| Model ID | XR650R |

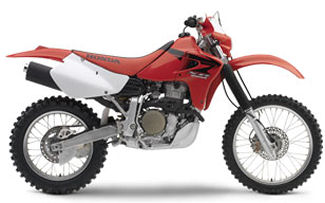

2007 XR650R
Overview: King of Baja. That’s all any desert-riding enthusiast ever has to know about the XR650R, multi-time champ of, without a doubt, the toughest tests of man and machine this side of the Paris-Dakar. Potent power, supple handling, nasty-terrain-swallowing suspension, bulletproof ruggedness — the XR’s got it all in spades. Looking for the toughest off-road bike on the market? Then look no further than the King.
| Engine Type | 649cc liquid-cooled dry-sump single-cylinder four-stroke |
| Bore and Stroke | 100.0mm x 82.6mm |
| Compression Ratio | 10.0:1 |
| Valve Train | SOHC; four-valve |
| Ignition | Solid-state CD with electronic advance |
| Transmission | Five-speed |
| Final Drive | #520 O-ring-sealed endless chain; 14T/48T |
| Front Suspension | 46mm leading-axle Kayaba cartridge fork with compression- and rebound-damping adjustability; 11.2-inch travel |
| Rear Suspension | Pro-Link Kayaba single-shock with spring-preload, compression- and rebound-damping adjustability; 12.1-inch travel |
| Front Brake | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc with single-piston caliper |
| Front Tire | 80/100-21 |
| Rear Tire | 110/100-18 |
| Rake | 27.8 degrees |
| Trail | 111.0mm (4.3 inches) |
| Seat height | 36.8 inches |
| Wheelbase | 58.3 inches |
| Dry weight | 277.0 pounds |
| Fuel capacity | 2.6 gallons, including 0.5 gallon reserve |
| Emissions | California version differs slightly due to emissions equipment. |
| Colors | Red |
| Model ID | XR650R |

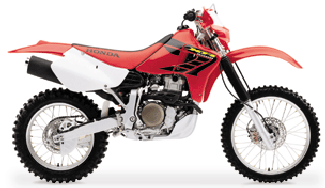

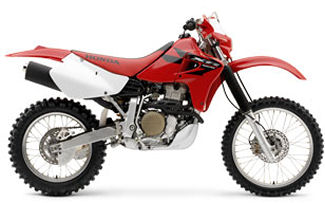

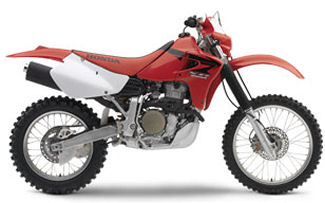

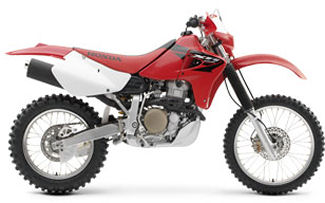

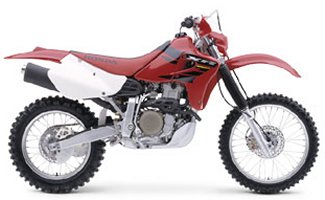

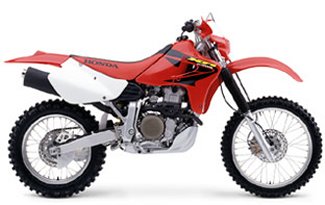

XR650R Image Gallery
