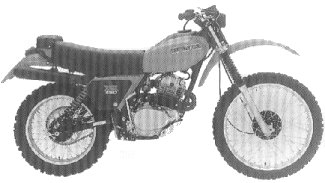

1979 XR250’79
Engine
|
|
| Engine Type |
249cc OHC 4-valve single cylinder with 2 head pipes |
| Spark plug |
D8EA |
| Plug gap |
.028 |
DRIVETRAIN
|
|
| Transmission |
5-speed |
| Chain |
#520 x 102 |
| Front sprocket |
13 T |
| Rear sprocket |
53 T |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front wheel |
23″ |
| Rear wheel |
18″ |
DIMENSION
|
N/A |
OTHER
|
|
| Color |
Tahitian Red |
- The “HONDA” tank decal was red
- The top of the tank, side cover panel, and headlight cowl were black
- The “XR250” side cover logo was red and white
- The serial number began ME01-5000032.

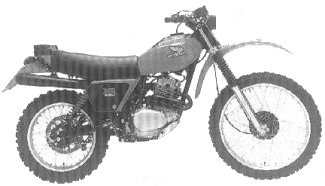

1980 XR250’80
Engine
|
|
| Engine Type |
4 stroke, single cylinder, liquid cooled, with oil radiator |
| Displacement |
249cc |
| Bore & Stroke |
73mm x 59.5mm |
| Compression Ratio |
9.3:1 |
| Lubrication system |
forced oil pump wet sump |
| Carburetor |
constant velocity vacuum piston valve |
| Ignition |
CDI |
| Starter |
Electric |
| Maximum horsepower |
23 hp @ 7,500 rpm |
DRIVETRAIN
|
|
| Transmission |
6-speed |
| Clutch |
Multi-disc in oil bath |
| Drive |
Chain |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
telescopic Bracket, 245 mm of travel |
| Rear Suspension |
Pro-Link, 242 mm of travel |
| Front Brake |
hydraulic Disk |
| Rear Brake |
mechanical Drum |
| Spokes |
Wire |
| Front Tire |
90/90-21 54S |
| Rear Tire |
120/80-18 62S |
DIMENSION
|
|
| Dry weight |
134 kg |
| Overall length |
2,147 mm |
| Width |
845 mm |
| Height |
1,198 mm |
| Fuel capacity |
11.5 liters (3.7 liters reserve) |
| Wheelbase |
1,427 mm |
| Seat height |
880 mm |
| Ground clearance |
281 mm |
OTHER
|
|
| Color |
|
It was sold in Mexico and other countries.

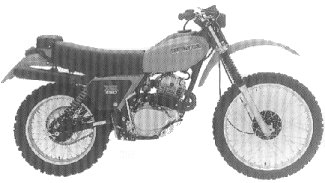

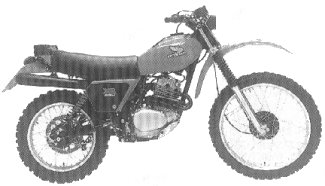

XR250 Image Gallery
