2004 XR125L
Engine |
|
| Engine Type | Air-cooled 4-stroke OHV single |
| Displacement | 124cc |
| Bore and Stroke | 56.5 x 49.5mm |
| Compression Ratio | 9.5 :1 |
| Max. Power Output | 8.3kW/8500min-1 (95/1/EC) |
| Max. Torque | 10Nm/7000min-1 (95/1/EC) |
| Fuel Delivery | 22mm PD-type carburetor |
| Ignition | Digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Roller chain |
| Front Wheel | 19 x MT1.85 |
| Rear Wheel | 17 x MT2.15 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 180mm axle travel |
| Rear Suspension | Monoshock damper, 160mm axle travel |
| Front Brakes | 240mm hydraulic disc with dual-piston caliper and resin mould pads |
| Rear Brakes | 110mm leading/trailing drum |
| Front Tire | 90/90-19 64J |
| Rear Tire | 110/90-17 64J |
DIMENSION |
|
| Seat Height | 820mm |
| Wheelbase | 1350mm |
| Dry Weight | 115.5kg |
| Fuel Capacity | 12 litres (including 4.1-litre reserve) |
| Length x Width x Height | (LxWxH) 2060 x 810 x 1130mm |
| Ground Clearance | 250mm |
OTHER |
2007 XR125L
Engine |
|
| Engine Type | Air-cooled 4-stroke OHV single |
| Displacement | 124cc |
| Bore and Stroke | 56.5 x 49.5mm |
| Compression Ratio | 9.5 :1 |
| Max. Power Output | 8.3kW/8500min-1 (95/1/EC) |
| Max. Torque | 10Nm/7000min-1 (95/1/EC) |
| Fuel Delivery | 22mm PD-type carburetor |
| Ignition | Digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Roller chain |
| Front Wheel | 19 x MT1.85 |
| Rear Wheel | 17 x MT2.15 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 180mm axle travel |
| Rear Suspension | Monoshock damper, 160mm axle travel |
| Front Brakes | 240mm hydraulic disc with dual-piston caliper and resin mould pads |
| Rear Brakes | 110mm leading/trailing drum |
| Front Tire | 90/90-19 64J |
| Rear Tire | 110/90-17 64J |
DIMENSION |
|
| Seat Height | 820mm |
| Wheelbase | 1,350mm |
| Dry Weight | 115.5kg |
| Fuel Capacity | 12 litres (including 4.1-litre reserve) |
| Length x Width x Height | 2,060 x 810 x 1,130mm |
| Ground Clearance | 250mm |
OTHER |

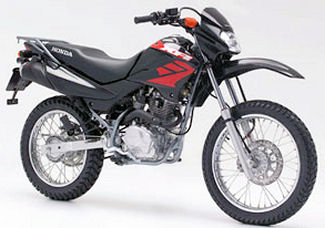

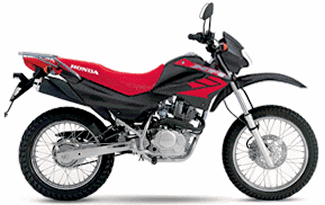

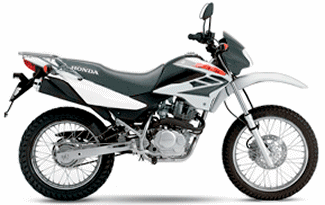

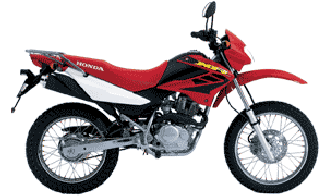

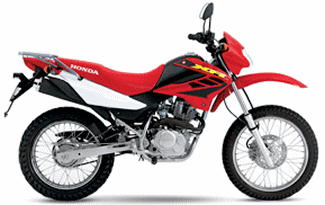

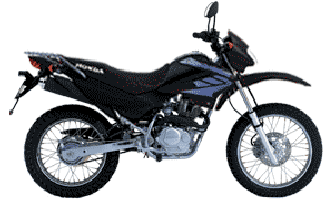

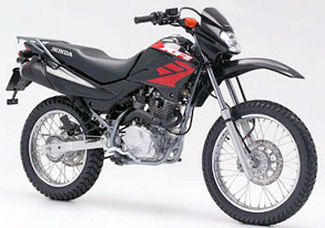

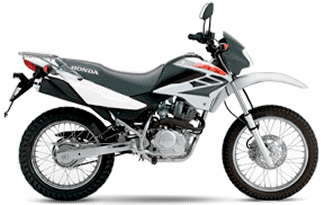

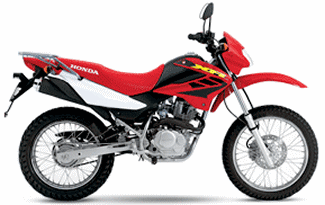

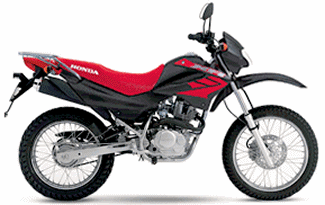

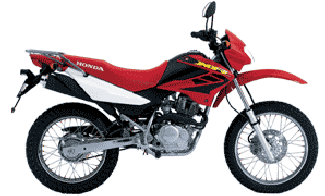

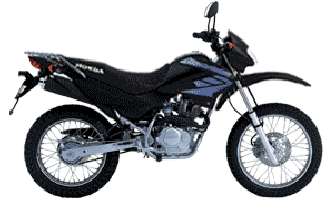

XR125 Image Gallery
