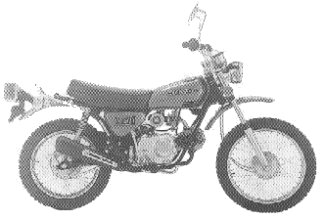

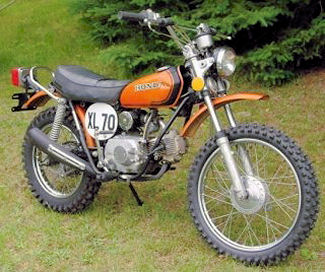

1974 Honda XL70K0
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Drive chain | #420 x 96 |
| Front sprocket | 13 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|

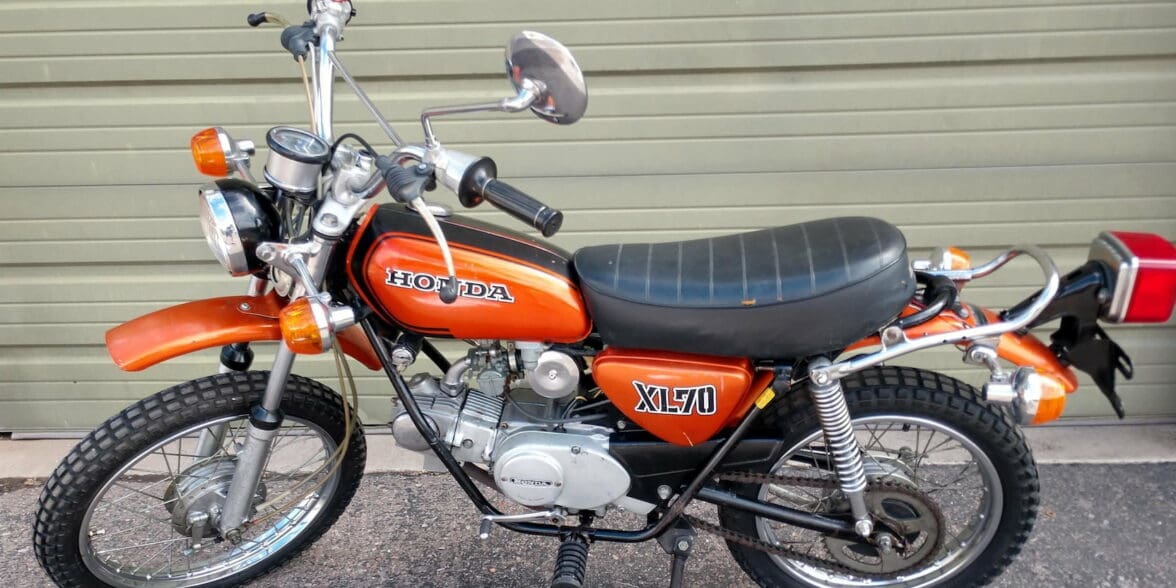

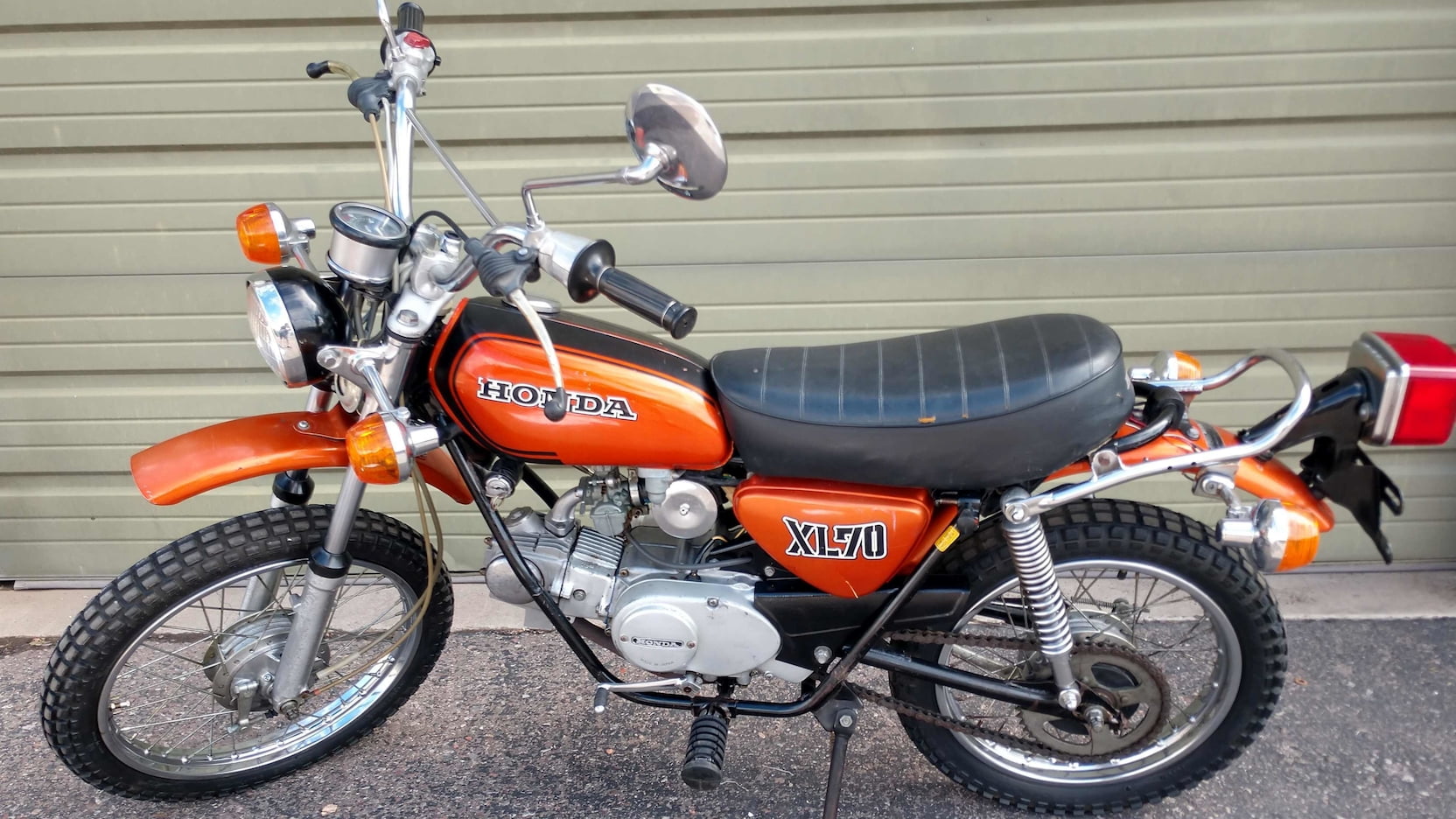

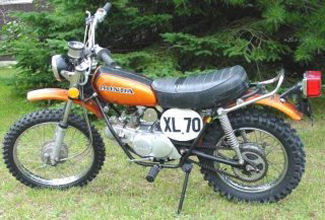

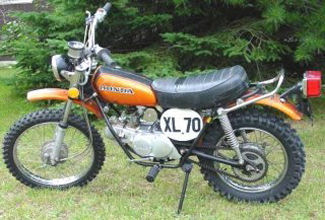

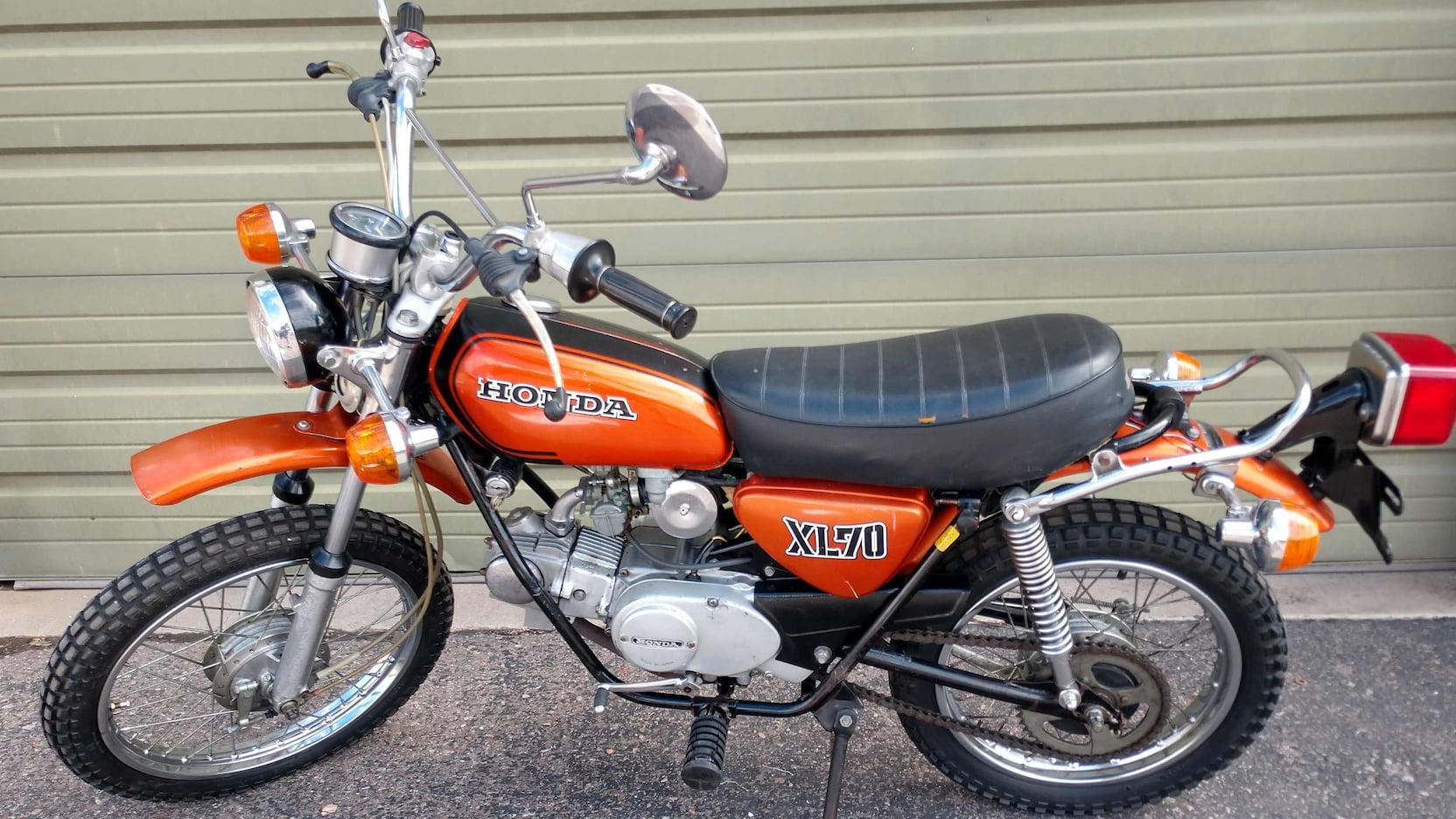

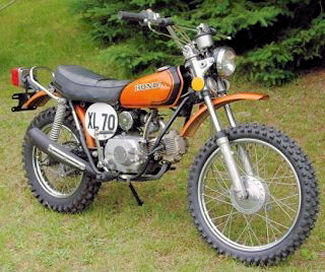

| Colors | Candy Topaz Orange |
- The “HONDA” and “XL70” decals were black
- Fuel tank stripes: black
- Shock springs: chrome
- Steel fenders: orange
- The serial number began: XL70-1000001
1975 Honda XL70K1
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Drive chain | #420 x 96 |
| Front sprocket | 13 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|

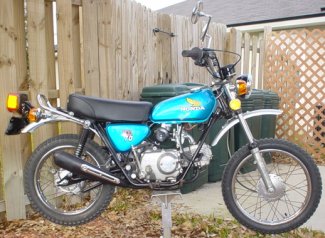

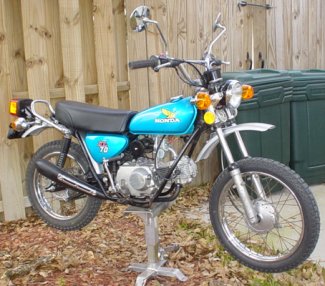

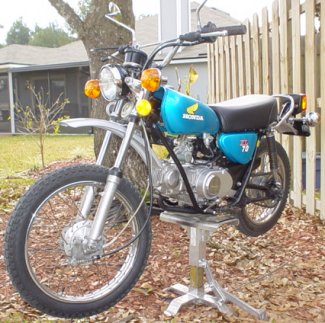

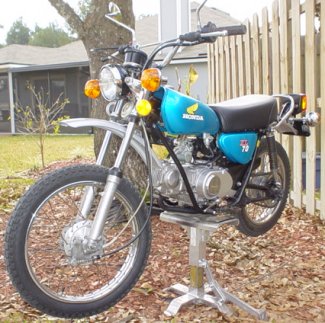

| Colors | Candy Riviera Blue with Silver |
- “XL70” logo was red and white
- The shock springs were black
- The steel fenders were silver
- Serial number began: XL70-1100003

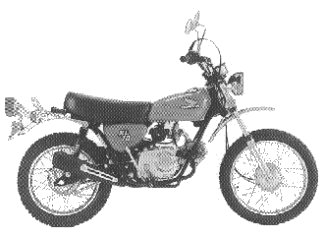

1976 Honda XL70’76
Engine |
|
| Engine Type | 72cc OHC single cylinder |
| Spark plug | C7HSA |
| Plug gap | .028 |
| Battery | 6N4C-1B — 6 volt |
DRIVETRAIN |
|
| Transmission | 4-speed with manual clutch |
| Drive chain | #420 x 96 |
| Front sprocket | 13 T |
| Rear sprocket | 44 T |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Colors | Mighty Green with Special Silver Metallic |
- The “XL70” logo was yellow and white
- The steel fenders were silver
- The serial number began XL70-1200003

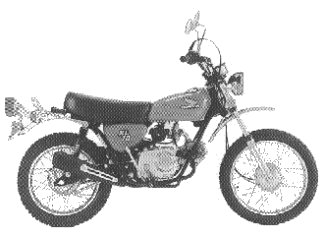

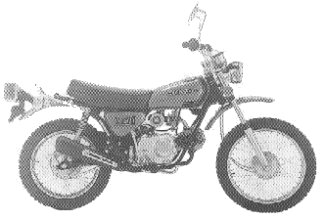

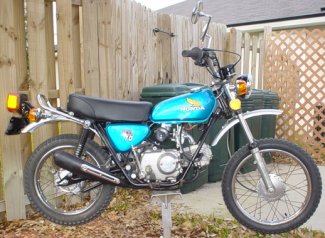

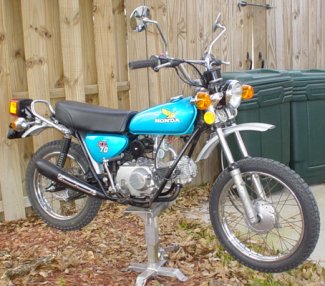

XL70 Image Gallery
