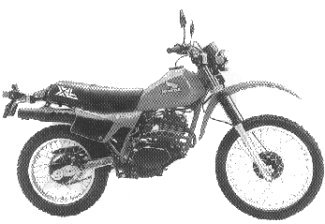

1982 XL250R’82
Engine |
|
| Engine Type | 249cc OHC 4-valve single cylinder with two exhaust pipes |
| Spark plug | DR8ES-L |
| Plug gap | 028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Clutch | #520 x 102 |
| Front sprocket | 14 T |
| Rear sprocket | 47 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-Link suspension |
| Front wheel | 21″ |
| Rear wheel | 17″ |
DIMENSION |
N/A |
OTHER |
|

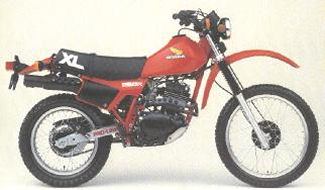

| Color | 1982 in Monza Red |
- The gas tank, side covers, fenders, and frame were red
- The engine was black while the swing arm was silver
- The serial number began JH2MD030*CM000008.

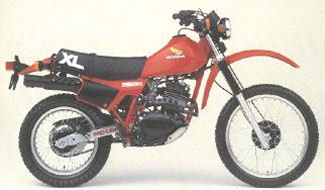

1983 XL250R’83
Engine |
|
| Engine Type | 249cc OHC 4-valve single cylinder with two exhaust pipes |
| Spark plug | DR8ES-L |
| Plug gap | .028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Clutch | #520 x 102 |
| Front sprocket | 14 T |
| Rear sprocket | 47 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-Link suspension |
| Front wheel | 21″ |
| Rear wheel | 17″ |
DIMENSION |
N/A |
OTHER |
|

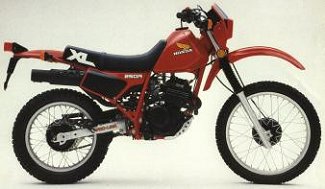

| Color | Monza Red |
- The “XL” logo on the side of the seat was solid white
- The “250R” side cover had a graphic design
- The gas tank, side covers, fenders, and frame were red
- The engine was black while the swing arm was silver
- The serial number began JH2MD030*DM100001.

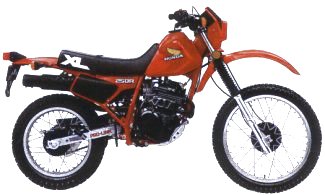

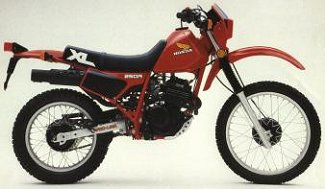

1984 XL250R’84
Engine |
|
| Engine Type | 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes |
| Spark plug | DPR9Z |
| Plug gap | .028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Clutch | #520 x 102 |
| Front sprocket | 13 T |
| Rear sprocket | 40 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-LinkTM rear suspension |
| Front wheel | 21″ |
| Rear wheel | 17″ |
DIMENSION |
|
| Wheelbase | 1380mm (54.3 in.) |
| Dry weight | 17 kg (257.9 lb) |
| Seat height | 855mm (33.7 in.) |
| Front wheel travel | 220mm (8.7 in.) |
| Rear wheel travel | 195mm (7.7 in.) |
OTHER |
|
| Color | Monza Red |

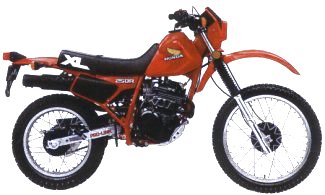

- The headlamp was rectangular with a number plate cowling
- The seat and fork boots were black
- The “250R” side cover decal was white while the number plate panels were black
- The serial number began JH2MD110*EK000009.

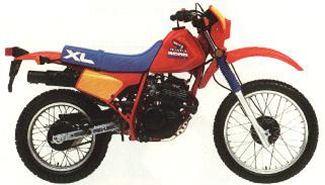

1985 XL250R’85
Engine |
|
| Engine Type | 249cc OHC RFVC single cylinder with two carburetors and two head pipes |
| Spark plug | DPR9Z |
| Plug gap | .028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Clutch | #520 x 102 |
| Front sprocket | 13 T |
| Rear sprocket | 40 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-Link suspension |
DIMENSION |
|
| Front wheel | 21″ |
| Rear wheel | 17″ |
OTHER |
|
| Color | Monza Red |

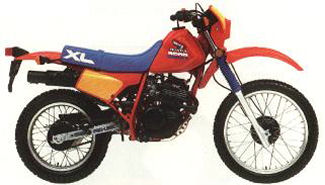

- The Honda wing tank decal was red, white, and blue
- The “250R” tank decal was white and blue
- The headlamp was rectangular with a number plate cowling
- The seat and fork boots were blue
- The number plate panels were yellow
- The serial number began JH2MD110*FK100007.

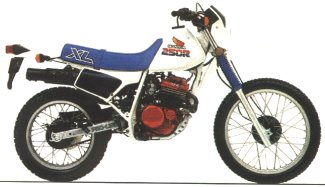

1986 XL250R’86
Engine |
|
| Engine Type | 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes |
| Spark plug | DPR9Z |
| Plug gap | .028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed transmission. |
| Clutch | #520 x 102 |
| Front sprocket | 13 T |
| Rear sprocket | 40 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-Link suspension |
DIMENSION |
|
| Front wheel | 21″ |
| Rear wheel | 17″ |
OTHER |
|

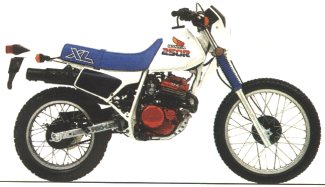

| Color | Shasta White |
- The Honda wing tank decal was red, orange, and yellow
- The “250R” tank decal was red and blue
- The engine color was red
- The number plate panels were black
- The headlamp was rectangular with a number plate cowling
- The serial number began JH2MD110*GK200001.

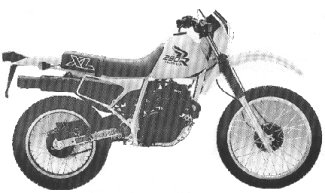

1987 XL250R’87
Engine |
|
| Engine Type | 249cc OHC RFVC radial valve, single cylinder with two carburetors and two head pipes |
| Spark plug | DPR9Z |
| Plug gap | .028 |
| Electricals | 12-volt electrical system |
| Battery | YB3L-A — 12 volt |
DRIVETRAIN |
|
| Transmission | 6-speed transmission. |
| Clutch | #520 x 102 |
| Front sprocket | 13 T |
| Rear sprocket | 40 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Suspension | Pro-Link suspension |
| Front wheel | 21″ |
| Rear wheel | 17″ |
DIMENSION |
N/A |
OTHER |
|
| Color | Shasta White |
- The Honda wing tank decal was red, white, and blue
- The “250R” tank decal was blue and red
- The headlamp was rectangular with a number plate cowling
- The engine color was red
- The number plate panels were black
- The serial number began JH2MD110*HK300001.
XL250R Image Gallery
