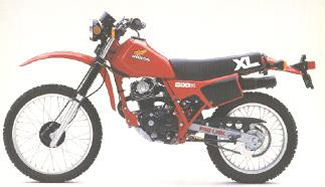

1983 XL200R’83
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 195cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Color | just one color: Monza Red |
- The fuel tank, side covers, fenders, and frame were red
- The side cover panels, seat, and fork boots were black
- The “200R” side cover decal was solid white
- The California model serial number began JH2MD0611DK000001 while the other 49 states models had a serial number which began JH2MD0602DK000001.

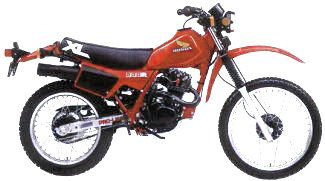

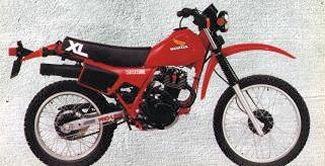

1984 XL200R’84
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 195cc |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
| Front Suspension | Air-assisted fork |
| Rear Suspension | Pro-LinkTM |
| Front wheel travel | 220mm (8.7 in.) |
| Rear wheel travel | 190mm (7.5 in.) |
DIMENSION |
|
| Wheelbase | 1373mm (54 in.) |
| Dry weight | 106 kg (233.6 lb) |
| Seat height | Seat height |
OTHER |
- It also came in one color: Monza Red
- It was just like the 1983 model except the “200R” side cover decal was red with a white outline
- The California model serial number began JH2MD0616EK100001 while the other 49 states models had a serial number which began JH2MD0607EK000001.

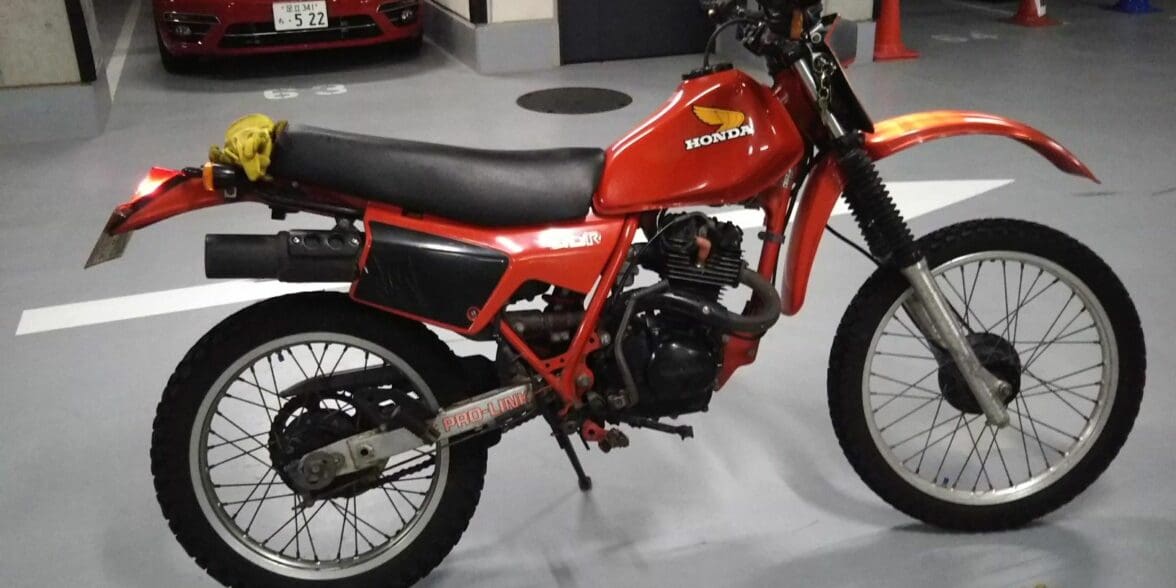

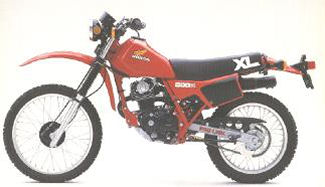

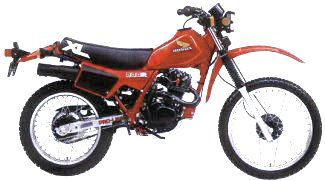

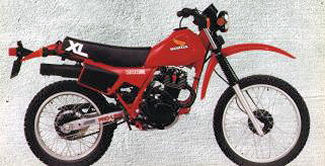

XL200R Image Gallery
