Honda XL350 & XL350R Motorcycles

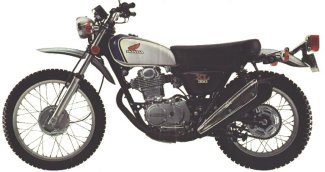

1974 XL350K0

• It came in one color: Metallic Silver with blue stripes
• The gas tank, fenders, and headlight shell were silver
• The stripes on the gas tank and fender were blue
• The side covers were matte black
• The “XL350” side cover decal was orange and white
• The engine was a 348cc OHC 4-valve single cylinder linked to a 5-speed transmission
• The serial number began XL350-1000001

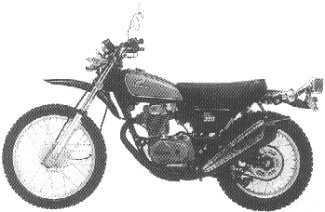

1975 XL350K1

• It came in one color: Excell Black with Red and White
• The gas tank and side covers were 2-tone black and red
• The fenders were white color impregnated plastic
• The “XL350” side cover decal was black with a white outline
• The bike had a new frame and chassis with an upswept exhaust system
• The engine was a 348cc OHC 4-valve single cylinder linked to a 5-speed transmission
• The serial number began XL350-3000001

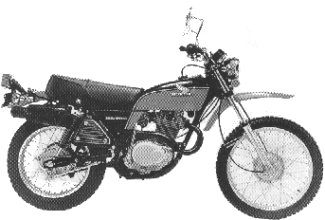

1977 XL350’77

• It came in one color: Tahitian Red with Black
• The gas tank and side covers were 2-toned black and red
• The fenders were red, color impregnated plastic
• The “XL350” side cover decal was also red
• The bike had the new frame and chassis with an upswept exhaust system introduced in 1976
• The engine was a 348cc OHC 4-valve single cylinder linked to a 5-speed transmission
• The serial number began XL350-3100001

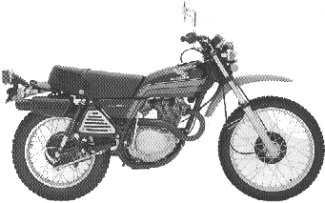

1978 XL350’78

• It came in one color: Tahitian Red with Black
• The gas tank and side covers were black with red stripes
• The fenders were red, color impregnated plastic
• The “XL350” side cover decal was red and white
• The wheel hubs were black
• The bike had the new frame and chassis with an upswept exhaust system introduced in 1976
• The engine was a 348cc OHC 4-valve single cylinder linked to a 5-speed transmission
• The serial number began XL350-3200001

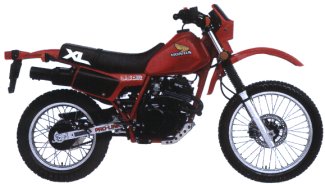

1984 XL350R’84

• It came in one color: Monza Red
• The headlight was rectangular with a red cowl
• The seat, fork boots and number plate panels were black
• The engine was a 339cc OHC RFVC single cylinder with 2 carburetors and 2 head pipes
• The transmission was a 6-speed.
• Engine: RFVC radial valve, 339cc dual-carburetor engine
• Suspension: Pro-Link^TM rear suspension
• Brakes: Front disc
• Wheelbase: 1415mm (55.7 in.)
• Dry weight: 123 kg (271.1 lb)
• Seat height: 840mm (33.1 in.)
• Front wheel travel: 220mm (8.7 in.)
• Rear wheel travel: 205mm (8.1 in.)
• The serial number began JH2ND030*EM000012.

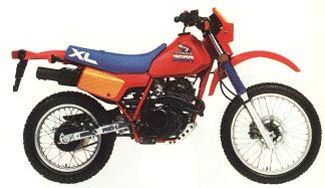

1985 XL350R’85

• It came in one color: Flash Red
• The Honda wing decal on the gas tank was red, white, and blue
• The “350R” tank decal was white and blue
• The seat and fork boots were blue
• The number plate panels were yellow
• The engine was a 339cc OHC RFVC single cylinder with 2 carburetors and 2 head pipes
• The transmission was a 6-speed
• The serial number began JH2ND030*FK100001.
