| Overview |

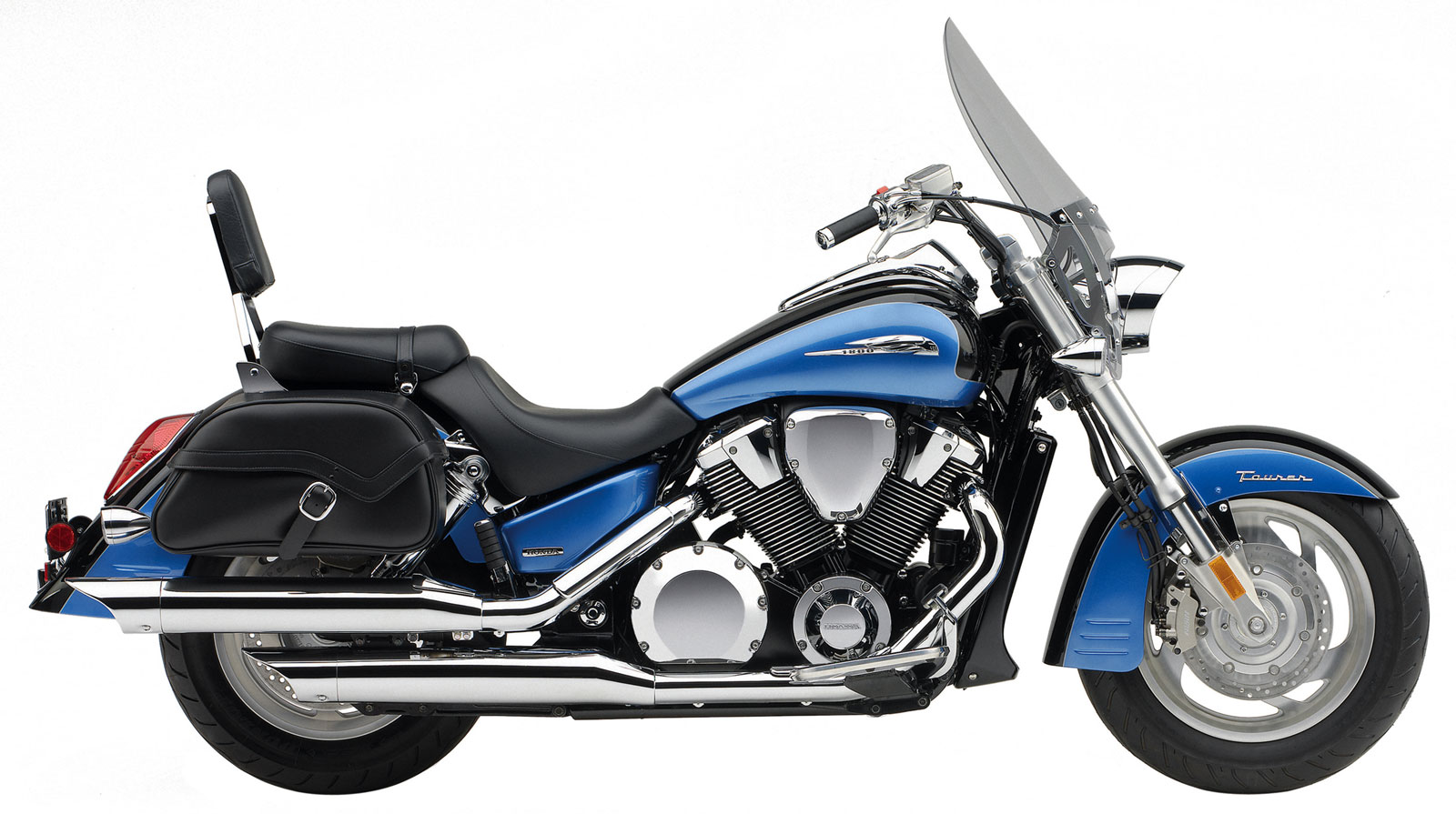

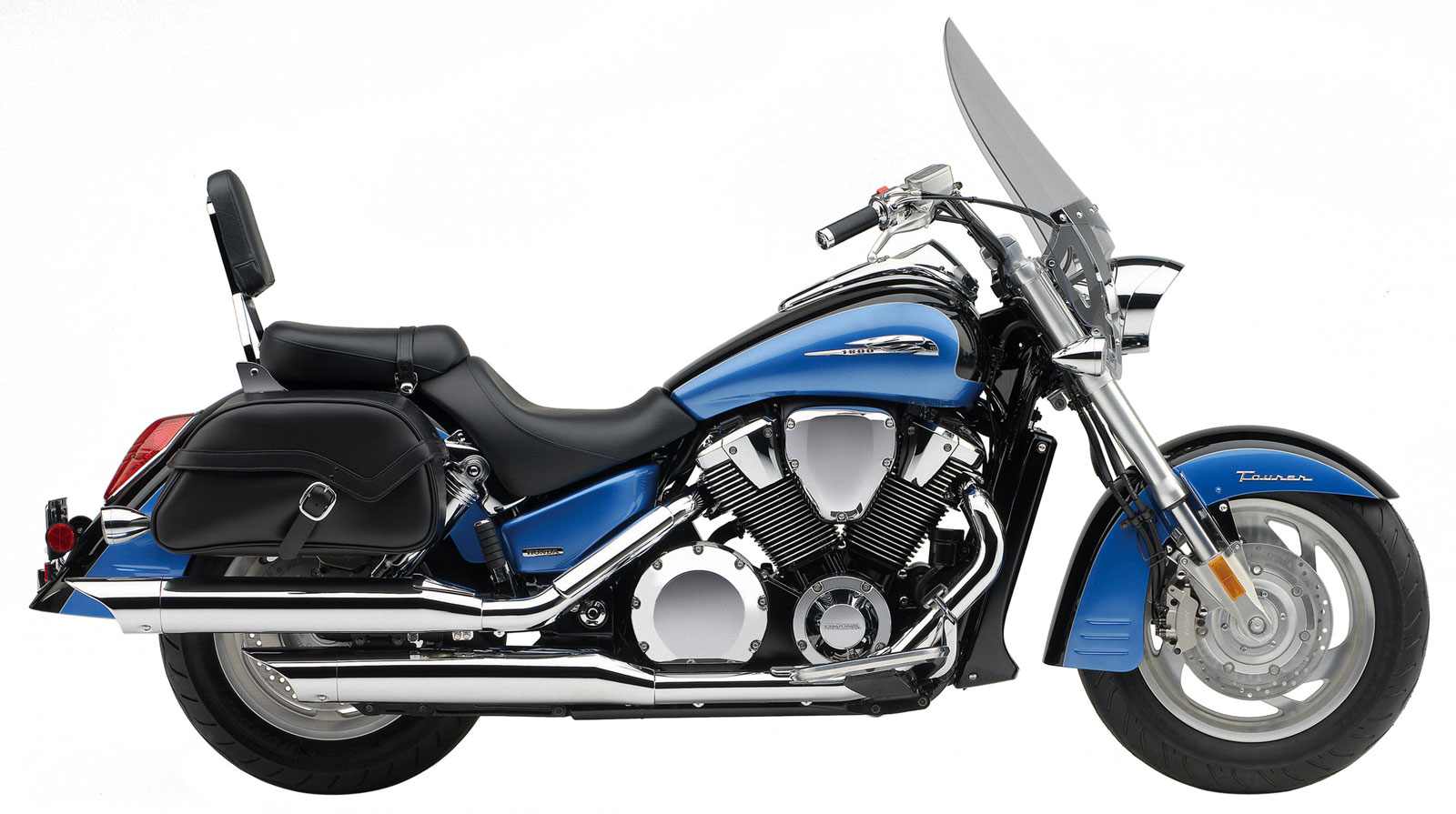

- The VTX1800T is the perfect cruiser built for the perfect road trip, combining a massive 106-hp 1795cc V-twin with all the touring touches you could ever need — roomy saddlebags, big windscreen, cozy passenger backrest. Hear that? It’s the open road calling.
- Classic Retro Fender Style
- Classic-Style Seating
- Fully Equipped for Touring
|
Engine
|
|
| Engine Type |
1795cc liquid-cooled 52° V-twin |
| Bore and Stroke |
101mm x 112mm |
| Compression Ratio |
9.0: 1 |
| Valve Train |
SOHC; three valves per cylinder |
| Fuel Delivery |
PGM-FI with automatic choke |
| Ignition |
Digital, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
5-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
45mm inverted fork; 5.1 inches travel |
| Rear Suspension |
Dual shocks with five-position spring preload adjustability; 3.9 inches travel |
| Front Brakes |
Dual 296mm disc with LBS three-piston calipers |
| Rear Brakes |
Single 316mm disc with LBS twin-piston caliper |
| Front Tires |
150/80R-17 radial |
| Rear Tires |
180/70R-16 radial |
DIMENSION
|
|
| Rake |
(Caster Angle): 32.0° |
| Trail |
163mm (6.4 inches) |
| Wheelbase |
67.5 inches |
| Seat Height |
27.4 inches |
| Curb Weight |
800 pounds |
| Fuel Capacity |
5.3 gallons |
OTHER
|
|
| Colors and Warranty |
-
- Black
- Black/Candy Black Cherry
- Black/Metallic Blue
- Warranty One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
|
