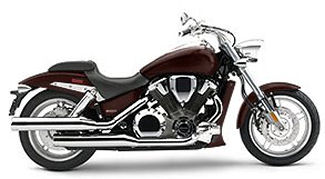

Honda VTX1800F Motorcycles

2005 VTX1800C Style F

Engine
Engine Type	1795cc liquid-cooled 52-degree V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition	Digital with three-dimensional mapping, two spark plugs per cylinder
Drivetrain
Transmission	Five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm discs with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	130/70R-18 radial
Rear Tires	180/70R-16 radial
DIMENSION
Rake	32.48 degrees
Trail	152.0mm (5.7 inches)
Wheelbase	67.6 inches
Seat Height	27.9 inches
Dry Weight	734 pounds
Fuel Capacity	4.8 gallons
OTHER
Colors	Black Black Flame Candy Red Flame Titanium Candy Black Cherry Candy Red Silver Tribal Titanium Tribal Bright Blue Metallic Candy Orange Metallic Silver Black/Candy Black Cherry Black/Metallic Green
Base MSRP	$12,899

Engine
Engine Type	1795cc liquid-cooled 52-degree V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition	Digital with three-dimensional mapping, two spark plugs per cylinder
Drivetrain
Transmission	Five-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm discs with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	130/70R-18 radial
Rear Tires	180/55R-18radial
DIMENSION
Rake	31.45 degrees
Trail	144.0mm (5.7 inches)
Wheelbase	67.5 inches
Seat Height	27.6 inches
Dry Weight	743 pounds
Fuel Capacity	4.8 gallons
OTHER
Emissions	Meets current CARB and EPA standards.
Colors	Dark Red Black Silver Tribal Bright Blue Metallic Tribal
Model ID	VTX1800F1

Overview:	Part dragbike, part boulevard bad boy, the VTX1800F’s styling is all about performance, with a low profile, straight bars, chopped fenders with billet-style rails on the rear, cast wheels and gunfighter-style seat. Performance Custom-Style Fenders Billet-Style Fender Rails Dragster-Style Seating
Engine
Engine Type	1795cc liquid-cooled 52-degree V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	PGM-FI with automatic choke
Ignition	Digital, two spark plugs per cylinder
Drivetrain
Transmission	5-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm discs with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	150/80R-17 radial
Rear Tires	180/70R-16 radial
DIMENSION
Rake	31.45 degrees
Trail	144.0mm (5.7 inches)
Wheelbase	67.5 inches
Seat Height	27.4 inches
Dry Weight	743 pounds
Fuel Capacity	5.3 gallons
OTHER
Emissions	Meets Current EPA standards. California version differs slightly due to emissions equipment.
Colors	Pearl Yellow Red/Black Tribal Metallic Black
Model ID	VTX1800F1

Overview:	Every family has to have its rebellious, defiant bad boy. That’s the VTX1800F to a tee. Built long and lean, this machine is equal parts dragbike and marauder, sporting a low, gunfighter-style seat, chromed 2-into-1 pipes, chopped fenders and 10-spoke wheels. Straight-Cut, 5-Bolt Muffler Tips Bullet-Style Headlight
Engine
Engine Type	1795cc liquid-cooled 52-degree V-twin
Bore and Stroke	101mm x 112mm
Compression Ratio	9.0:1
Valve Train	SOHC; three valves per cylinder
Fuel Delivery	PGM-FI with automatic choke
Ignition	Digital, two spark plugs per cylinder
Drivetrain
Transmission	5-speed
Final Drive	Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension	45mm inverted fork; 5.1 inches travel
Rear Suspension	Dual shocks with five-position spring-preload adjustability; 3.9 inches travel
Front Brakes	Dual 296mm discs with LBS three-piston calipers
Rear Brakes	Single 316mm disc with LBS twin-piston caliper
Front Tires	150/80R-17 radial
Rear Tires	180/70R-16 radial
DIMENSION
Rake (Caster Angle)	31° 45′
Trail	144.0mm (5.7 inches)
Wheelbase	67.7 inches
Seat Height	27.6 inches
Dry Weight	774 pounds
Fuel Capacity	4.8 US gallons
OTHER
Colors	ack Candy Red Tribal Warranty: One-year unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
