2008 VTX1300T
Overview: |
We weren’t about to let the VTX1800 family have all the touring fun, so allow us to introduce the all-new VTX1300T. Built with the same purpose as its VTX1800T sibling, complete with large touring windshield, spacious leather saddlebags and handy passenger backrest, the VTX1300T is the perfect choice for riders seeking big performance in a slightly smaller machine — with a slightly smaller price tag. |
Engine |
|
| Engine Type | 1312cc liquid-cooled 52° V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | Single 38mm constant-velocity carburetor |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1 inches travel |
| Rear Suspension | Dual shocks with five-position spring preload adjustability; 3.7 inches travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
| Front Tires | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Rake (Caster Angle) | 32.0° |
| Trail | 144mm (5.7 inches) |
| Wheelbase | 65.7 inches |
| Seat Height | 27.4 inches |
| Curb Weight: | 748 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 4.8 gallons, including 1.0-gallon reserve |
OTHER |
|
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Colors |
|
| Model ID | VTX1300T |
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
2009 VTX1300T
Engine |
|
| Engine Size | 1312cc |
| Engine Detail | liquid-cooled 52° V-twin |
| Bore Stroke | 89.5mm x 104.3mm |
| Compression Ratio | .2:1 |
| Fuel System | Single 38mm constant-velocity carburetor |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 5.1 inches travel |
| Rear Suspension | Dual shocks with five-position spring preload adjustability; 3.7 inches travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | Single 296mm disc with single-piston caliper |
| Front Tires | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Wheelbase | 65.7 in. |
| Seat Height | 27.35 in. |
| Curb Weight: | 748 lbs. |
| Fuel Capacity | 4.8 gal. |
OTHER |
|
| Colors | Black, Titanium, Dark Red |
| Warranty | 1 Year |

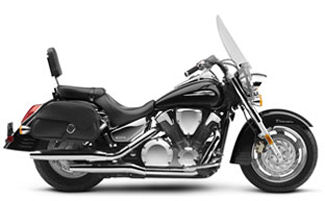

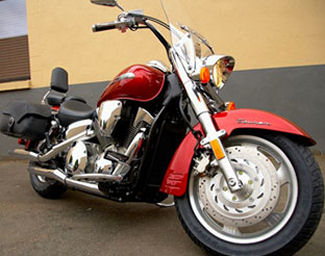

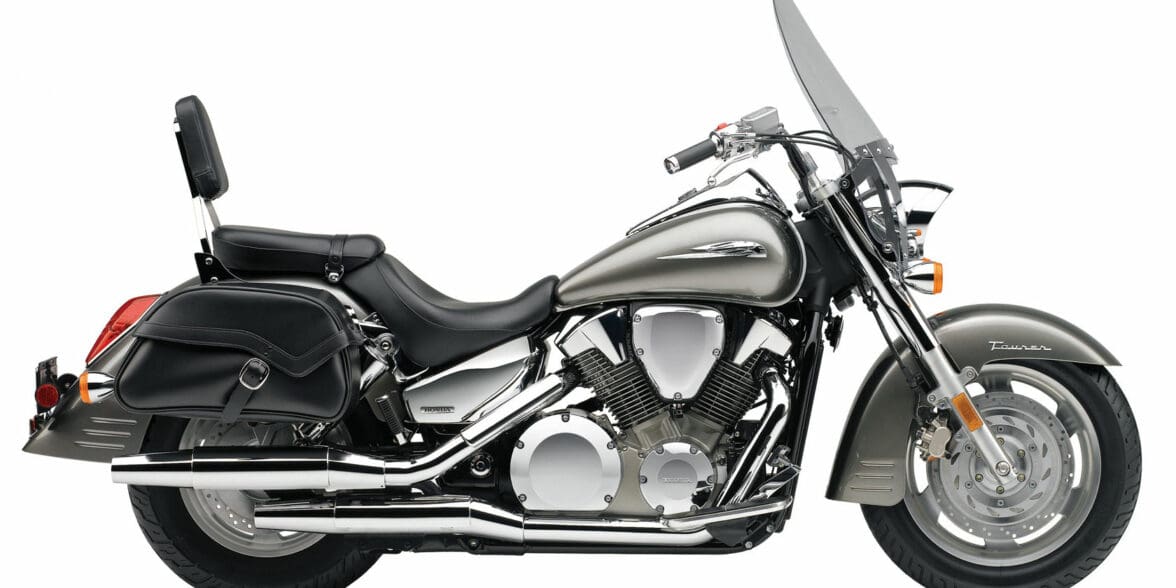

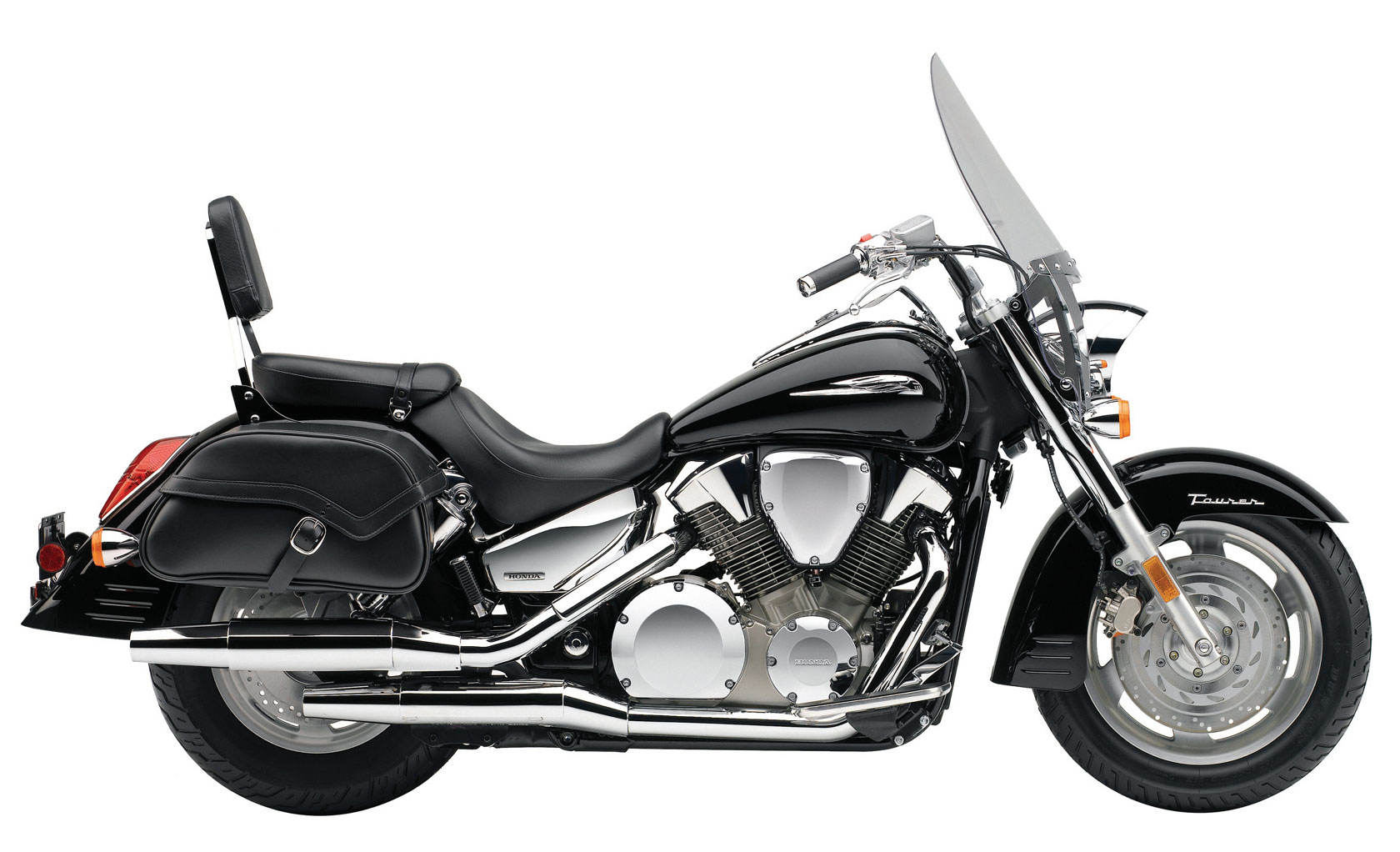

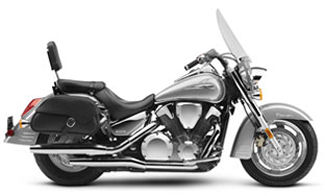

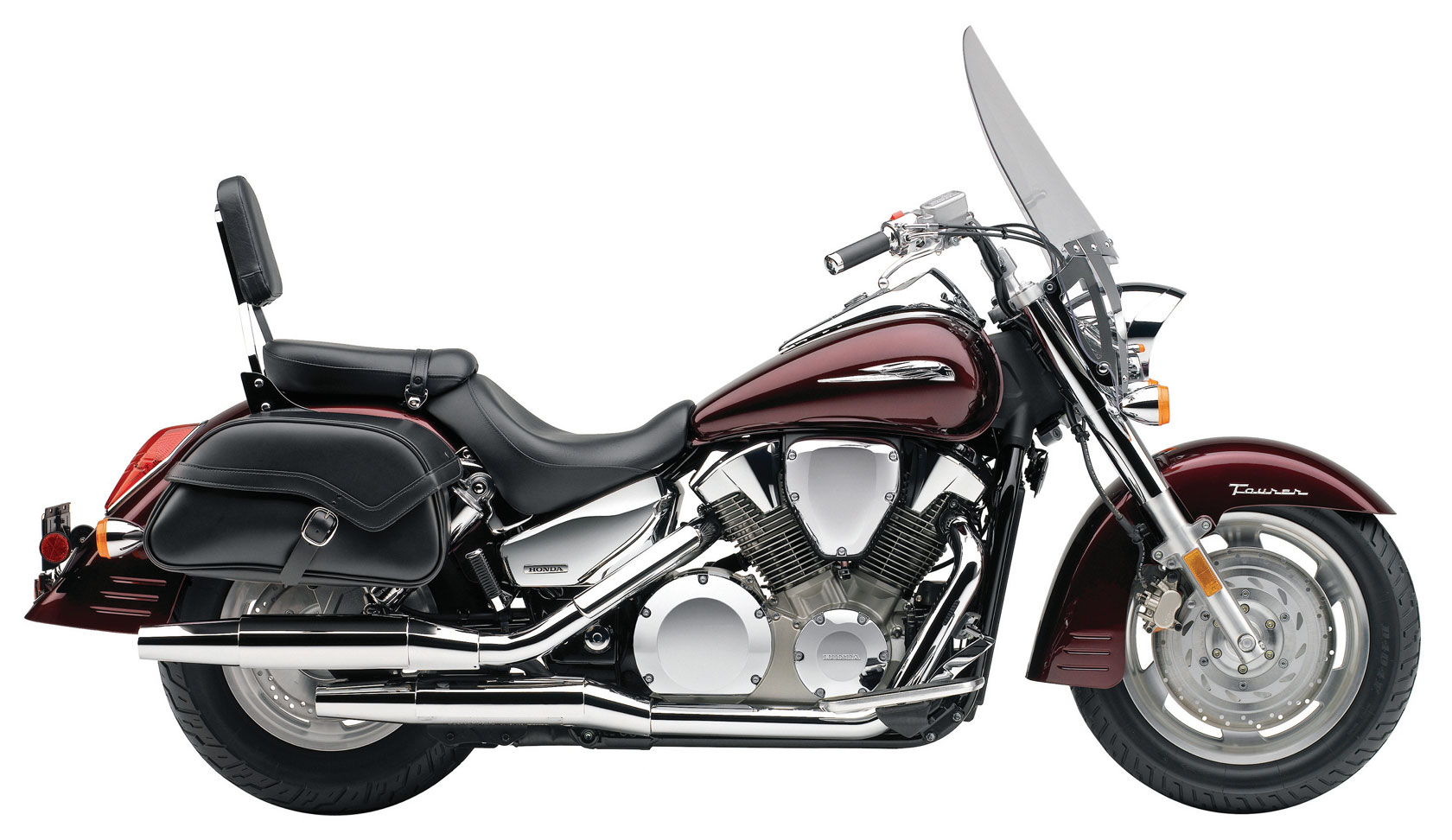

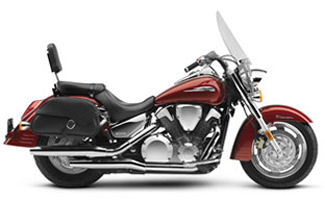

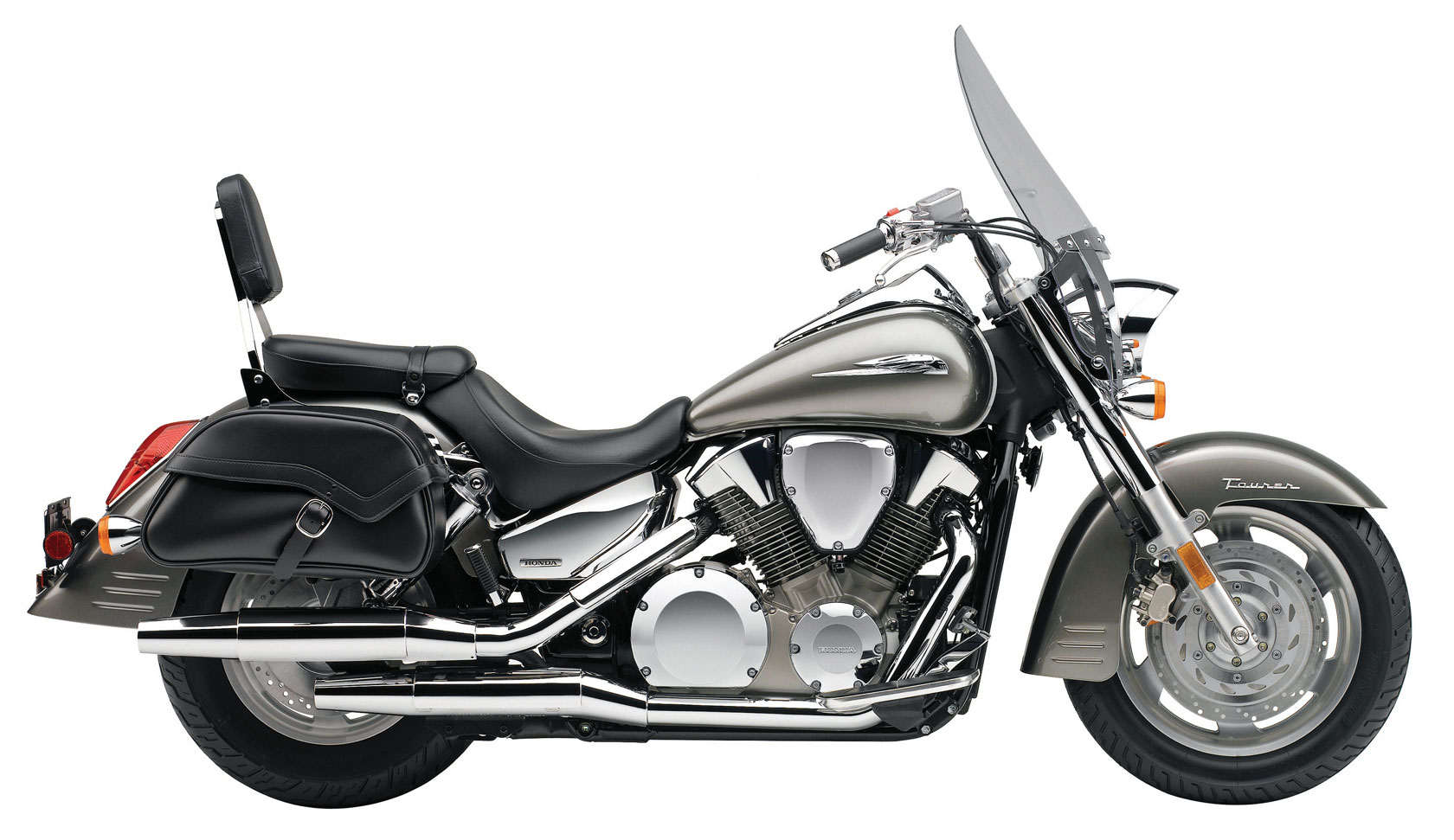

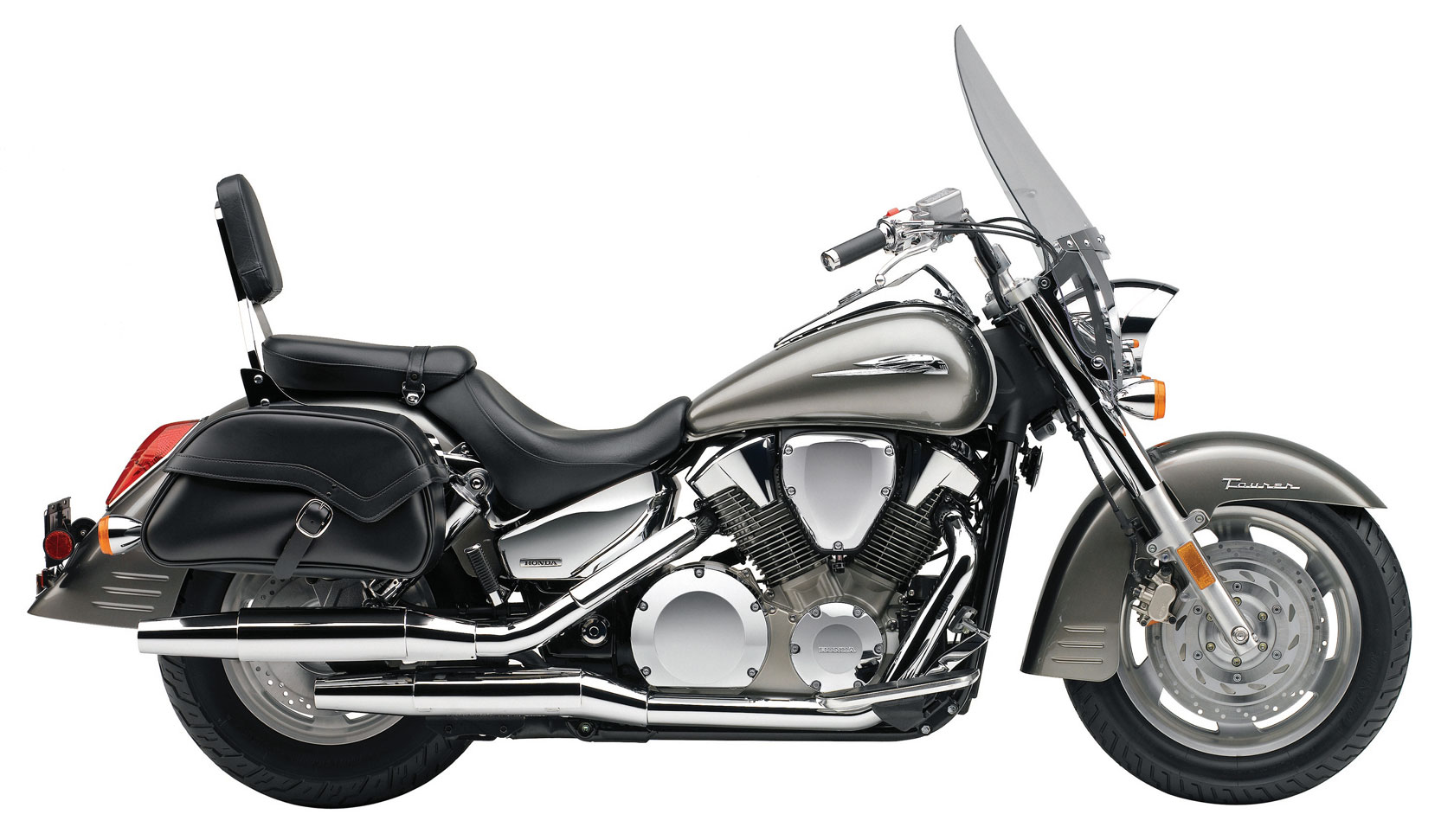

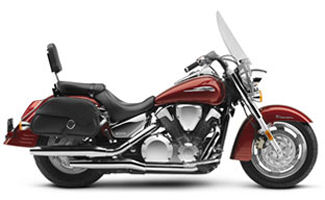

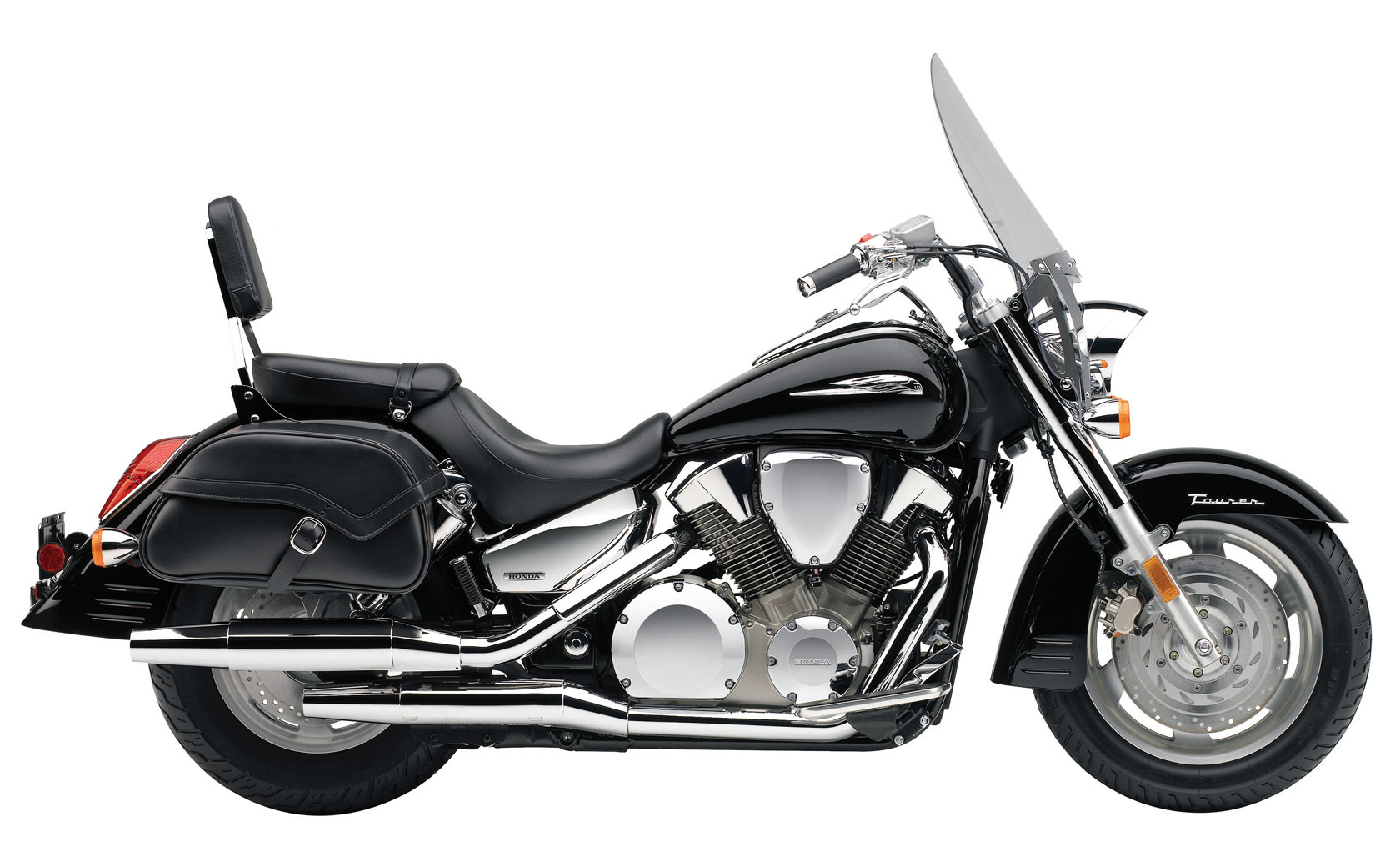

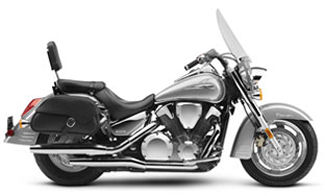

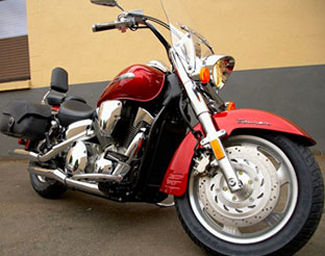

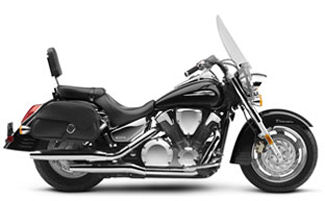

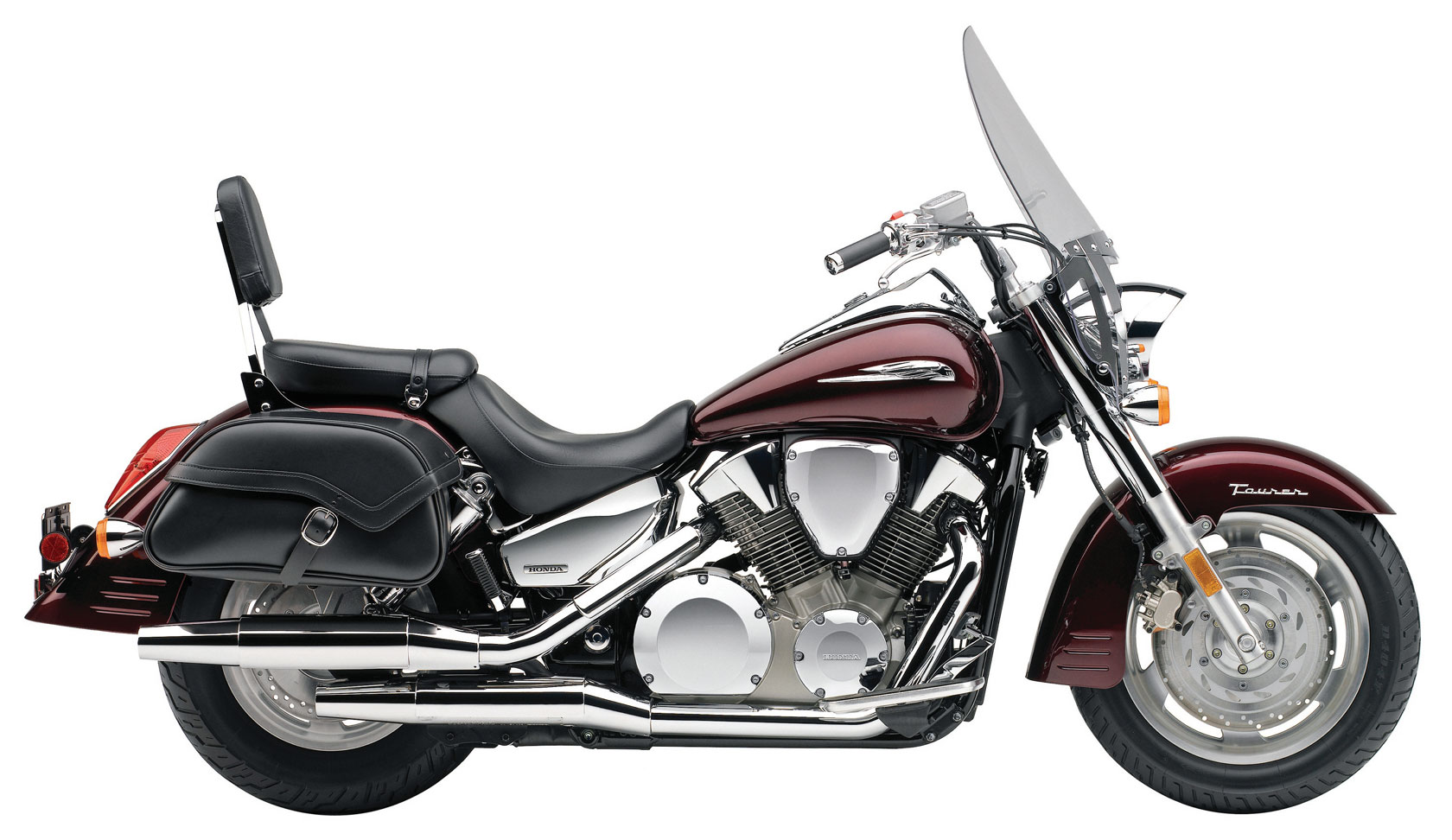

VTX1300T Image Gallery
