2005 VTX1300R
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Compression Ratio |
9.2:1 |
| Valve Train |
SOHC; three valves per cylinder |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.7-inch travel |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
| Front Tires |
140/80R-17 |
| Rear Tires |
170/80R-15 |
DIMENSION
|
|
| Rake |
32.0 degrees |
| Trail |
144mm (5.7 inches) |
| Wheelbase |
65.7 inches |
| Seat Height |
27.35 inches |
| Dry Weight |
669.0 pounds |
| Fuel Capacity |
4.8 gallons, including 1.0-gallon reserve |
OTHER
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Colors |
- Black
- Metallic Silver
- Candy Red
- Magenta Metallic
|
| Model ID |
VT1300R |
| Warranty |
1 year |
2006 VTX1300R
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Compression Ratio |
9.2:1 |
| Valve Train |
SOHC; three valves per cylinder |
| Fuel Delivery |
38mm CV |
| Max. Power Output |
74 bhp at 5000 rpm |
| Max. Torque |
123Nm at 3000 rpm |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.7-inch travel |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
| Front Wheel |
Steel rim/wire spoke |
| Rear Wheel |
Steel rim/wire spoke |
| Front Tire |
140/80-17 |
| Rear Tires |
170/80-15 |
DIMENSION
|
|
| Rake |
32.0 degrees |
| Trail |
144mm (5.7 inches) |
| Wheelbase |
65.7 inches |
| Seat Height |
27.35 inches |
| Dry Weight |
669.0 pounds |
| Fuel Capacity |
4.8 gallons, including 1.0-gallon reserve |
OTHER
|
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Colors |
- Black
- Bright Blue Metallic
- Candy Black Cherry
- Metallic Silver
|
| Model ID |
VT1300R |
2007 VTX1300R
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Compression Ratio |
9.2:1 |
| Valve Train |
SOHC; three valves per cylinder |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1-inch travel |
| Rear Suspension |
Dual shocks with five-position spring-preload adjustability; 3.7-inch travel |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
| Front Tires |
140/80R-17 |
| Rear Tires |
170/80R-15 |
DIMENSION
|
|
| Rake |
32.0 degrees |
| Trail |
144mm (5.7 inches) |
| Wheelbase |
65.7 inches |
| Seat Height |
27.35 inches |
| Dry Weight |
669.0 pounds |
| Fuel Capacity |
4.8 gallons, including 1.0-gallon reserve |
OTHER
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Colors |
- Black
- Titanium
- Dark Red Metallic
- Metallic Blue
|
| Model ID |
VTX1300R |
2008 VTX1300R
Overview
|
Classic, old-school cool. That sums up the VTX1300R, whose “R” stands for retro, by the way. You’ll understand once you get an eyeful of this beauty, with its deeply valanced fenders, chrome-hooded headlight and timeless tank-mounted instruments. Then, of course, there’s the mighty 1312cc V-twin snarling its throaty growl through staggered dual exhaust. Yeah…it doesn’t get much more classic than this. |
Engine
|
|
| Engine Type |
1312cc liquid-cooled 52-degree V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Compression Ratio |
9.2:1 |
| Valve Train |
SOHC; three valves per cylinder |
| Fuel Delivery |
Single 38mm CV |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1 inches travel |
| Rear Suspension |
Dual shocks with five-position spring preload adjustability; 3.7 inches travel |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
| Front Tires |
140/80R-17 |
| Rear Tires |
170/80R-15 |
DIMENSION
|
|
| Rake |
32.0 degrees |
| Trail |
144mm (5.7 inches) |
| Wheelbase |
65.7 inches |
| Seat Height |
27.35 inches |
| Dry Weight |
710 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity |
4.8 gallons, including 1.0-gallon reserve |
OTHER
|
| Emissions |
California version meets CARB 2004 emissions standards. |
| Colors |
- Black
- Pearl White
- Dark Blue Metallic
|
| Model ID |
VTX1300R |
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
2009 VTX1300R
Engine
|
|
| Engine Type |
1312cc |
| Engine Detail |
liquid-cooled 52° V-twin |
| Bore and Stroke |
89.5mm x 104.3mm |
| Compression Ratio |
9.2:1 |
| Fuel System |
Single 38mm constant-velocity carburetor |
| Ignition |
Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain
|
|
| Transmission |
Five-speed |
| Final Drive |
Shaft |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
41mm fork; 5.1 inches travel |
| Rear Suspension |
Dual shocks with five-position spring preload adjustability; 3.7 inches travel |
| Front Brakes |
Single 336mm disc with twin-piston caliper |
| Rear Brakes |
Single 296mm disc with single-piston caliper |
| Front Tires |
140/80R-17 |
| Rear Tires |
170/80R-15 |
DIMENSION
|
|
| Wheelbase |
65.7 in. |
| Seat Height |
27.35 in. |
| Curb Weight |
710 lbs |
| Fuel Capacity |
4.8 gal. |
OTHER
|
|
| Price |
$9999 |
| Colors |
Metallic Silver, Metallic Black and Bright Blue Metallic |
| Warranty |
1 Year |

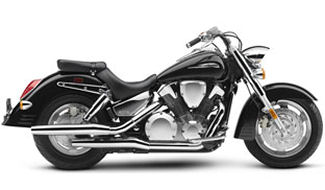

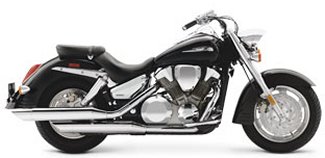

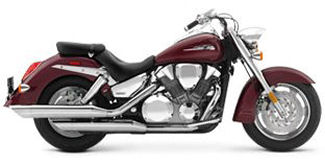

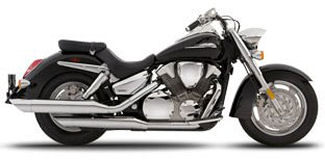

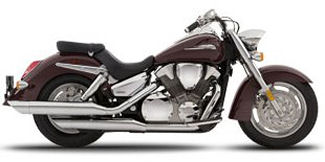

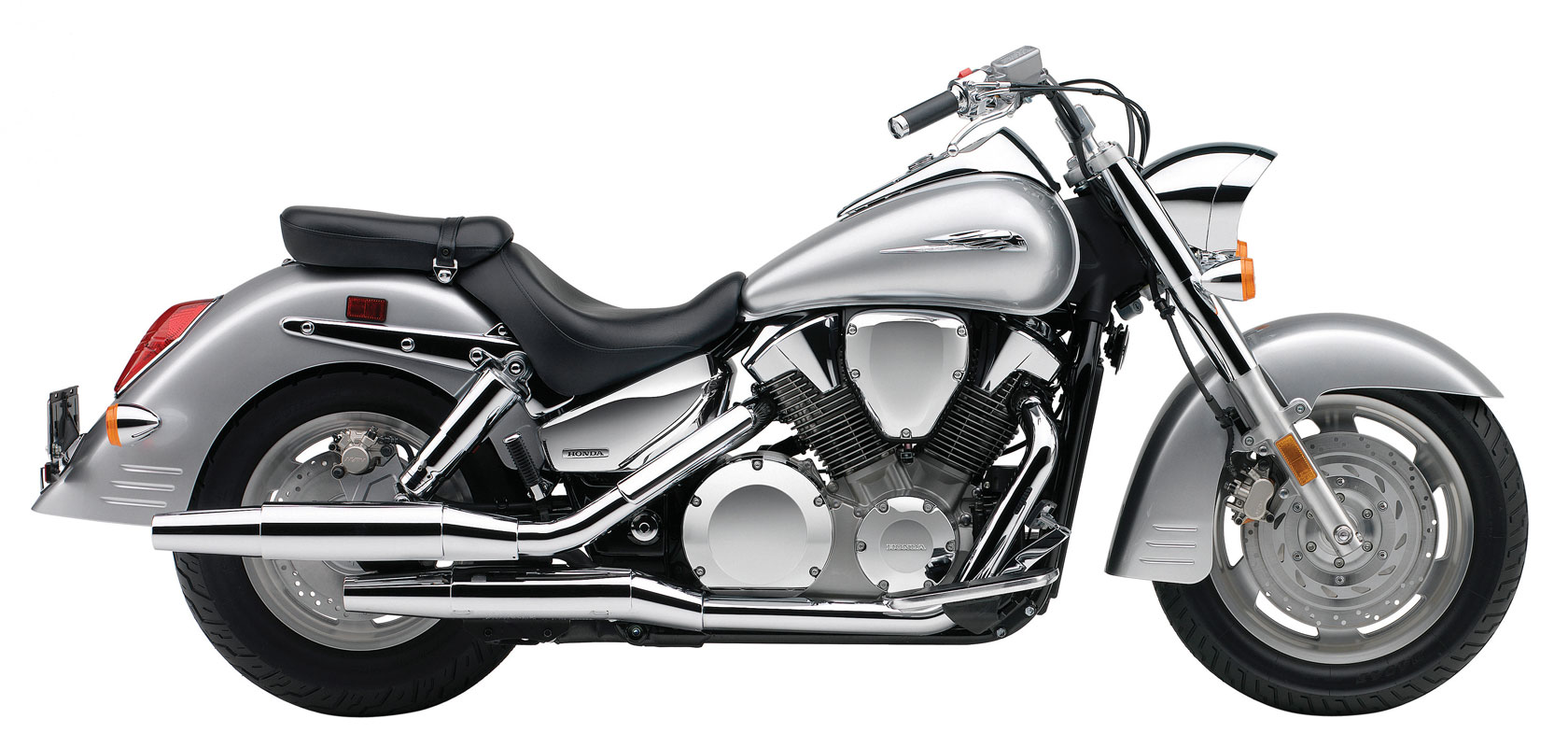

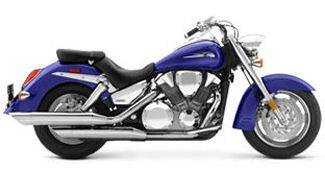

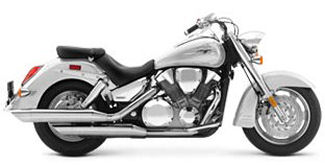

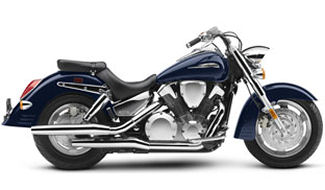

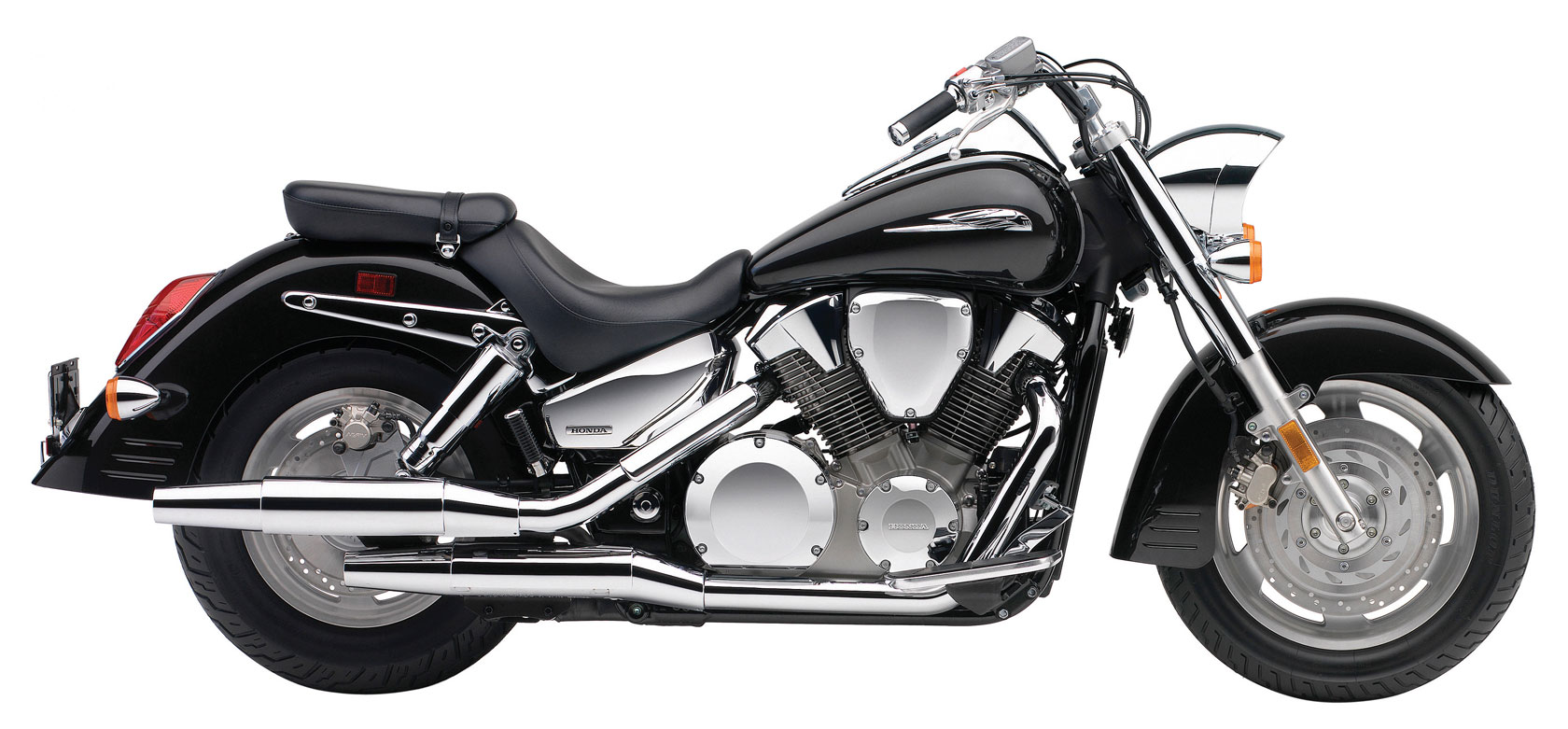

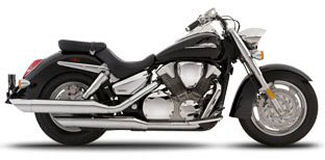

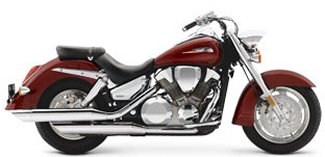

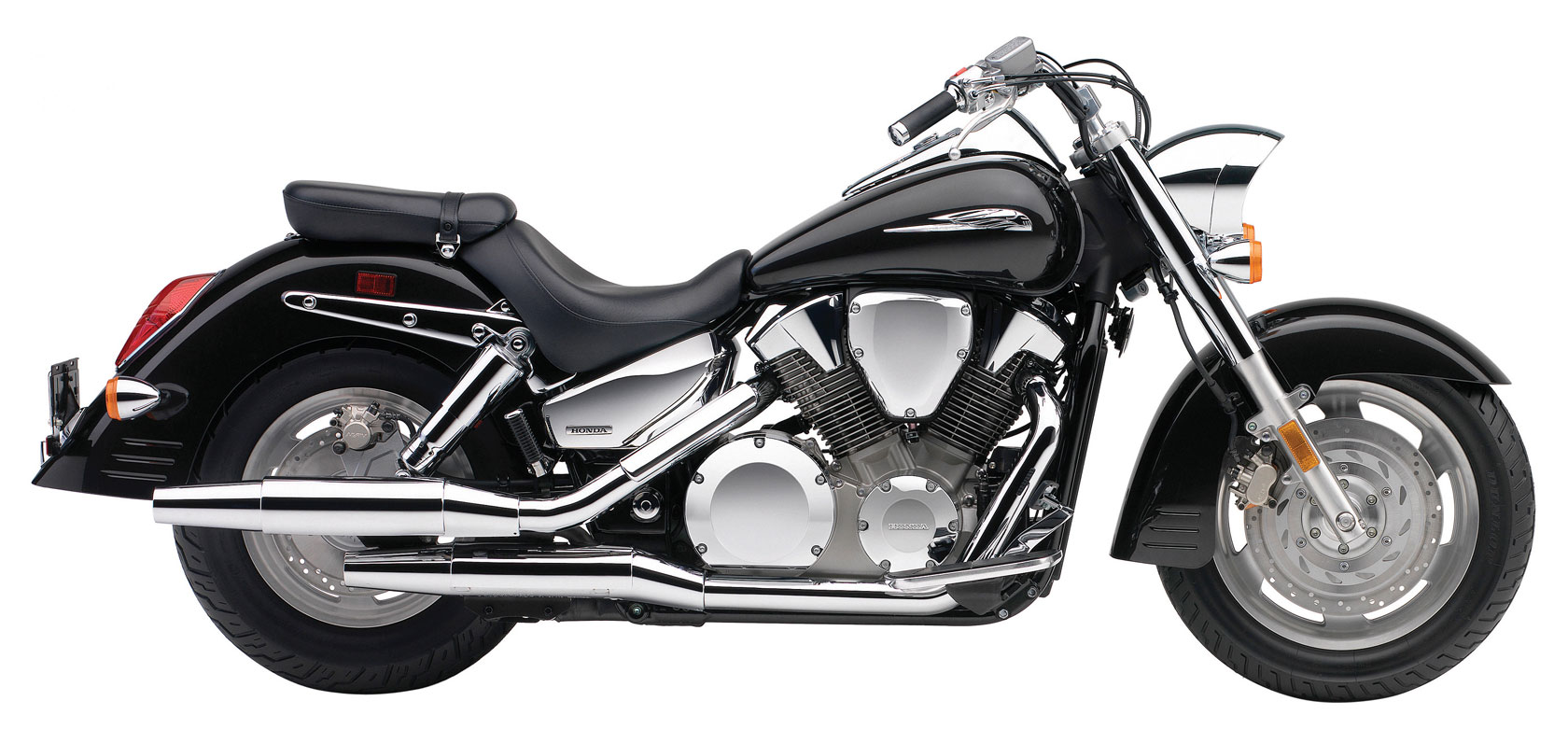

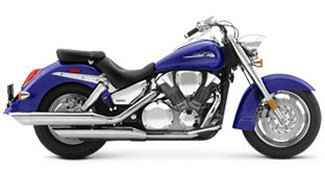

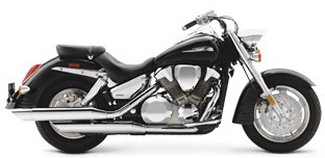

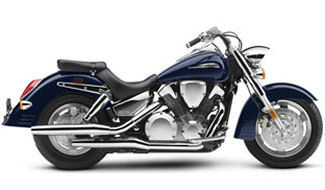

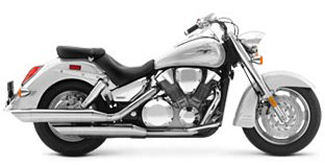

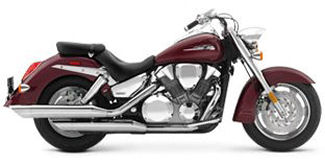

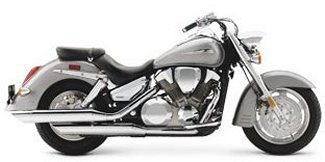

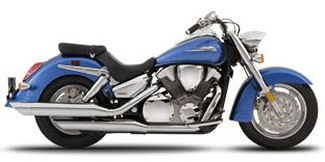

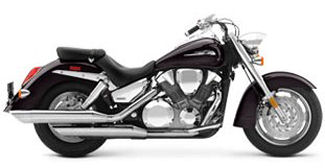

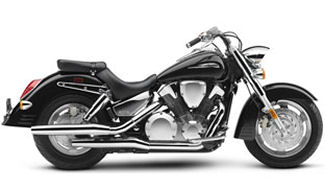

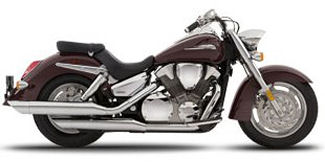

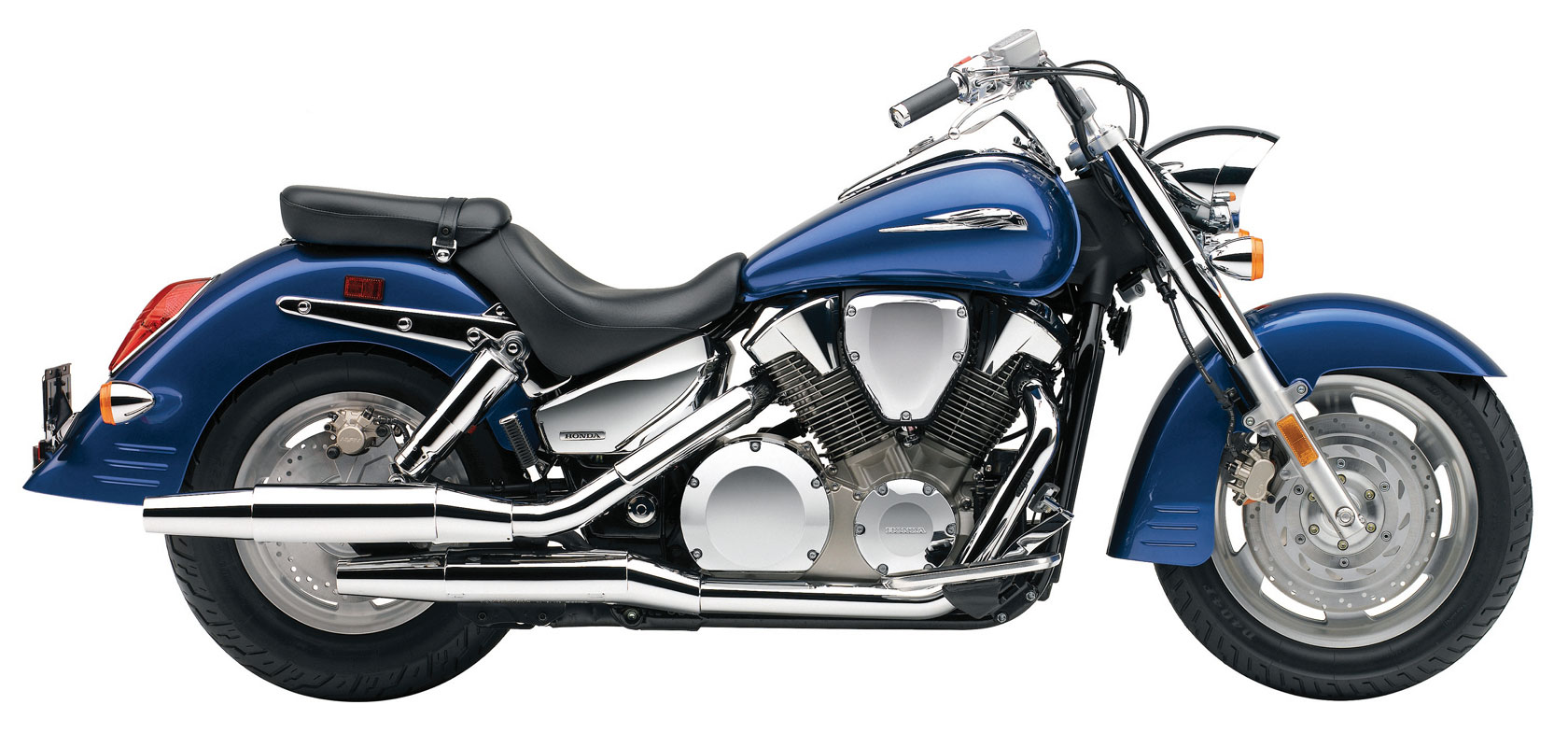

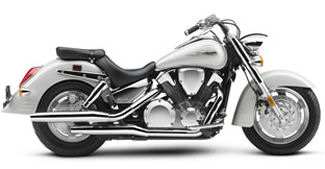

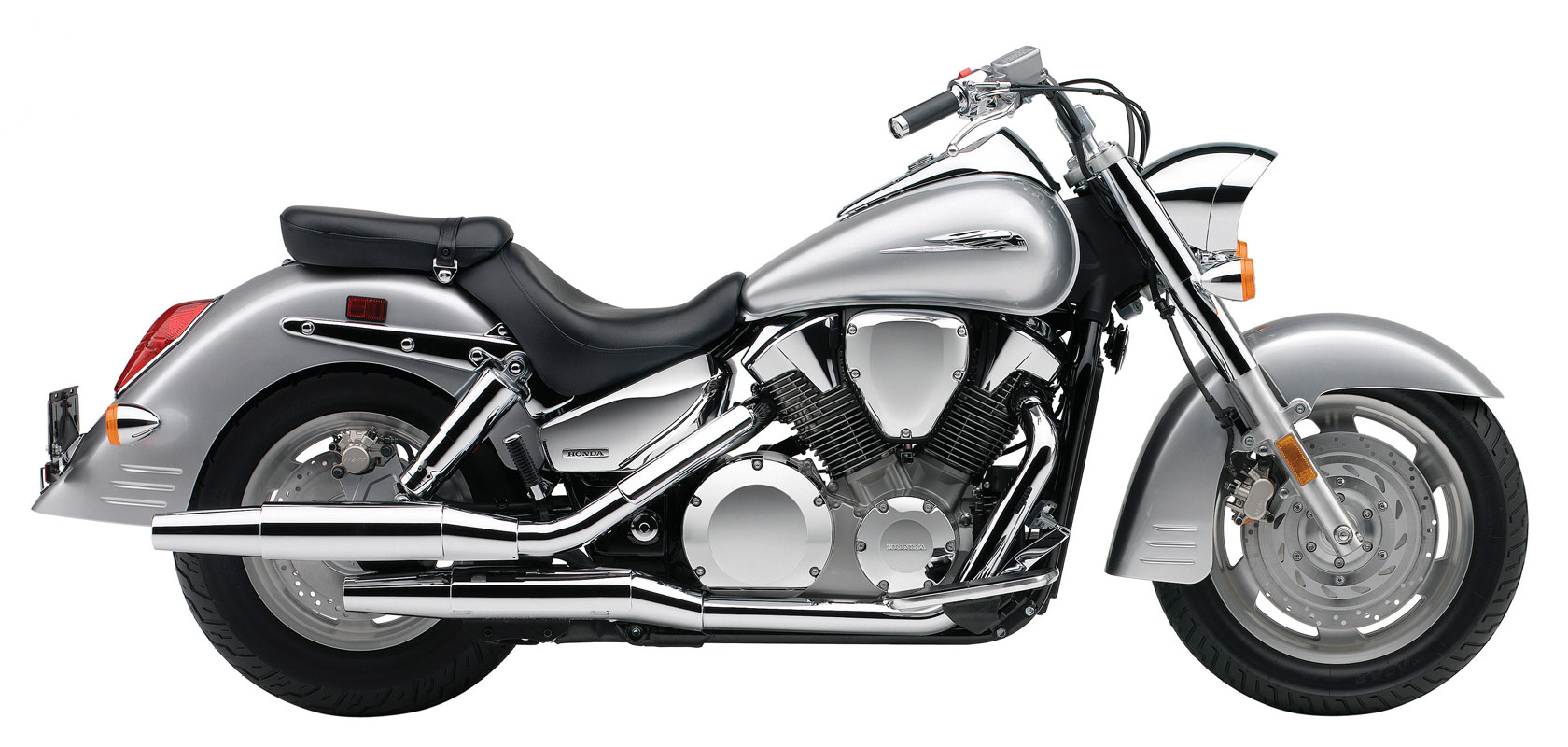

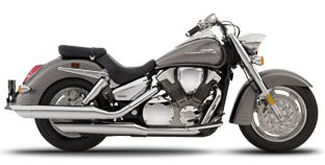

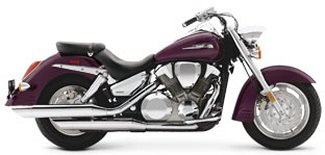

VTX1300R Image Gallery
