2010 Honda VT1300CS Sabre
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection with automatic enricher circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork; 102 mm (4 in.) travel |
| Rear Suspension | Single shock; 99 mm (3.9 in.) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | 296mm disc with single-piston caliper; Optional ABS and CBS |
| Front Tires | 90/90-21 |
| Rear Tires | 170/80-1 |
DIMENSION |
|
| Ground Clearance | N/A |
| Seat Height | 683 mm (26.9 in.) |
| Wheelbase | 1778 mm (70 in.) |
| Curb Weight |
|
| Fuel Capacity | 16.6 litres (4.4 GalUS) |
OTHER |
|
| Colour: |
|
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP (ASB) | $13,399 |
2011 Honda VT1300CS Sabre
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm fork; 4.0 inches travel |
| Rear Suspension | Single shock; 3.9 inches travel |
| Front Brake | Single 336mm disc with twin-piston caliper |
| Front Brakes | Single 336 mm disc with triple-piston caliper |
| Rear Brake (non-ABS) | 296mm disc with single-piston caliper |
| Front Tire | 90/90-21 |
| Rear Tire | 170/80-15 |
DIMENSION |
|
| Rake | 33 degrees (Caster Angle) |
| Trail | 115.0mm (4.5 inches) |
| Wheelbase | 1785 mm (70.3 in.) |
| Ground Clearance | N/A |
| Seat Height | 684 mm (26.9 in.) |
| Curb Weight | (ABS): 307 kg (677 lb) |
| Fuel Capacity | 16.5 litres (4.4 GalUS) |
OTHER |
|
| Colour: |
|
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| Model Id | VT1300CS |
| Emissions | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| MSRP | $13,899 |

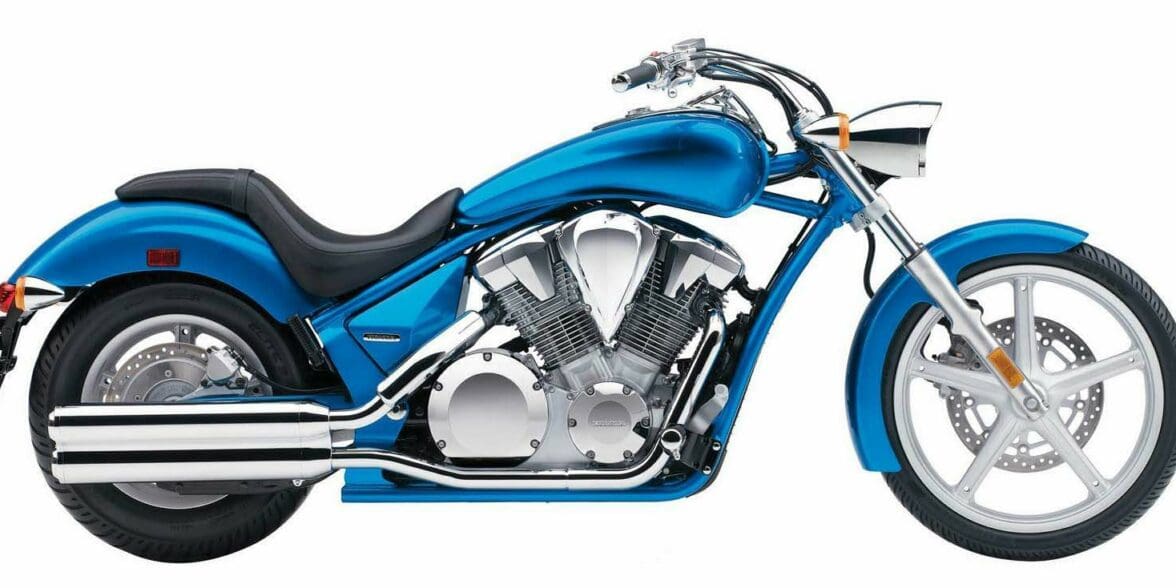

2012 Honda VT1300CS Sabre
Engine |
|
| Engine Type | 1312cc liquid-cooled 52 degrees V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection with automatic enricher circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork; 102 mm (4 in.) travel |
| Rear Suspension | Single shock; 99 mm (3.9 in.) travel |
| Front Brake (non-ABS) | Single 336mm disc with twin-piston caliper |
| Front Brakes | Single 336 mm disc with triple-piston caliper |
| Rear Brake (non-ABS) | 296mm disc with single-piston caliper |
| Rear Brakes (ABS) | 296 mm disc with dual-piston caliper. |
| Front Tire | 90/90-21 |
| Rear Tire | 170/80-15 |
DIMENSION |
|
| Rake | 33 degrees (Caster Angle) |
| Trail | 115.0mm (4.5 inches) |
| Wheelbase | 1786 mm (70.3 in.) |
| Ground Clearance | N/A |
| Seat Height | 6843 mm (26.9 in.) |
| Curb Weight | 302 kg (664 lb) (includes all standard equipment, required fluids and full tank of fuel-ready to ride.) |
| Fuel Capacity | 16.5 Litres (4.4 GalUS) |
OTHER |
|
| Colour: | Ultra Blue Metallic |
| FACTORY WARRANTY | One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
| Fuel consumption | 5.1 L/100km (46 mpgUS) |
| Emissions | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Model Id | VT1300CS |
