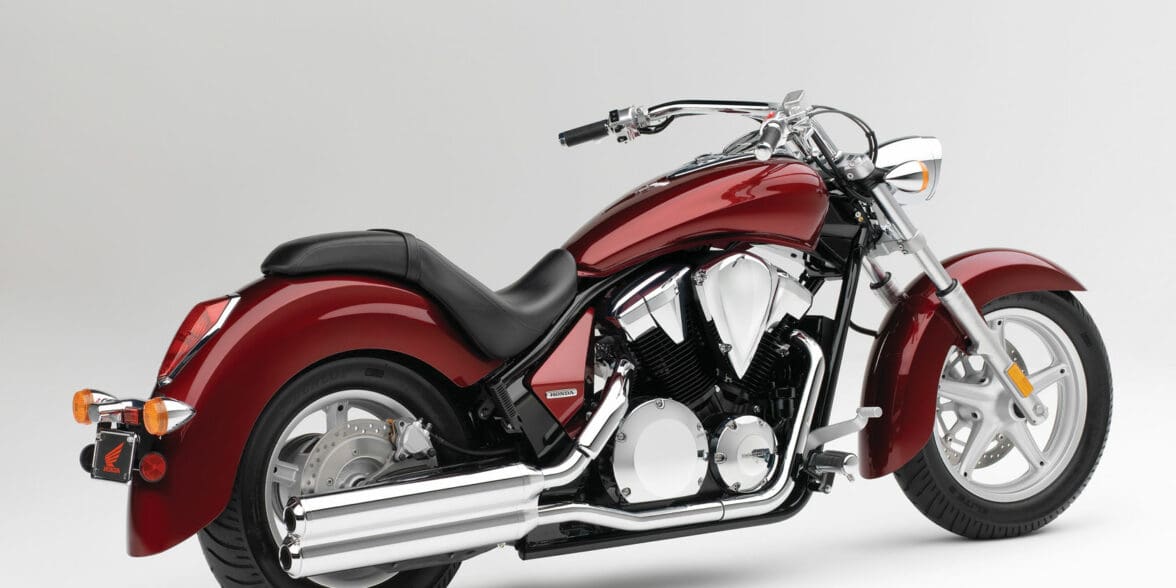

2010 Honda VT1300CRA Stateline
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork, 102 mm (4 in.) travel |
| Rear Suspension | Single shock, 99 mm (3.9 in.) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes | 296mm disc with single-piston caliper; Optional ABS and CBS |
| Front Tires | 140/80-17 |
| Rear Tires | 170/80-15 |
DIMENSION |
|
| Seat Height | 678 mm (26.7 in.) |
| Ground Clearance | N/A |
| Wheelbase | 1780 mm (70.1 in.) |
| Curb Weight | 312 kg (687 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 16.6 litres (4.4 GalUS) |
OTHER |
|
| Colour: |
|
| MSRP | $13,299 |
2011 Honda VT1300CRA Stateline
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork, 102 mm (4 in.) travel |
| Rear Suspension | Single shock; 100 mm (3.9 in.) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes (ABS) | 296 mm disc with dual-piston caliper. |
| Rear Brake (non-ABS) | 296mm disc with single-piston caliper |
| ABS Brakes | Combined Braking System with ABS |
| Front Tire | 140/80-17 |
| Rear Tire | 170/80-15 |
DIMENSION |
|
| Rake | 33 degrees (Caster Angle) |
| Trail | 118mm (4.6 inches) |
| Seat Height | 680 mm (26.8 in.) |
| Ground Clearance | N/A |
| Wheelbase | 1,785 mm (70.3 in.) |
| Curb Weight (ABS) | 311 kg (686 lb) |
| Curb Weight (non-ABS) | 305 kg (670 lb) |
| Fuel Capacity | 16.5 litres (4.4 GalUS) |
OTHER |
|
| Emissions | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Colour: |
|
| Model Id | VT1300CR |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| MSRP | $13,799 |
2012 Honda VT1300CRA Stateline
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI with automatic enrichment circuit, one 38mm throttle body |
| Ignition | Digital with 3-D mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm fork, 102 mm (4 in.) travel |
| Rear Suspension | Single shock; 100 mm (3.9 in.) travel |
| Front Brakes | Single 336mm disc with twin-piston caliper |
| Rear Brakes (ABS) | 296 mm disc with dual-piston caliper. |
| Rear Brake (non-ABS) | 296mm disc with single-piston caliper |
| ABS Brakes | Combined Braking System with ABS |
| Front Tire | 140/80-17 |
| Rear Tire | 170/80-15 |
DIMENSION |
|
| Rake | 33 degrees |
| Trail | 118mm (4.6 inches) |
| Seat Height | 680 mm (26.8 in.) |
| Ground Clearance | N/A |
| Wheelbase | 1,785 mm (70.3 in.) |
| Curb Weight | 311 kg (686 lb) |
| Seat Height | 680 mm (26.8 in.) |
| Fuel Capacity | 16.5 litres (4.4 GalUS) |
OTHER |
|
| Emissions | Meets current EPA standards. Models sold in California meet current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment. |
| Colour: |
|
| Mpg | 46 MPG |
| Warranty | 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus |
| Model Id | VT1300CR |
| MSRP | $13,499 |
