Engine
|
|
| Engine Type |
Liquid-cooled 4-stroke UNICAM 76° V-4 |
| Engine Displacement |
1237cc |
| Compression Ratio |
12.0:1 |
| Valve Train |
SOHC; four valves per cylinder |
| Fuel Delivery |
Programmed Fuel Injection (PGM-FI) with automatic enrichment circuit, 44mm throttle bodies and 12-hole injectors |
| Ignition |
Digital transistorized with electronic advance |
| Max. Power Output |
127kW / 10,000min-1 (95/1/EC) |
| Max. Torque |
129Nm / 8,750min-1 (95/1/EC) |
| Starter |
Electric |
Drivetrain
|
|
| Transmission |
Constant mesh 6-speed |
| Final Drive |
Shaft |
| Front Wheels |
5-spoke hollow gravity die cast aluminium, 17M/C x MT3.50 |
| Rear Wheels |
7-spoke gravity die cast aluminium, 17M/C x MT6.00 |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
43mm cartridge-type telescopic fork with stepless preload adjustment, 120mm (4.7 inches) axle travel |
| Rear Suspension |
Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability; 130mm (5.1 inches) travel |
| Front Brakes |
320mm dual floating hydraulic disc with two 6-piston calipers, C-ABS and sintered metal pads |
| Rear Brakes |
276mm hydraulic disc with 2-piston caliper, C-ABS and sintered metal pads |
| Front Tires |
120/70 ZR17M/C (58W) |
| Rear Tires |
90/55 ZR17M/C (75W) |
DIMENSION
|
|
| Wheelbase |
1545mm (60.8 inches) |
| Seat Height |
815mm (32 inches) |
| Curb Weight |
591 pounds (Includes all standard equipment, required fluids and a full tank of fuel eady to ride) |
| Rake |
25.5° (Caster Angle) |
| Trail |
101.0mm (4.0 inches) |
| Overall Length |
2250 (88.6 inches) |
| Overall Width |
755 (29.7 inches) |
| Overall Height |
1200 (47.2 inches) |
| Ground Clearance |
125mm (4.9 inches) |
| Weight |
Curb Weight: 267 kg (587 lb) |
| Fuel Capacity |
18.5 Litres (4.9 GalUS) |
OTHER
|
|
| Colors |
- Candy Blue

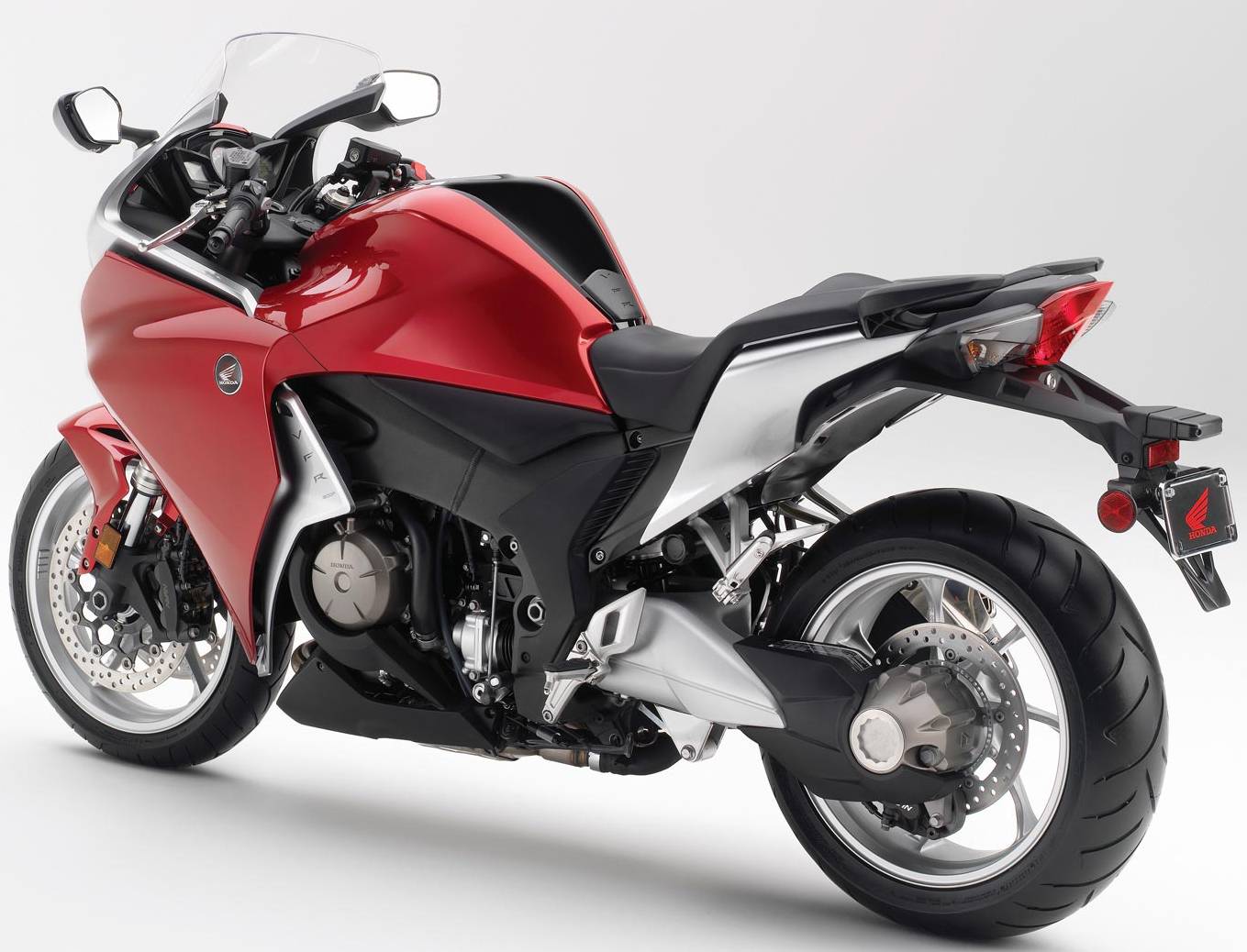

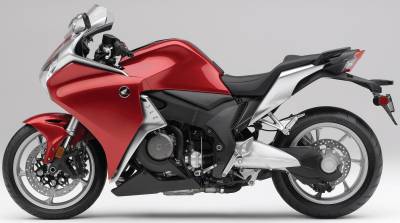

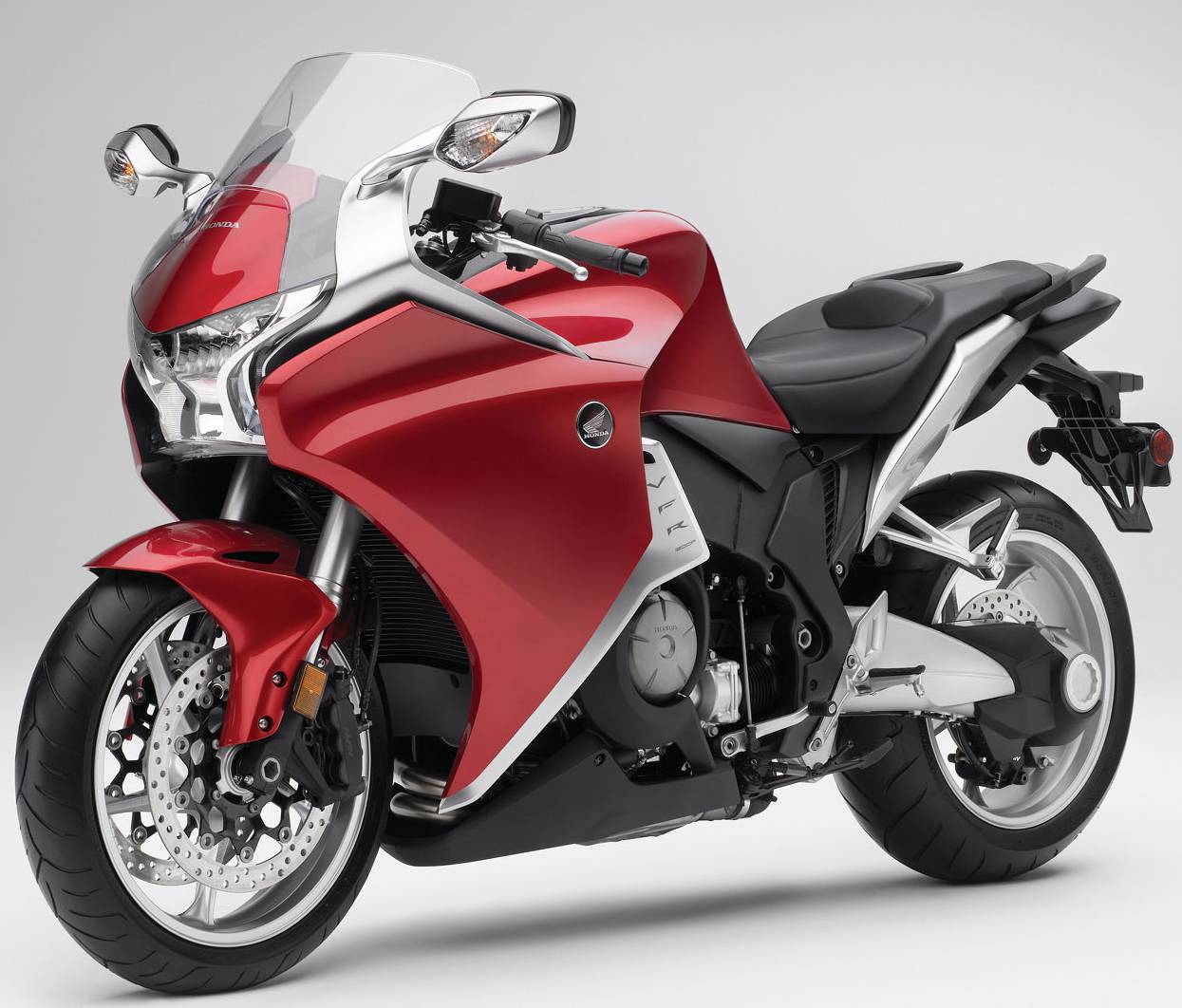

- Red

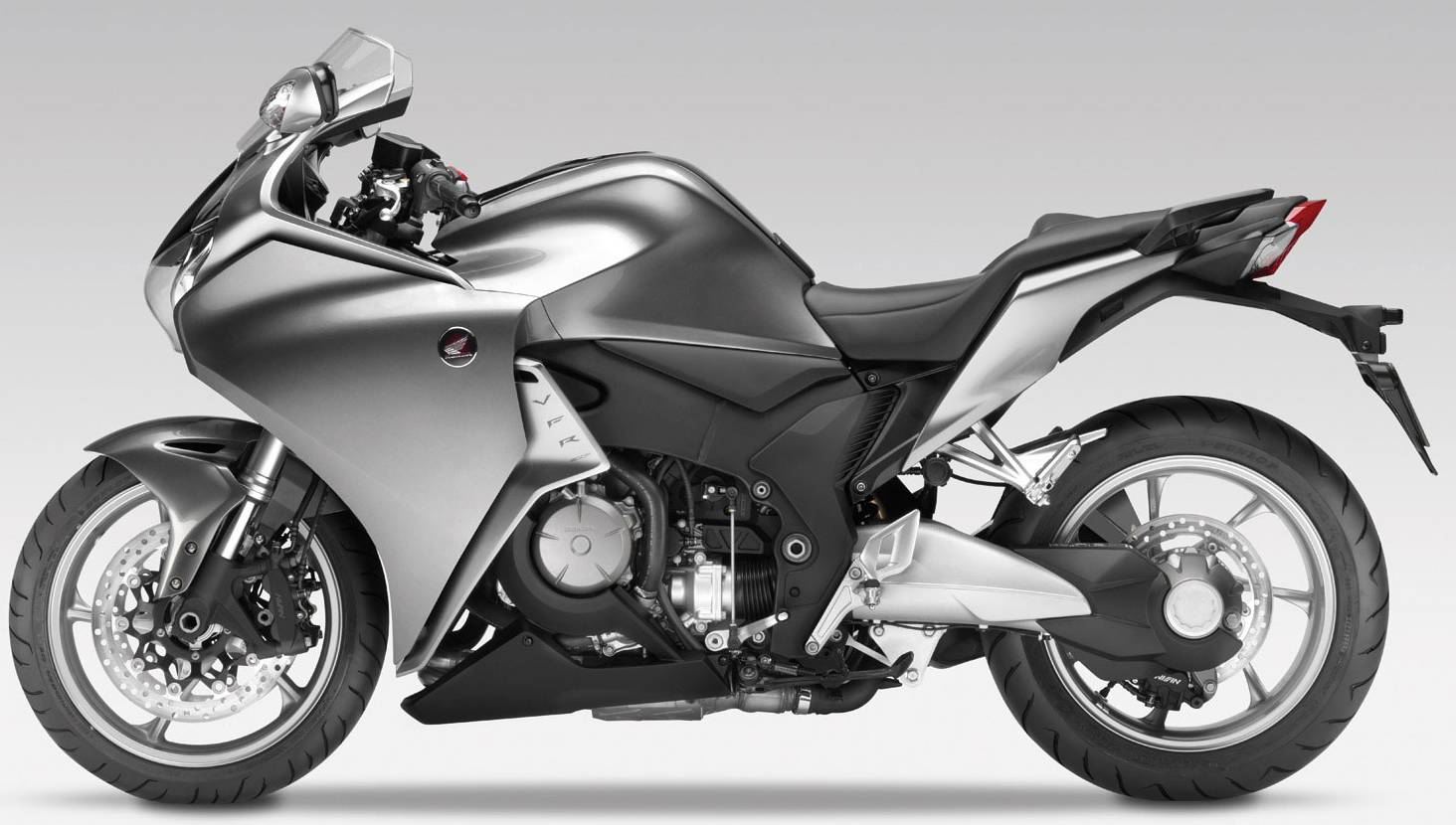

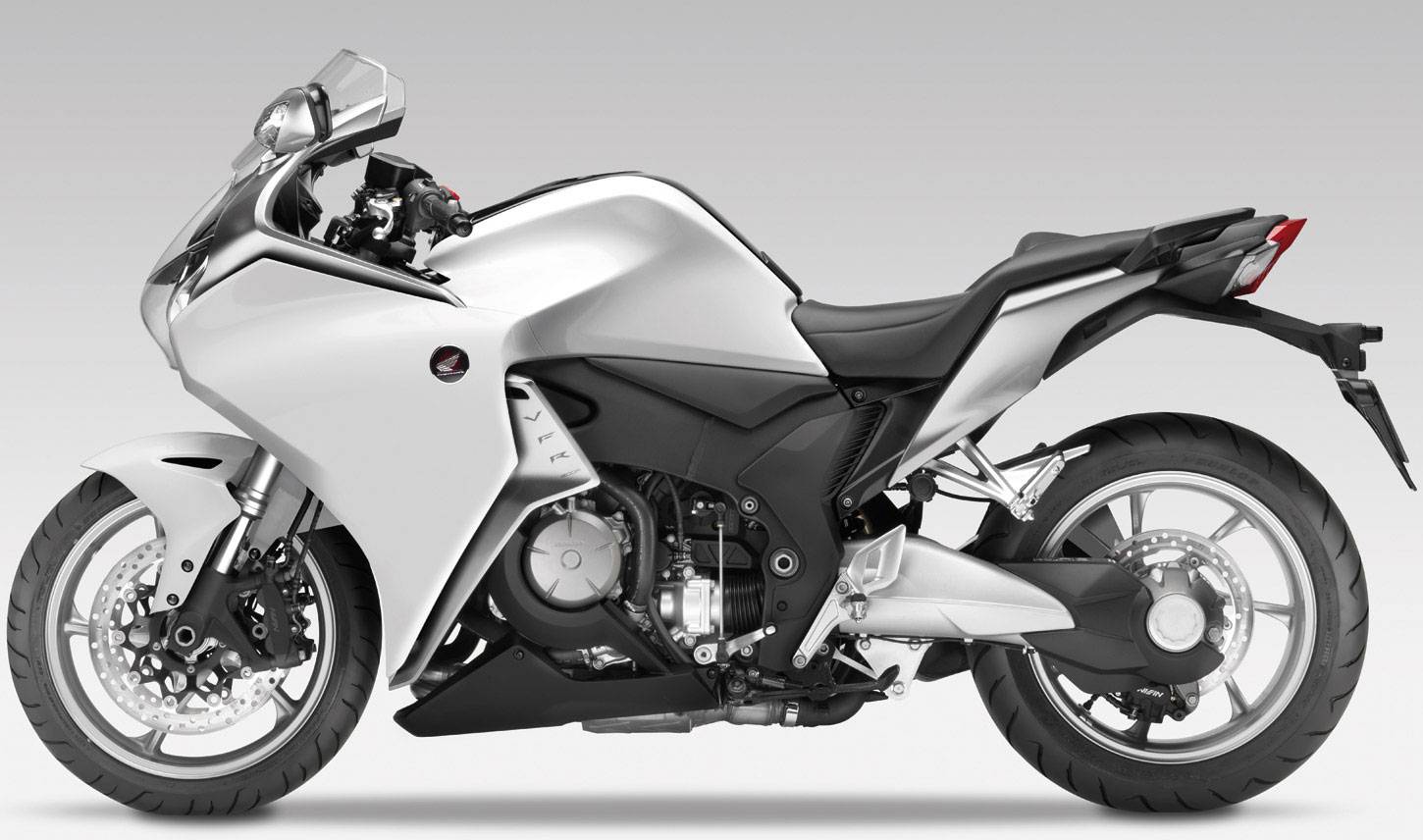

- Silver
- Black
|
| Model Id |

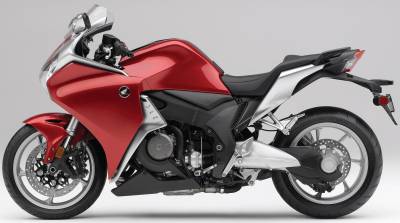

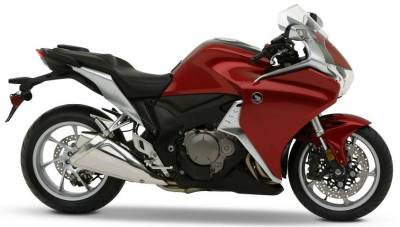

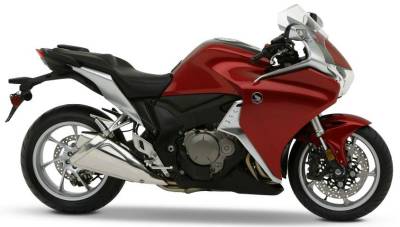

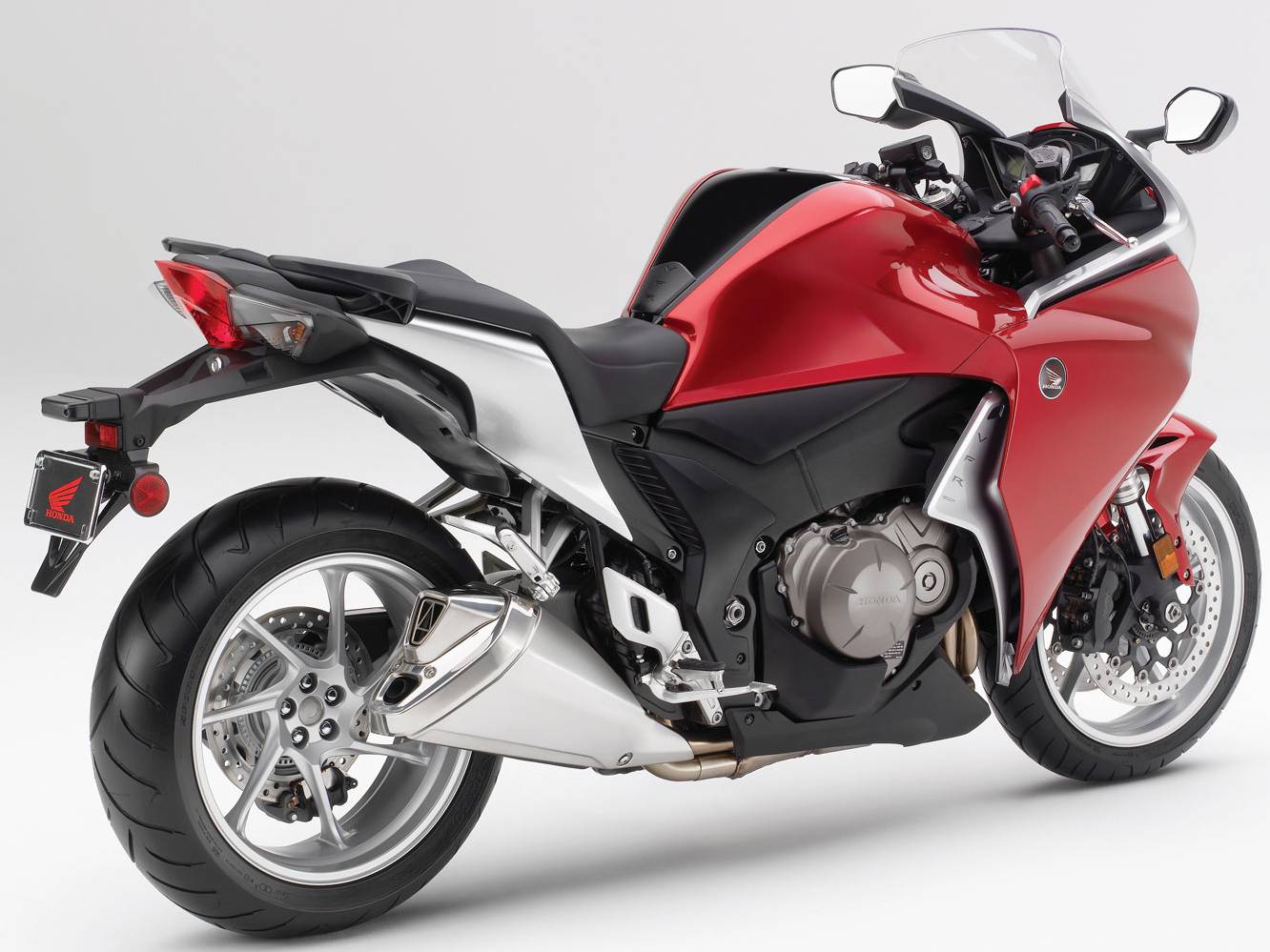

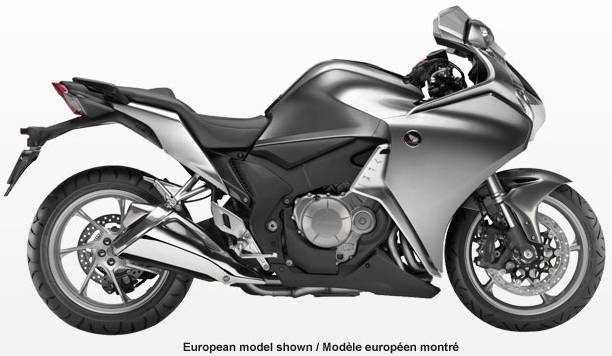

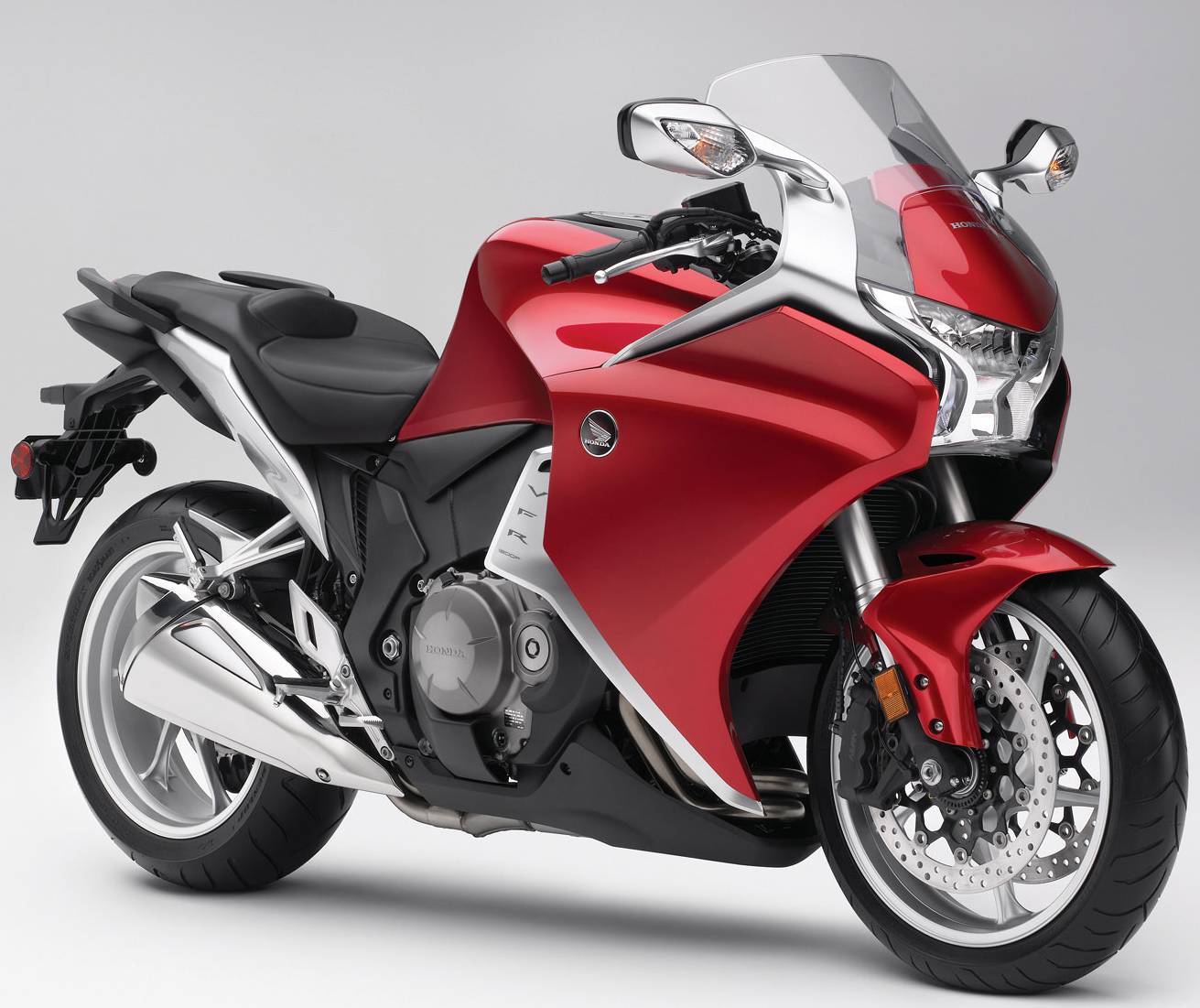

VFR1200F |
| Emissions |
Meets current California Air Resources Board (CARB) and EPA standards. |
| FACTORY WARRANTY INFORMATION |
One Year: Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
