2004 Varadero XL125V
Engine |
|
| Engine Type | Liquid cooled 4-stroke 4-valve SOHC 90° V-twin |
| Displacement | 125cc |
| Bore and Stroke | 42 x 45mm |
| Compression Ratio | 11.8 :1 |
| Max. Power Output | 15 bhp at 11,080 rpm |
| Max. Torque | 10.7Nm at 9,500 rpm |
| Fuel Delivery | 22mm VP-type x 2 |
| Ignition | Dual digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | Hollow-section triple-spoke cast aluminum |
| Rear Wheel | Hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 35mm telescopic fork, 132mm axle travel |
| Rear Suspension | Monoshock swingarm with adjustable spring preload, 150mm axle travel |
| Front Brakes | 276mm hydraulic disc with dual-piston caliper |
| Rear Brakes | 220mm hydraulic disc with single-piston caliper |
| Front Tire | 100/90-18 (56P) |
| Rear Tire | 130/80-17 (65P) |
DIMENSION |
|
| Seat Height | 802mm (31.5 inches) |
| Wheelbase | 1450mm (57 inches) |
| Dry Weight | 149kg (328 lb) |
| Fuel Capacity | 17.5 litres (4.6 Gal)(including 2 litre (0.5 Gal)reserve) |
| Overall Length | 2150mm (84.6 inches) |
| Overall Width | 850mm (33.5 inches) |
| Ground Clearance | 190mm (7.5 inches) |
OTHER |
2007 XL125V
Engine |
|
| Engine Type | Liquid cooled 4-stroke 4-valve SOHC 90° V-twin |
| Displacement | 125cc |
| Bore and Stroke | 42 x 45mm |
| Compression Ratio | 11.8 :1 |
| Max. Power Output | 15 bhp at 11,080 rpm |
| Max. Torque | 10.7Nm at 9,500 rpm |
| Fuel Delivery | 22mm VP-type x 2 |
| Ignition | Dual digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | Hollow-section triple-spoke cast aluminum |
| Rear Wheel | Hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 35mm telescopic fork, 132mm axle travel |
| Rear Suspension | Monoshock swingarm with adjustable spring preload, 150mm axle travel |
| Front Brakes | 276mm hydraulic disc with dual-piston caliper |
| Rear Brakes | 220mm hydraulic disc with single-piston caliper |
| Front Tire | 100/90-18 (56P) |
| Rear Tire | 130/80-17 (65P) |
DIMENSION |
|
| Seat Height | 802mm (31.5 inches) |
| Wheelbase | 1450mm (57 inches) |
| Dry Weight | 149kg (328 lb) |
| Fuel Capacity | 17.5 litres (4.6 Gal)(including 2 litre (0.5 Gal)reserve) |
| Overall Length | 2150mm (84.6 inches) |
| Overall Width | 850mm (33.5 inches) |
| Ground Clearance | 190mm (7.5 inches) |
OTHER |
2012 XL125V Varadero
Engine |
|
| Engine Type | Liquid cooled 4-stroke 4-valve SOHC 90° V-twin |
| Displacement | 125cc |
| Bore and Stroke | 42 x 45mm |
| Compression Ratio | 11.8 :1 |
| Max. Power Output | 10.6kW/11,000min-1 (95/1/EC) |
| Max. Torque | 10Nm/8,500min-1 (95/1/EC) |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Fully transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | Hollow-section triple-spoke cast aluminium, 18M/C x MT2.15 |
| Rear Wheel | Hollow-section triple-spoke cast aluminium, 17M/C x MT2.75 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 35mm telescopic fork, 132mm axle travel |
| Rear Suspension | Monoshock swingarm with adjustable spring preload, 150mm axle travel |
| Front Brakes | 276 x 4mm hydraulic disc with dual-piston caliper |
| Rear Brakes | 220 x 4mm hydraulic disc with single-piston caliper |
| Front Tire | 130/80-17M/C (65P) |
| Rear Tire | 100/90-18M/C (56P) |
DIMENSION |
|
| Seat Height | 802mm (31.5 inches) |
| Wheelbase | 1450mm (57 inches) |
| Dry Weight | 149kg (328 lb) |
| Fuel Capacity | 17.5 litres (4.6 Gal)(including 2 litre (0.5 Gal)reserve) |
| Overall Length | 2150mm (84.6 inches) |
| Overall Width | 833mm (32.8 inches) |
| Overall Height | 1250mm (49.2 inches) |
| Ground Clearance | 190mm (7.5 inches) |
OTHER |

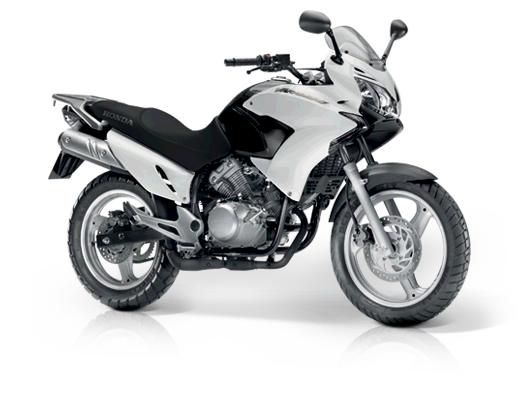

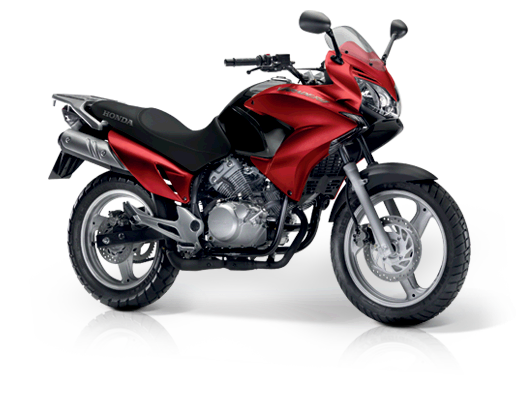

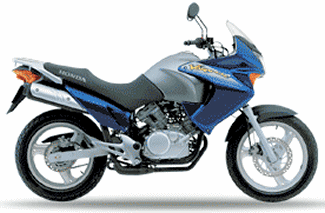

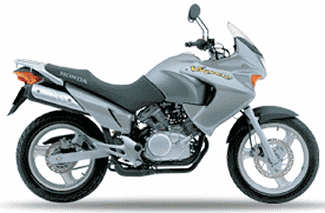

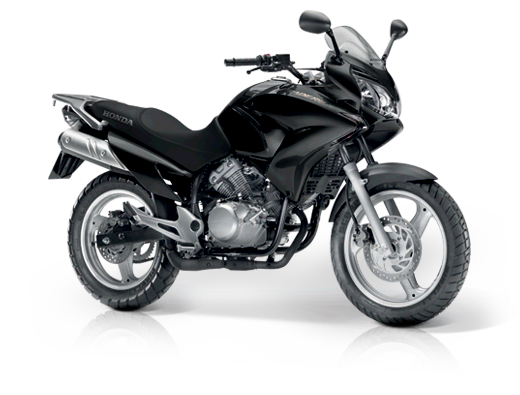

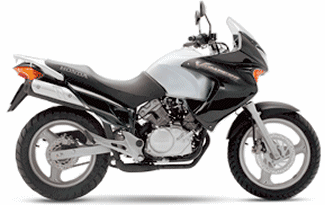

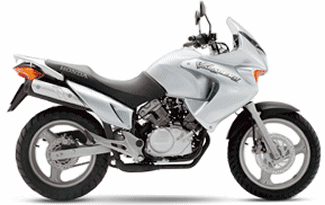

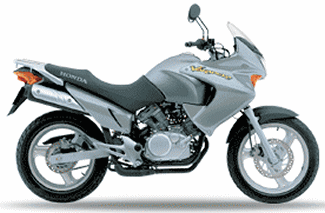

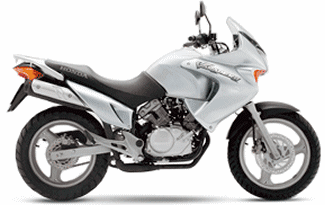

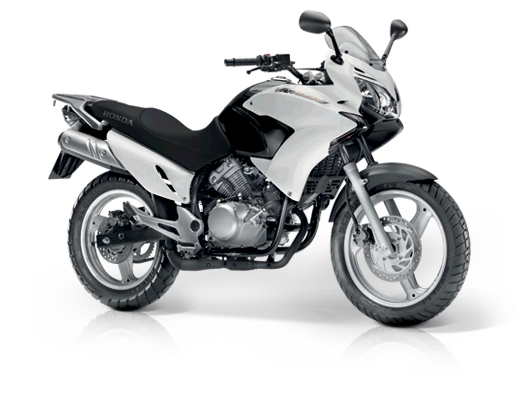

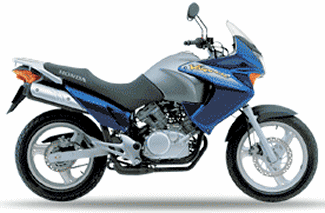

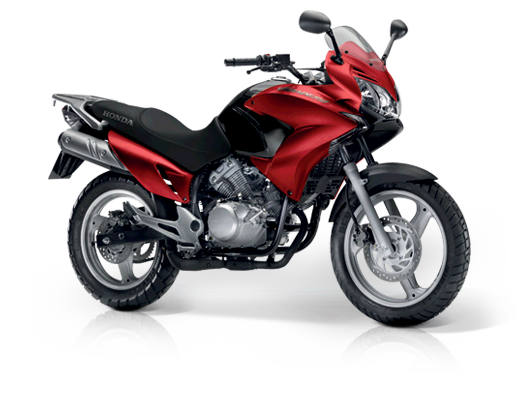

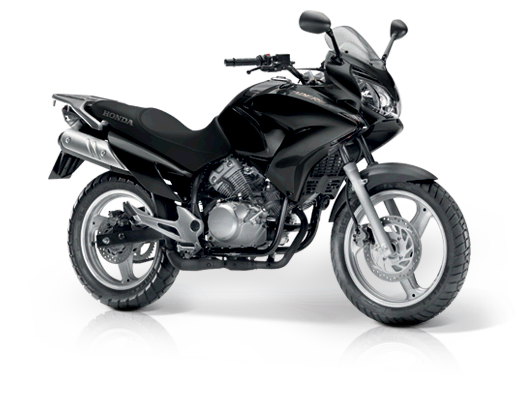

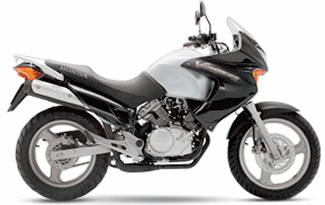

XL125V Image Gallery
