2004 Varadero XL1000V
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 996cc |
| Bore and Stroke | 98 x 66mm |
| Compression ratio | 9.8 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Max. Power Output | 93 bhp at 8,000 rpm |
| Max. Torque | 98Nm at 6,000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance and HISS |
| Starting system | electric |
| Starter | Electric |
Drivetrain |
|
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | 19 x MT2.50 Hollow-section triple-spoke cast aluminum |
| Rear Wheel | 17 x MT4.00 Hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Rear Brakes | ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads |
| Front Suspension | 43mm telescopic fork, 155mm axle travel |
| Rear Suspension | Pro-link with spring preload adjustable damper, 145mm axle travel |
| Front tire | 110/80-R19 59H |
| Rear tire | 150/70-R17 69H |
DIMENSION |
|
| Overall Length | 2295mm (90.4 inches) |
| verall Width | 925mm (36.4 inches) |
| Overall Height | 1500mm (59 inches) |
| Wheelbase | 1,560mm (61.4 inches) |
| Seat Height | 838mm (33 inches) |
| Ground Clearance | 181mm (7.1 inches) |
| Fuel Capacity | 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve] |
| Dry Weight |
|
OTHER |
2005 Varadero XL1000
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 996cc |
| Bore and Stroke | 98 x 66mm |
| Compression ratio | 9.8 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Max. Power Output | 93 bhp at 8,000 rpm |
| Max. Torque | 98Nm at 6,000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance and HISS |
| Starting system | electric |
| Starter | Electric |
Drivetrain |
|
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | 19 x MT2.50 Hollow-section triple-spoke cast aluminum |
| Rear Wheel | 17 x MT4.00 Hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Rear Brakes | ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads |
| Front Suspension | 43mm telescopic fork, 155mm axle travel |
| Rear Suspension | Pro-link with spring preload adjustable damper, 145mm axle travel |
| Front tire | 110/80-R19 59H |
| Rear tire | 150/70-R17 69H |
DIMENSION |
|
| Overall Length | 2295mm (90.4 inches) |
| verall Width | 925mm (36.4 inches) |
| Overall Height | 1500mm (59 inches) |
| Wheelbase | 1,560mm (61.4 inches) |
| Seat Height | 838mm (33 inches) |
| Ground Clearance | 181mm (7.1 inches) |
| Fuel Capacity | 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve] |
| Dry Weight | 241.5kg (531 lb) |
OTHER |
2007 XL1000V VARADERO
Engine |
|
| Engine Type | Liquid-cooled 90-degree V-twin |
| Displacement | 996cc |
| Bore and Stroke | 98 x 66mm |
| Compression ratio | 9.8 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Starter | Electric |
Drivetrain |
|
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | 19 x MT2.50 Hollow-section triple-spoke cast aluminum |
| Rear Wheel | 17 x MT4.00 Hollow-section triple-spoke cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | ABS. 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Rear Brakes | ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads |
| Front Suspension | 43mm telescopic fork, 155mm axle travel |
| Rear Suspension | Pro-link with spring preload adjustable damper, 145mm axle travel |
| Front tire | 110/80-R19 59H |
| Rear tire | 150/70-R17 69H |
DIMENSION |
|
| Overall Length | 2295mm (90.4 inches) |
| verall Width | 925mm (36.4 inches) |
| Overall Height | 1500mm (59 inches) |
| Wheelbase | 1,560mm (61.4 inches) |
| Seat Height | 838mm (33 inches) |
| Ground Clearance | 181mm (7.1 inches) |
| Fuel Capacity | 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve] |
| Dry Weight | 241.5kg (531 lb) |
OTHER |
2010 XL1000V VARADERO
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 996cc |
| Bore and Stroke | 98 x 66mm |
| Compression ratio | 9.8 :1 |
| Fuel Delivery | Fuel Delivery: |
| Starter | Electric |
Drivetrain |
|
| Transmission | Six-speed |
| Final Drive | O-ring-sealed chain; 16T/47T |
CHASSIS / SUSPENSION / BRAKES |
|
| Rear Brakes | Pro-Link single shock with spring preload and rebound-damping adjustability; 145 mm (5.7 in.) travel |
| Front Suspension | 43 mm telescopic fork; 155 mm (6.1 in.) travel |
| Rear Suspension | Pro-link with spring preload adjustable damper, 145mm axle travel |
| Front tire | 110/80R�19 radial front; 150/70R�17 radial rear |
| Brakes | Front dual 296 mm discs with triple-piston calipers and Combined Braking System with ABS; rear 256 mm disc with triple-piston caliper and Combined Braking System with ABS |
DIMENSION |
|
| Overall Height | 1500mm (59 inches) |
| Wheelbase | 1,560 mm (61.4 in.) |
| Seat Height | 838 mm (33 in.) |
| Ground Clearance | N/A |
| Fuel Capacity | 25 litres |
| Curb Weight | 277 kg (611 lb) including required fluids and full tank of gas � ready to ride |
OTHER |
|
| Color | Concours Black Pearl |
| MSRP | $13,199 |
| Warranty | 1 year, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
2012 XL1000V VARADERO
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 996cc |
| Bore and Stroke | 98 x 66mm |
| Compression ratio | 9.8 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Starter | Electric |
| Max. Power Output | 69kW/7,500min-1 (95/1/EC) |
| Max. Torque | 98Nm/6,000min-1 (95/1/EC) |
Drivetrain |
|
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Front Wheel | Hollow-section triple-spoke cast aluminium, 19M/C x MT2.5 |
| Rear Wheel | Hollow-section triple-spoke cast aluminium, 17M/C x MT4 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Brakes | ABS 296 x 4.5mm dual hydraulic disc with Combined 3-piston calipers and sintered metal pads |
| Rear Brakes | ABS. 256 x 5mm hydraulic disc with Combined 3-piston caliper and sintered metal pads |
| Front Suspension | 43mm telescopic fork, 155mm axle travel |
| Rear Suspension | Pro-Link damper with 40-step spring preload (and stepless rebound damping) adjustment, 145mm axle travel |
| Front tire | 110/80-R19 59H |
| Rear tire | 150/70-R17 69H |
DIMENSION |
|
| Overall Length | 2,300mm (90.5 inches) |
| Overall Width | 930mm (36.6 inches) |
| Overall Height | 1465mm (57.7 inches) |
| Wheelbase | 1,560mm (61.4 inches) |
| Seat Height | 838mm (33 inches) |
| Ground Clearance | 181mm (7.1 inches) |
| Fuel Capacity | 25 litres (6.6 Gal) [including 4 litre (1 Gal) warning light reserve] |
| Seat Height | 838mm (33 inches) |
OTHER |

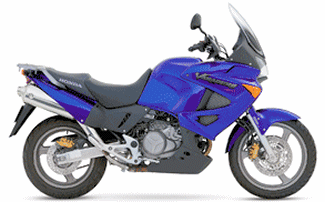

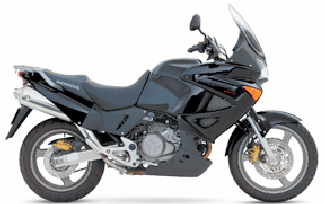

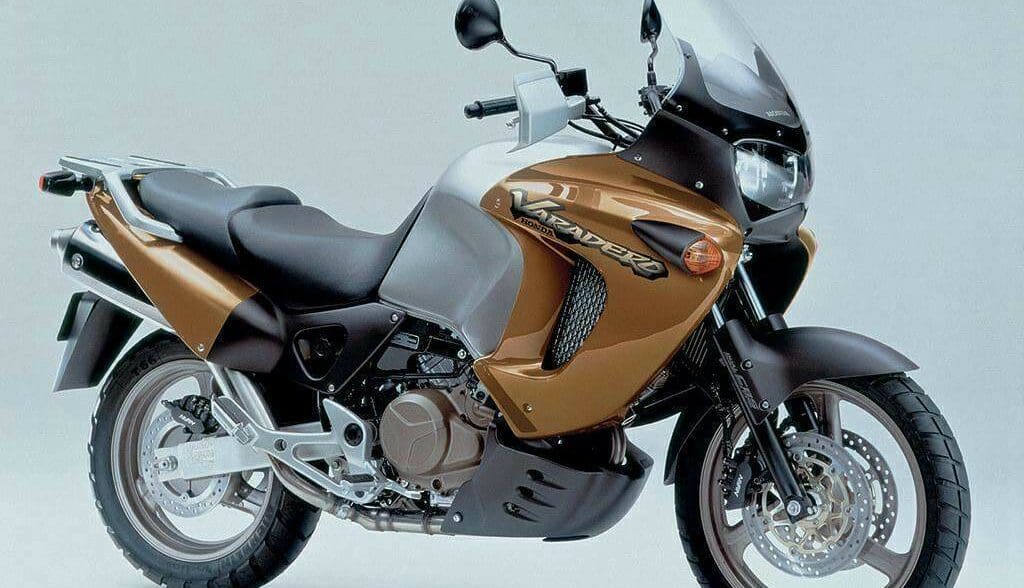

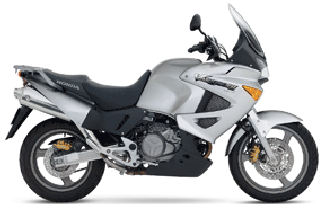

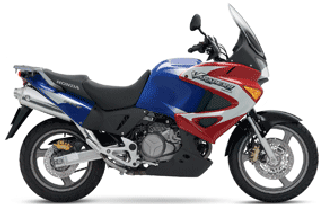

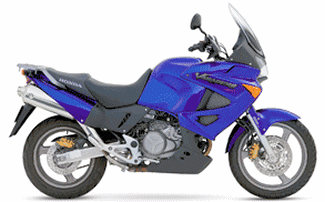

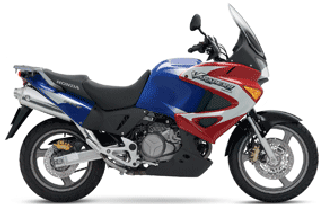

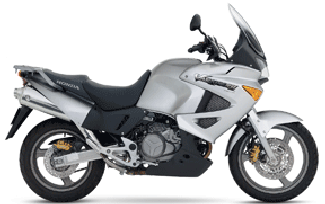

000 (XL1000V) Image Gallery
