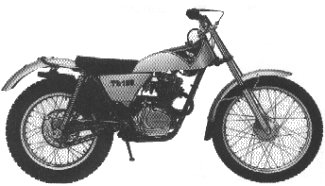

1973 Trials 125 (TL125K0)
Engine |
|
| Engine Type | 4-stroke single cylinder OHC |
| Displacement | 122cc |
| Cylinder head | One-piece cylinder head |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Color | Silver Metallic with Tahitian Red |
- The fuel tank stripe is red and so are the “TL125” side cover decals
- The “HONDA” fuel tank decal is curved
- The frame is dark gray metallic
- The serial number began TL125-1000003.

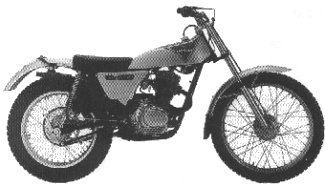

1974 TL125K1 Trials 125
Engine |
|
| Engine Type | 4-stroke single cylinder OHC |
| Displacement | 122cc |
| Cylinder head | One-piece cylinder head |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Color | Silver Metallic with Candy Sapphire Blue |
- The gas tank stripe was blue
- The “TL125” side cover decal was also blue
- The frame was gloss black
- The serial number began TL125-1100001.

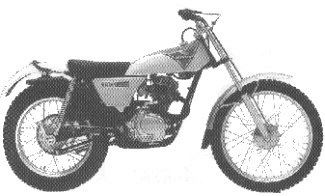

1975 TL125K2 Trials 125
Engine |
|
| Engine Type | 4-stroke single cylinder OHC |
| Displacement | 122cc |
| Cylinder head | One-piece cylinder head |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Color | Silver Metallic with Candy Sapphire Blue |
- The gas tank stripe was red
- The “TL125” side cover decal was yellow, orange, and red
- The frame was gloss black
- The serial number began TL125-1200001.

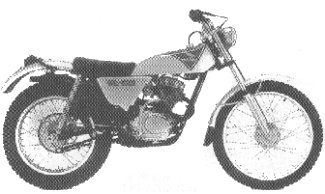

1976 TL125S’76 Trials 125
Engine |
|
| Engine Type | OHC single cylinder |
| Displacement | 124cc |
| Cylinder head | Two-piece cylinder head |
DRIVETRAIN |
|
| Transmission | 5-speed |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
N/A |
OTHER |
|
| Color | Silver Metallic with Shiny Orange |
- The gas tank stripe was orange
- The “TL125” side cover decal was also orange
- The frame was gloss black
- The serial number began TL125S-1000417.

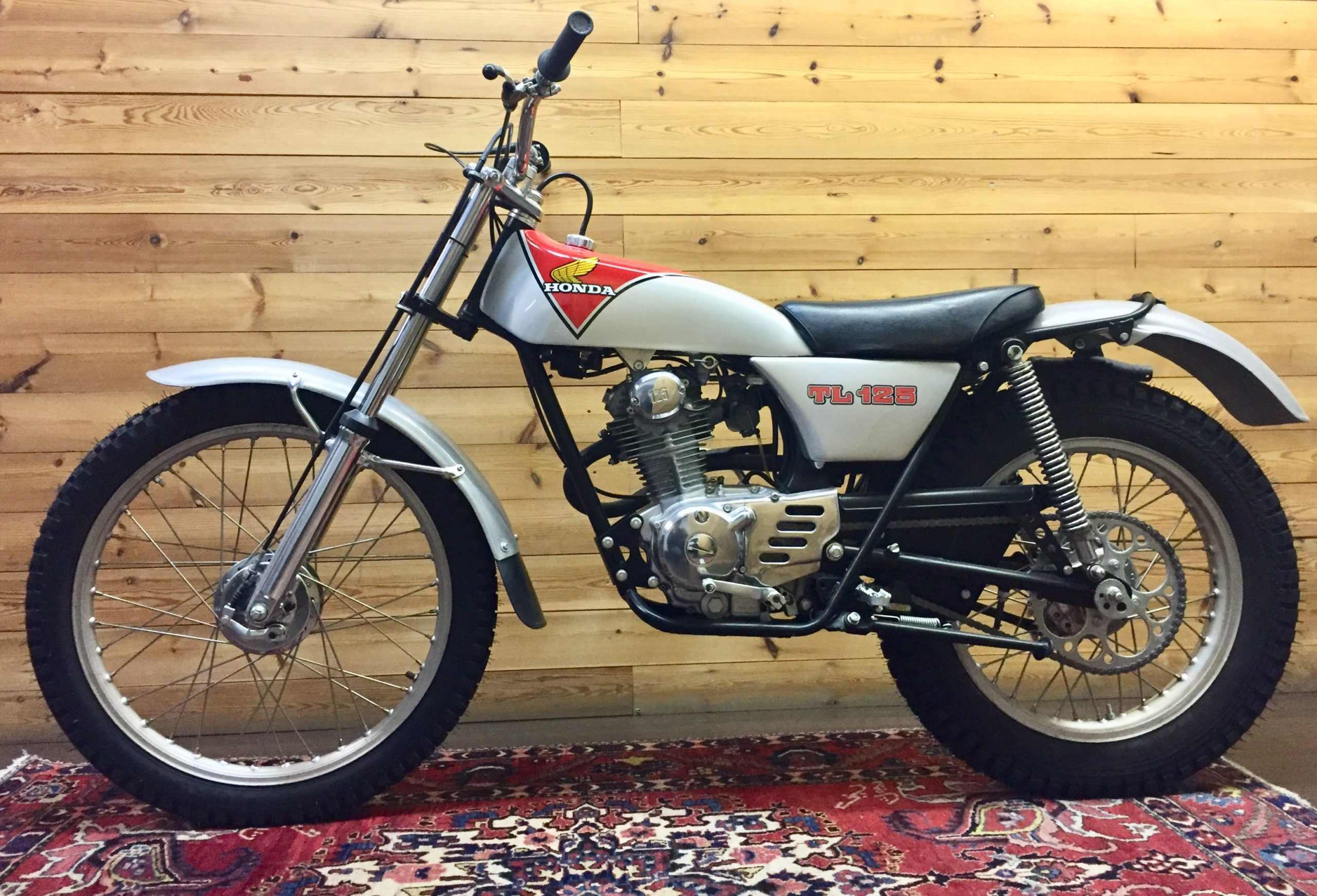

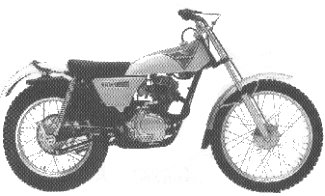

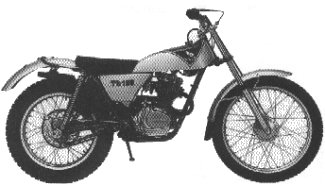

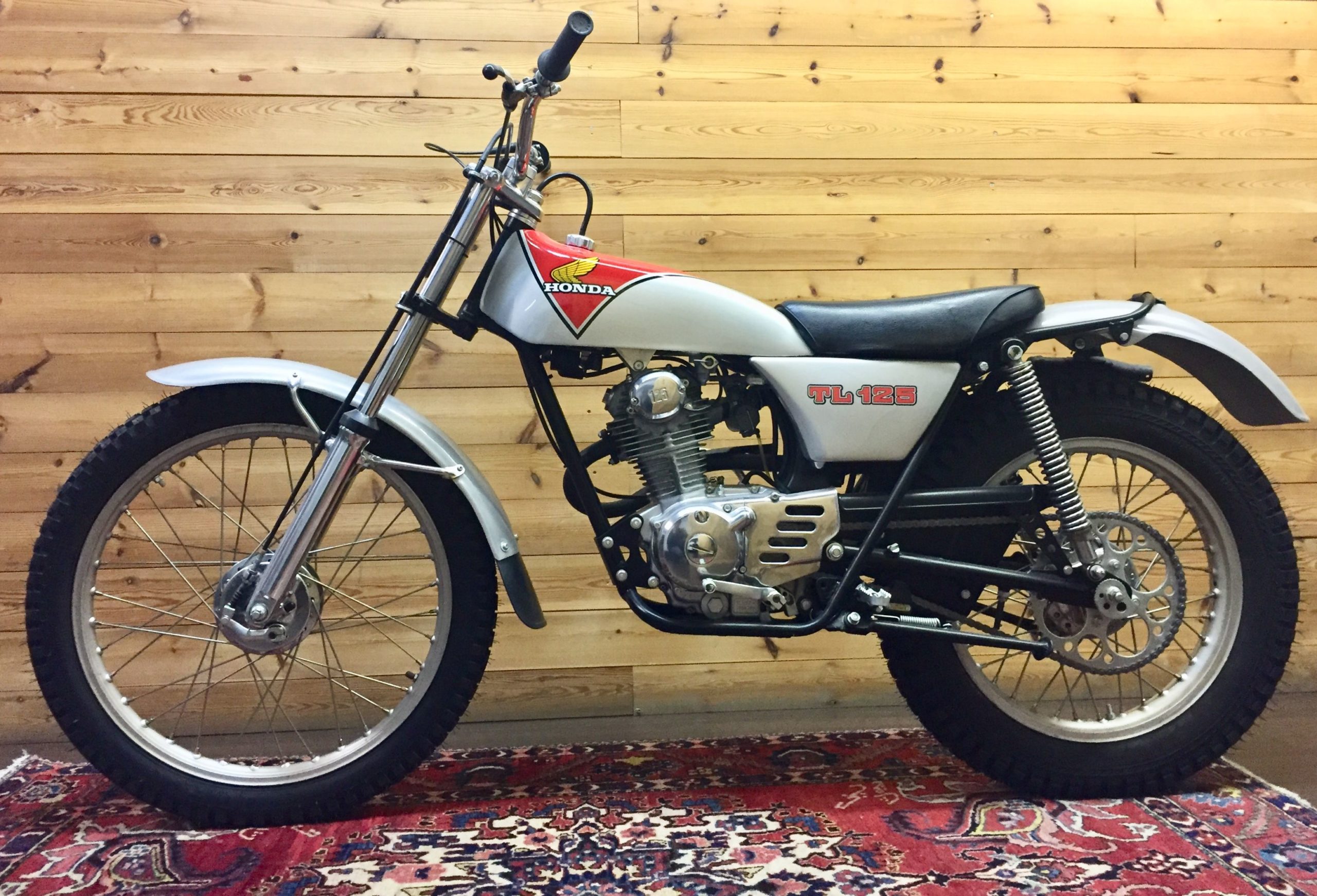

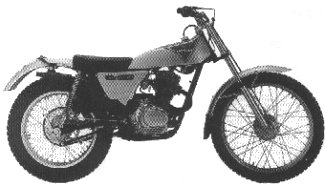

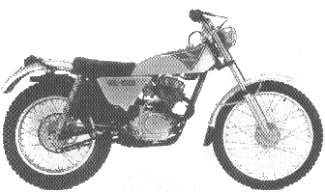

TL125 Image Gallery
