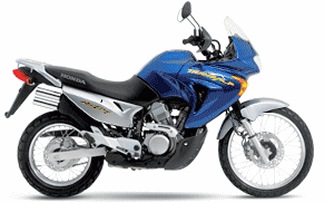

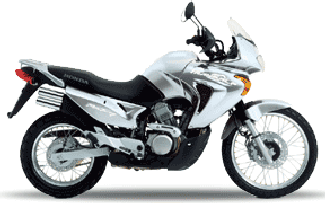

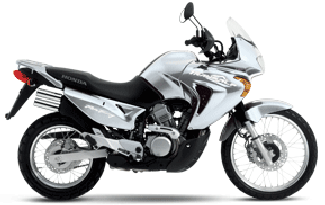

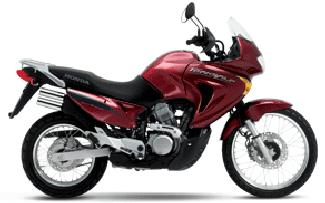

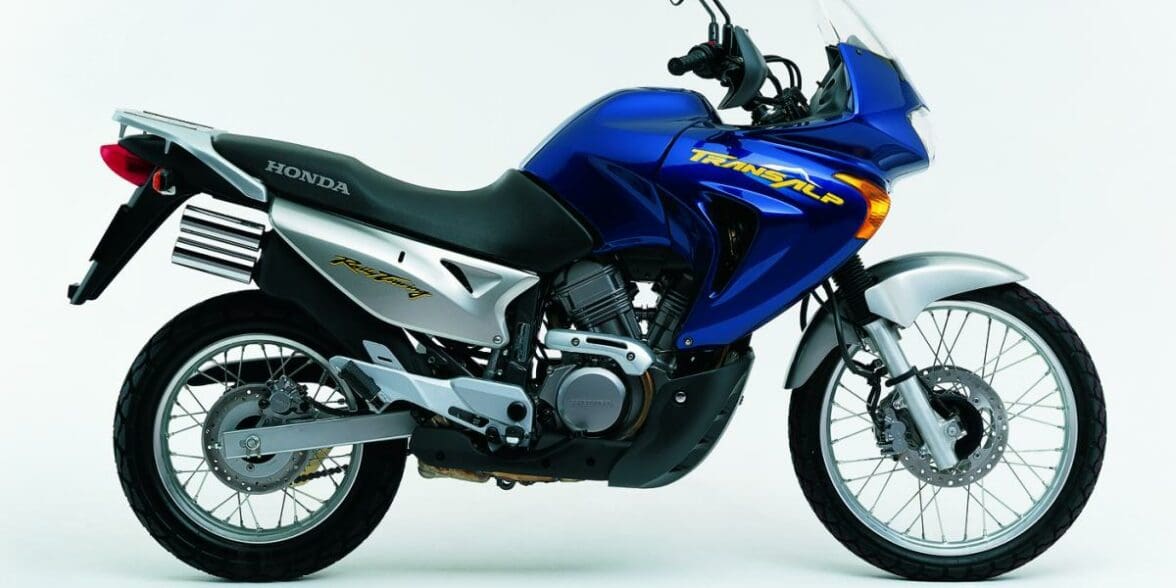

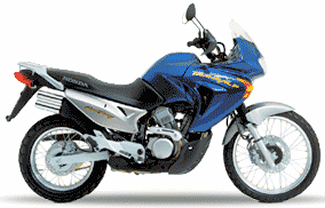

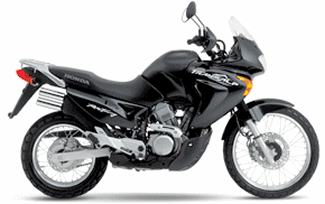

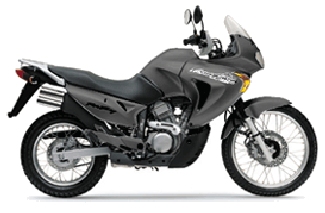

Honda Transalp XL650V Motorcycles

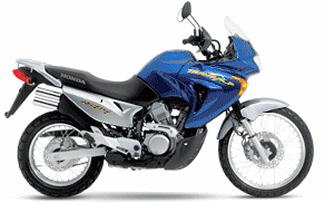

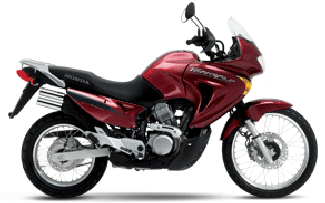

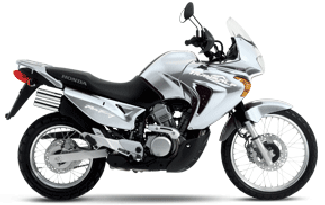

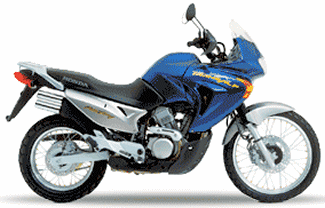

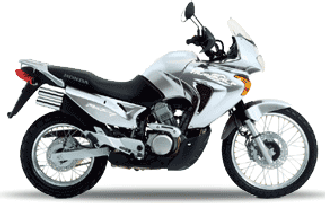

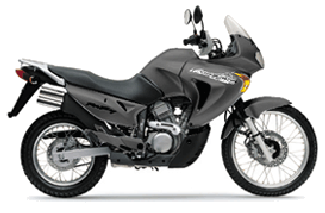

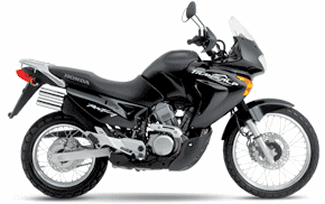

2004 Transalp XL650V

Engine Type	Liquid-cooled 4-stroke 6-valve SOHC 52° V-twin
Bore and Stroke	79 x 66mm
Displacement	644cc
Compression Ratio	9.2:1
Fuel Delivery	34mm slant-type CV x 2
Max. Power Output	52 bhp at 7,500 rpm
Max. Torque	55Nm at 3,500 rpm
Ignition	Digital transistorised with electronic advance
Starter	Electric
Transmission	5-speed
Final Drive	‘O’-Ring sealed chain
Length x Width x Height	2,260 x 920 x 1,315mm
Wheelbase	1,505mm
Seat Height	843mm
Ground Clearance	192mm
Fuel Capacity	19 litres (including 3 litre reserve)
Dry Weight	191kg
Front Wheel	21 x 1.85 aluminum rim/wire spoke
Rear Wheel	aluminum rim/Tangentially Located (TL) spokes
Front Tire	90/90-21 (54S)
Rear Tire	120/90-17 (64S)

Front Suspension: 41mm leading-axle fork, 220mm axle travel
Rear Suspension: Pro-Link with adjustable compression damping, 172mm axle travel
Front Brakes: 256mm dual hydraulic disc with dual-piston calipers and sintered metal pads
Rear Brake: s: 240mm hydraulic disc with single-piston caliper and resin mould pads

Engine Type	Liquid-cooled 4-stroke 6-valve SOHC 52° V-twin
Bore and Stroke	79 x 66mm
Displacement	644cc
Compression Ratio	9.2:1
Fuel Delivery	34mm slant-type CV x 2
Max. Power Output	52 bhp at 7,500 rpm
Max. Torque	55Nm at 3,500 rpm
Ignition	Digital transistorised with electronic advance
Starter	Electric
Transmission	5-speed
Final Drive	‘O’-Ring sealed chain
Length x Width x Height	2,260 x 920 x 1,315mm
Wheelbase	1,505mm
Seat Height	843mm
Ground Clearance	192mm
Fuel Capacity	19 litres (including 3 litre reserve)
Dry Weight	191kg
Front Wheel	21 x 1.85 aluminum rim/wire spoke
Rear Wheel	aluminum rim/Tangentially Located (TL) spokes
Front Tire	90/90-21 (54S)
Suspension Front	41mm leading-axle fork, 220mm axle travel
Suspension Rear	Pro-Link with adjustable compression damping, 172mm axle travel
Brakes Front	256mm dual hydraulic disc with dual-piston calipers and sintered metal pads
Brakes Rear	240mm hydraulic disc with single-piston caliper and resin mould pads
