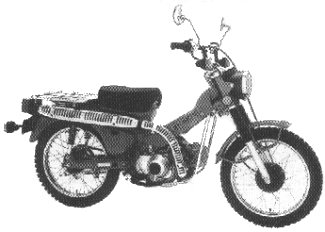

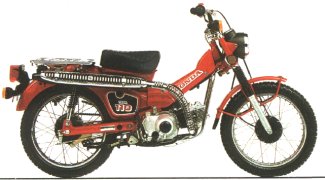

1980 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | Points and condenser |
DRIVETRAIN |
|
| Transmission | 4-speed |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
- One color was available: Tahitian Red
- The “HONDA” decal was red but outlined in white
- The decal “TRAIL 110” appeared only on the left side cover
- The serial number began JD01-5000001.

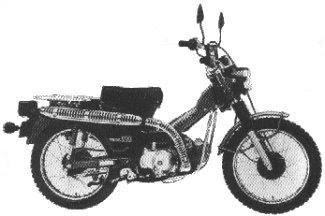

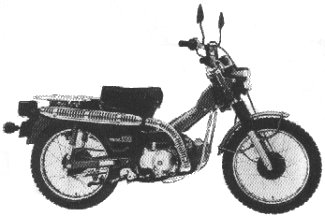

1981 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | Points and condenser |
DRIVETRAIN |
|
| Transmission | 8-speed dual range |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
|
| Color | one color: Tahitian Red |
- The “HONDA” decal was red, outlined in black
- The “TRAIL 110” side cover decal was located on both sides of the bike and was white and red on a black panel
- The serial number began JH2JD010*BS100002.

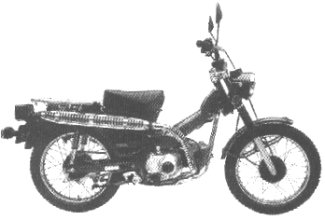

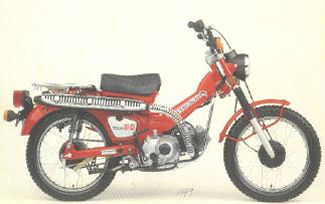

1982 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 8-speed dual range |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
|
| Color | Monza Red |
- The “TRAIL 110: decal was a white outline and red on a black panel
- The serial number began JH2JD010*CS200001.

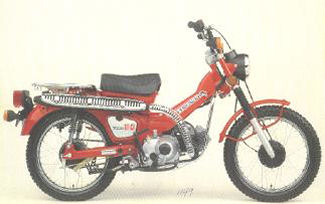

1983 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 8-speed dual range |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
|
| Color | Monza Red |
- The “HONDA” decal was black but outlined in white
- The decal “TRAIL 110” was red on silver and outlined in black
- The serial number began JH2JD0102DS300003.

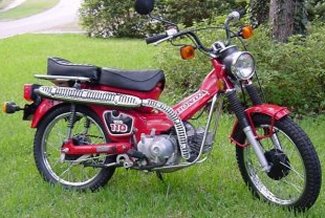

1984 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 8-speed dual range |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
|
| Color | Monza Red |
- All decals and graphics were outlined in white
- The “HONDA” decal was red
- The “TRAIL 110” logo was black and red
- The side cover panel was black
- The serial number began JH2JD010*ES400001.

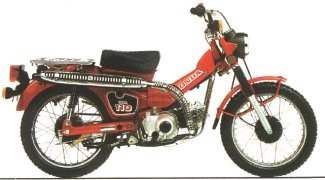

1986 Trail 110 (CT110)
Engine |
|
| Engine Type | single cylinder |
| Carburetor | 105cc |
| Valve train | Single overhead cam (OHC) |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | 8-speed dual range |
| Clutch | Automatic |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
OTHER |
|
| Color | N/A |
- All decals and graphics were outlined in white
- The “HONDA” decal was red
- The “TRAIL 110” logo was black and red
- The side cover panel was black
- The serial number began JH2JD010*GS500001.
