1968 Honda Super Sport 250 (CB250K0)
Engine |
|
| Engine Type | 249cc Air cooled, four stroke, twin parallel cylinders, SOHC |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | Two CV |
| Valve Train | 2 per cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | |
| Rear Suspension | |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Wet Weight | 170 kg (374 lb) |
| Fuel Capacity | 10 Litres (2.6 Gal) |
OTHER |
|
| Model ID | |
| Color |
|
| The fuel tank is two-toned with white on the bottom half The tank also had rubber knee pads The upper forks were painted one of the basic colors The side covers and headlight shells were white The seat cover was not pleated The taillight lens was oval-shaped The serial number began CB250-1000001. |
1969 Honda Super Sport 250 (CB250K1)
Engine |
|
| Engine Type | 249cc Air cooled, four stroke, twin parallel cylinders, SOHC |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | Two CV |
| Valve Train | 2 per cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | |
| Rear Suspension | |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Wet Weight | 170 kg (374 lb) |
| Fuel Capacity | 10 Litres (2.6 Gal) |
OTHER |
|
| Model ID | |
| Color |
|
| The fuel tank is two-toned with white on the bottom half The tank also had rubber knee pads The upper forks were painted one of the basic colors The side covers and headlight shells were white The seat cover was not pleated The taillight lens was oval-shaped The serial number began CB250-1020001. |
1970 Honda Super Sport 250 (CB250K2)
Engine |
|
| Engine Type | 249cc Air cooled, four stroke, twin parallel cylinders, SOHC |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | Two CV |
| Valve Train | 2 per cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | |
| Rear Suspension | |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Wet Weight | 170 kg (374 lb) |
| Fuel Capacity | 10 Litres (2.6 Gal) |
OTHER |
|
| Model ID | |
| Color |
|
| The fuel tank is two-toned with white on the bottom half The tank also had rubber knee pads The upper forks were painted one of the basic colors The side covers and headlight shells were white The seat cover was not pleated The taillight lens was oval-shaped The serial number began CB250-1000001. |
1971 CB250
Engine |
|
| Engine Type | 249cc Air cooled, 2 – cylinders in line, 4-stroke |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Top speed | 152 km/h (95 mph) |
| Valve Train | 2 valves/cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | |
| Rear Suspension | |
| Front Brakes | |
| Rear Brake | |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Dry Weight | 170 kg (374.8 lb) |
| Fuel Capacity | (incl. reserve) 10 litres (2.6 gallon US) |
OTHER |
|
| Identical to the ’71 series CB350 except for the 250cc engine. | |
| Color | |

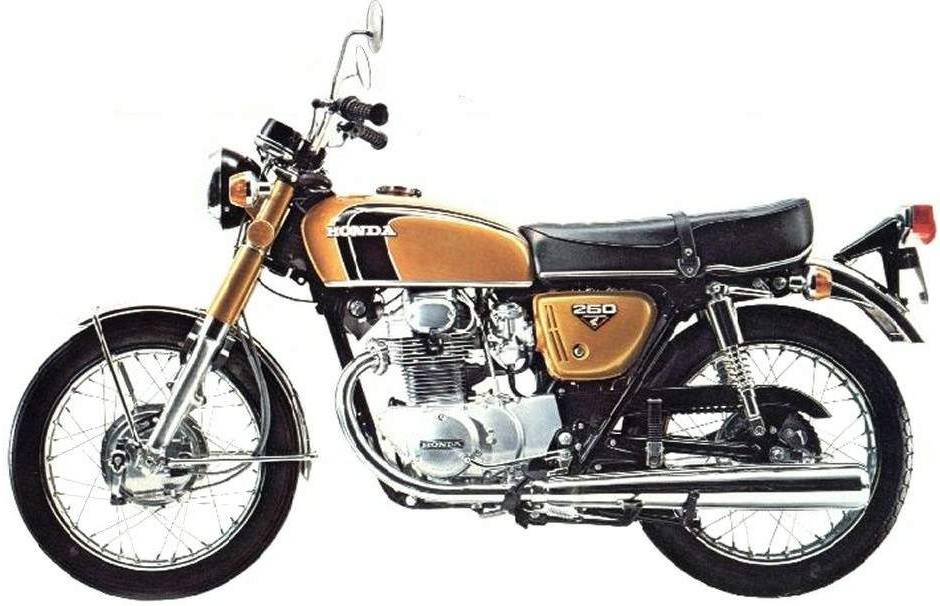

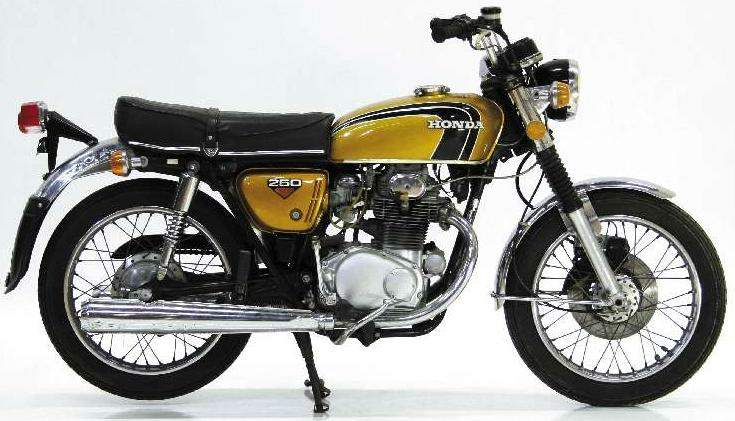

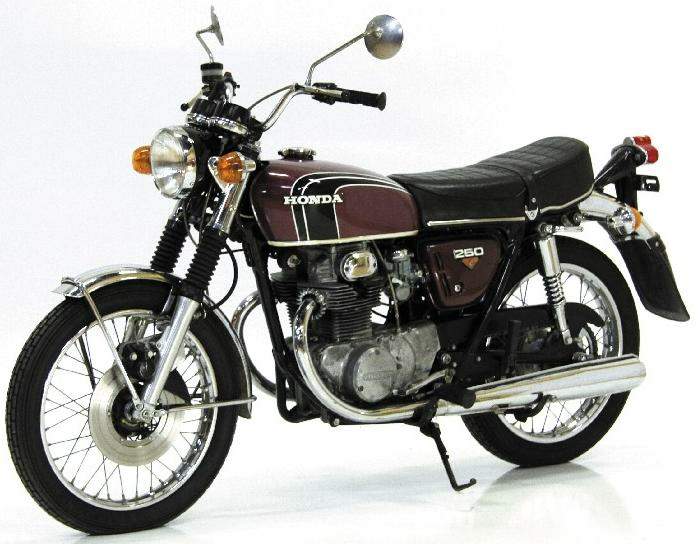

1972 CB250 K4
Engine |
|
| Engine Type | 249cc Air cooled, 2 – cylinders in line, 4-stroke |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Top speed | 152 km/h (95 mph) |
| Valve Train | 2 valves/cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Telescopic forks |
| Rear Suspension | Dual shocks |
| Front Brakes | Drum |
| Rear Brake | Drum |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Dry Weight | 170 kg (374.8 lb) |
| Fuel Capacity | (incl. reserve) 10 litres (2.6 gallon US) |
OTHER |
|
| Identical to the ’72 series CB350 except for the 250cc engine. | |
| Color | |

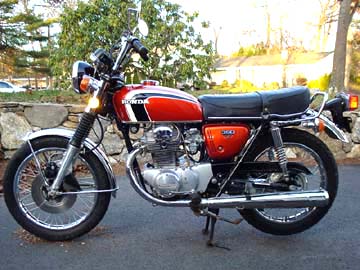

1973 CB250 K5
Engine |
|
| Engine Type | 249cc Air cooled, 2 – cylinders in line, 4-stroke |
| Bore And Stroke | 56 x 50.6 mm |
| Compression Ratio | 9.5:1 |
| Top speed | 152 km/h (95 mph) |
| Valve Train | 2 valves/cylinder |
| Max Power | 30 hp 21.9 kW @ 10500 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | |
| Rear Suspension | |
| Front Brakes | |
| Rear Brake | |
| Front Tire | 3.00-18 |
| Rear Tire | 3.25-18 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Dry Weight | 170 kg (374.8 lb) |
| Fuel Capacity | (incl. reserve) 10 litres (2.6 gallon US) |
OTHER |
|
| Identical to the ’73 series CB350 except for the 250cc engine. | |
| Color | |
1992 CB250
Engine |
|
| Engine Type | 249cc Air cooled, twin cylinder, four stroke |
| Bore And Stroke | 53 x 53 mm |
| Compression Ratio | 9.2:1 |
| Fuel Delivery | 26mm Keihin carb |
| Max Torque | 18 Nm @ 6500 rpm |
| Max Power | 20 hp 14.6 kW @ 9000 rpm |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm Telescopic forks |
| Rear Suspension | Dual shocks with 5-way preload adjustment. |
| Front Brakes | Single 240mm disc |
| Rear Brake | 130mm drum |
| Front Tire | 90/100-18 |
| Rear Tire | 120/90-16 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | |
| Seat Height | |
| Ground Clearance | |
| Dry Weight | 132 kg (290 lb) |
| Fuel Capacity | 16 Litres (4.2 Gal) |
OTHER |
|
| Color | |
Honda Super Sport 250 Photo Gallery
