Honda Sport CB200 Motorcycles

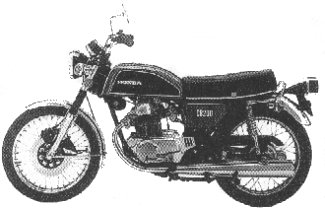

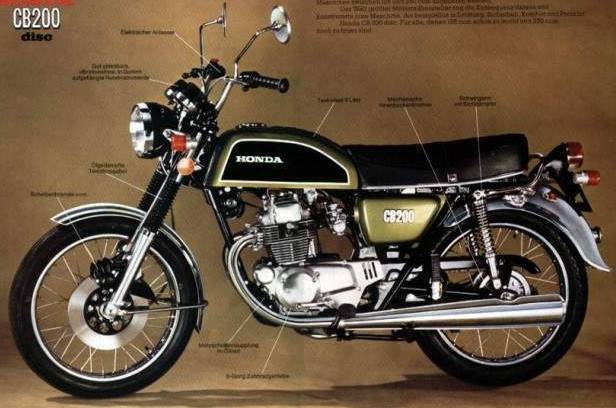

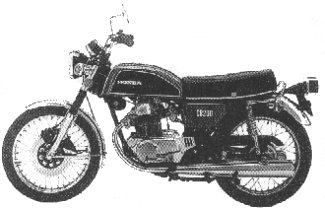

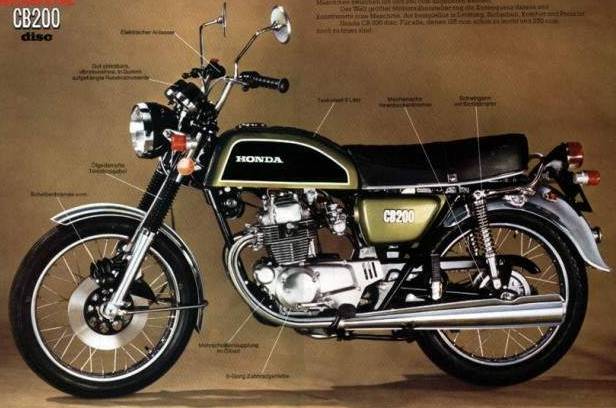

1973-74 CB200

Engine
Engine Type	198 cc, air cooled, 2 – cylinders parallel, 4-stroke
Bore and Stroke	55.5 mm x 41 mm
Compression Ratio	9.0:1
Valve Train	2 valves/cylinder
Horsepower	17 hp (12.7 kW) @ 9000 rpm
Torque	13 Nm (9.6 ft. lbs) @ 7000 rpm
DRIVETRAIN
Transmission	5-speed
Final Drive	chain
CHASSIS / SUSPENSION / BRAKES
Front Brakes	cable-operated single disc
Rear Brakes	Drum
Front Tire	2.75-18
Rear Tire	3.00-18
DIMENSION
Main Fuel capacity	Main Fuel capacity
Reserve fuel	2 litres (0.5 gal. US)
Dry weight	132 kg (291 pounds)
OTHER
Colour	Tahitian Red Muscat Green Metallic

• The fuel tank had a black rubber insert on top
• It was also 2-tone red and green with black panels on each side
• The “CB200” side cover emblem was white
• The front disc brake was operated by a cable rather than hydraulic lines
• The serial number began CB200-1000001

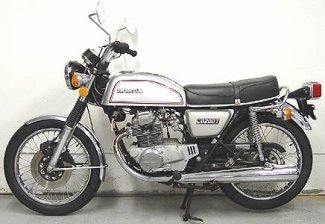

1975 CB200T

Engine
Engine Type	198 cc, air cooled, 2 – cylinders parallel, 4-stroke
Bore and Stroke	55.5 mm x 41 mm
Compression Ratio	9.0:1
Valve Train	2 valves/cylinder
Horsepower	17 hp (12.7 kW) @ 9000 rpm
Torque	13 Nm (9.6 ft. lbs) @ 7000 rpm
DRIVETRAIN
Transmission	5-speed
Final Drive	chain
CHASSIS / SUSPENSION / BRAKES
Rear Brakes	cable-operated single disc
Front Tire	2.75-18
Rear Tire	3.00-18
DIMENSION
Main Fuel capacity	reserve 9 litre (2.4 gal. US)
Dry weight	132 kg (291 pounds)
OTHER
Colour	Candy Gold Metallic Custom Silver Metallic

• The fuel tank and side covers are the basic color
• The “CB200T” side cover emblem was white and yellow
• The serial number began: CB200-2000001
• Also referred to as CB200T0
• It was a replacement for the CB200K0

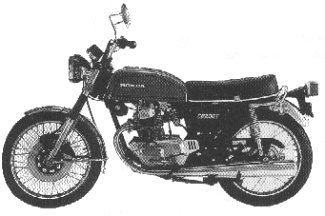

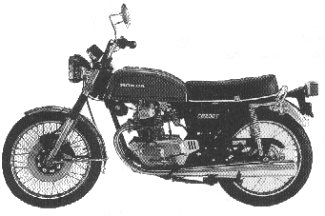

1976 CB200T’76

Engine
Engine Type	198 cc, air cooled, 2 – cylinders parallel, 4-stroke
Bore and Stroke	55.5 mm x 41 mm
Compression Ratio	9.0:1
Valve Train	2 valves/cylinder
Horsepower	17 hp (12.7 kW) @ 9000 rpm
Torque	13 Nm (9.6 ft. lbs) @ 7000 rpm
DRIVETRAIN
Transmission	5-speed
Final Drive	chain
CHASSIS / SUSPENSION / BRAKES
Rear Brakes	cable-operated single disc
Front Tire	2.75-18
Rear Tire	3.00-18
DIMENSION
Main Fuel capacity	reserve 9 litre (2.4 gal. US)
Dry weight	132 kg (291 pounds)
OTHER
Colour	Parakeet Yellow with Black Shiny Orange with Black

• The fuel tank was the basic color while the side covers were black
• The “CB200T” side cover emblem was white and yellow
• The front disc brake was cable operated
• The serial number began: CB200-2100001.

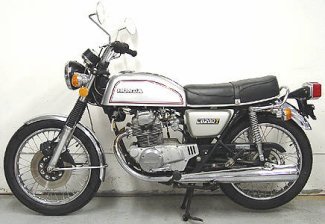

CB200 Image Gallery
