2004 VTR1000 SP-2
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 999cc |
| Bore and Stroke | 100 x 63.6mm |
| Compression Ratio | 10.8:1 |
| Max. Power Output | 133 bhp at 10,000 rpm |
| Max. Torque | 102Nm at 8000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Starter | Electric |
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Length x Width x Height | 2025 x 725 x 1120mm |
| Wheelbase | 1420mm |
| Seat Height | 820mm |
| Ground Clearance | 140mm |
| Fuel Capacity | 18 litres (including 2.5 litre warning light reserve) |
| Dry Weight | 194kg |
| Front Wheel | 17 x MT3.50 ‘U’-section 5- spoke cast aluminum |
| Rear Wheel | 17 x MT6.00 ‘U’-section 5- spoke cast aluminum |
| Front Tire | 120/70 ZR17 (58W) |
| Front Suspension | 43mm inverted cartridge-type fork with adjustable spring, preload and compression and rebound damping, 130mm axle travel |
| Rear Suspension | Pro-link with gas-charged integrated remote reservoir damper offering adjustable preload, and compression and rebound damping, 120mm axle travel |
| Front Brakes | 320 x 5mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |
2007 VTR1000 SP-2
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 8-valve DOHC 90° V-twin |
| Displacement | 999cc |
| Bore and Stroke | 100 x 63.6mm |
| Compression Ratio | 10.8:1 |
| Max. Power Output | 133 bhp at 10,000 rpm |
| Max. Torque | 102Nm at 8000 rpm |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Starter | Electric |
| Transmission | 6-speed |
| Final Drive | ‘O’-Ring sealed chain |
| Length x Width x Height | 2025 x 725 x 1120mm |
| Wheelbase | 1420mm |
| Seat Height | 820mm |
| Ground Clearance | 140mm |
| Fuel Capacity | 18 litres (including 2.5 litre warning light reserve) |
| Dry Weight | 194kg |
| Front Wheel | 17 x MT3.50 ‘U’-section 5- spoke cast aluminum |
| Rear Wheel | 17 x MT6.00 ‘U’-section 5- spoke cast aluminum |
| Front Tire | 120/70 ZR17 (58W) |
| Tires Rear | 190/50 ZR17 (73W) |
| Front Suspension | 43mm inverted cartridge-type fork with adjustable spring, preload and compression and rebound damping, 130mm axle travel |
| Rear Suspension | Pro-link with gas-charged integrated remote reservoir damper offering adjustable preload, and compression and rebound damping, 120mm axle travel |
| Front Brakes | 320 x 5mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |

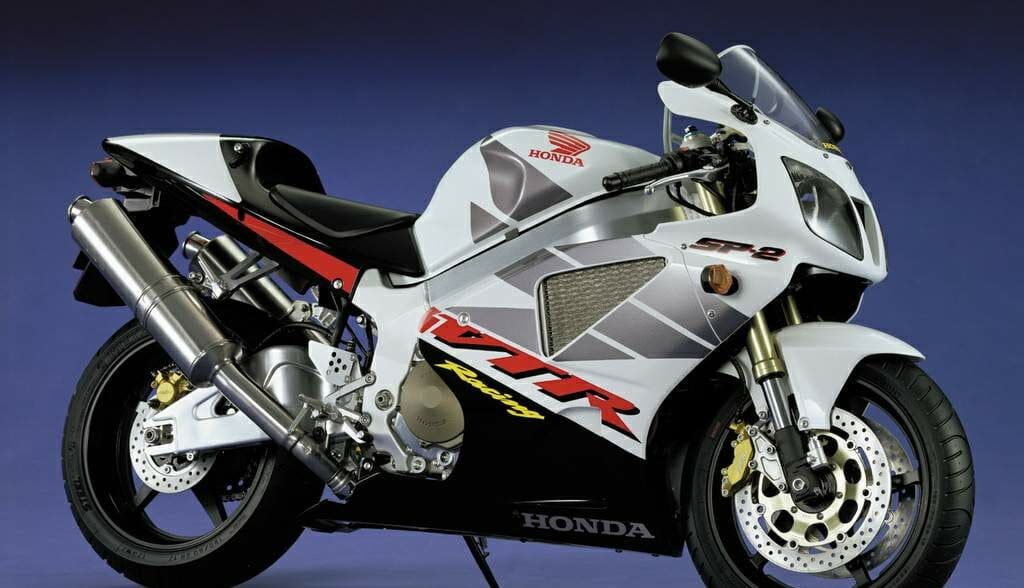

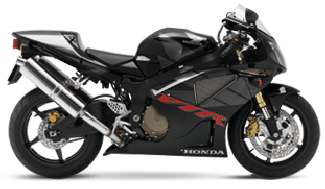

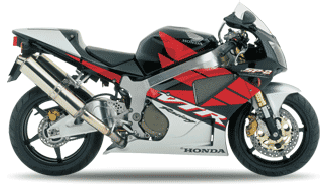

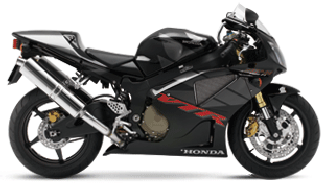

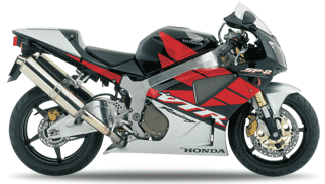

VTR1000 SP-2 Image Gallery
