2007 SH300I
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 4-valve SOHC single |
| Displacement | 279.1cm3 |
| Bore and Stroke | 72 x 68.5mm |
| Compression Ratio | 10.5:1 |
| Carburation | PGM-FI electronic fuel injection |
| Max. Power Output | 20kW/8,250min-1 (95/1/EC) |
| Max. Torque | 26Nm/6,000min-1 (95/1/EC) |
| Ignition | Digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final drive | V-belt |
| Wheels Front | U-section 6-spoke cast aluminium,16 x MT2.75 |
| Wheels Rear | U-section 6-spoke cast aluminium, 16 x MT3.5 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 35mm telescopic fork, 102mm axle travel |
| Rear Suspension | Dual-damper unit swingarm, 95mm axle travel |
| Brakes Front | 256mm x 4.5mm hydraulic disc with triple-piston caliper, drilled rotor (*ABS) and sintered metal pads |
| Brakes Rear | 256mm x 5mm hydraulic disc with single-piston caliper, drilled rotor (*ABS) and sintered metal pads |
| Tires Front | 110/70-16 (52P) |
| Tires Rear | 130/70-16 (61P) |
DIMENSION |
|
| Length x Width x Height | 2,100 x 730 x 1,220mm |
| Wheelbase | 1,420mm |
| Seat Height | 785mm |
| Ground Clearance | 136mm |
| Fuel Capacity | 9 litres |
| Dry Weight | 161.8kg , (164.7kg ABS) |
OTHER |
2012 SH300i
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 4-valve SOHC single |
| Displacement | 279.1cm3 |
| Bore and Stroke | 72 x 68.5mm |
| Compression Ratio | 10.5:1 |
| Carburation | PGM-FI electronic fuel injection |
| Max. Power Output | 20kW/8,250min-1 (95/1/EC) |
| Max. Torque | 26Nm/6,000min-1 (95/1/EC) |
| Ignition | Digital transistorised with electronic advance |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final drive | V-belt |
| Wheels Front | U-section 6-spoke cast aluminium,16 x MT2.75 |
| Wheels Rear | U-section 6-spoke cast aluminium, 16 x MT3.5 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 35mm telescopic fork, 102mm axle travel |
| Rear Suspension | Dual-damper unit swingarm, 95mm axle travel |
| Brakes Front | 256mm x 4.5mm hydraulic disc with triple-piston caliper, drilled rotor (*ABS) and sintered metal pads |
| Brakes Rear | 256mm x 5mm hydraulic disc with single-piston caliper, drilled rotor (*ABS) and sintered metal pads |
| Tires Front | 110/70-16 (52P) |
| Tires Rear | 130/70-16 (61P) |
DIMENSION |
|
| Overall Length | 2100mm (82.7 inches) |
| Overall Length | 2100mm (82.7 inches) |
| Overall Width | 730mm (28.7 inches) |
| Overall Height | 1220mm (48 inches) |
| Weight with ASB | 164.7 kg (362 lb) |
| Wheelbase | 1420mm (55.9 inches) |
| Seat Height | 785mm (30.9 inches) |
| Ground Clearance | 136mm (5.4 inches |
| Fuel Capacity | 9 Litres (2.4 GalUS) |
| Weight | 161.8 kg (356 lb) |

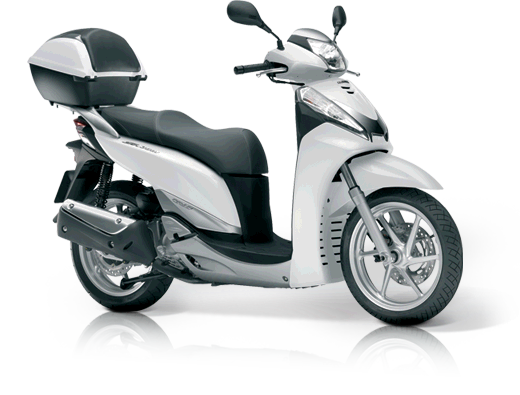

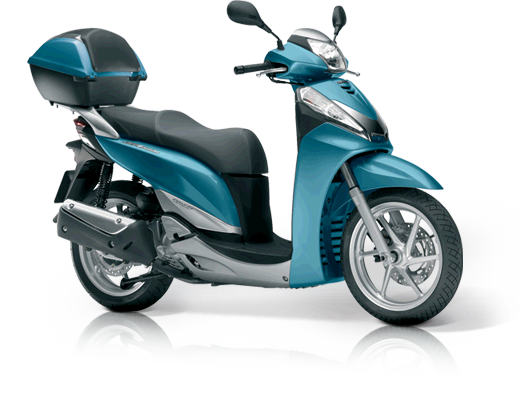

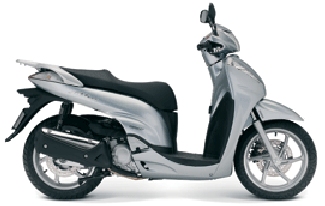

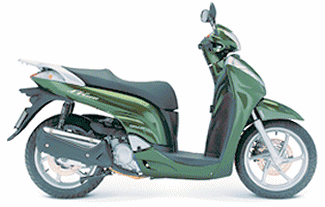

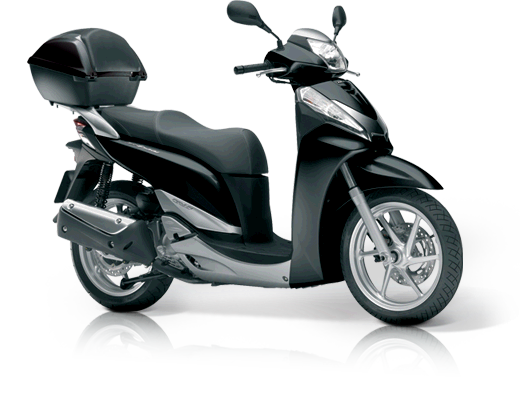

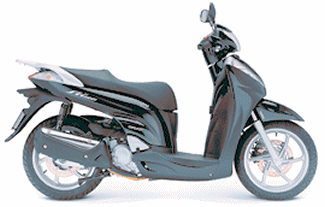

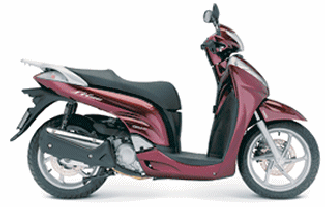

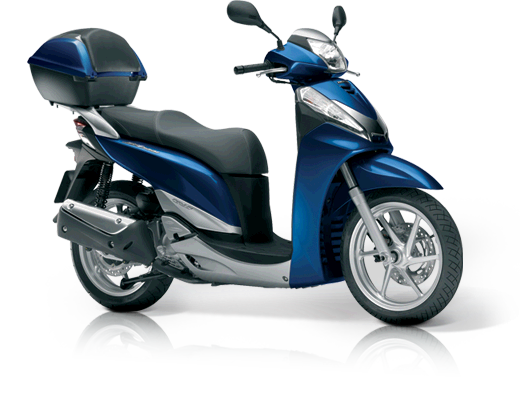

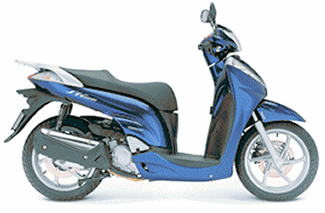

SH300 Image Gallery
