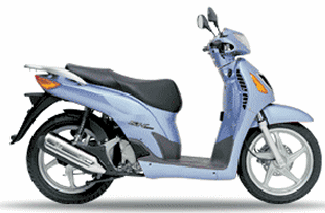

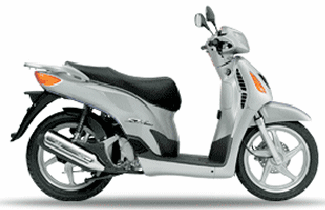

2004 SH125
Engine |
|
| Engine Type | Liquid-cooled 4-stroke SOHC single |
| Displacement | 125cc |
| Bore and Stroke | 52.4 x 57.8mm |
| Compression Ratio | 11.0 :1 |
| Fuel Delivery | 26mm VK-type |
| Ignition | DC CDI |
| Max. Power Output | 10.1kW/9000min-1 (95/1/EC) |
| Max. Torque | 11.5Nm/7000min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | Belt drive |
| Front Wheel | 16 x MT2.50 cast aluminum |
| Rear Wheel | 16 x MT2.75 cast aluminum |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm telescopic fork, 89mm axle travel |
| Rear Suspension | Dual damper unit swingarm, 70mm axle travel |
| Front Brakes | 220mm hydraulic disc with dual-piston caliper and resin mould pads |
| Rear Brakes | 130mm leading/trailing drum and resin mould pads |
| Front Tire | 100/80-16 50L (tubeless) |
| Rear Tire | 120/80-16 60L (tubeless) |
DIMENSION |
|
| Length x Width x Height | 2020 x 705 x 1145mm |
| Seat Height | 790mm |
| Wheelbase | 1335mm |
| Dry Weight | 122kg |
| Fuel Capacity | 8.3 litres |
| Ground Clearance | 148mm |
OTHER |

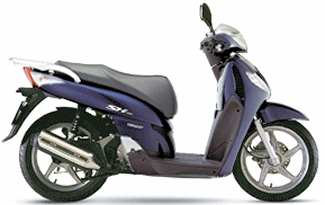

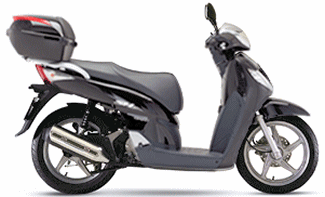

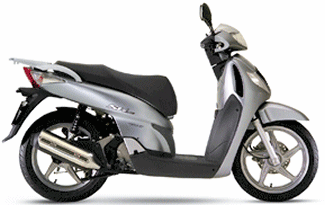

2007 SH125I
Engine |
|
| Engine Type | Liquid-cooled 4-stroke SOHC single |
| Displacement | 125cc |
| Bore and Stroke | 52.4 x 57.8mm |
| Compression Ratio | 11.0 :1 |
| Fuel Delivery | 26mm VK-type |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 13 bhp at 9,000 rpm |
| Max. Torque | 11.5Nm at 7,000 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | Belt drive |
| Front Wheel | U-section 5-spoke cast aluminium |
| Rear Wheel | U-section 5-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm telescopic fork, 89mm axle travel |
| Rear Suspension | Dual damper unit swingarm, 70mm axle travel |
| Front Brakes | 220mm hydraulic disc with dual-piston caliper and resin mould pads |
| Rear Brakes | 130mm leading/trailing drum and resin mould pads |
| Front Tire | 100/80-16 50P |
| Rear Tire | 120/80-16 60P |
DIMENSION |
|
| Length x Width x Height | 2,020 x 700 x 1,140mm |
| Seat Height | 790mm |
| Wheelbase | 1,335mm |
| Dry Weight | 120 kg |
| Fuel Capacity | 7.5 litres |
| Ground Clearance | 149mm |
OTHER |

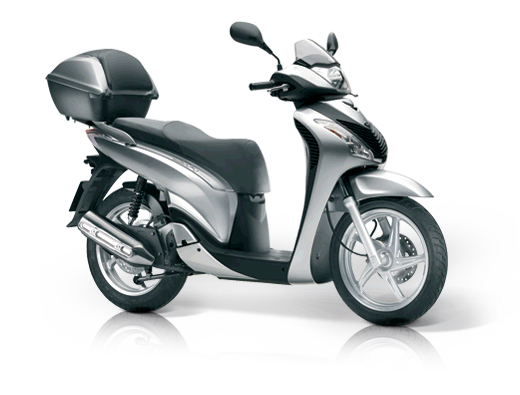

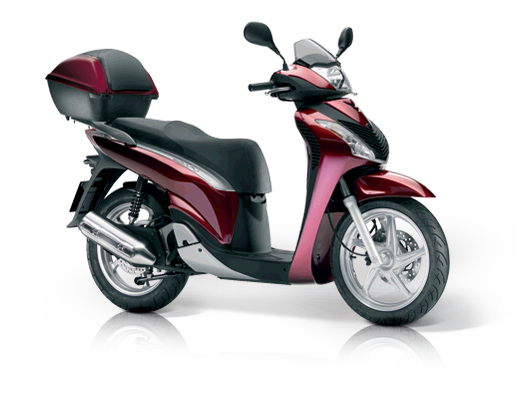

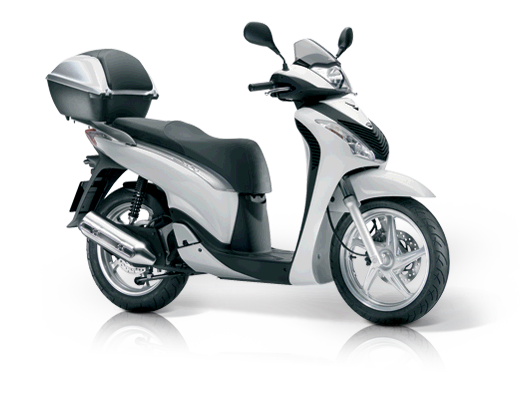

2012 SH125I
Engine |
|
| Engine Type | Liquid-cooled 4-stroke SOHC single |
| Displacement | 125cc |
| Bore and Stroke | 52.4 x 57.8mm |
| Compression Ratio | 11.0 :1 |
| Fuel Delivery | 26mm VK-type |
| Ignition | Digital transistorised with electronic advance |
| Max. Power Output | 13 bhp at 9,000 rpm |
| Max. Torque | 11.5Nm at 7,000 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-Matic |
| Final Drive | Belt drive |
| Front Wheel | U-section 5-spoke cast aluminium |
| Rear Wheel | U-section 5-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33mm telescopic fork, 89mm axle travel |
| Rear Suspension | Dual damper unit swingarm, 70mm axle travel |
| Front Brakes | 220mm hydraulic disc with dual-piston caliper and resin mould pads |
| Rear Brakes | 130mm leading/trailing drum and resin mould pads |
| Front Tire | 100/80-16 50P |
| Rear Tire | 120/80-16 60P |
DIMENSION |
|
| Overall Length | 2020mm (79.5 inches) |
| Overall Width | 700mm (27.6 inches) |
| Overall Height | 1140mm (44.9 inches) |
| Seat Height | 790mm (31.1 inches) |
| Wheelbase | 1335mm (52.6 inches) |
| Weight | 120 kg (264 lb) |
| Fuel Capacity | 7.5 Litres (2 GalUS) |
| Ground Clearance | 149mm (5.9 inches) |
OTHER |

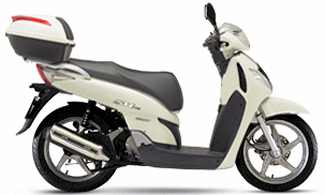

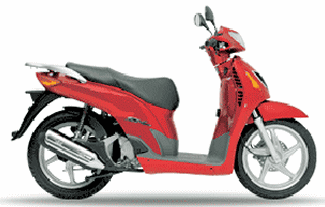

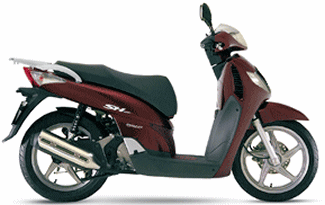

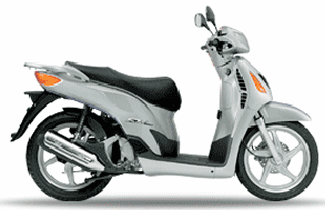

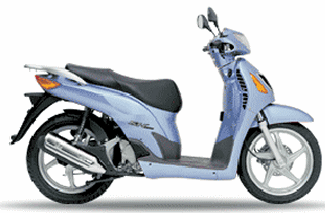

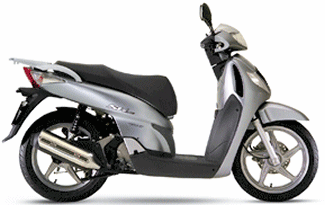

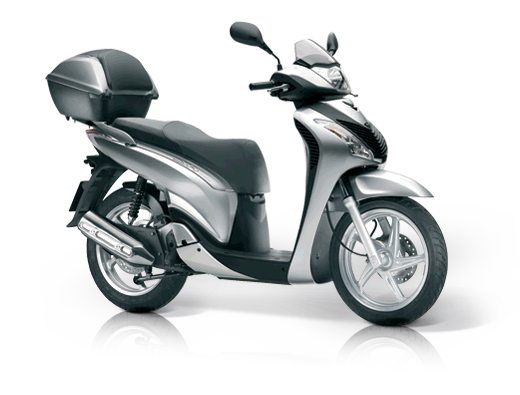

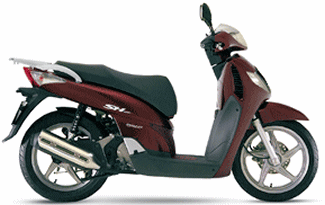

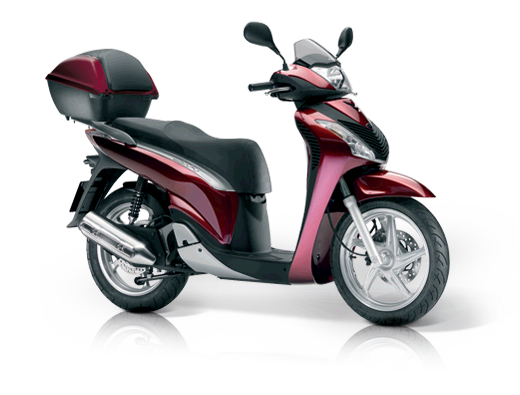

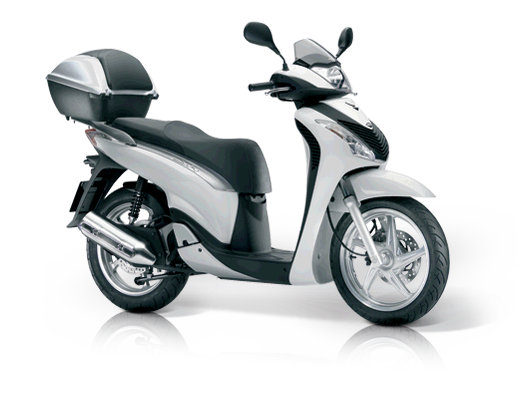

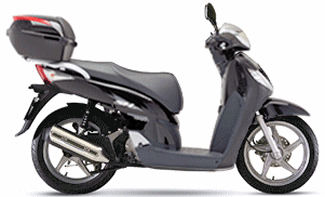

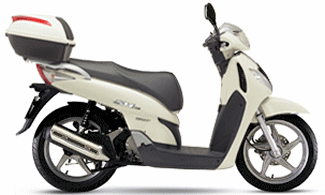

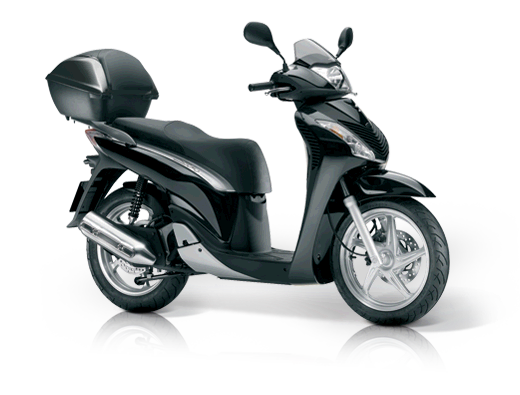

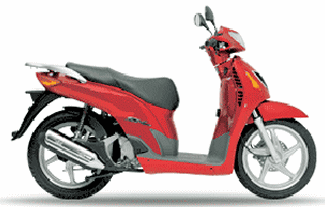

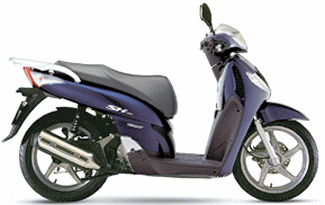

SH125 Image Gallery
