2000 VTR1000SP RC51 (RVT1000R)
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | PGM-FI with two injectors per cylinder |
| Ignition | Computer-controlled digital with 3-dimensional mapping |
| Starting | Electric |
DRIVETRAIN |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted cartridge fork with spring preload, rebound and compression damping adjustablity; 130mm travel |
| Rear Suspension | Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Brakes | Dual full-floating 320mm discs with four-piston calipers |
| Rear Brakes | Single 230mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 |
| Rear Tires | 190/50ZR-17 |
DIMENSION |
|
| Seat Height | 813mm (32.0 in.) |
| Wheelbase | 1410mm (55.5 in.) |
| Dry Weight | 196 kg. (432 lbs.) |
| Fuel Capacity | 18 litres (3.8 Imp. Gal) |
2001 VTR1000SP RC51 (RVT1000R)
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC, 4 valve, shim under bucket |
| Fuel Delivery | PGM-FI with two injectors per cylinder |
| Ignition | Computer-controlled digital with 3-dimensional mapping |
| Starting | Electric |
DRIVETRAIN |
|
| Transmission | Close-ratio 6-speed |
| Final Drive | O ring chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted cartridge fork with spring preload, rebound and compression damping adjustablity; 130mm travel |
| Rear Suspension | Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Brakes | Dual full-floating 320mm discs with four-piston calipers |
| Rear Brakes | Single 230mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 |
| Rear Tires | 190/50ZR-17 |
DIMENSION |
|
| Seat Height | 813mm (32.0 in.) |
| Wheelbase | 1410mm (55.5 in.) |
| Dry Weight | 196 kg. (432 lbs.) |
| Fuel Capacity | 18 litres (3.8 Imp. Gal) |
2002 VTR1000SP RC51 (RVT1000R)
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | PGM-FI with 12-hole injectors |
| Starting | Electric |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 130mm (5.1 in.) travel |
| Rear Suspension | HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm (4.7 in.) travel |
| Front Brakes | Dual full-floating 320mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 |
| Rear Tires | 190/50ZR-17 |
DIMENSION |
|
| Seat Height | 820mm (32.3 in.) |
| Wheelbase | 1410mm (55.5 in.) |
| Dry Weight | 194 kg (427 pounds) |
| Fuel Capacity | 18 litres (3.8 Imp. gal.) |

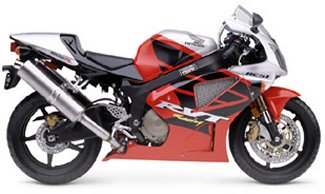

2003 VTR1000SP RC51 (RVT1000R’03)
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | PGM-FI with 12-hole injectors |
| Starting | Electric |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 130mm (5.1 in.) travel |
| Rear Suspension | HMAS Pro-Link single shock with spring preload, rebound and compression damping adjustability; 120mm (4.7 in.) travel |
| Front Brakes | Dual full-floating 320mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 |
| Rear Tires | 190/50ZR-17 |
DIMENSION |
|
| Seat Height | 818mm (32.3 in.) |
| Wheelbase | 1410mm (55.5 in.) |
| Dry Weight | 195 kg (430 lb.) |
| Fuel Capacity | 18 litres (4.8 GalUS) |
OTHER |
|
| Color | Red/Metallic Silver |

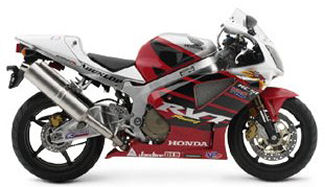

2004 VTR1000SP RC51 1000cc (RVT1000R)
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) with two injectors per cylinder |
| Ignition | Computer-controlled digital with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 5.1-inch travel |
| Rear Suspension | Pro-Link HMAS single shock with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel |
| Front Brakes | Dual full-floating 320.0mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 radial |
| Rear Tires | 190/50ZR-17 radial |
DIMENSION |
|
| Rake | 23.5 degrees |
| Trail | 94.6mm (3.7 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | 55.9 inches |
| Dry Weight | 430.0 pounds |
| Fuel Capacity | 4.8 gallons, including 1.2-gallon reserve |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Red/Metallic Silver |
| Model ID | RVT1000R |
| Waranty | 1 year |

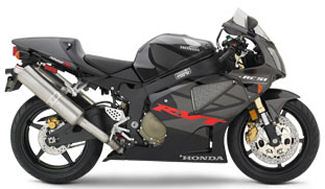

2006 VTR1000SP RVT1000R RC51
Engine |
|
| Engine | 999cc liquid-cooled 90-degree V-twin |
| Bore and Stroke | 100mm X 63.6mm |
| Compression Ratio | 10.8 : 1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI) with two injectors per cylinder |
| Ignition | Computer-controlled digital with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #530 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 43.0mm inverted HMAS cartridge fork with spring-preload, rebound- and compression-damping adjustability; 5.1-inch travel |
| Rear Suspension | Pro-Link HMAS single shock with spring-preload, rebound- and compression-damping adjustability; 4.7-inch travel |
| Front Brakes | Dual full-floating 320.0mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
| Front Tires | 120/70ZR-17 radial |
| Rear Tires | 190/50ZR-17 radial |
DIMENSION |
|
| Rake | 23.3 degrees |
| Trail | 94.6mm (3.7 inches) |
| Seat Height | 32.5 inches |
| Wheelbase | 55.9 inches |
| Dry Weight | 439 pounds |
| Fuel Capacity | 4.8 gallons, including 1.2-gallon reserve |
OTHER |
|
| Emissions | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. |
| Color |
|
| Model ID | RVT1000R |

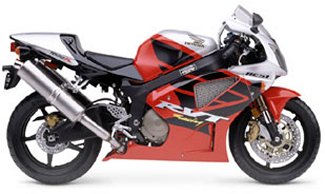

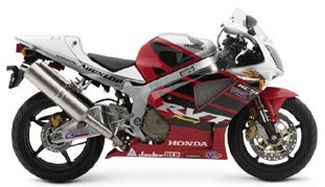

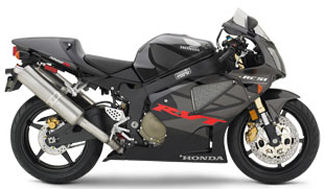

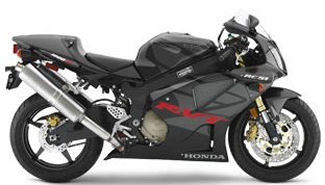

RC51 – RVT1000R Image Gallery
