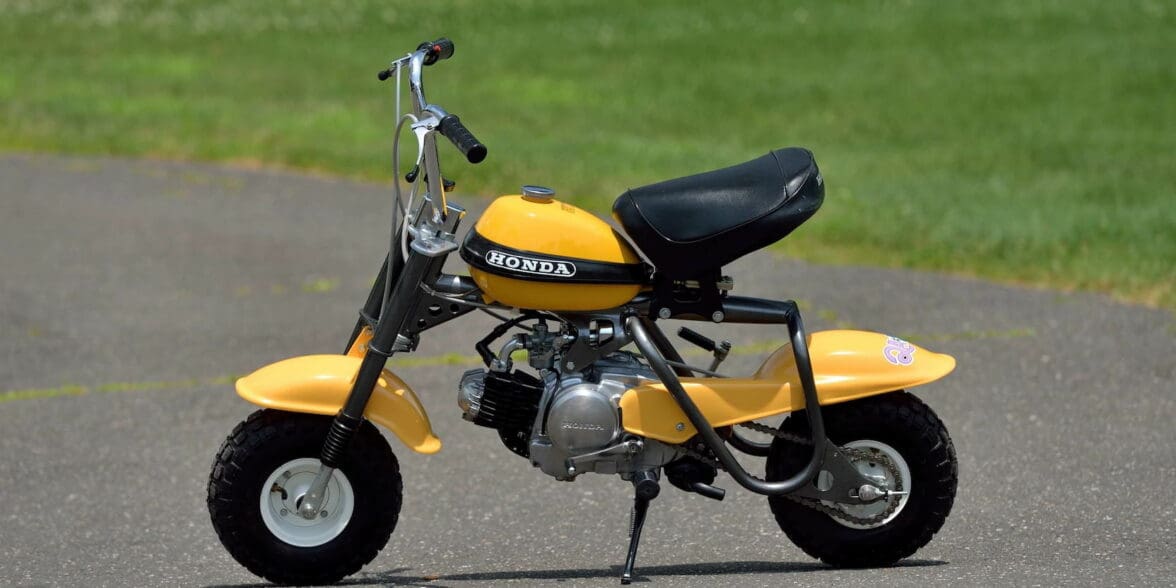

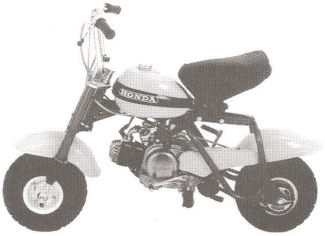

1970-72 Honda QA50 K0
Engine |
|
| Displacement | 49cc single cylinder OHV |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 2-speed with an automatic clutch |
| Chain | #420 x 78 |
| Front sprocket | 15 T |
| Rear sprocket | 43 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front suspension | Telescoping |
| Brakes | Cable-operated drum, front and rear |
| Tire | 12×4.00-5 |
DIMENSION |
N/A |
OTHER |
|
| Colors |
|
- Fuel tank: surrounded by a black rubber molding
- Fenders: no stripes and were colored the same as the fuel tank
- Front forks and frame were a dark gray
- Handlebars had a swivel lock
- Serial number began: QA50-1000001
- Similar to the Z50 in size, but the wheels were “fatter.”

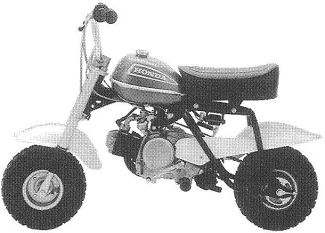

1973 Honda QA50K1
Engine |
|
| Displacement | 49cc single cylinder OHV |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 2-speed with an automatic clutch |
| Chain | #420 x 78 |
| Front sprocket | 15 T |
| Rear sprocket | 43 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front suspension | Telescoping |
| Brakes | Cable-operated drum, front and rear |
| Tire | 12×4.00-5 |
DIMENSION |
N/A |
OTHER |
|
| Colors |
|
- Fuel tank was surrounded by a chrome molding
- Fenders: white with a blue or red stripe to match the main color
- Front forks: silver
- Frame: black
- Handlebars: changed from a swivel lock to stationary bars
- Serial number began: QA50-2000001

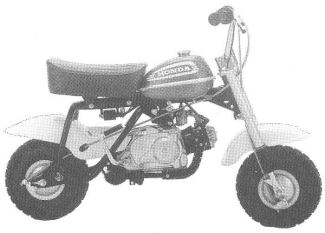

1974 Honda QA50K2
Engine |
|
| Displacement | 49cc single cylinder OHV |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 2-speed with an automatic clutch |
| Chain | #420 x 78 |
| Front sprocket | 15 T |
| Rear sprocket | 43 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front suspension | Telescoping |
| Brakes | Cable-operated drum, front and rear |
| Tire | 12×4.00-5 |
DIMENSION |
N/A |
OTHER |
|
| Colors | Candy Orange |
| Fuel tank | surrounded by a chrome molding |
| Fenders | white |
| Front forks | silver |
| Frame | black |
| Handlebars | stationary bars |
| Serial number began | QA50-3000001. |

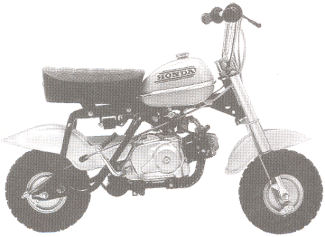

1975 Honda QA50K3
Engine |
|
| Displacement | 49cc single cylinder OHV |
| Spark plug | C7HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | 2-speed with an automatic clutch |
| Chain | #420 x 78 |
| Front sprocket | 15 T |
| Rear sprocket | 43 T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front suspension | Telescoping |
| Brakes | Cable-operated drum, front and rear |
| Tire | 12×4.00-5 |
DIMENSION |
N/A |
OTHER |
|
| Colors | Mars Orange |
| Fuel tank | surrounded by a chrome molding |
| Fenders | white |
| Front forks | silver |
| Frame | black |
| Handlebars | stationary bars |
| Serial number began | QA50-4000001 |

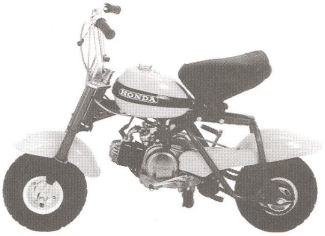

QA50 Image Gallery
