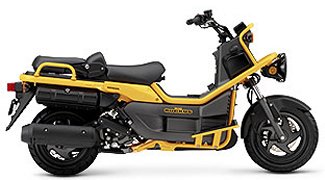

2005 Big Ruckus 250 (PS250)
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with CBS three-piston caliper |
| Rear Brake | 160.0mm drum |
| Front Tire | 110/90-12 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 57.0 inches |
| Seat Height | 28.3 – 28.5 inches |
| Dry Weight | 363.0 pounds |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Color | Yellow |
| Warranty | 1 year |

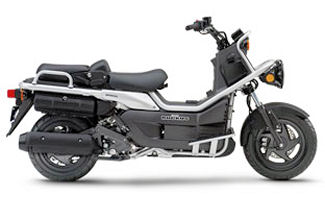

2006 PS250
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with CBS three-piston caliper |
| Rear Brake | 160.0mm drum |
| Front Tire | 110/90-12 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 57.3 inches |
| Seat Height | 28.2 – 28.7 inches |
| Dry Weight | 362.0 pounds |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Color | Metallic Silver |
| Model ID | PS250 |

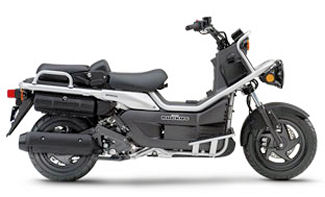

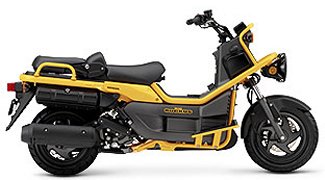

PS250 Image Gallery
