2005 Reflex Sport 250 (NS250S)
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with CBS three-piston caliper |
| Rear Brake | Single 220.0mm disc with CBS single-piston caliper |
| Front Tire | 110/90-13 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 60.8 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 373 pounds |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Metallic Silver |
| Warranty | 1 year |
2005 Reflex Sport 250 ABS (NS250S)
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with CBS three-piston caliper |
| Rear Brake | Single 220.0mm disc with CBS single-piston caliper with Anti-Lock Braking System® |
| Front Tire | 110/90-13 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 60.8 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 379 pounds |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Metallic Silver |
| Warranty | 1 year |
| Model ID | NSS250AS |
2006 NSS250S
OVERVIEW
- Overview: The Reflex Sport takes the Reflex to another level in coolness. Featuring the same smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating as the Reflex, but adding a sport-touring-inspired short windshield and chrome accents. It’s one of the most stylish scooters on the road.
2006 NSS250S
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with Combined Braking System three-piston caliper |
| Rear Brake | 220.0mm disc with Combined Braking System single-piston caliper (opt: ABS) |
| Front Tire | 110/90-13 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 60.8 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 373 pounds (379 pounds) |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Metallic Silver |
| Warranty | Yellow |
2007 NSS250S
OVERVIEW
- Overview: The Reflex Sport takes the Reflex to another level in coolness. Featuring the same smooth 249cc, liquid-cooled four-stroke engine, seamless automatic transmission, comfy two-up seating as the Reflex, but adding a sport-touring-inspired short windshield and chrome accents. It’s one of the most stylish scooters on the road.
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with Combined Braking System three-piston caliper |
| Rear Brake | 220.0mm disc with Combined Braking System single-piston caliper (opt: ABS) |
| Front Tire | 110/90-13 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 60.8 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 373 pounds (379 pounds) |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Metallic Silver |
| Warranty | Yellow |
| Model ID | NSS250S |
2007 NSS250S
OVERVIEW
- Overview: Take the already awesome Reflex and add a sporty, shorter windshield, classy chrome accents and unique wheels, and you get the Reflex Sport. It packs all the go-anywhere capabilities of the standard Reflex, taking you from city streets to highway adventures with ease — with an extra helping of attitude.
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore and Stroke | 72.7mm x 60.0mm |
| Compression Ratio | 10.5:1 |
| Valve Train | SOHC; two valves per cylinder |
| Fuel Delivery | 30.0mm CV with auto-enricher |
| Ignition | Fully transistorized |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 33.0mm hydraulic fork; 3.9-inch travel |
| Rear Suspension | Single-side swingarm with dual hydraulic shocks with seven-position spring-preload adjustability; 4.7-inch travel |
| Front Brake | Single 240.0mm disc with Combined Braking System three-piston caliper |
| Rear Brake | 220.0mm disc with Combined Braking System single-piston caliper (opt: ABS) |
| Front Tire | 110/90-13 |
| Rear Tire | 130/70-12 |
DIMENSION |
|
| Wheelbase | 60.8 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 373 pounds (ABS 379 pounds) |
| Fuel Capacity | 3.2 gallons |
OTHER |
|
| Emissions | California version differs slightly due to emissions equipment. |
| Color | Metallic Silver |
| Warranty | Red |
| Model ID | NSS250S |

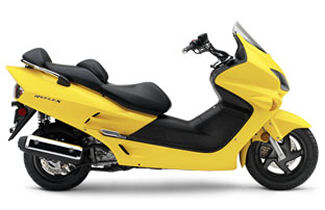

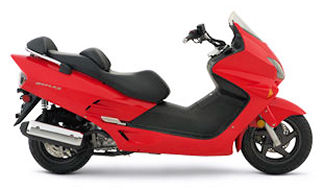

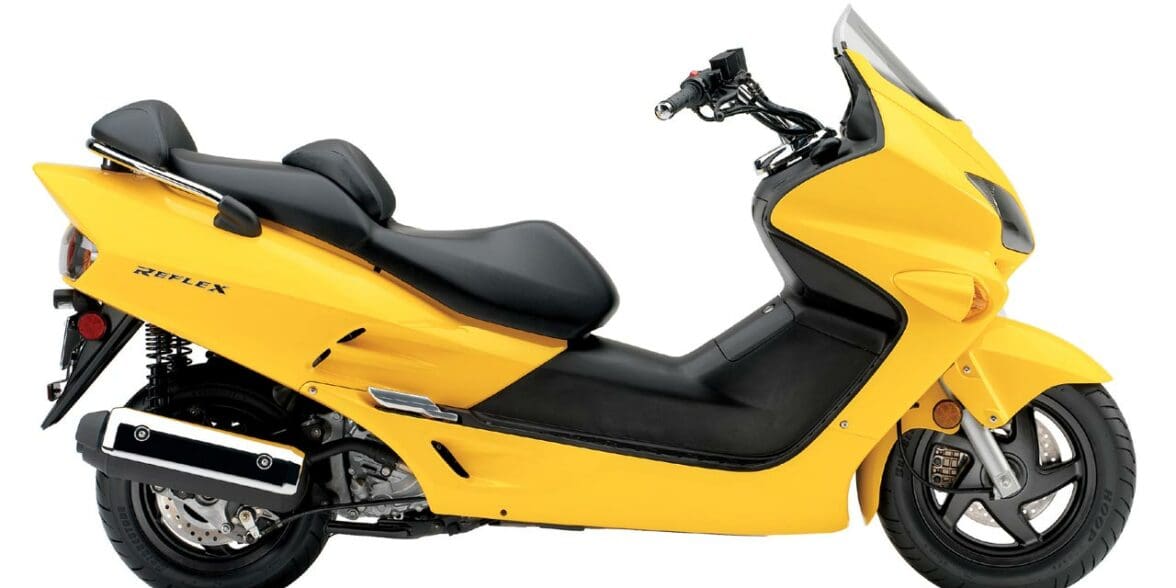

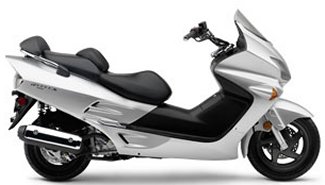

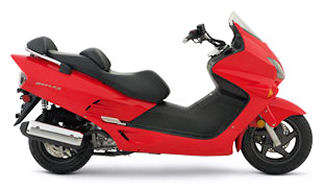

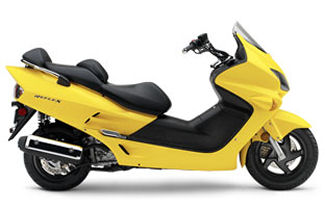

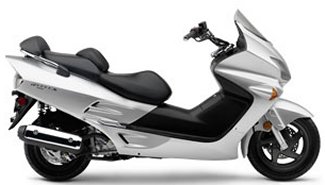

NSS250S Image Gallery
