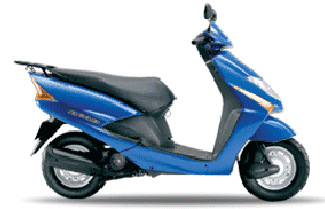

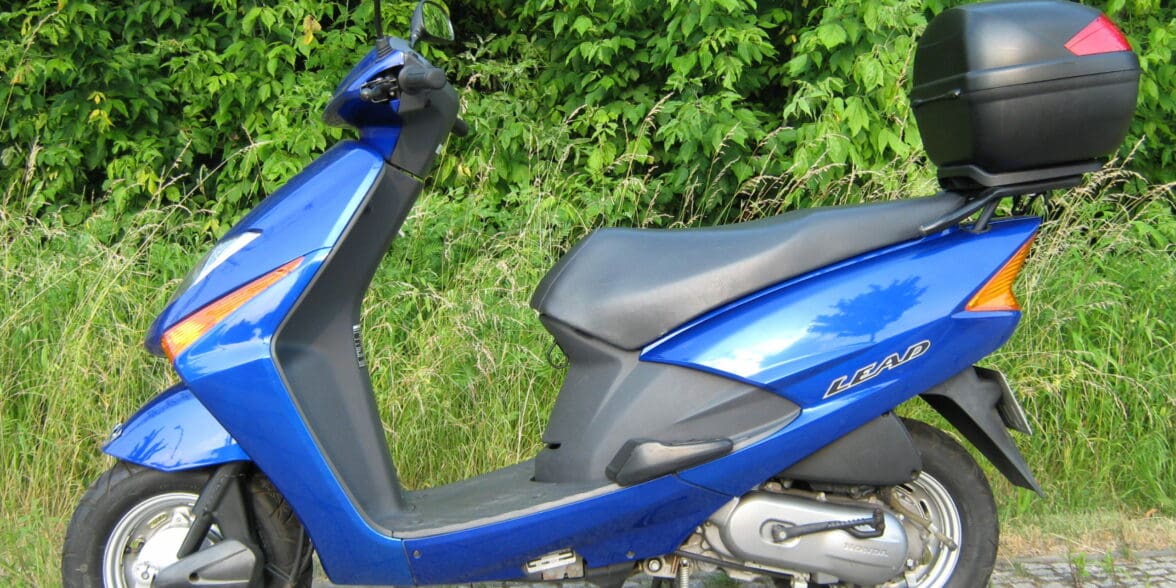

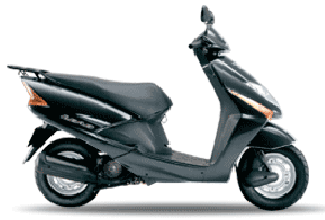

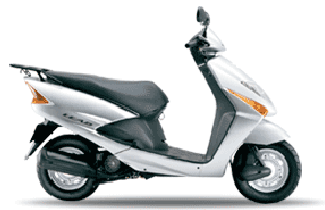

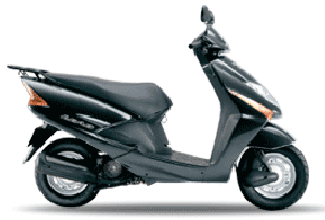

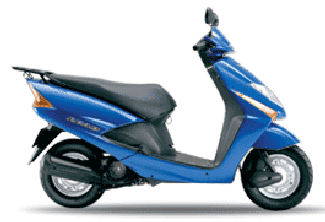

2004 SCV100 Lead
Engine |
|
| Engine Type | Forced air-cooled 4-stroke SOHC single |
| Displacement | 102.1cc |
| Bore and Stroke | 50 x 52mm |
| Compression Ratio | 9 :1 |
| Fuel Delivery | 18mm VK-type carburetor |
| Max. Power Output | 5.2kW at 7500 rpm |
| Max. Torque | 7.50Nm at 5500 rpm |
| Ignition | Capacitor Discharge (CDI) |
| Starter | Electric/Primary kick |
DRIVETRAIN |
|
| Transmission | Centrifugal; automatic |
| Final Drive | V-Matic belt drive |
| Front Wheel | ComCast steel |
| Rear Wheel | ComCast steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Oil-damped leading-link, 80mm axle travel |
| Rear Suspension | Single-damper unit swingarm, 71mm axle travel |
| Front Brakes | 130mm leading/trailing drum |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 90-10 53J |
| Rear Tire | 100-10 53J |
DIMENSION |
|
| Length x Width x Height | 1825 x 710 x 1110mm |
| Wheelbase | 1235mm |
| Seat Height | 765mm |
| Ground Clearance | 150mm |
| Fuel Capacity | 6 litres |
| Dry Weight | 102kg |

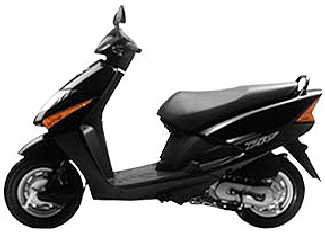

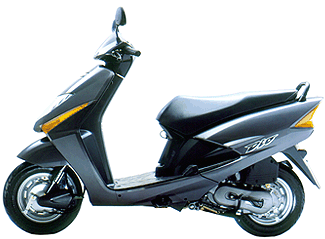

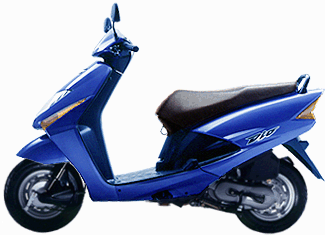

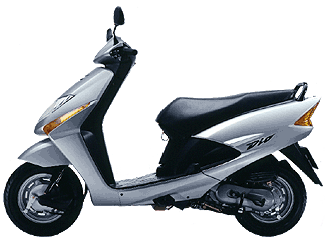

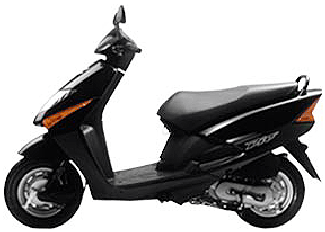

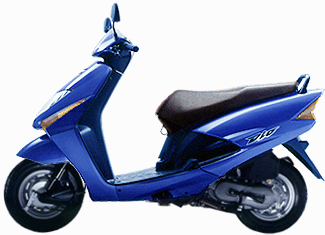

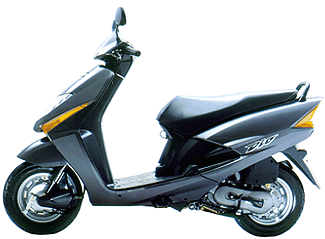

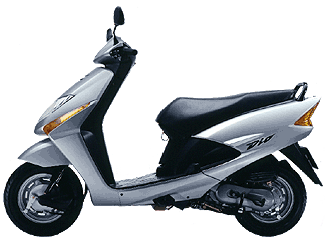

2005 DIO SCV100
Engine |
|
| Engine Type | Forced air-cooled 4-stroke SOHC single |
| Displacement | 102.1cc |
| Bore and Stroke | 50 x 52mm |
| Compression Ratio | 9 :1 |
| Fuel Delivery | 18mm VK-type carburetor |
| Max. Power Output | 5.2kW at 7500 rpm |
| Max. Torque | 7.50Nm at 5500 rpm |
| Ignition | Capacitor Discharge (CDI) |
| Starter | Electric/Primary kick |
DRIVETRAIN |
|
| Transmission | Centrifugal; automatic |
| Final Drive | V-Matic belt drive |
| Front Wheel | ComCast steel |
| Rear Wheel | ComCast steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Oil-damped leading-link, 80mm axle travel |
| Rear Suspension | Single-damper unit swingarm, 71mm axle travel |
| Front Brakes | 130mm leading/trailing drum |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 90-10 53J |
| Rear Tire | 100-10 53J |
DIMENSION |
|
| Length x Width x Height | 1825 x 710 x 1110mm |
| Wheelbase | 1235mm |
| Seat Height | 765mm |
| Ground Clearance | 150mm |
| Fuel Capacity | 6 litres |
| Dry Weight | 102kg |

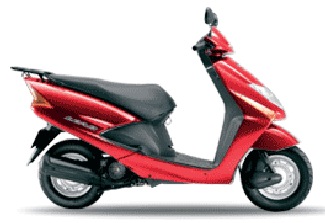

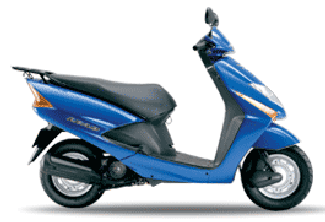

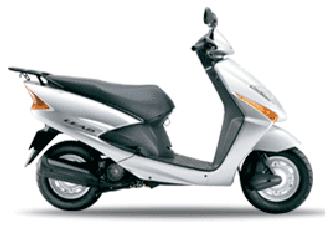

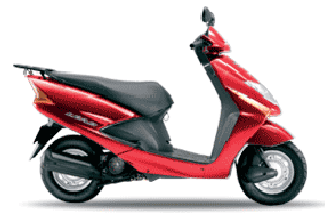

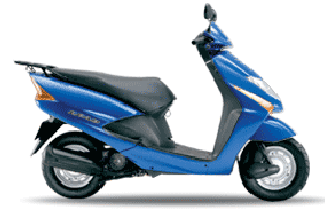

2007 SCV100 LEAD
Engine |
|
| Engine Type | Forced air-cooled 4-stroke SOHC single |
| Displacement | 102.1cc |
| Bore and Stroke | 50 x 52mm |
| Compression Ratio | 9 :1 |
| Fuel Delivery | 18mm VK-type carburetor |
| Max. Power Output | 5.2kW at 7500 rpm |
| Max. Torque | 7.50Nm at 5500 rpm |
| Ignition | Capacitor Discharge (CDI) |
| Starter | Electric/Primary kick |
DRIVETRAIN |
|
| Transmission | Centrifugal; automatic |
| Final Drive | V-Matic belt drive |
| Front Wheel | ComCast steel |
| Rear Wheel | ComCast steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Oil-damped leading-link, 80mm axle travel |
| Rear Suspension | Single-damper unit swingarm, 71mm axle travel |
| Front Brakes | 130mm leading/trailing drum |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 90-10 53J |
| Rear Tire | 100-10 53J |
DIMENSION |
|
| Length x Width x Height | 1825 x 710 x 1110mm |
| Wheelbase | 1,235mm |
| Seat Height | 765mm |
| Ground Clearance | 150mm |
| Fuel Capacity | 6 litres |
| Dry Weight | 102kg |
