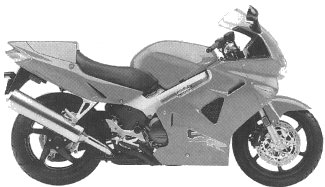

1998 VFR800FI’98 Interceptor

Engine	N/A
DRIVETRAIN	N/A
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER	Color: Italian Red It had a pivotless frame and linked braking system It also had an electronic fuel injection The serial number began JH2RC460*WM000001.

2000 Interceptor (VFR800)

Engine
Engine Type	Type 781 cc liquid-cooled 90′ V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Digital, computer-controlled 36mm programmed fuel injection (PGM-FI) with automatic choke
Valve Train	Gear-driven, DOHC; four valves per cylinder
Ignition	Digital 3-D mapping, computer-controlled with electronic advance
DRIVETRAIN
Transmission	Close-ratio six-speed
Final Drive	0-ring-sealed chain
Primary Drive	No Info
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Front: 41mm HMAS cartridge fork with stepless spring preload adjustability; 4.7 inches travel
Rear Suspension	Pro-Arm single-sided swingarm with Pro-Link-mounted, HMAS gas-charged shock with 7-position spring preload and stepless rebound damping adjustability; 4.7 inches travel
Front Brakes	296mm disc with LBS three-piston calipers
Rear Brake	256mm disc with LBS three-piston caliper
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-I7 radial
DIMENSION
Rake	(Caster Angle) 25.3′
Trail	95.0 mm (3.74 inches)
Wheelbase	56.7 inches
Seat Height	31.7 inches
Dry Weight	463.0 pounds
Fuel Tank Capacity	5.5 gallons, including 0.8-gallon reserve
OTHER
Color	Pearl Yellow

2001 Interceptor (VFR800)

Engine
Engine Type	782cc liquid-cooled, 90 degree V-four
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	PGM Fuel injection, 36mm throttle bodies
Valve Train	DOHC, 4 valve, shim under bucket
Ignition	Computer controlled with 3-dimensional mapping
Starting	Electric
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	0-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	41mm, cartridge fork, with adjustable preload, 120mm travel
Rear Suspension	Pro-Link, single shock with adjustable preload and rebound damping, 120 mm travel.
Front Brakes	Dual 296mm floating discs with three piston calipers, LBS.
Rear Brake	Single 256mm disc with LBS triple piston caliper.
Front Tire	120/70ZR – 17
Rear Tire	180/55ZR – 17
DIMENSION
Rake
Trail
Wheelbase	1440mm (56.7 in.)
Seat Height	805mm (31.7 in.)
Dry Weight	208 kg (458 lbs.)
Fuel Tank Capacity	21 litres (4.6 Imp. gal.)
OTHER
Color

2002 Interceptor (VFR800)

Engine
Engine Type	781cc liquid-cooled 90 degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	PGM Fuel injection, 36mm throttle bodies
Valve Train	VTEC DOHC; four valves per cylinder
Ignition
Starting
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43mm HMAS cartridge fork with spring preload adjustability; 109mm (4.3 in.) travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring preload and rebound damping adjustability; 120mm (4.7 in.) travel
Front Brakes	Dual full-floating 296mm discs with LBS three-piston calipers (ABS optional)
Rear Brake	Single 256mm disc with LBS three-piston caliper (ABS optional)
Front Tire	120/70 ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake
Trail
Wheelbase	1458mm (57.4 in.)
Seat Height	805mm (31.7 in.
Dry Weight	Non-ABS: 214 kg (472 pounds) ABS: 219 kg (483 pounds)
Fuel Tank Capacity	22 litres (4.7 Imp. gal.)
OTHER
Color

2003 Interceptor (VFR800)

Engine
Engine Type	781cc DOHC liquid-cooled 90° V-4 with VTEC
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	PGM-FI with automatic enrichener circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	N/A
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43mm HMAS cartridge fork with spring preload adjustability; 110mm travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring preload and rebound damping adjustability; 120mm travel
Front Brakes	Linked Braking System; dual full-floating 296mm discs with three-piston calipers (opt: Anti-Lock Braking System)
Rear Brake	Linked Braking System; 256mm single-disc with three-piston caliper (Opt: Anti-Lock Braking System)
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake
Trail
Wheelbase	1458mm (57.4 in.)
Seat Height	805mm (31.7 in.)
Dry Weight	Non-ASB: 214 kg (472 lb) ASB: 219 kg (483 lb)
Fuel Tank Capacity	22 litres (4.8 GalUS)
OTHER
Color	Red Metallic Silver

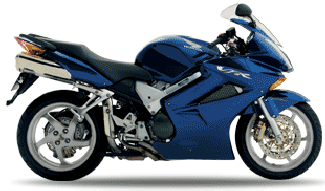

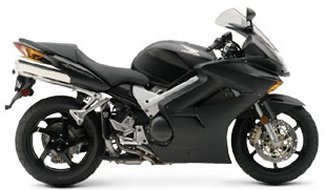

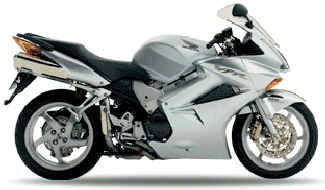

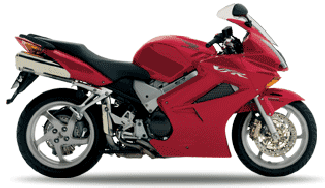

2004 Interceptor 800

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296.0mm discs with LBS three-piston calipers [Opt: Anti-Lock Braking System (ABS)]
Rear Brake	Single 256.0mm disc with LBS three-piston caliper
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake	25.5 degrees
Trail	95.0mm (3.74 inches)
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	Non-ASB: 472.0 pounds ASB: 483.0 pounds
Fuel Tank Capacity	5.8 gallons, including 0.8-gallon reserve
OTHER
Color	Asphalt Red
Emissions	This model meets CARB 2008 emissions standards.
Model ID	VFR800FI
Warranty	1 year

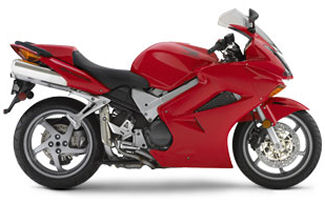

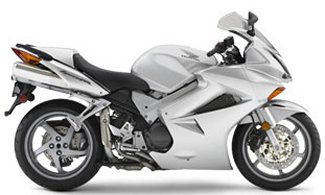

2005 Interceptor 800

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake	Single 256.0mm disc with LBS three-piston caliper [Opt: Anti-Lock Braking System]
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake	25.5 degrees
Trail	95.0mm (3.74 inches)
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	Non-ASB: 472 pounds ABS: 483 pounds
Fuel Tank Capacity	5.8 gallons, including 0.8-gallon reserve
OTHER
Color	Light Silver Metallic Red
Emissions	This model meets CARB 2008 emissions standards.
Model ID	VFR800FI
Warranty	1 year

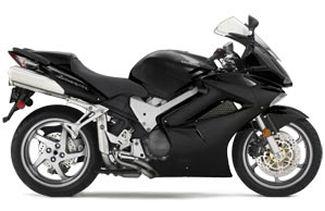

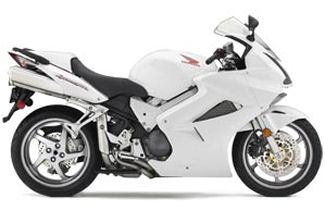

2006 VFR800FI Interceptor

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake	Single 256.0mm disc with LBS three-piston caliper [Opt: Anti-Lock Braking System]
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake	25.3 degrees
Trail	100.0mm (3.9 inches)
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	Non-ASB: 470 pounds ASB: 481 pounds
Fuel Tank Capacity	5.8 gallons, including 0.8-gallon reserve
OTHER
Color	Pearl White Pearl Black
Emissions	This model meets CARB 2008 emissions standards.
Model ID	VFR800FI
Warranty

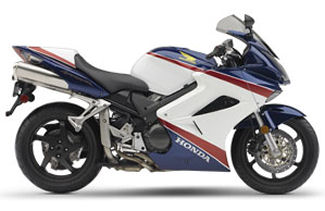

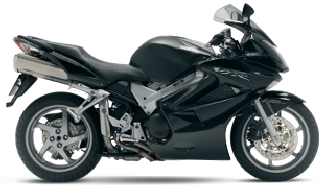

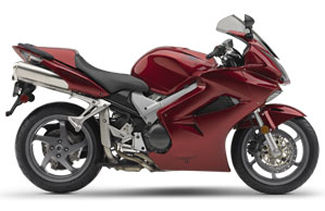

2007 VFR800FI Interceptor

OVERVIEW

In the ’80s, nobody could catch the AMA championship-winning VFR750. Today’s Interceptor/Interceptor ABS, like its predecessors, boasts the most advanced technologies of its time, like an aluminum chassis and a fuel-injected V4 — the goods that earn it best sportbike honors year after year. For ’07, we’re offering a paint scheme that lets all its racing DNA speak out — loud and clear.

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake	Single 256.0mm disc with LBS three-piston caliper [Opt: Anti-Lock Braking System]
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake	25.3 degrees
Trail	100.0mm (3.9 inches)
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	470 pounds (481 pounds with ABS)
Fuel Tank Capacity	5.8 gallons, including 0.8-gallon reserve
OTHER
Color	Candy Dark Red Pearl Blue/Pearl White/Red
Emissions	This model meets CARB 2008 emissions standards.
Model ID	VFR800FI (VFR800FIABS)
Warranty

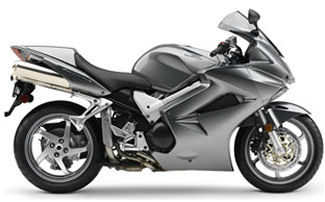

2008 VFR800FI Interceptor

OVERVIEW

Universally considered one of Honda’s most illustrious race-bred sportbikes, the Interceptor® is also arguably one of the best all-around streetbikes ever made. Featuring a fuel-injected, VTEC-equipped V-4, aluminum chassis, comfortable, all-day ergos and an all-new color scheme for ’08, this is a machine, though born of the track, whose razor-sharp performance is equally at home on any paved surface.

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	Programmed Fuel Injection (PGM-FI) with automatic enricher circuit
Valve Train	VTEC DOHC; four valves per cylinder
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting	N/A
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296.0mm discs with LBS three-piston calipers
Rear Brake	Single 256mm disc with LBS three-piston caliper
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake	25.3 degrees
Trail	100.0mm (3.9 inches)
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	540 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride)
Fuel Tank Capacity	5.8 gallons, including 0.8-gallon reserve
OTHER
Color	Metallic Silver
Emissions	This model meets CARB 2008 emissions standards.
Model ID	VFR800
Warranty	Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan

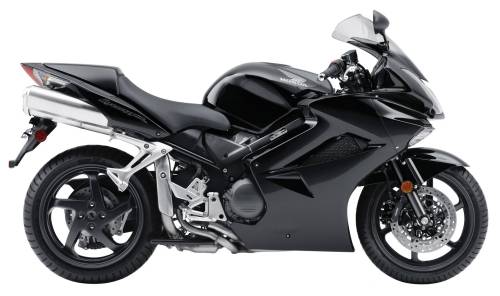

2009 Interceptor

Engine
Engine Type	781cc liquid-cooled 90-degree V-4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	PGM-FI with automatic enricher circuit, 36mm throttle bodies, and 12-hole injectors
Valve Train
Ignition	Computer-controlled digital with three-dimensional mapping and electronic advance
Starting
DRIVETRAIN
Transmission	Close-Raito, 6-speed
Final Drive	#530 O-ring-sealed chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43.0mm HMAS cartridge fork with spring-preload adjustability; 4.3-inch travel
Rear Suspension	Pro Arm single-side swingarm with Pro-Link single HMAS gas-charged shock with seven-position spring-preload and rebound-damping adjustability; 4.7-inch travel
Front Brakes	Dual full-floating 296 mm discs with LBS three-piston calipers
Rear Brake	Single 256 mm disc with LBS three-piston caliper
Front Tire	120/70ZR-17 radial
Rear Tire	180/55ZR-17 radial
DIMENSION
Rake
Trail
Wheelbase	57.4 inches
Seat Height	31.7 inches
Dry Weight	540 lbs
Fuel Tank Capacity	5.8 gallons
OTHER
Color	Black
Emissions
Price	$10999
Warranty	1 Year

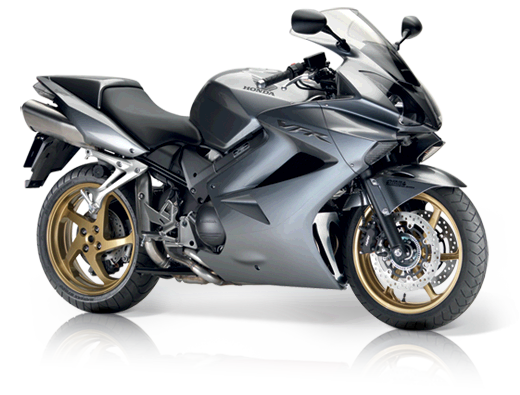

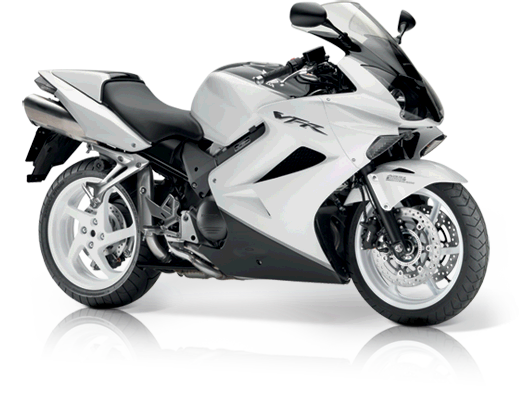

2012 Interceptor VFR800FI

Engine
Engine Type	782cc Liquid-cooled 4-stroke 16-valve DOHC 90° V4
Bore And Stroke	72mm x 48mm
Compression Ratio	11.6: 1
Fuel System	PGM – Fi Electronic Fuel-Injection
Valve Train
Ignition	Computer-controlled digital transistorised with electronic advance
Max. Torque	80Nm at 8,750 rpm
Max. Power Output	107 bhp at 10,500 rpm
Starting	Electric
DRIVETRAIN
Transmission	6-speed
Final Drive	‘O’-Ring sealed chain
Front Wheels	17 x MT3.50 ‘U’-section 6-spoke cast aluminium
Rear Wheels	17 x MT5.50 ‘U’-section 5-spoke cast aluminium
CHASSIS / SUSPENSION / BRAKES
Front Suspension	43mm HMAS cartridge-type telescopic fork with stepless pre-load adjustment, 109mm axle travel
Rear Suspension	Pro-link with gas-charged HMAS damper, 7-step preload and stepless rebound adjustment, 120mm axle travel
Front Brakes	296mm x 4.5mm dual floating hydraulic disc with Combined 3-piston calipers (*ABS) and sintered metal pads
Rear Brake	256 x 6mm hydraulic disc with Combined 3-piston caliper (*ABS) and sintered metal pads
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
DIMENSION
Overall Length	1460mm (57.5 inches)
Overall Width	2120mm (83.5 inches)
Overall Width	735mm (28.9 inches)
Overall Height	1195mm (47 inches)
Wheelbase	1460mm (57.5 inches)
Seat Height	805mm (31.7 inches)
Ground Clearance	130mm (5.1 inches)
Weight	218 kg (480 lb)
Fuel Tank Capacity	22 Litres (5.8 GalUS)
OTHER
Color
Emissions
Price
Warranty
