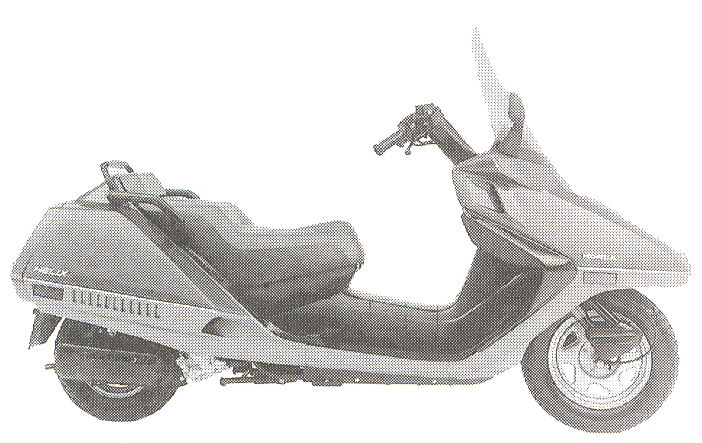

1986 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
|
| Engine |
MF02E-5000001 ~ |
| V.I.N. |
JH2MF020_GK000001 ~ |
| Color |
Pearl Shell White with white floorboard stripe
Candy Glory Red with red floorboard stripe |

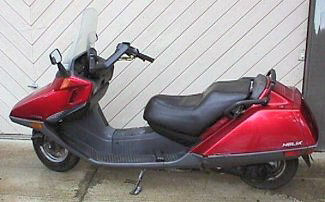

1987 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
|
| Engine |
MF02E-5100001 ~ |
| V.I.N. |
JH2MF020_HK000001 ~ |
| Color |
Achilles, Black Metallic with no floorboard stripe
Candy Glory Red with no floorboard stripe |
1986 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
|
| Engine |
MF02E-5000001 ~ |
| V.I.N. |
JH2MF020_GK000001 ~ |
| Color |
Pearl Shell White with white floorboard stripe
Candy Glory Red with red floorboard stripe |
1992 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
New cast aluminum wheels
New tire design |
| Engine |
MF02E-5400001 ~ |
| V.I.N. |
JH2MF020_NK000001 ~ |
| Color |
Candy Glory Red |
1993 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
New cast aluminum wheels
New tire design |
| Engine |
MF02E-5401001 ~ |
| V.I.N. |
JH2MF020_PK000001 ~ |
| Color |
Candy Glory Red |
1994 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
New cast aluminum wheels
Redesigned graphics |
| Engine |
MF02E-5403569 ~ |
| V.I.N. |
JH2MF020_RK000001 ~ |
| Color |
Gloss Black |
1995 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
New cast aluminum wheels
Redesigned graphics |
| Engine |
MF02E-5405667 ~ |
| V.I.N. |
JH2MF020_SK000001 ~ |
| Color |
Gloss Black |
1996 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
cast aluminum wheels |
| Engine |
MF02E-5407318 ~ |
| V.I.N. |
JH2MF020_TK000001 ~ |
| Color |
Pure Red |
1997 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
cast aluminum wheels |
| Engine |
MF02E-5408851 ~ |
| V.I.N. |
JH2MF020_VK200001 ~ |
| Color |
Pure Red |
1998 Helix 250 (CN250)
Engine
|
|
| Engine Type |
244cc 4-stroke liquid-cooled |
| Cylinders |
One |
DRIVETRAIN
|
|
|
|
CHASSIS / SUSPENSION / BRAKES
|
|
DIMENSION
|
|
OTHER
|
cast aluminum wheels |
| Engine |
MF02E-5000000 ~ |
| V.I.N. |
JH2MF020_WK300001 ~ |
| Color |
Pure Red |
2004 Helix 250 CN250
Engine
|
|
| Engine Type |
244cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery |
30.0mm CV with automatic choke |
| Ignition |
CDI |
| Starter |
|
DRIVETRAIN
|
|
| Transmission |
Automatic V-Matic |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
Bottom link; 3.2-inch travel |
| Rear Suspension |
Swingarm with dual hydraulic shocks; 3.9-inch travel |
| Front Brakes |
Single disc |
| Rear Brake |
Drum |
| Front Tire |
110/100-12 |
| Rear Tire |
120/90-10 |
DIMENSION
|
|
| Length x Width x Height |
|
| Rake |
|
| Trail |
|
| Wheelbase |
63.8 inches |
| Seat Height |
26.2 inches |
| Ground Clearance |
|
| Dry Weight |
349.4 pounds |
| Fuel Capacity |
3.2 gallons |
OTHER
|
|
| Warranty |
1 year: Coverage of defects in materials and workmanship |
| Color |

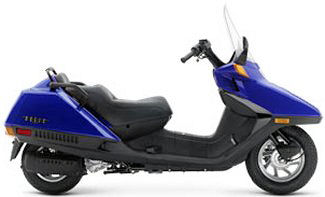

- Candy Blue

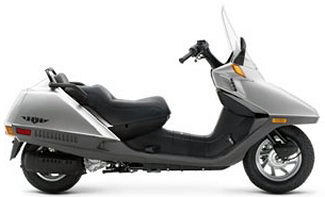

- Metallic Silver

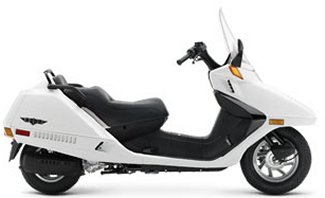

- Pearl White

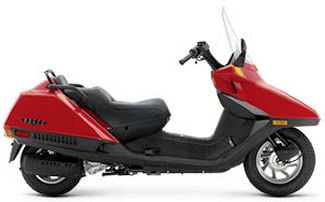

- Red

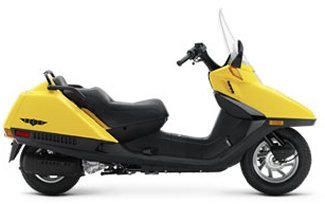

- Yellow
|

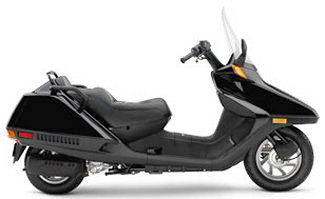

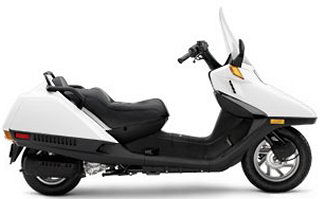

2005 Helix 250 CN250
Engine
|
|
| Engine Type |
244cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery |
30.0mm CV with automatic choke |
| Ignition |
CDI |
| Starter |
|
DRIVETRAIN
|
|
| Transmission |
Automatic V-Matic |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
Bottom link; 3.2-inch travel |
| Rear Suspension |
Swingarm with dual hydraulic shocks; 3.9-inch travel |
| Front Brakes |
Single disc |
| Rear Brake |
Drum |
| Front Tire |
110/100-12 |
| Rear Tire |
120/90-10 |
DIMENSION
|
|
| Length x Width x Height |
|
| Rake |
|
| Trail |
|
| Wheelbase |
63.8 inches |
| Seat Height |
26.2 inches |
| Ground Clearance |
|
| Dry Weight |
349.4 pounds |
| Fuel Capacity |
3.2 gallons |
OTHER
|
|
| Emissions |
California version differs slightly due to emissions equipment. |
| Warranty |
1 year |
| Color |
|
2006 CN250
OVERVIEW
Overview: Let’s see you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you’re sure to be toting. With all these features, it’s pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.
Engine
|
|
| Engine Type |
244cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery |
30.0mm CV with automatic choke |
| Ignition |
CDI |
| Starter |
|
DRIVETRAIN
|
|
| Transmission |
Automatic V-Matic |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
Bottom link; 3.2-inch travel |
| Rear Suspension |
Swingarm with dual hydraulic shocks; 3.9-inch travel |
| Front Brakes |
Single disc |
| Rear Brake |
Drum |
| Front Tire |
110/100-12 |
| Rear Tire |
120/90-10 |
DIMENSION
|
|
| Length x Width x Height |
|
| Rake |
|
| Trail |
|
| Wheelbase |
63.8 inches |
| Seat Height |
26.2 inches |
| Ground Clearance |
|
| Dry Weight |
349.4 pounds |
| Fuel Capacity |
3.2 gallons |
OTHER
|
|
| Emissions |
California version differs slightly due to emissions equipment. |
| Model ID |
CN250 |
| Color |
Red |

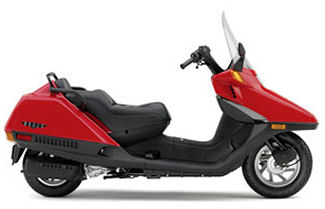

2007 CN250
OVERVIEW
Overview: Let’s see… you get comfort, loads of performance, seating for two, and a built-in trunk with plenty of room for all that stuff you’re sure to be toting. With all these features, it’s pretty easy to see why this 244cc, liquid-cooled four-stroke scooter has been a popular favorite for both the urban and suburban set for years.
Engine
|
|
| Engine Type |
244cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery |
30.0mm CV with automatic choke |
| Ignition |
CDI |
| Starter |
|
DRIVETRAIN
|
|
| Transmission |
Automatic V-Matic |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
Bottom link; 3.2-inch travel |
| Rear Suspension |
Swingarm with dual hydraulic shocks; 3.9-inch travel |
| Front Brakes |
Single disc |
| Rear Brake |
Drum |
| Front Tire |
110/100-12 |
| Rear Tire |
120/90-10 |
DIMENSION
|
|
| Length x Width x Height |
|
| Rake |
|
| Trail |
|
| Wheelbase |
63.8 inches |
| Seat Height |
26.2 inches |
| Ground Clearance |
|
| Dry Weight |
349.4 pounds |
| Fuel Capacity |
3.2 gallons |
OTHER
|
|
| Emissions |
California version differs slightly due to emissions equipment. |
| Model ID |
CN250 |
| Color |
Red |
