2010 VT1300CX Fury
Engine |
|
| Engine Size | 1312cc |
| Engine Detai | liquid-cooled 52° V-twin |
| Bore and Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Fuel System | PGM-FI with automatic enricher circuit, one 38mm throttle body |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Suspension Fron | 45mm fork; 4.0 inches travel |
| Suspension Rear | Single shock with adjustable rebound-damping and five-position spring-preload adjustability; 3.7 inches travel |
| Brakes Front | Single 336 mm disc with twin-piston caliper (ABS optional) |
| Brakes Rear | Single 296 mm disc with single-piston caliper (ABS optional) |
| Front Tires | Tire Front |
| Rear Tires | 200/50-18 |
DIMENSION |
|
| Seat Height | 26.7 in. |
| Wheelbase | 71.24 in. |
| Fuel Capacity | 3.4 gal. |
| Curb weight | 663 lb. (681 lb. ABS) |
OTHER |
|
| Colors: |
|
| Price | $12999 |
| Warranty | 1 Year |
2011 VT1300CX Fury
Engine |
|
| Engine Type | Liquid-cooled 52-degree V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI with automatic enricher circuit, one 38mm throttle body |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 45 mm fork; 102 mm (4 in.) travel |
| Rear Suspension | Single shock with adjustable rebound damping and six-position spring preload adjustment; 95 mm (3.7 in.) travel |
| Front Brakes | Single 336 mm disc with twin-piston caliper |
| Front Brake | Single 336 mm disc with triple-piston caliper. Combined Braking System with ABS |
| Rear Brakes | 296 mm disc with dual-piston caliper. Combined Braking System with ABS |
| Rear Brake | Single 296 mm disc with single-piston caliper |
| Front Tires | 90/90-21 |
| Rear Tires | 200/50R-18 |
DIMENSION |
|
| Rake | 32.0 degrees (Caster Angle) |
| Trail | 92mm (3.6 inches) |
| Ground Clearance | N/A |
| Seat Height | 685 mm (27 in.) |
| Wheelbase | 1,805 mm (71.1 in.) |
| Curb Weight (ABS) | 308 kg (679 lb) |
| Curb Weight (non-ABS) | 301 kg (663 lb) |
| Fuel Capacity | 12.8 litres (3.4 GalUS) |
OTHER |
|
| Colour: |
|
| MSRP | $15,999 |
| Emissions | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment |
| Warranty | One Year: Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan. |
2012 Fury
Engine |
|
| Engine Type | Liquid-cooled SOHC 52° V-twin |
| Engine Displacement | 1,312 cc |
| Bore and Stroke | 89.5 mm x 104.3 mm |
| Compression Ratio | 9.2:1 |
| Valve Train | Chain-driven SOHC, 3 valves per cylinder |
| Fuel Delivery | PGM-FI electronic fuel injection with automatic enricher circuit, one 38mm throttle body |
| Ignition | Digital with three-dimensional mapping, two spark plugs per cylinder |
| Max. Power Output | 42.5kW/4,250min-1 (95/1/EC) |
| Max. Torque | 107Nm/2,250min-1 (95/1/EC) |
| Starter | Electric |
Drivetrain |
|
| Transmission | Five-speed |
| Final Drive | Shaft |
| Front Wheels | 9-spoke cast aluminium 21M/C x MT2.15 |
| Rear Wheels | 7-spoke cast aluminium 18M/C x MT6.25 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 45mm telescopic fork with 130mm stroke and 102.4mm (4 in.) axle travel |
| Rear Suspension | Monoshock with adjustable rebound damping and six-position spring preload adjustability, 95mm (3.7 in.) axle travel |
| Front Brakes | 336mm single disc with twin-piston caliper (triple-piston caliper in ABS model) |
| Rear Brakes | 296mm disc with single-piston caliper (dual-piston caliper in ABS model |
| Front Tires | 90/90-R21M/C |
| Rear Tires | 200/50-R18M/C |
DIMENSION |
|
| Rake | 32.0 degrees (Caster Angle) |
| Trail | 92mm (3.6 inches) |
| Wheelbase | 1,805mm (71 inches) |
| Overall Length | 2575mm (101.4 inches) |
| Overall Width: | 900mm (35.4 inches) |
| Overall Height | 1150mm (42.3 inches) |
| Seat Height | 678mm (26.7 inches) (British model) |
| Ground Clearance | 126mm (5 inches) |
| Curb Weight | 303 kg (666.6 lb) [ABS: 309 kg (681 lb)] |
| Front | 128 kg (281.6 lb) |
| Rear | 175 kg (385 lb) |
| Fuel Capacity | 15.5 Litres (4 Gal US) (non-ABS model) |
| Fuel Capacity | 12.8 Litres (3.4 Gal US) (ABS model) |
OTHER |
|
| Colour: |
|
| Fuel Consumption | 5 L/100km (45 mpgUS) |
| Emissions | Meets current EPA standards. California version meets current California Air Resources Board (CARB) standards and may differ slightly due to emissions equipment |
| Warranty | 1 year, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus |
| MSRP | 1$14,499 |

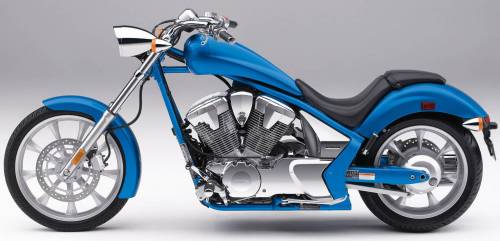

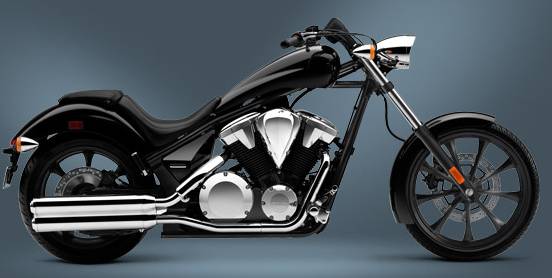

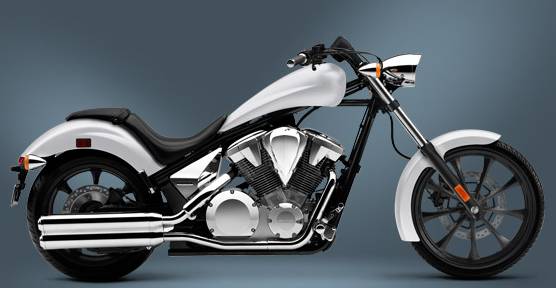

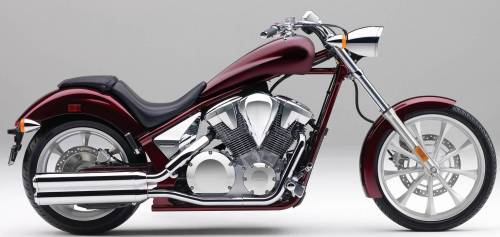

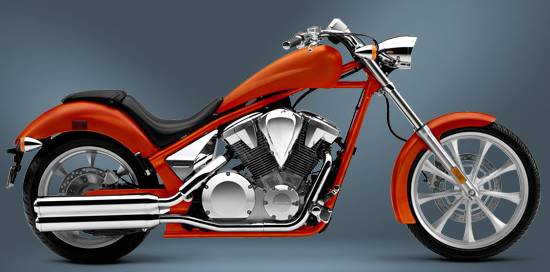

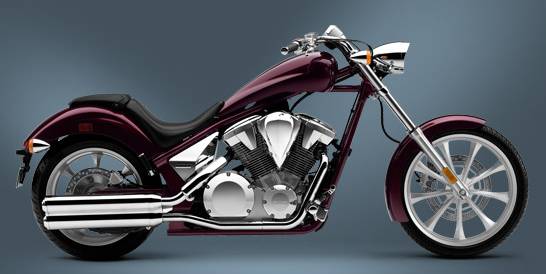

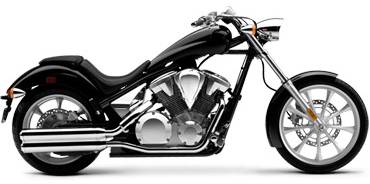

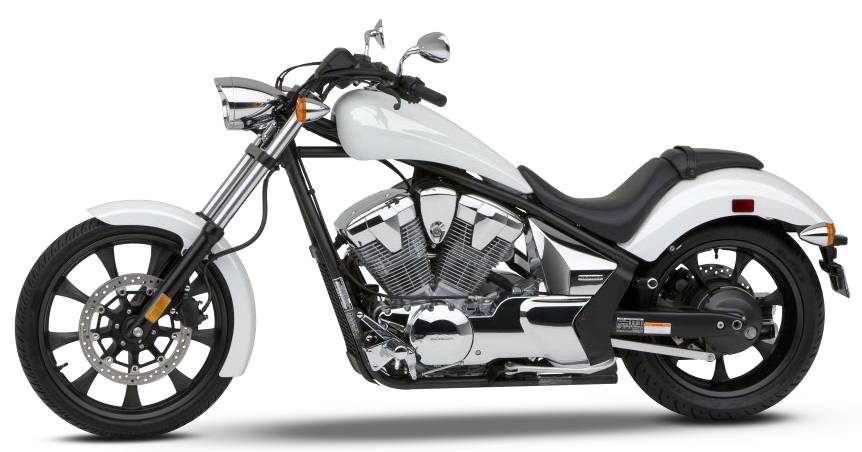

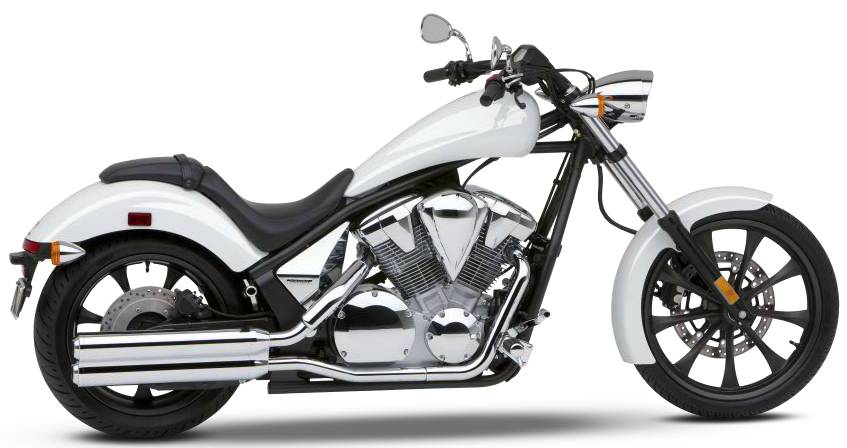

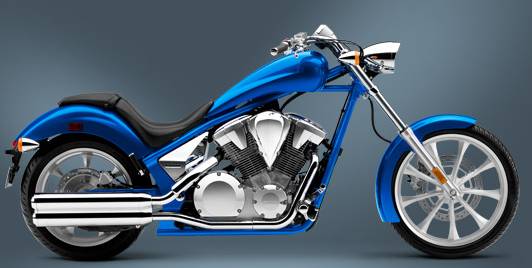

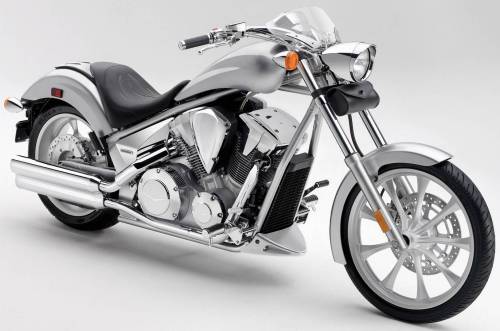

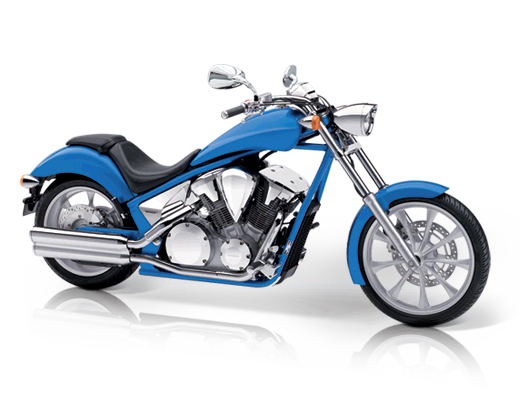

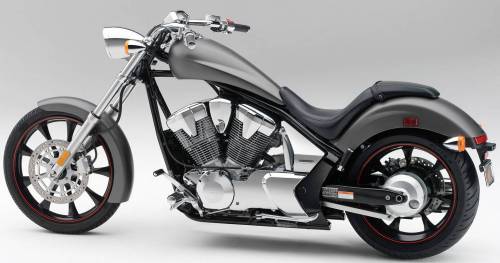

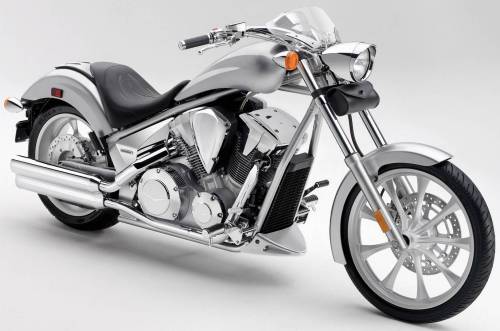

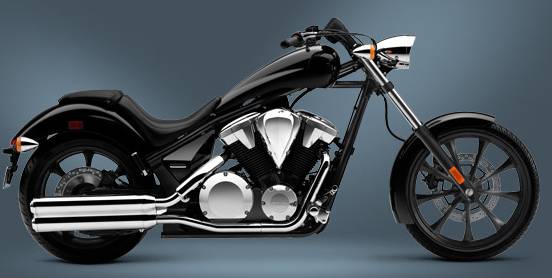

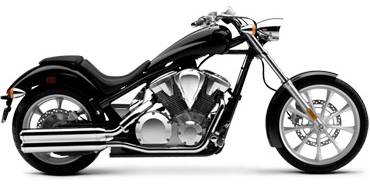

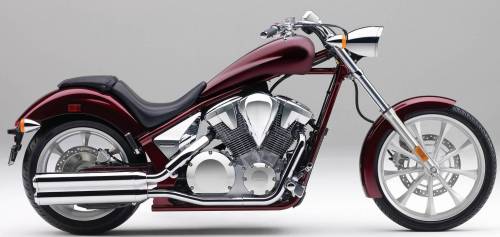

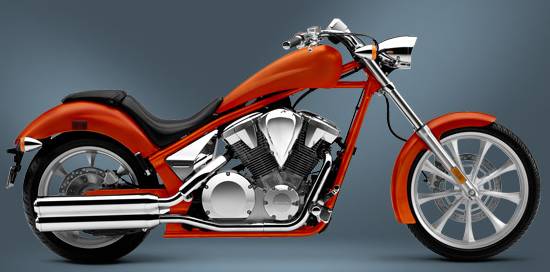

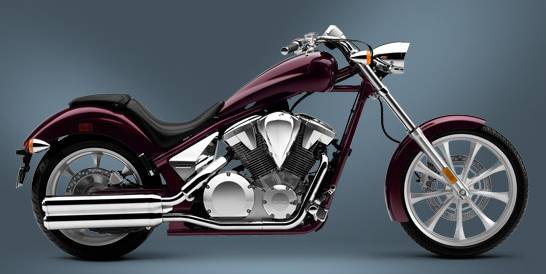

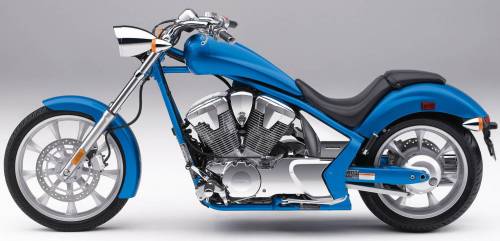

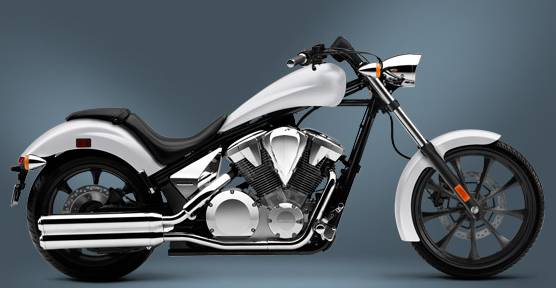

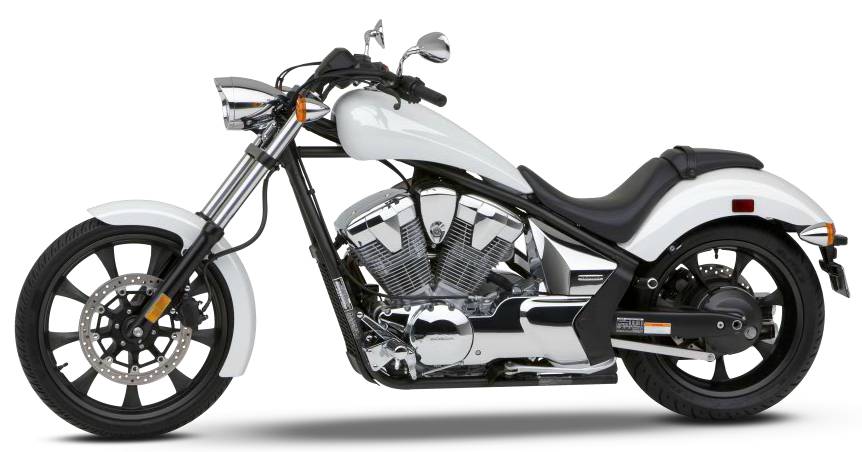

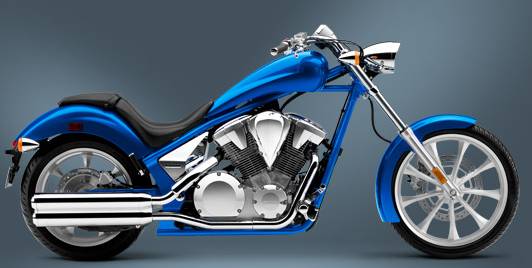

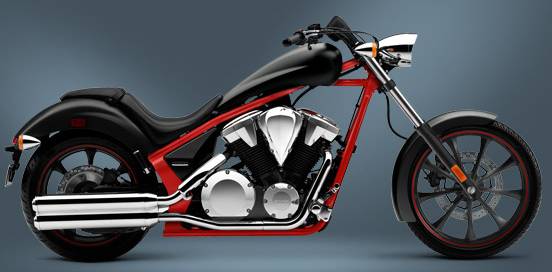

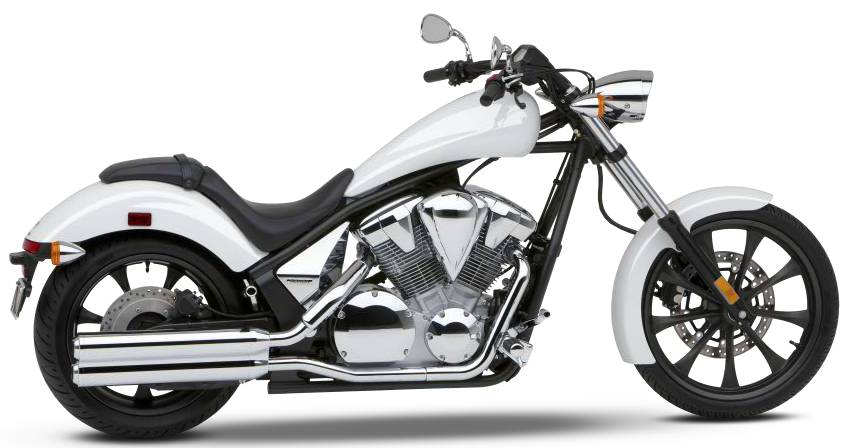

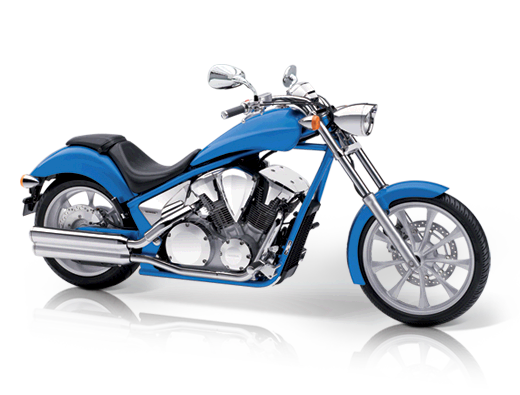

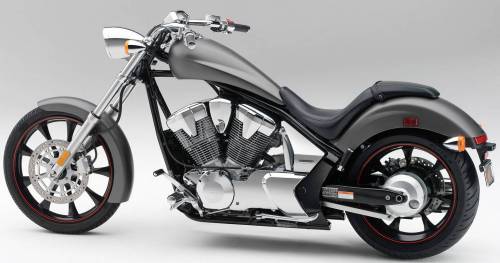

VT1300CX Image Gallery
