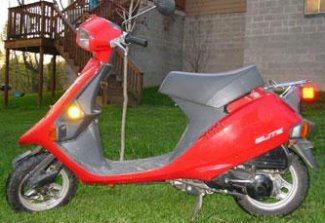

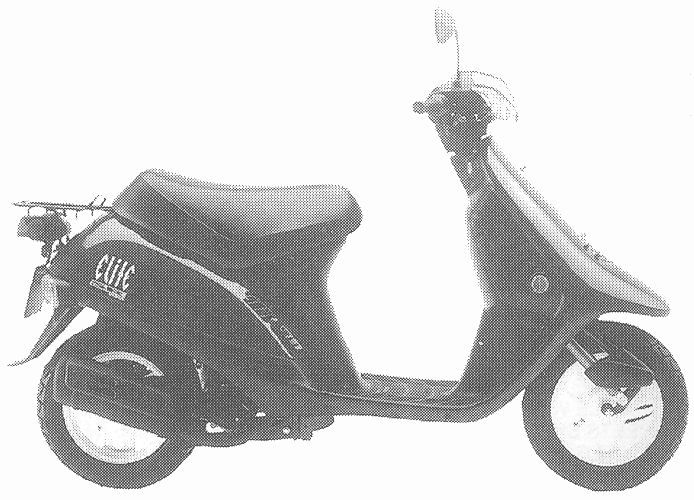

1987 Honda Elite 50 LX
- ENGINE
- Spark plug: BPR6HSA
- Plug gap: .028
- DRIVETRAIN
- N/A
- CHASSIS / SUSPENSION / BRAKES
- N/A
- DIMENSION
- N/A
- OTHER

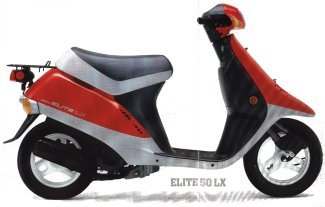

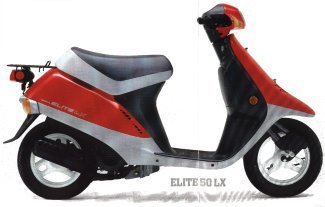

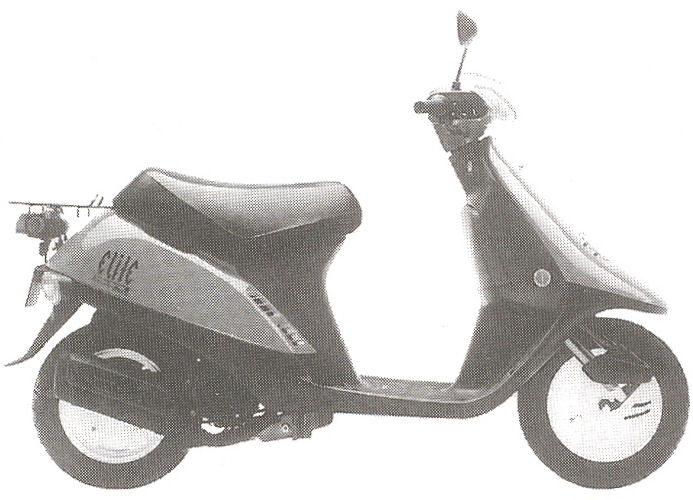

1988 Honda Elite 50 LX (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
- Seat and lower panel are gray
- Storage compartment under the seat
- VIN: JH2AF160*JK000001 ~
- Engine: AF05E-3300001
- Available colors:
- Fighting Red
- Shasta White

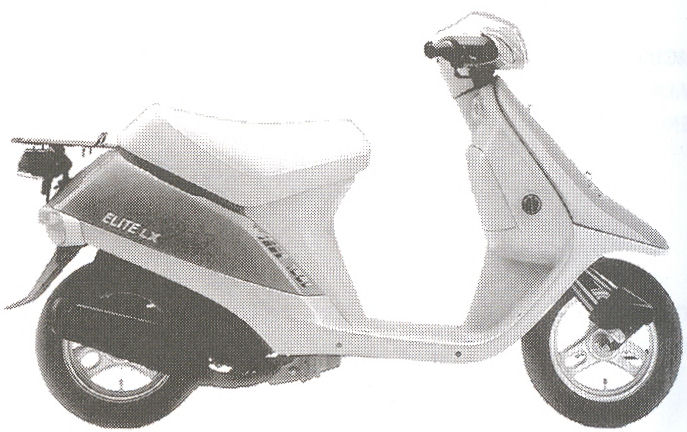

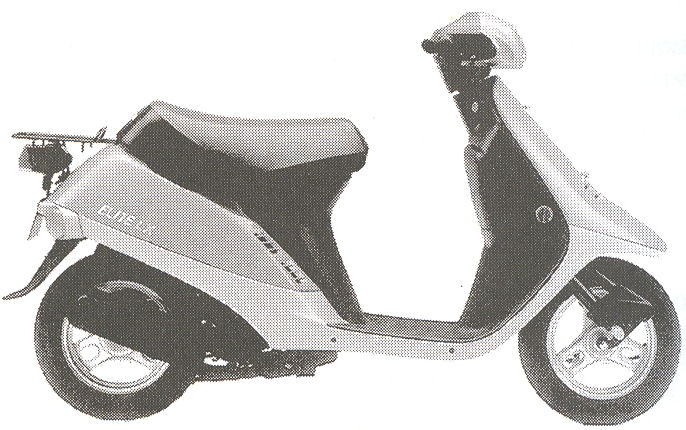

1989 Honda Elite 50 LX (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
- Storage compartment under the seat
- “Elite” logo changed
- VIN: JH2AF160*KK100001 ~
- Engine: AF05E-3400001 ~
- Available colors:
- Fighting Red
- Coral Blue

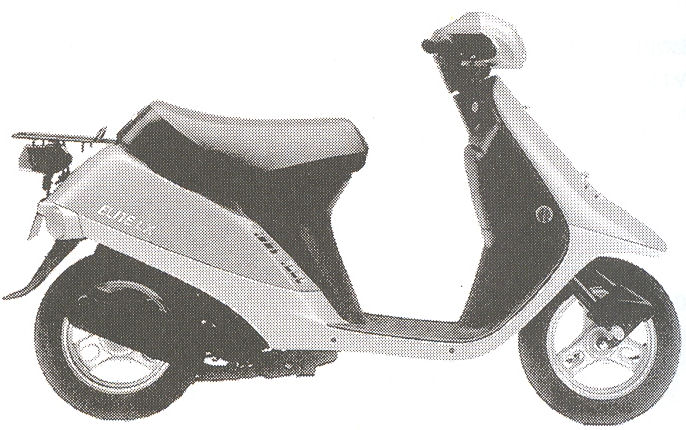

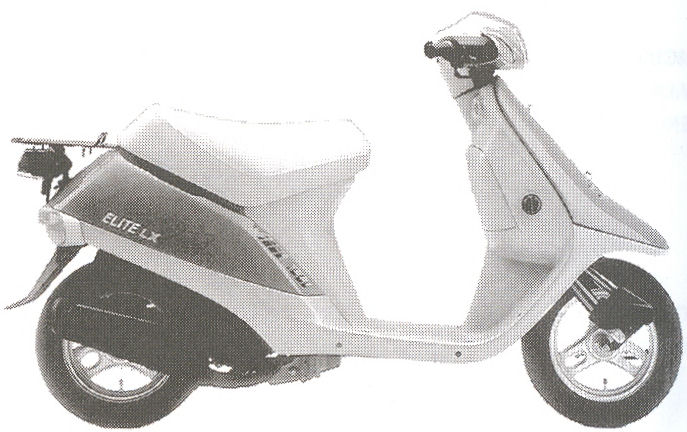

1990 Honda Elite 50 LX (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
- Storage compartment under the seat
- No visible changes from 1989 model
- VIN: 3H1AF160*LK200001 ~
- Engine: AF05E-3500001 ~
- Available colors:
- Fighting Red
- Coral Blue

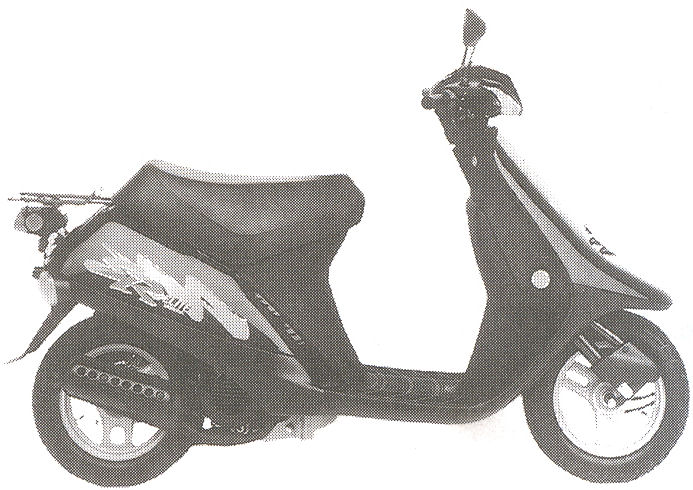

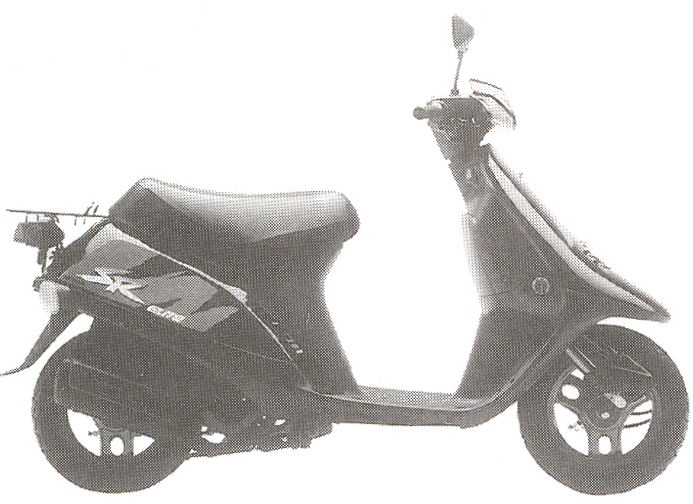

1992 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | 3H1AF160*ND300001 ~ |
| Engine | AF05E-3611001 ~ |
| Available color | Black |
| Wheel color | Light Blue |
| Striping | Light Blue |
| SR logo | Purple |

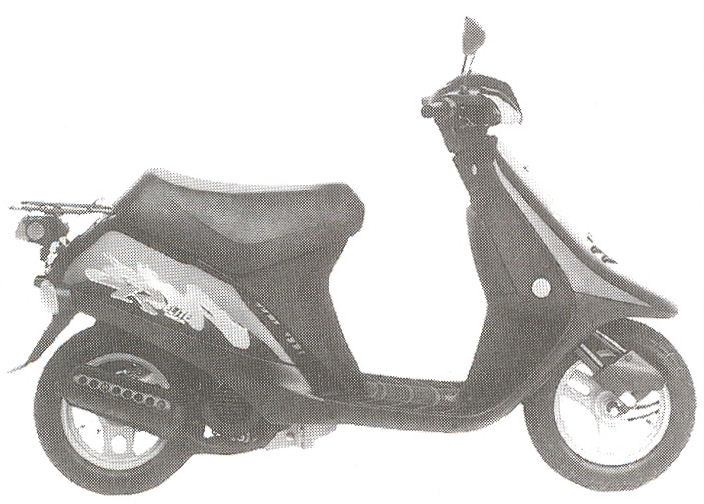

1993 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | 3H1AF160*PD400001 ~ |
| Engine | AF05E-3711001 ~ |
| Available color | Black |
| Wheel color | Light Blue (same as 1992) |
| Striping | Light Blue (same as 1992) |
| SR logo | Purple (same as 1992) |

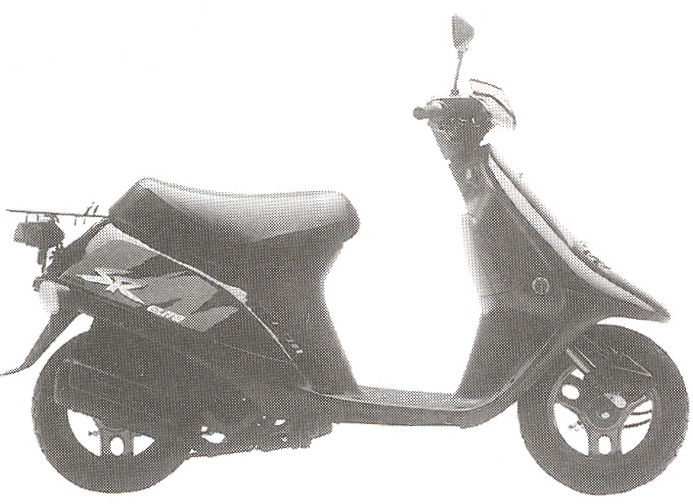

1994 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | H1AF160*RD500001 ~ |
| Engine | AF16E-2000001 ~ |
| Available color | Gloss Black |
| Wheel color | Purple |
| Storage compartment under the seat | |
| SR logo | Purple and Red on Black |

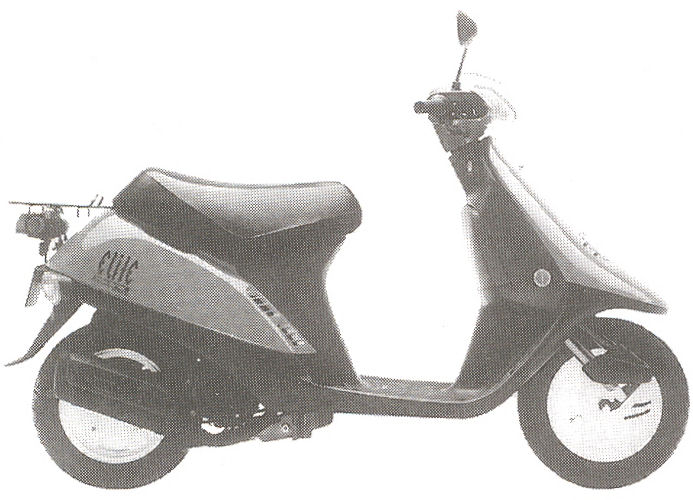

1995 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock, bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | 3H1AF160*SD600001 ~ |
| Engine | AF16E-2012625 ~ |
| Available color | Monza Red |
| Wheel color | White |
| SR logo | Black on Red |

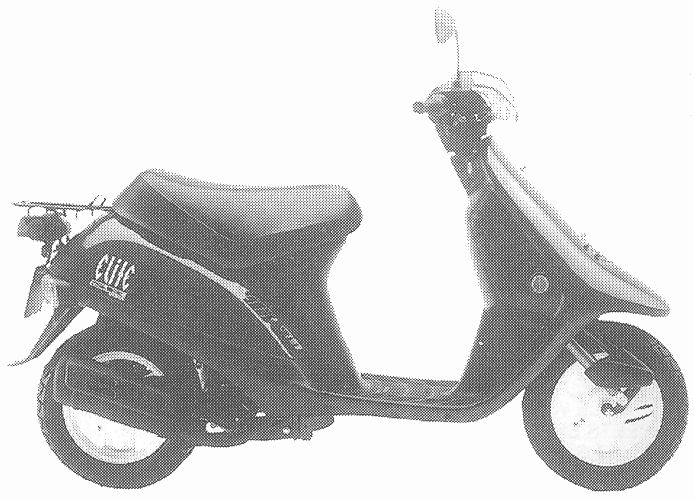

1996 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock, bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | 3H1AF160*TD700001 ~ |
| Engine | AF16E-2012626 ~ |
| Available color | Pearl Majestic Purple |
| Wheel color | White |
| SR logo | Black on Red |

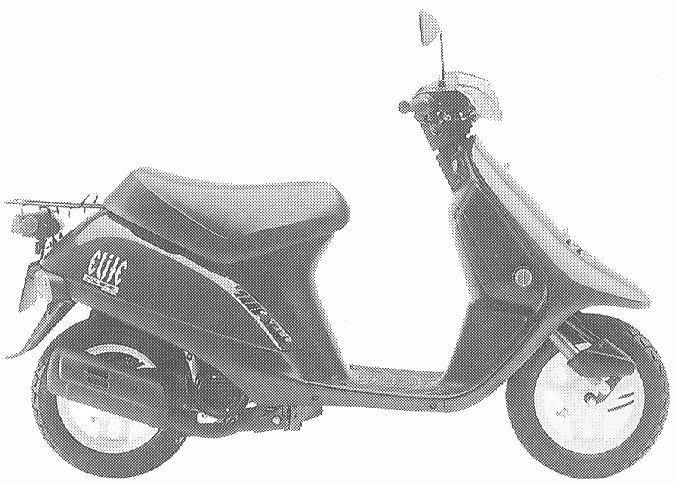

1998 Honda Elite 50 SR (SA50)
Engine |
|
| Displacement | 49cc |
| Cylinder | Single |
| Type | 2-stroke |
| Cooling | Air-cooled |
| Lubrication | Oil injection |
| Spark plug | BPR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
CHASSIS / SUSPENSION / BRAKES |
|
| Dual-shock, bottom link front suspension | |
DIMENSION |
N/A |
OTHER |
|
| VIN | 3H1AF160*WD900001 ~ |
| Engine | AF16E-2028301 ~ |
| Available color | Pearl Mistique Purple |
| Wheel color | White |
| SR logo | Black on Red |
