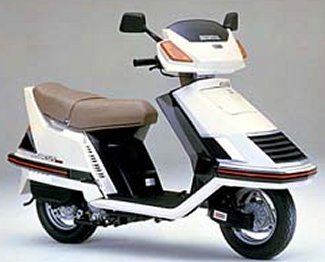

1983 Elite
Engine |
|
| Engine Type | Liquid-cooled four-stroke 124cc |
DRIVETRAIN |
|
| Transmission | V-maticTM |
| Drive | Belt |
CHASSIS / SUSPENSION / BRAKES |
N/A |
DIMENSION |
|
| Dry weight | 102 kg (224.8 lb) |
| Seat Height | 760mm (29.9 in.) |
| Wheelbase | 1200mm (47.2 in.) |
OTHER |
|
| Seat | Dual |
| Accessory | Rear carrier |

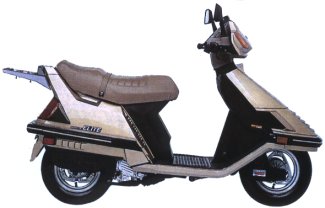

1984 Elite
Engine |
|
| Engine Type | Liquid-cooled four-stroke 124cc |
| Displacement | 124cc |
| Bore and Stroke | 56.5 x 49.5mm |
| Compression Ratio | 10.3:1 |
| Fuel Delivery | 22mm CV Type |
| Ignition | system: CDI |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | Variable Ratio V-maticTM |
| Final Drive | Belt |
| Clutch | Automatic centrifugal |
| Wheels | Pressed steel |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom-link type |
| Rear Suspension | Twin hydraulic shocks |
| Brakes | Front and rear drums |
| Tire size | 3.50-10 (front and rear) |
DIMENSION |
|
| Overall width | 655mm (25.8 in.) |
| Seat Height | 760mm (29.9 in.) |
| Wheelbase | 1200mm (47.2 in.) |
| Dry Weight | 102 kg (224.8 lb) |
| Fuel Capacity | 8.3 liters (2.2 US gal.) (1.8 Imp. gal.) |
| Overall length | 1940mm (76.4 in.) |
OTHER |
|
| Accessory | Rear carrier |
| Colors |
|

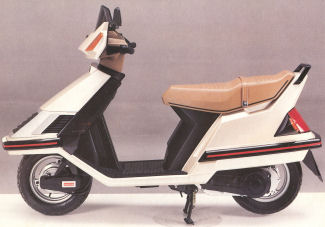

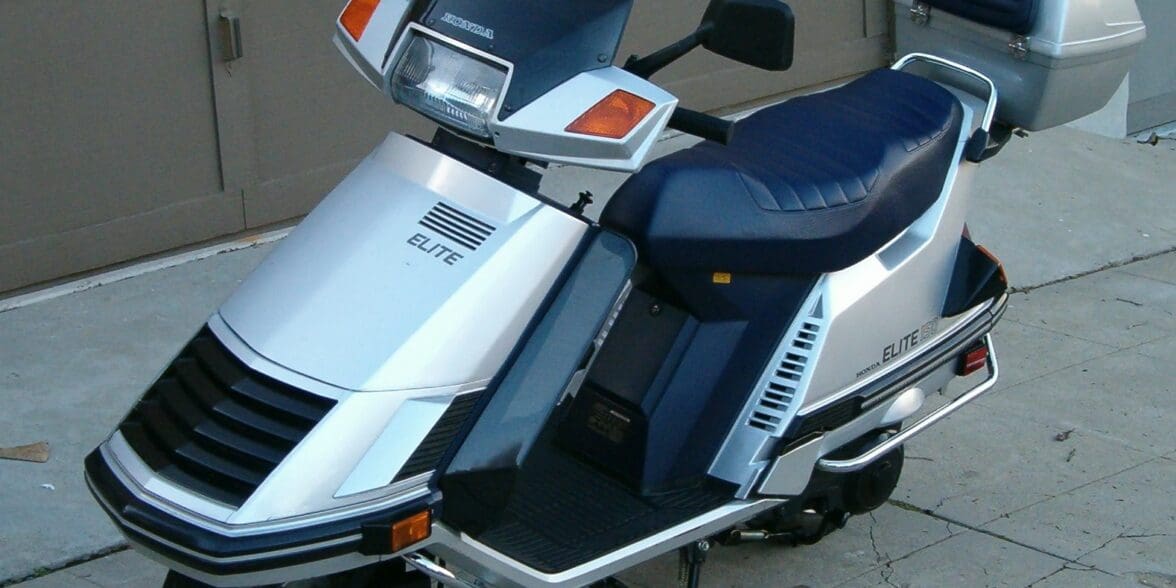

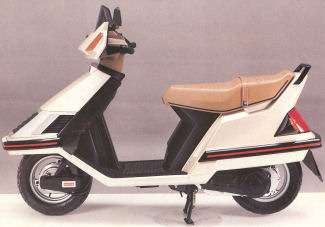

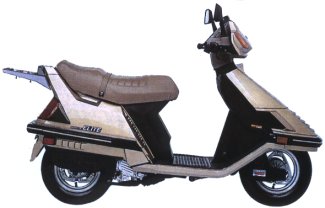

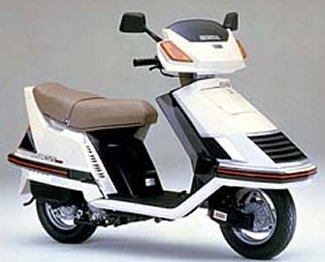

CH125 Image Gallery
