Honda Custom CM250 Motorcycles

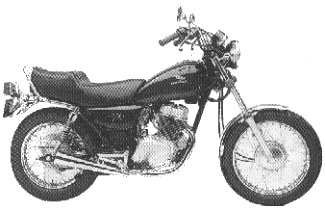

1982 Honda Custom CM250C’82

Engine
Engine Type	Type: OHC parallel twin cylinder
Displacement	234cc
DRIVETRAIN	N/A
CHASSIS / SUSPENSION / BRAKES	N/A
DIMENSION	N/A
OTHER
Color	Candy Muse Red with Candy Antares Red Cosmo Black Metallic with Gray Metallic

• The tank and side covers are two-toned
• The “CM250 CUSTOM” side cover decal was gold
• The engine color was silver
• This year the bike used a chain drive (next year it used a belt drive)
• The serial number began JH2MC0600CM000066.

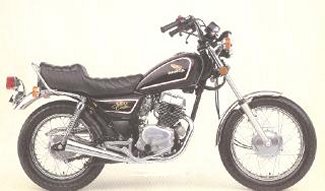

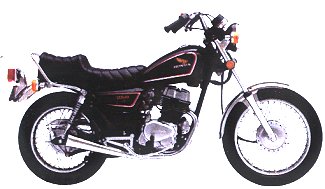

1983 CM250’83 Custom



Engine
Engine Type	Parallel twin-cylinder four-stroke, OHC
Displacement	234cc
Ignition	Solid-state CD ignition
DRIVETRAIN
Transmission	Five-speed
Front wheel	New, quiet belt drive system
CHASSIS / SUSPENSION / BRAKES
Suspension	Five-way adjustable VHDTM rear shocks
DIMENSION
Wheelbase	1344mm (52.9 in.)
Seat height	729mm (28.7 in.)
Fuel capacity	12.5 liters(3.3 gal)
Dry weight	129 kg (284.4 lb)
OTHER

• It was available only in black
• The gas tank and side cover stripers were chrome and red
• The “250 CUSTOM” side cover decal was red and gold
• The Engine was black with a silver cylinder head and case covers.
• The serial number began JH2MC060*DK100011.

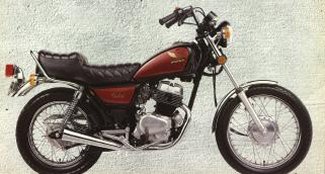

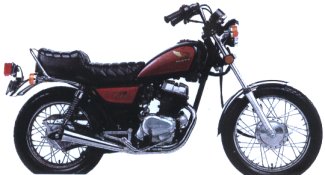

1984 CM250’84 Custom



Engine
Engine Type	Parallel twin-cylinder, four-stroke, OHC
Displacement	234cc
Ignition	Solid-state CD ignition
Starter	Electric
DRIVETRAIN
Transmission	Five-speed
Front wheel	quiet belt drive system
CHASSIS / SUSPENSION / BRAKES
Suspension	Five-way adjustable VHDTM rear shocks
DIMENSION
Wheelbase	1345mm (52.9 in.)
Seat height	730mm (28.7 in.)
Fuel capacity	12.5 liters(3.3 gal)
Dry weight	129 kg (284.3 lb)
OTHER

The serial number began JH2MC060*EK10001

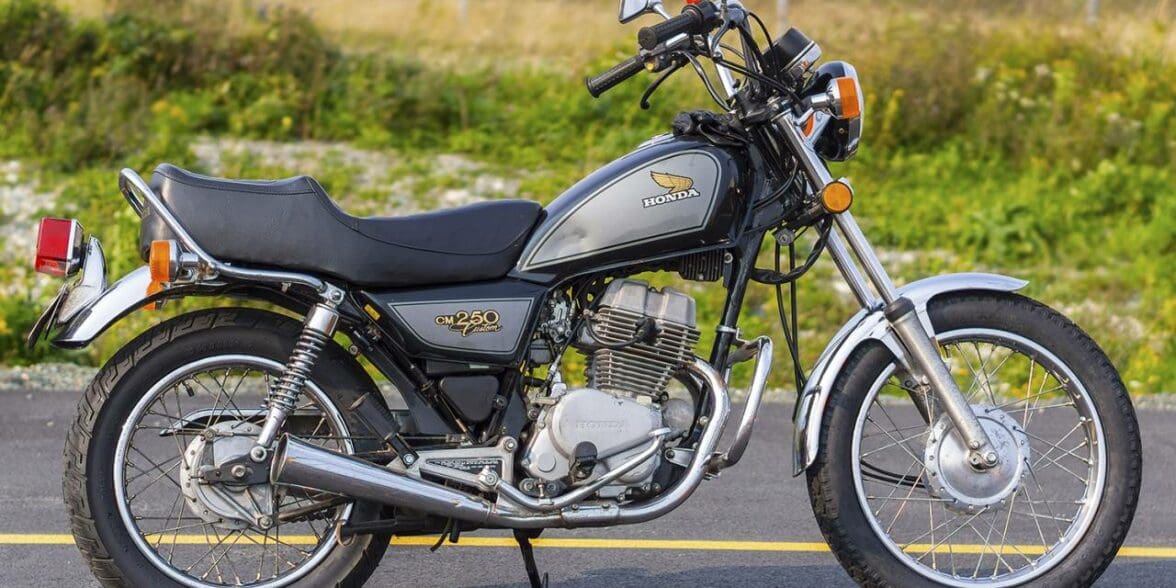

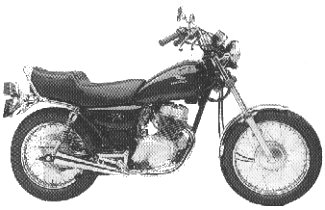

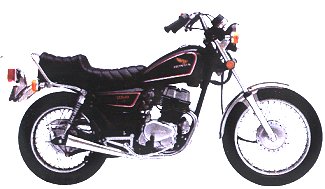

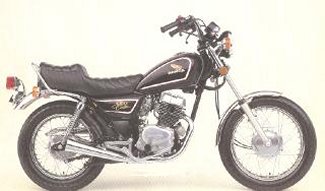

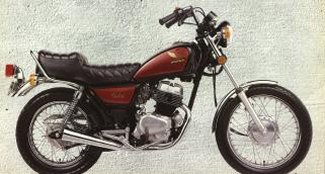

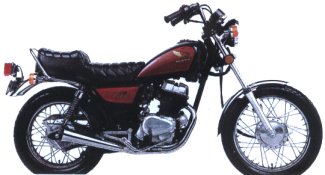

CM250 Image Gallery
