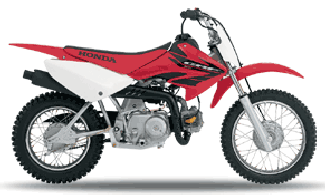

Honda CRF70F Motorcycles
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 72cc air-cooled single-cylinder four-stroke |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Warranty | 6 months |

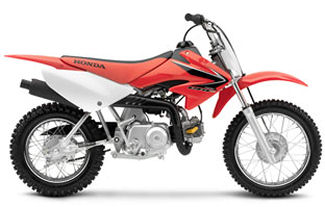

2005 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |
| Warranty | 6 months |

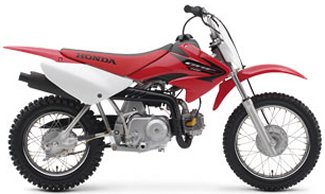

2006 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |

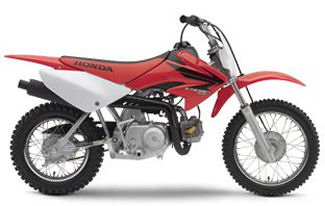

2007 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |

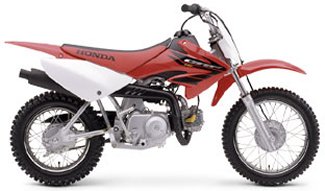

2008 CRF70F
OVERVIEW
- Think of the CRF70F as the perfect stepping stone between its bigger siblings and the CRF50F. Your youngster a tad too big for the 50F, but not quite ready for the CRF80F or 100F? No worries. This bike features the same smooth three-speed semi-automatic transmission (no clutch to deal with) and novice-friendly four-stroke power as its little brother, only in a slightly bigger package. What could be more fun than that?
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |
| Emissions | Meets current CARB and EPA standards. |
| 6 months Warranty | Coverage of defects in materials and workmanship |

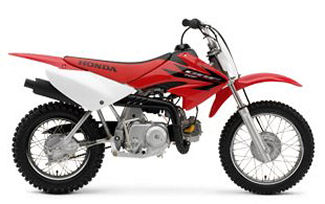

2009 CRF 70F
Engine |
|
| Engine Type | 72cc |
| Engine Detail | air-cooled single-cylinder four-stroke |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel System | 13mm piston-valve carburator |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Wheelbase | 42 in. |
| Seat Height | 26.1 in. |
| Curb Weight | 139 lbs. |
| Fuel Capacity | 1.3 gal. |
OTHER |
|
| Colors | Red |
| Price | $1699 |
| Warranty | 6 Months |
2012 CRF70F
Engine |
|
| Engine Type | Air-cooled 4-stroke OHC single |
| Displacement | 71.8cc |
| Bore and Stroke | 47 x 41.4mm |
| Compression Ratio | 9:1 |
| Fuel Delivery | 13mm piston-valve carburator |
| Ignition | Capacitor Discharge (CDI) |
| Starter | Primary kick |
| Valve Train | SOHC; two-valve |
DRIVETRAIN |
|
| Transmission | 3-speed with automatic clutch |
| Final Drive | 420 roller chain |
| Front sprocket | 15T |
| Rear sprocket | 36T |
| Front Wheels | Steel rim/wire spoke |
| Rear Wheels | Steel rim/wire spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27mm leading-axle telescopic fork, 100mm (3.2 inch) axle travel |
| Rear Suspension | Mono-shock swingarm, 90mm (3.5 inch) axle travel |
| Front Brakes | 95mm leading/trailing drum |
| Rear Brakes | 95mm leading/trailing drum |
| Front Tire | 2.50-14 4PR |
| Rear Tire | 3.00-12 4PR |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 1063mm (41.85 inches) |
| verall Length | 1569mm (61.8 inches) |
| Overall Width | 694mm (27.3 inches) |
| Overall Height | 885mm (34.8 inches) |
| Seat Height | 655mm (25.8 inches) |
| Ground Clearance | 178mm (7 inches) |
| Weight | 58 kg (128 lb) |
| Fuel Capacity | 5.5 Litres (1.45 GalUS) (including 1.1-Litre reserve) |
OTHER |
|
| Colors | Extreme Red |
| Emissions | Meets current California Air Resource Board (CARB) and EPA off-road emissions standards. |
| Warranty | 6-months |
