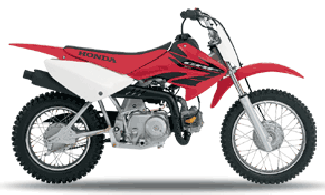

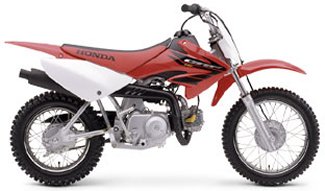

2004 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Warranty | 6 months |

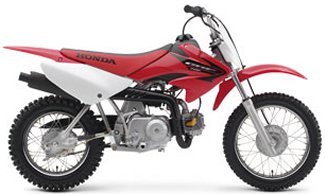

2005 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Fuel Delivery | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |
| Warranty | 6 months |

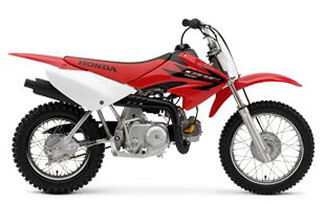

2006 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Carburetion | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |

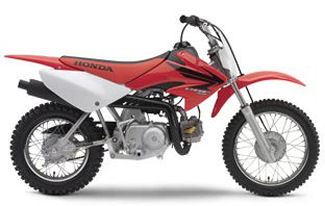

2007 CRF70F
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Carburetion | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Dry Weight | 128.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF70F |

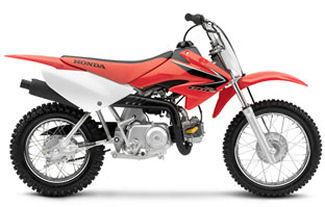

2008 CRF70F
OVERVIEW
- Think of the CRF70F as the perfect stepping stone between its bigger siblings and the CRF50F. Your youngster a tad too big for the 50F, but not quite ready for the CRF80F or 100F? No worries. This bike features the same smooth three-speed semi-automatic transmission (no clutch to deal with) and novice-friendly four-stroke power as its little brother, only in a slightly bigger package. What could be more fun than that?
Engine |
|
| Engine Type | 72cc air-cooled single-cylinder four-stroke |
| Valve Train | SOHC; two-valve |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Carburetion | 13.0mm piston-valve |
| Ignition | CDI |
| Spark plug | CR6HSA |
| Plug gap | .028 |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Rake | 27.03 degrees |
| Trail | 61.5mm (2.4 inches) |
| Wheelbase | 42.0 inches |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Curb Weight | N/A |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Emissions | Meets current CARB and EPA standards. |
| Colors | Red |
| Model ID | CRF70F |
| 6 months Warranty | Coverage of defects in materials and workmanship |

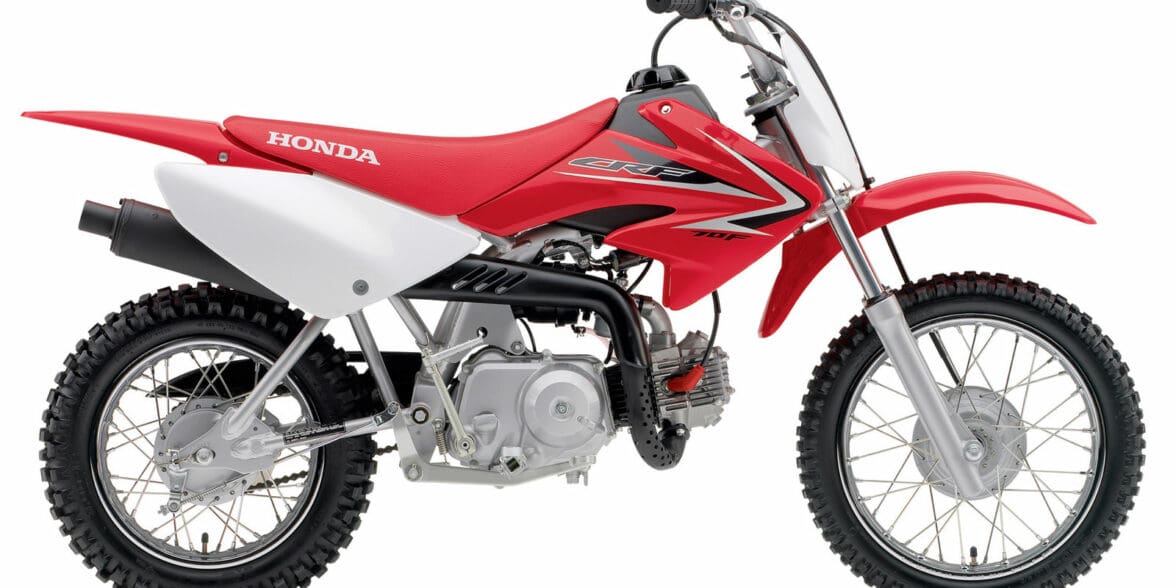

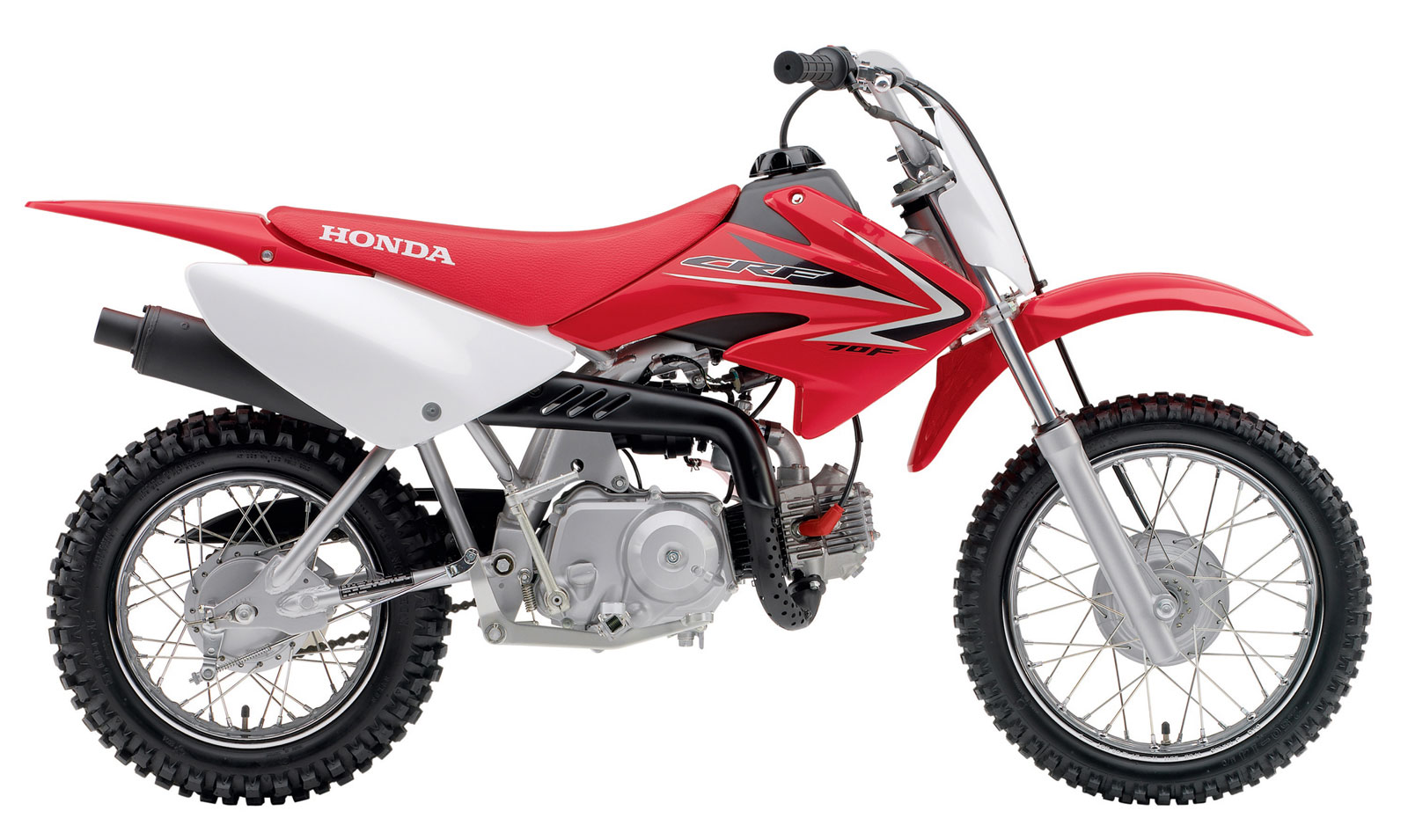

2009 CRF 70F
Engine |
|
| Engine Type | 72cc |
| Engine Detail | air-cooled single-cylinder four-stroke |
| Bore and Stroke | 47.0mm x 41.4mm |
| Compression Ratio | 9.0:1 |
| Carburetion | 13.0mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Three-speed with automatic clutch |
| Final Drive | #420 chain; 15T/36T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm telescopic fork; 3.2-inch travel |
| Rear Suspension | Single-shock; 3.5-inch travel |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Front Tire | 2.50-14 |
| Rear Tire | 3.00-12 |
DIMENSION |
|
| Wheelbase | 42 in. |
| Seat Height | 26.1 inches |
| Ground Clearance | 7.0 inches |
| Curb Weight | 139 lbs. |
| Fuel Capacity | 1.3 gal. |
OTHER |
|
| Colors | Red |
| Price | $1699 |
| Warranty | 6 Months |

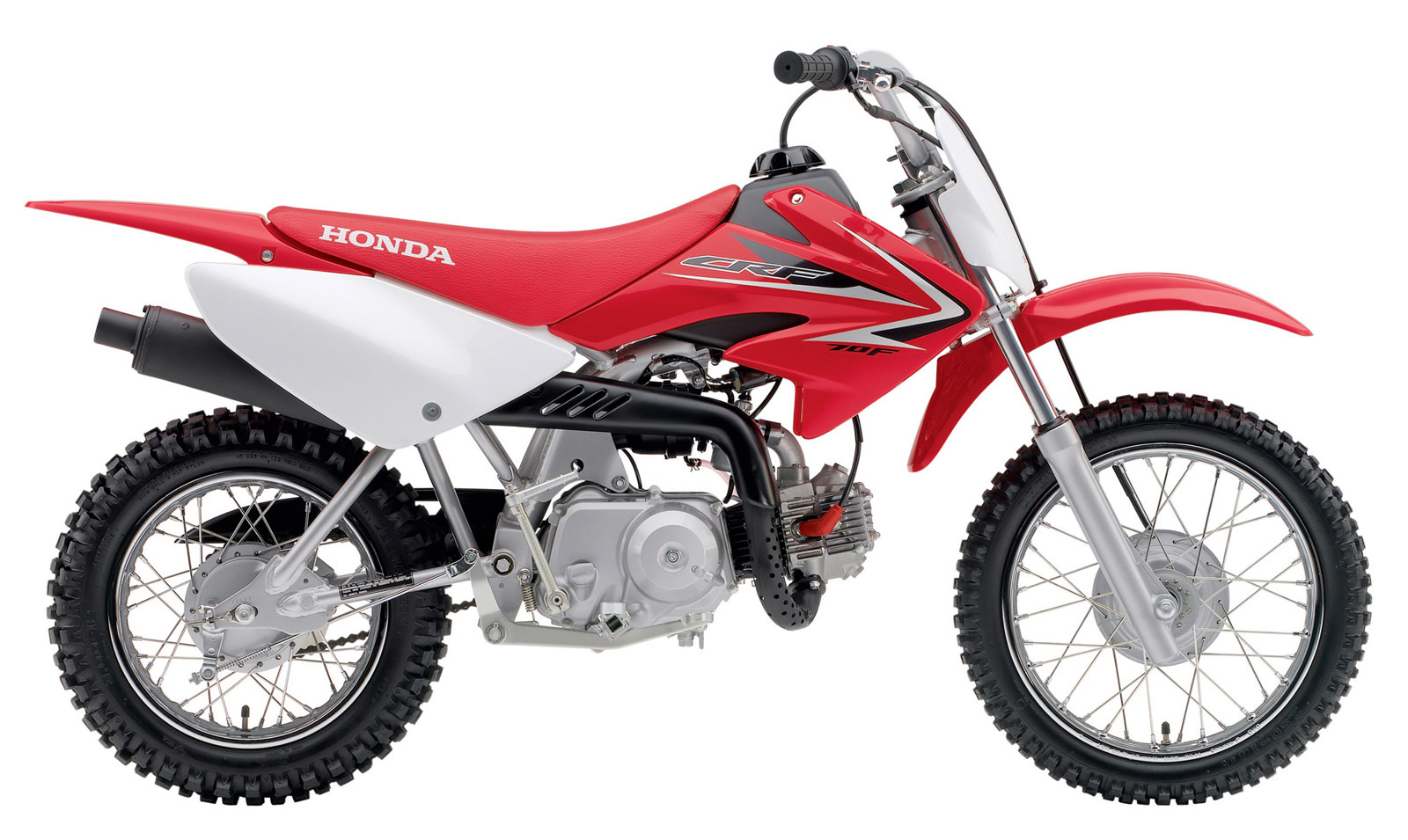

CRF70F Image Gallery
