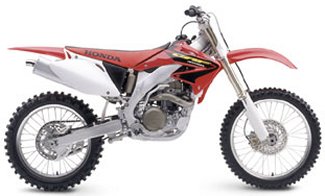

2003 CRF450R’03
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Carburetion |
40mm KeihinTM flat-slide |
| Bore and Stroke |
96.0 x 62.1 mm |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single disc with twin-piston caliper |
| Rear Brake |
Single disc |
| Ground clearance |
337mm (13.3 in.) |
| Seat height |
952mm (37.5 in.) |
| Wheelbase |
1485mm (58.5 in.) |
| Dry weight |
102 kg (225 lb) |
| Fuel capacity |
7.5 liters |

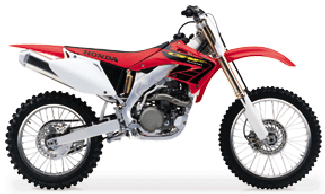

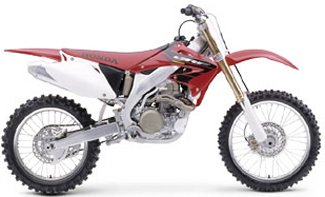

2004 CRF450R
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Compression Ratio |
12.0:1 |
| Bore and Stroke |
96.0mm x 62.1mm |
| Valve Train |
Unicam; four-valve |
| Carburetion |
Keihin 40mm flat-slide |
| Ignition |
Solid-state CD with electronic advance |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single 240mm disc with twin-piston caliper |
| Rear Brake |
Single 240mm disc |
| Front Tire |
80/100-21 |
| Rear Tire |
110/90-19 |
| Rake |
26.91 degrees |
| Trail |
108.0mm (4.25 inches) |
| Wheelbase |
58.5 inches |
| Seat Height |
37.6 inches |
| Ground Clearance |
13.4 inches |
| Dry Weight |
222.0 pounds |
| Fuel Capacity |
2.0 gallons |
| Colors |
Red |

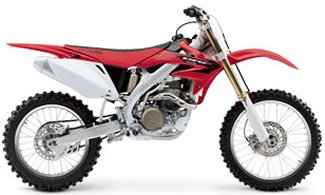

2005 CRF450R
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Compression Ratio |
12.0:1 |
| Bore and Stroke |
96.0mm x 62.1mm |
| Valve Train |
Unicam; four-valve |
| Carburetion |
Keihin 40mm flat-slide |
| Ignition |
Solid-state CD with electronic advance |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single 240mm disc with twin-piston caliper |
| Rear Brake |
Single 240mm disc |
| Front Tire |
80/100-21 |
| Rear Tire |
110/90-19 |
| Rake |
26.91 degrees |
| Trail |
108.0mm (4.25 inches) |
| Wheelbase |
58.5 inches |
| Seat Height |
37.6 inches |
| Ground Clearance |
13.4 inches |
| Dry Weight |
218.5 pounds |
| Fuel Capacity |
1.9 gallons |
| Colors |
Red |

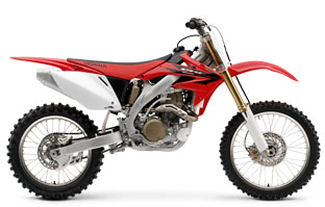

2006 CRF450R
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Compression Ratio |
12.0:1 |
| Bore and Stroke |
96.0mm x 62.1mm |
| Valve Train |
Unicam; four-valve |
| Carburetion |
Keihin 40mm flat-slide |
| Ignition |
Solid-state CD with electronic advance |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single 240mm disc with twin-piston caliper |
| Rear Brake |
Single 240mm disc |
| Front Tire |
80/100-21 |
| Rear Tire |
110/90-19 |
| Rake |
26.91 degrees |
| Trail |
108.0mm (4.25 inches) |
| Wheelbase |
58.5 inches |
| Seat Height |
37.6 inches |
| Ground Clearance |
13.4 inches |
| Dry Weight |
218.5 pounds |
| Fuel Capacity |
1.9 gallons |
| Colors |
Red |
| Model ID |
CRF450R |

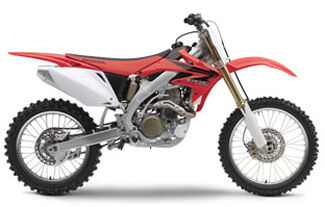

2007 CRF450R
Overview: Cycle World’s 2006 MX Bike of the Year. Five years in a row. The CRF450R has won pretty much every honor thrown its way — and it has no plans of letting up. Which is why we’ve made it even lighter, more responsive and better handling than ever, retooling the cylinder head and intake valves, boosting the carb to 41mm, and adding a new brake lever linkage to improve stopping power, a new subframe and a Dunlop 742 FA front tire. Wicked, eh?
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Compression Ratio |
12.0:1 |
| Bore and Stroke |
96.0mm x 62.1mm |
| Valve Train |
Unicam; four-valve |
| Carburetion |
Keihin 40mm flat-slide |
| Ignition |
Solid-state CD with electronic advance |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single 240mm disc with twin-piston caliper |
| Rear Brake |
Single 240mm disc |
| Front Tire |
80/100-21 |
| Rear Tire |
110/90-19 |
| Rake |
26.91 degrees |
| Trail |
108.0mm (4.25 inches) |
| Wheelbase |
58.5 inches |
| Seat Height |
37.6 inches |
| Ground Clearance |
13.4 inches |
| Dry Weight |
218.5 pounds |
| Fuel Capacity |
1.9 gallons |
| Colors |
Red |
| Model ID |
CRF450R |

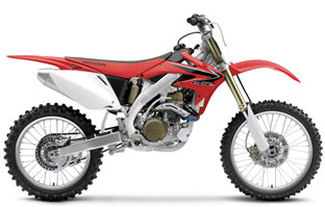

2008 CRF450R
Overview: The experts are pretty much unanimous in hailing the CRF450R as the best MXer in its class. Holding that advantage, however, demands constant improvement, and the 2008 CRF450R is sharper than ever, with all-new works-style brake rotors, retooled frame geometry, and the revolutionary new Honda Progressive Steering Damper (HPSD). The gauntlet has been thrown. Again.
Engine
|
|
| Engine Type |
449cc liquid-cooled single-cylinder four-stroke |
| Compression Ratio |
12.0:1 |
| Bore and Stroke |
96.0mm x 62.1mm |
| Valve Train |
Unicam; four-valve |
| Carburetion |
Keihin 40mm flat-slide |
| Ignition |
CD |
| Transmission |
Close-ratio five-speed |
| Final Drive |
#520 chain; 13T/50T |
| Front Suspension |
47mm inverted Showa fork with 16-position compression- and 16-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload, 13-position (low-speed) and 3.5-turn (high-speed) compression-damping and 17-position rebound-damping adjustability; 315mm (12.4 in.) travel |
| Front brake |
Single 240mm disc with twin-piston caliper |
| Rear Brake |
Single 240mm disc |
| Front Tire |
80/100-21 |
| Rear Tire |
110/90-19 |
| Rake |
26.76 degrees |
| Trail |
111.4 mm (4.3 inches) |
| Wheelbase |
58.6 inches |
| Seat Height |
37.6 inches |
| Ground Clearance |
13.4 inches |
| Curb Weight |
238 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity |
1.9 gallons, including .07 gallon reserve |
| Colors |
- Red

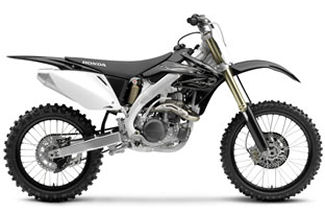

- Black (2008 Special Color, Limited Availability)
|
| Model ID |
CRF450R |

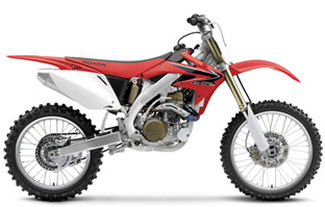

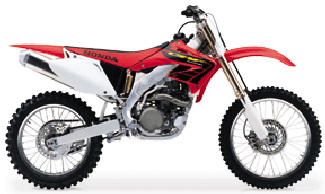

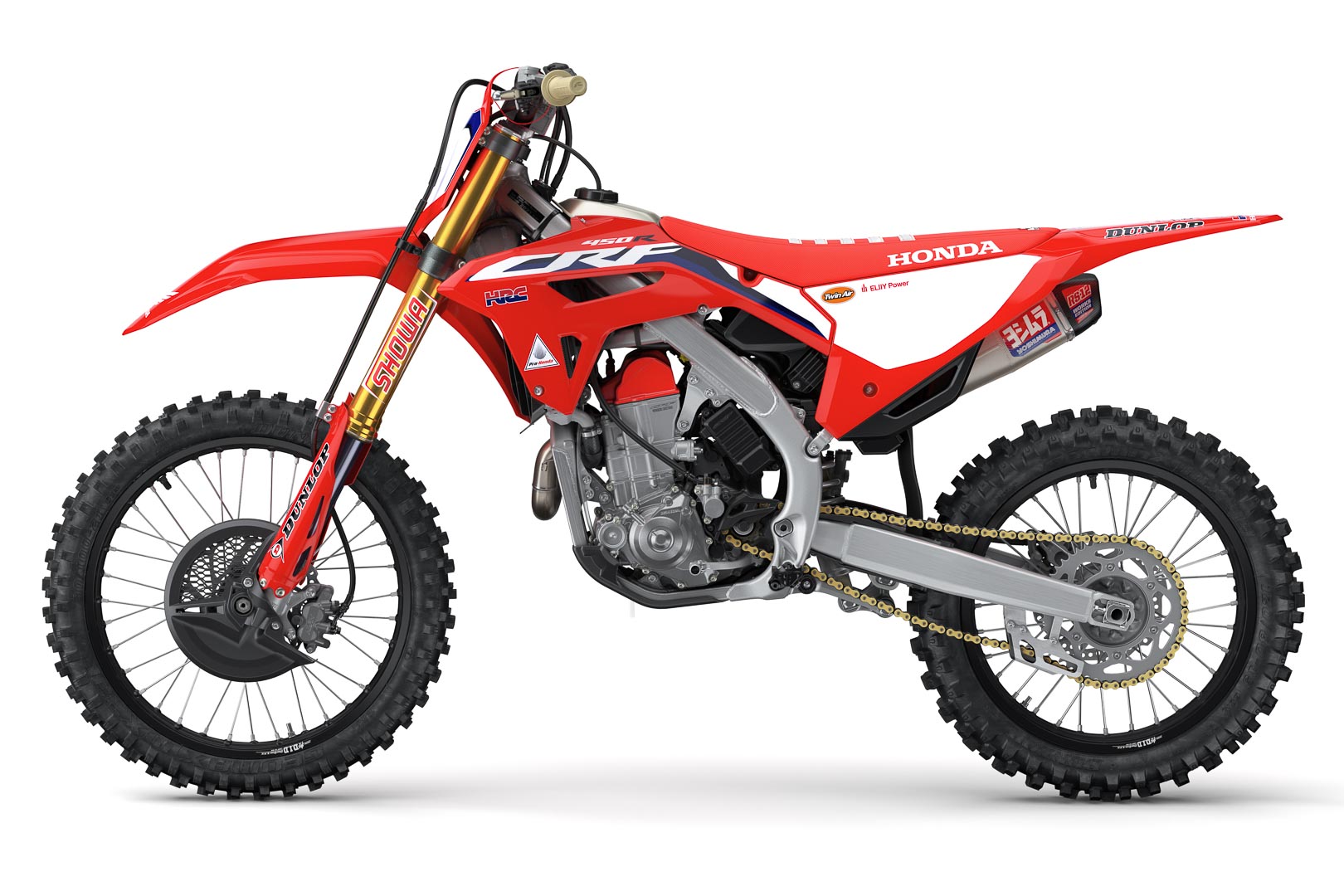

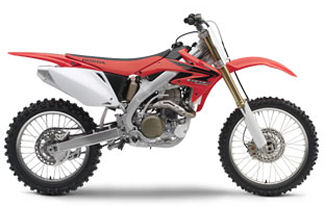

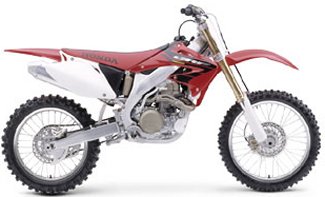

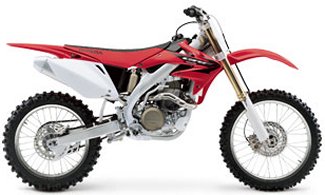

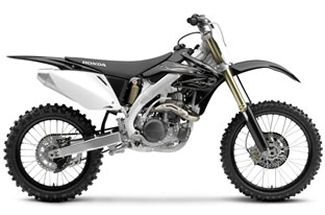

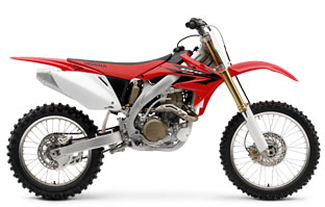

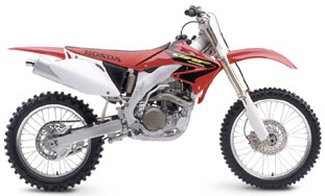

CRF 450R Image Gallery
