2004 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | Keihin 37mm flat-slide with throttle position sensor |
| Valve Train | Unicam; four-valve |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | 27.49 degrees |
| Trail | 120.1mm (4.7 inches) |
| Wheelbase | 58.2 inches |
| Seat Height | 37.9 inches |
| Ground Clearance | 14.2 inches |
| Dry Weight | 206.0 pounds |
| Fuel Capacity | 2.0 gallons |
OTHER |
|
| Model ID | |
| Color | Red |
| Warranty |
2005 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | Keihin 37mm flat-slide with throttle position sensor (TPS) |
| Valve Train | Unicam; four-valve |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | 27.5 degrees |
| Trail | 123.0mm (4.8 inches) |
| Wheelbase | 58.2 inches |
| Seat Height | 38 inches |
| Ground Clearance | 14.2 inches |
| Dry Weight | 204.0 pounds |
| Fuel Capacity | 2.0 gallons |
OTHER |
|
| Model ID | |
| Color | Red |
| Warranty |
2006 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | Keihin 40.0mm flat-slide with throttle position sensor (TPS) |
| Valve Train | Unicam; four-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | 27.5 degrees |
| Trail | 123.0mm (4.8 inches) |
| Wheelbase | 58.2 inches |
| Seat Height | 38 inches |
| Ground Clearance | 14.2 inches |
| Dry Weight | 204.0 pounds |
| Fuel Capacity | 2.0 gallons |
OTHER |
|
| Model ID | CRF250R |
| Color | Red |
| Warranty |
2007 CRF250R
OVERVIEW
- With an AMA SX Lites title and countless magazine kudos to its name, some might think the CRF250R would rest on its laurels. Some would be sorely mistaken, because at this level of competition, there is no rest. So we honed this machine to an even finer, higher-revving edge for 2007, shaving weight, retooling cam profiles, revising the brake lever linkage for additional stopping power, and beefing up the clutch to ensure the best is even better.
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | Keihin 40.0mm flat-slide with throttle position sensor (TPS) |
| Valve Train | Unicam; four-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | 27.5 degrees |
| Trail | 123.0mm (4.8 inches) |
| Wheelbase | 58.2 inches |
| Seat Height | 38 inches |
| Ground Clearance | 14.2 inches |
| Dry Weight | 204.0 pounds |
| Fuel Capacity | 2.0 gallons |
OTHER |
|
| Model ID | CRF250R |
| Color | Red |
| Warranty |
2008 CRF250R
OVERVIEW
- Getting in and out of corners is where races are won — no question. And that’s why, like the new CRF450R, the 2008 CRF250R features Honda’s revolutionary new Honda Progressive Steering Damper (HPSD), improving cornering traction and stability while reducing fatigue. Add all-new works-style brake discs, power-boosting engine mods (higher compression and new cylinder-head porting), and once again, Honda proves the best can get better.
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | 40mm Keihin flat-slide |
| Valve Train | |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel |
| Front Brakes | Single-disc with twin-piston caliper |
| Rear Brake | Single-disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | 27.9 degrees |
| Trail | 125 mm (4.9 inches) |
| Wheelbase | 58.2 inches |
| Seat Height | 38 inches |
| Ground Clearance | 14.2 inches |
| Dry Weight | 227 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 1.9 gallons |
OTHER |
|
| Model ID | CRF250R |
| Color |
|
| Price | $6449 |
2009 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 78.0mm x 52.2mm |
| Compression Ratio | 12.9:1 |
| Fuel Delivery | 40mm Keihin flat-slide |
| Valve Train | |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring preload, 13-position [low-speed] and 3.5-turn [high-speed] compression damping and 17-position rebound damping adjustability; 12.4-inch travel |
| Front Brakes | Single-disc with twin-piston caliper |
| Rear Brake | Single-disc |
| Front Tire | 80/100-21 |
| Rear Tire | 100/90-19 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | 58.2 inches |
| Seat Height | 38 inches |
| Ground Clearance | |
| Dry Weight | 227 lbs |
| Fuel Capacity | 1.9 gallons |
OTHER |
|
| Model ID | CRF250R |
| Color | Red |
| Price | $6549 |
2010 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 76.8mm x 53.8mm |
| Compression Ratio | 13.2:1 |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI), 50mm throttle body |
| Valve Train | |
| Ignition | Full transistor with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 chain; 13T/51T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 48mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel |
| Rear Suspension | Pro-Link Showa single-shock with spring preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.6 inches travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | Dunlop 742FA 80/100-21 |
| Rear Tire | Dunlop D756 100/90-19 |
DIMENSION |
|
| Rake | |
| Trail | |
| Wheelbase | 58.8 in. |
| Seat Height | 37.6 in. |
| Ground Clearance | |
| Dry Weight | 226 lb |
| Fuel Capacity | 1.5 Gal US |
OTHER |
|
| Model ID | |
| Color | Red |
| Price |
2011 CRF250R
Engine |
|
| Engine Type | 249cc liquid-cooled single-cylinder four-stroke |
| Bore And Stroke | 76.8mm x 53.8mm |
| Compression Ratio | 13.2:1 |
| Fuel Delivery | PGM-FI electronic fuel injection with 50 mm throttle body |
| Valve Train | Unicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, steel |
| Ignition | Full transistor with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five-speed |
| Final Drive | #520 O-ring-sealed chain, 13T/49T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 48 mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustment; 310 mm (12.2 in.) travel |
| Rear Suspension | Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustment, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 318 mm (12.5 in.) travel |
| Front Brakes | Single 240mm disc with twin-piston caliper |
| Rear Brake | Single 240mm disc |
| Front Tire | Dunlop 742FA 80/100-21 |
| Rear Tire | Dunlop D756 100/90-19 |
DIMENSION |
|
| Rake | 27°12′ (Caster Angle) |
| Trail | 117mm (4.6 inches) |
| Wheelbase | 1488 mm (58.6 in.) |
| Seat Height | 955 mm (37.6 in.) |
| Ground Clearance | 325 mm (12.8 in.) |
| Dry Weight | 102.5 kg (226 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 5.7 litres (1.5 GalUS) |
OTHER |
|
| Model ID | CRF250R |
| Color | Extreme Red |
| MSRP | $8,499 |
| Warranty | No warrranty |
2012 CRF250R
Engine |
|
| Engine Type | 249cc Liquid-cooled 4-stroke 4-valve SOHC single |
| Bore And Stroke | 76.8mm x 53.8mm |
| Compression Ratio | 13.2:1 |
| Fuel Delivery | Programmed Fuel Injection (PGM-FI), 46mm throttle body |
| Valve Train | Unicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, steel |
| Ignition | Computer-controlled digital capacitor discharge with electronic advance |
| Max. Power Output | 29kW |
| Max. Torque | 27.3Nm |
| Starter | Primary kick |
DRIVETRAIN |
|
| Transmission | 5-speed constant mesh close-ratio |
| Final Drive | #520 roller chain |
| Front sprocket | 13T |
| Rear sprocket | 49T |
| Front Wheels | Aluminium rim/wire spoke 21 x 1.60 |
| Rear Wheels | Aluminium rim/wire spoke 19 x 1.85 |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 48mm inverted Showa leading-axle twin-chamber cartridge-type telescopic fork with 16-step adjustable compression and rebound damping; 310mm axle travel |
| Rear Suspension | Pro-Link with single Showa damper, adjustable low-speed (13-step) & high-speed (3.5-turn) compression and 17-step rebound damping; 313mm axle travel |
| Front Brakes | 240mm x 3mm hydraulic disc with dual-piston caliper and sintered metal pads |
| Rear Brake | 240mm x 4mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 80/100-21 (51M) |
| Rear Tire | 100/90-19 (57M) |
DIMENSION |
|
| Rake | 27° 23′ (Caster Angle) |
| Trail | 118mm (4.6 inches) |
| Wheelbase | 1493mm (58.8 inches) |
| Overall Length | 2183mm (85.9 inches) |
| Overall Width | 827mm (32.6 inches) |
| Overall Height | 1273mm (50.1 inches) |
| Seat Height | 955mm (37.6 inches) |
| Ground Clearance | 325mm (12.8 inches) |
| CurbWeight | 103.9 kg (228.6 lb) Front: 51.1 kg (112.4 lb) Rear: 52.8 kg (116.2 lb) |
| Fuel Capacity | 5.7 Litres (1.5 GalUS) |
OTHER |
|
| Model ID | CRF250R |
| Color | Red |
| MSRP | |
| Warranty |

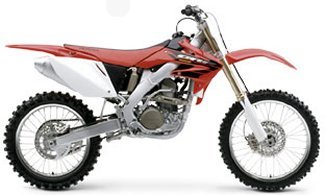

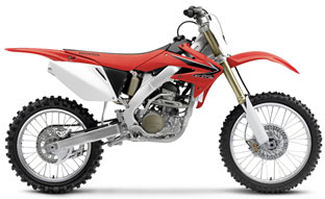

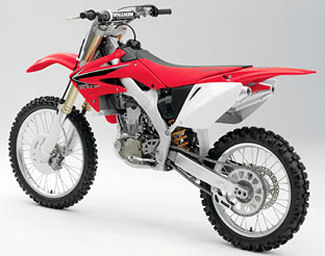

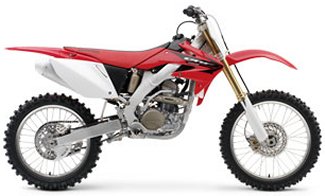

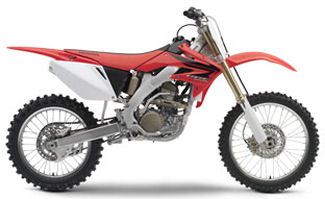

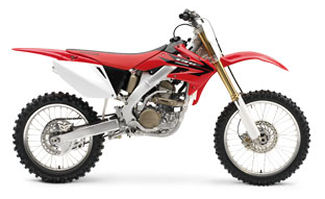

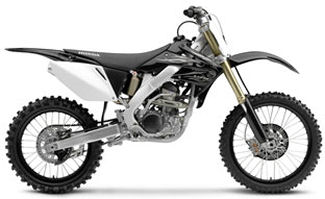

Honda CRF250R Photo Gallery
