2008 CRF230L
Overview:
- On paved roads or dirt roads, the all-new CRF230L is ready to handle all kinds of transportation needs. With its compact size, lower seat height, 223cc single cylinder engine and a six speed transmission, it’s as peppy as it is frugal. Whether it’s on campus, on the RV or on the commute, the CRF230L will provide reliable transportation for years to come.
Engine |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 30mm CV carburetor |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | #520 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa® fork; 9.0-inch (229mm) travel |
| Rear Suspension | Pro-Link Showa® single-shock with spring-preload adjustability; 6.3-inch (160mm) travel |
| Front Brakes | Single 240mm disc |
| Rear Brakes | 220mm disc |
| Front Tire | 2.75-21 |
| Rear Tire | 120/80-18 |
DIMENSION |
|
| Seat Height | 810mm (31.9 inches) |
| Wheelbase | 1340mm (52.75 inches) |
| Curb Weight | 21 kg (267 lbs) (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 8.7 L (2.3 gallons US), including 2.5 L (0.7 gallon US) reserve |
| Rake | 26.83 degrees |
| Trail | 103mm (4 inches) |
| Ground Clearance | 241mm (9.5 inches) |
| Fuel Economy | 2.8 L/100Km (84 MPG-US) – Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors. |
OTHER |
|
| Warranty | One year, Coverage of defects in materials and workmanship |
| Fuel consumption | 3.05 L/100km (77 mpgUS) |
| Available Colors | Red |
| Model Id | CRF230L |
2009 CRF230L
Engine |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5 x 66.2 mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 30mm CV carburetor |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final Drive | #520 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa® fork; 9.0-inch (229mm) travel |
| Rear Suspension | Pro-Link Showa® single-shock with spring-preload adjustability; 6.3-inch (160mm) travel |
| Front Brakes | Single 240mm disc |
| Rear Brakes | 220mm disc |
| Front Tire | 2.75-21 |
| Rear Tire | 120/80-18 |
DIMENSION |
|
| Seat Height | 810mm (31.9 inches) |
| Wheelbase | 1340mm (52.75 inches) |
| Curb Weight | 21 kg (267 lbs) (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 8.7 L (2.3 gallons US), including 2.5 L (0.7 gallon US) reserve |
| Rake | 26.83 degrees |
| Trail | 103mm (4 inches) |
| Ground Clearance | 241mm (9.5 inches) |
| Fuel Economy | 2.8 L/100Km (84 MPG-US) – Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors. |
OTHER |
|
| Warranty | One year, Coverage of defects in materials and workmanship |
| Fuel consumption | 3.05 L/100km (77 mpgUS) |
| Available Colors | Red |
| Model Id | CRF230L |
2011 CRF230L
Engine |
|
| Engine Type | Air-cooled single-cylinder four-stroke |
| Displacement | 223 cc |
| Bore and Stroke | 65.5 mm x 66.2 mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | Single 30 mm CV carb |
DRIVETRAIN |
|
| Transmission | Six-speed with manual clutch |
| Final Drive | #520 O-ring-sealed chain, 13T/39T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37 mm leading-axle Showa fork; 205 mm (8.1 in.) travel |
| Rear Suspension | Pro-Link Showa single shock with spring preload adjustment; 155 mm (6.1 in.) travel |
| Brakes | Front 240 mm disc with dual-piston caliper; rear 220 mm disc with single-piston caliper |
| Tire | 2.75 – 21 front; 120/80 – 18 rear |
DIMENSION |
|
| Seat Height | 810 mm (31.9 in.) |
| Wheelbase | 1,340 mm (52.7 in.) |
| Curb Weight | 21 kg (267 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 8.7 litres, including 2.7-litre reserve |
| Rake | 26.83 degrees |
| Trail | 103mm (4 inches) |
| Ground Clearance | 243 mm (9.6 in.) |
OTHER |
|
| Colour | Extreme Red |
| MSRP | $5,899 |
| Warranty | 1 year, unlimited mileage, freely transferable warranty. |

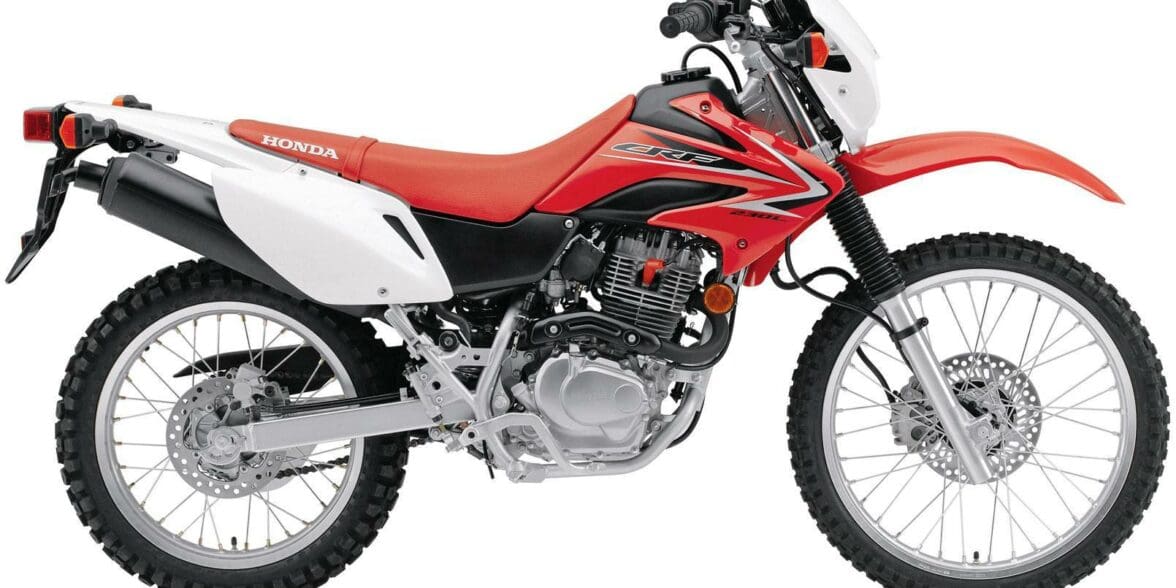

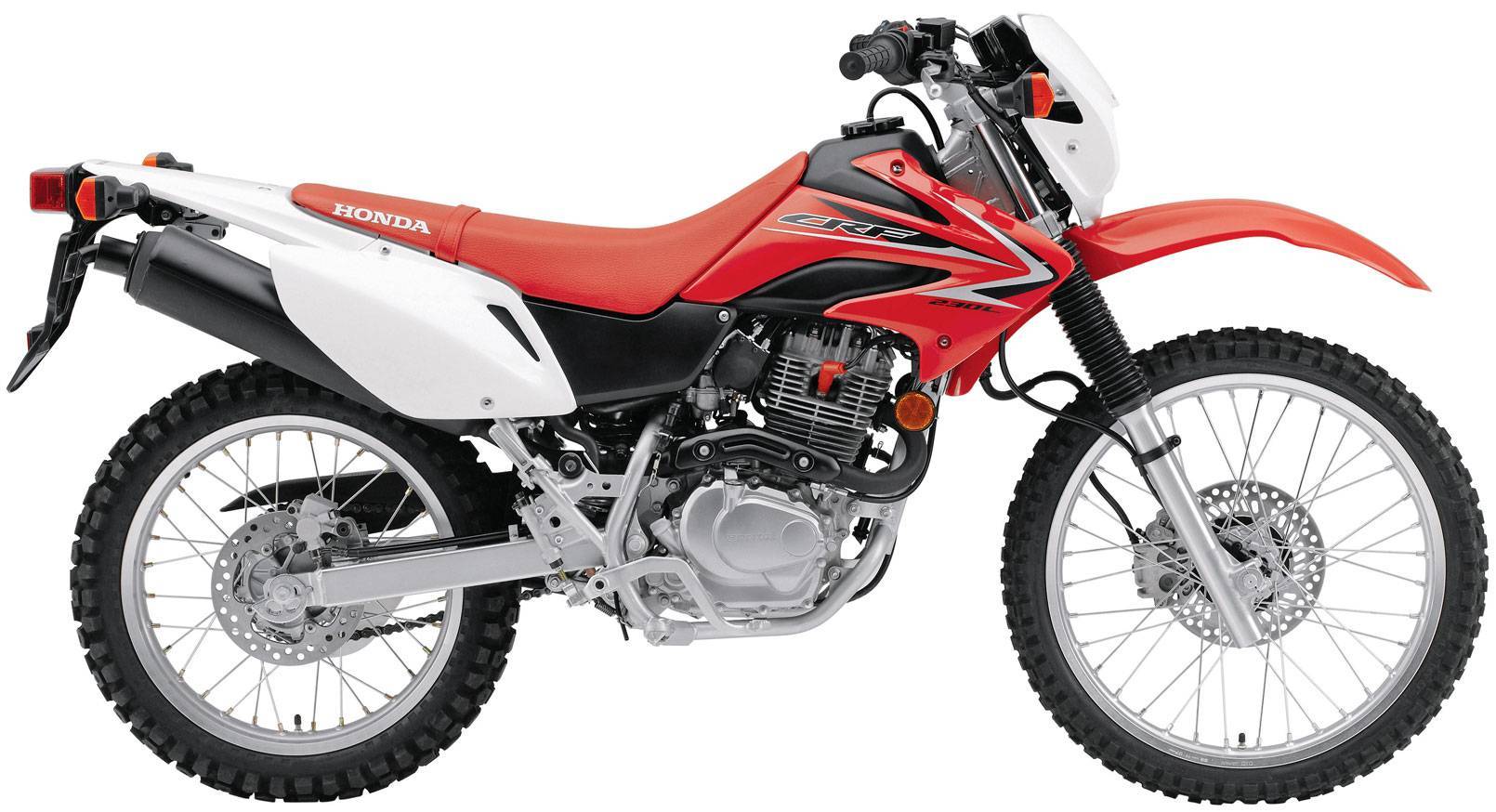

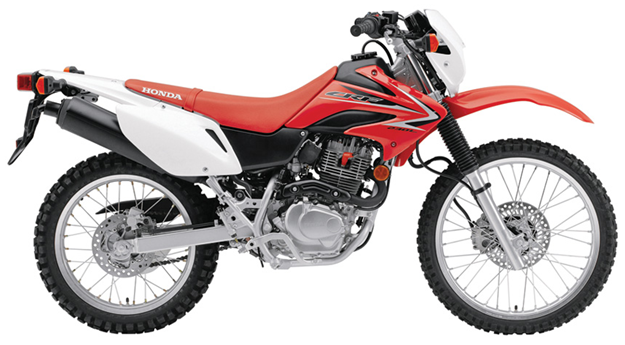

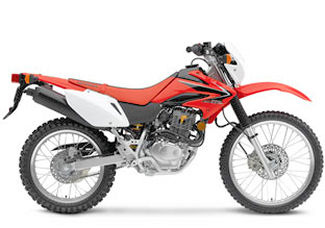

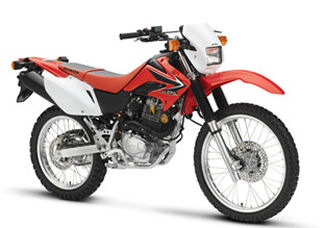

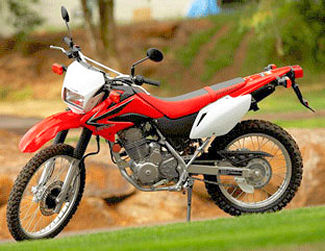

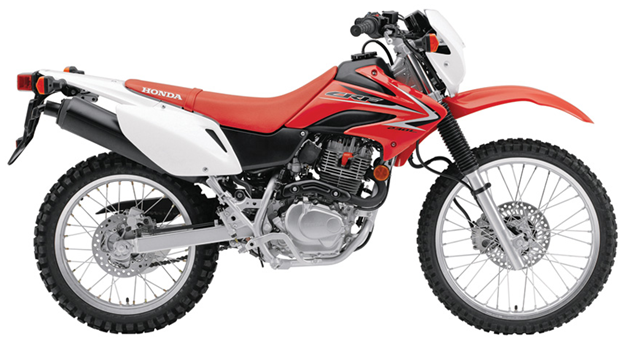

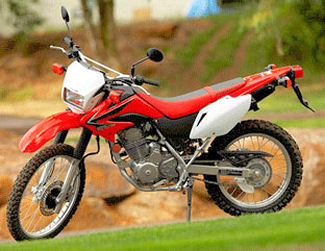

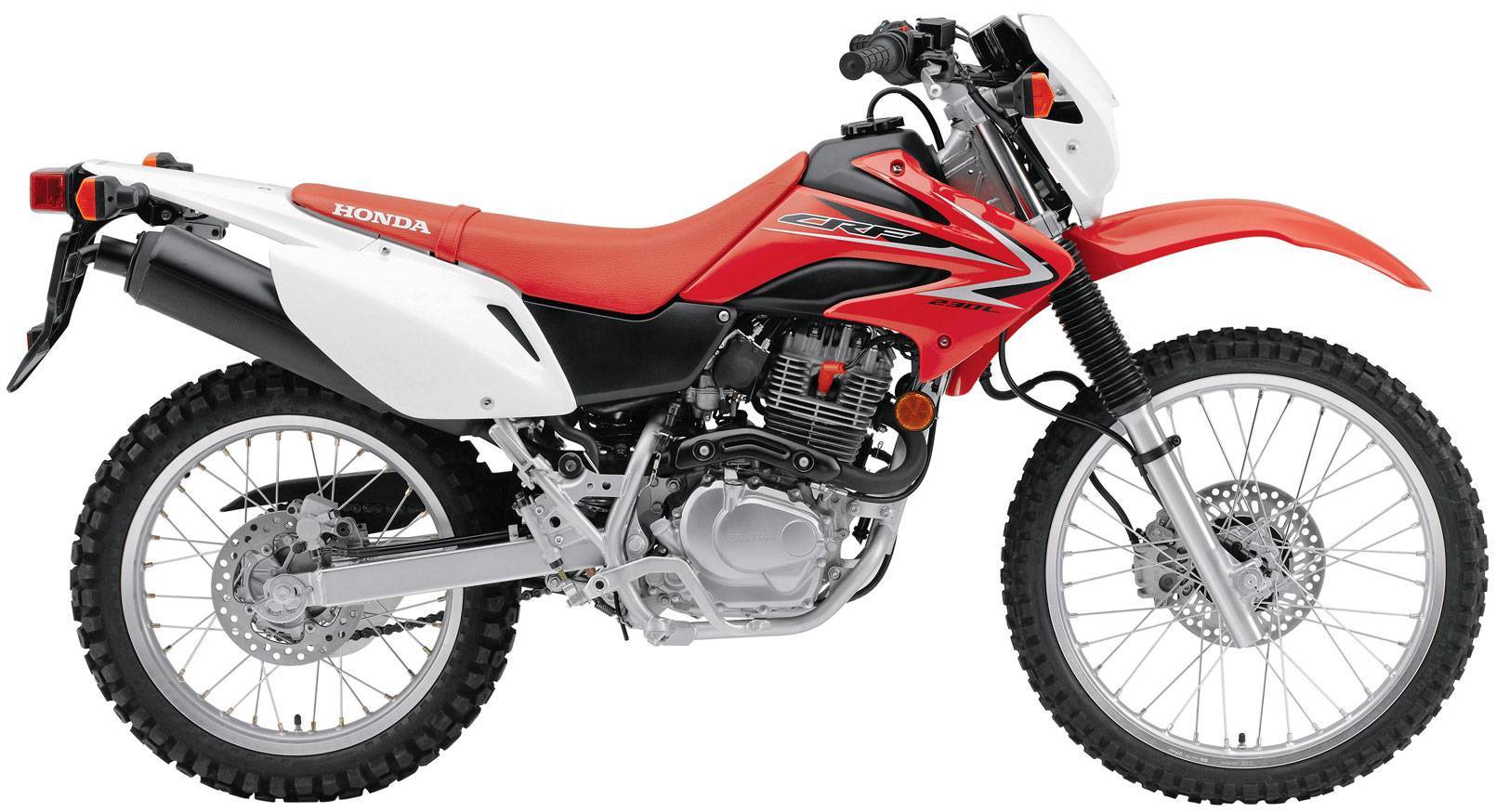

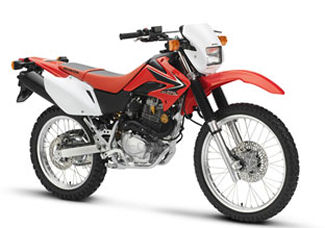

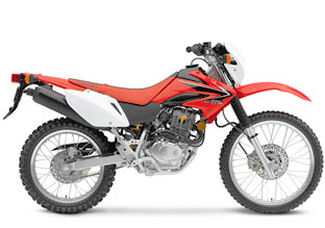

CRF230L Image Gallery
