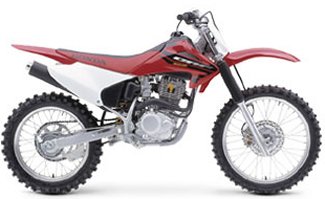

2004 CRF230F
| Engine Type |
223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke |
65.5mm x 66.2mm |
| Compression Ratio |
9.0:1 |
| Valve Train |
SOHC; two-valve |
| Fuel Delivery |
26mm piston-valve |
| Ignition |
CDI |
| Transmission |
Six-speed |
| Final Drive |
#520 O-ring-sealed chain; 13T/50T |
| Front Suspension |
37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake |
Single 240mm disc |
| Rear Brake |
Drum |
| Front Tire |
80/100-21 |
| Rear Tire |
100/100-18 |
| Rake |
27.3 degrees |
| Trail |
112.0mm (4.4 inches) |
| Wheelbase |
54.1 inches |
| Seat Height |
34.1 inches |
| Dry Weight |
238.0 pounds |
| Ground Clearance |
11.7 inches |
| Fuel Capacity |
2.2 gallons, including 0.4-gallon reserve |
| Colors |
Red |
| Warranty |
6 months |

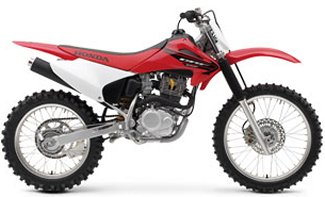

2005 CRF230F
| Engine Type |
223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke |
65.5mm x 66.2mm |
| Compression Ratio |
9.0:1 |
| Valve Train |
SOHC; two-valve |
| Fuel Delivery |
26mm piston-valve |
| Ignition |
CDI |
| Transmission |
Six-speed |
| Final Drive |
#520 O-ring-sealed chain; 13T/50T |
| Front Suspension |
37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake |
Single 240mm disc |
| Rear Brake |
Drum |
| Front Tire |
80/100-21 |
| Rear Tire |
100/100-18 |
| Rake |
27.3 degrees |
| Trail |
112.0mm (4.4 inches) |
| Wheelbase |
54.1 inches |
| Seat Height |
34.1 inches |
| Dry Weight |
238.0 pounds |
| Ground Clearance |
11.7 inches |
| Fuel Capacity |
2.2 gallons, including 0.4-gallon reserve |
| Colors |
Red |
| Warranty |
6 months |

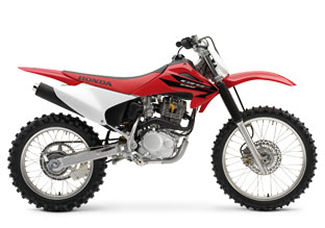

2006 CRF230F
| Engine Type |
223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke |
65.5mm x 66.2mm |
| Compression Ratio |
9.0:1 |
| Valve Train |
SOHC; two-valve |
| Fuel Delivery |
26mm piston-valve |
| Ignition |
CDI |
| Transmission |
Six-speed |
| Final Drive |
#520 O-ring-sealed chain; 13T/50T |
| Front Suspension |
37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake |
Single 240mm disc |
| Rear Brake |
Drum |
| Front Tire |
80/100-21 |
| Rear Tire |
100/100-18 |
| Rake |
27.3 degrees |
| Trail |
112.0mm (4.4 inches) |
| Wheelbase |
54.1 inches |
| Seat Height |
34.1 inches |
| Dry Weight |
238.0 pounds |
| Ground Clearance |
11.7 inches |
| Fuel Capacity |
2.2 gallons, including 0.4-gallon reserve |
| Colors |
Red |
| Warranty |
6 months |
| Model ID |
CRF230F |

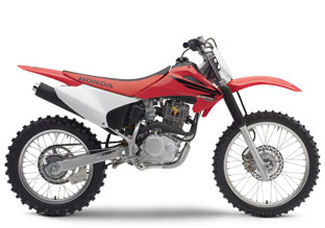

2007 CRF230F
Overview:
A certified hit with anyone who’s ever thrown a leg over it, the CRF230F with its six-speed tranny is, hands down, a blast to ride, packing all the four-stroke performance for which Honda is legendary. With a 34.1″ seat height, it’s perfectly sized for adults and teenagers alike. And thanks to electric start and plush, long-travel suspension, it’s also as easy to ride as it is fun.
| Engine Type |
223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke |
65.5mm x 66.2mm |
| Compression Ratio |
9.0:1 |
| Valve Train |
SOHC; two-valve |
| Fuel Delivery |
26mm piston-valve |
| Ignition |
CDI |
| Transmission |
Six-speed |
| Final Drive |
#520 O-ring-sealed chain; 13T/50T |
| Front Suspension |
37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake |
Single 240mm disc |
| Rear Brake |
Drum |
| Front Tire |
80/100-21 |
| Rear Tire |
100/100-18 |
| Rake |
27.3 degrees |
| Trail |
112.0mm (4.4 inches) |
| Wheelbase |
54.1 inches |
| Seat Height |
34.1 inches |
| Dry Weight |
238.0 pounds |
| Ground Clearance |
11.7 inches |
| Fuel Capacity |
2.2 gallons, including 0.4-gallon reserve |
| Colors |
Red |
| Warranty |
6 months |
| Model ID |
CRF230F |
2009 CRF230F
| Engine Type |
223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke |
65.5mm x 66.2mm |
| Compression Ratio |
9.0:1 |
| Valve Train |
SOHC; two-valve |
| Fuel Delivery |
26mm piston-valve |
| Ignition |
CDI |
DRIVETRAIN
|
|
| Transmission |
Six-speed |
| Final Drive |
#520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES
|
|
| Front Suspension |
37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension |
Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake |
Single 240mm disc |
| Rear Brake |
Drum |
| Front Tire |
80/100-21 |
| Rear Tire |
100/100-18 |
DIMENSION
|
|
| Rake |
27.3 degrees |
| Trail |
112.0mm (4.4 inches) |
| Wheelbase |
54.1 inches |
| Seat Height |
34.1 inches |
| Curb Weight |
249 pounds (Includes all standard equipment, required fluids and full tank of fuel ready to ride) |
| Ground Clearance |
11.7 inches |
| Fuel Capacity |
1.9 gallons, including 0.4-gallon reserve |
OTHER
|
|
| Available Colors |
Red |
| Emissions |
Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. |
| Model ID |
CRF230F |
| FACTORY WARRANTY |
6 months, Transferable limited warranty. |

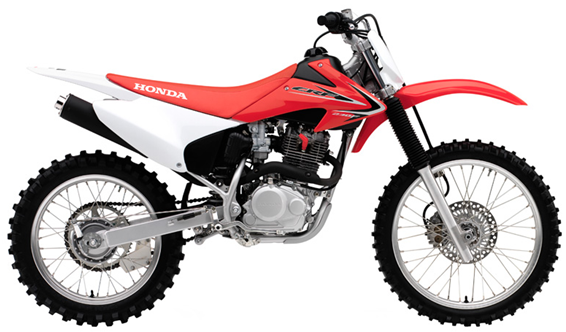

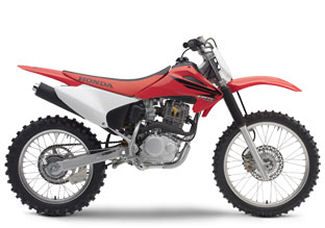

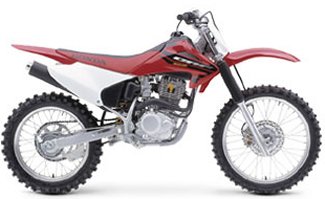

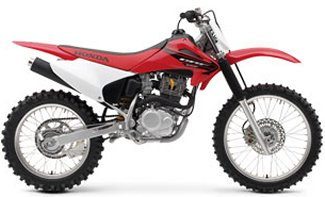

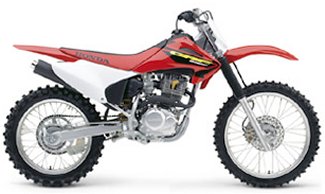

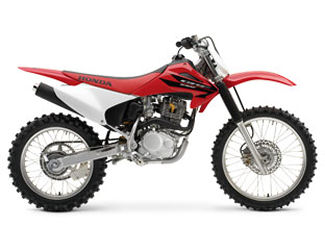

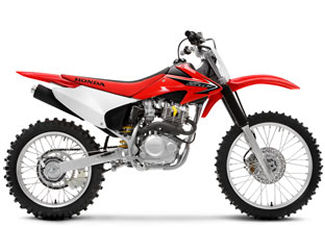

CRF230F Image Gallery
