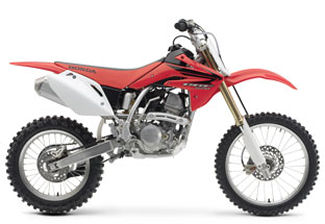

2007 CRF150RB Expert
OVERVIEW
- When it comes to dominating the MX Mini class, great things come in small packages — like the new CRF150R. But some racers are bigger than others, so we also offer the CRF150R (Expert). Same bike, but with bigger wheels, a slightly higher seat and longer swingarm designed to accommodate taller young riders. Call it a step up in the right direction: the podium.
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Valve Train | SOHC; four-valve |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 10.8 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27 48′ |
| Trail | 96mm (3.85 inches) |
| Wheelbase | 50.6 inches |
| Seat Height | 34.1 inches |
| Ground Clearance | 13.2 inches |
| Dry Weight | 169.7 pounds |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Colors | Red |
| Model Id | CRF150RB |

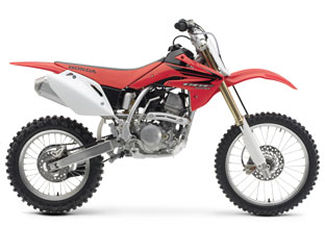

2008 CRF150RB Expert
OVERVIEW
- Overview: Not all Mini racers are created alike, so for taller riders we offer the CRF150R Expert. Same great MX package as the standard CRF150R — potent Unicam® four-valve engine, fully adjustable Showa® suspension — but with bigger wheels, a touch higher seat, and longer swingarm to accommodate those young pilots who might have slightly longer inseams. Either way, big or small, the CRF150R’s goal remains the same: dominate the Mini class.
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Valve Train | SOHC; four-valve |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 11.5 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27 48′ |
| Trail | 96mm (3.85 inches) |
| Wheelbase | 50.6 inches |
| Seat Height | 34.1 inches |
| Ground Clearance | 13.2 inches |
| Dry Weight | TBD |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Colors | Red |
| Model Id | CRF150RB |
| Price | $4299 |
| Emissions | Consult owners manual for optional racing parts. |

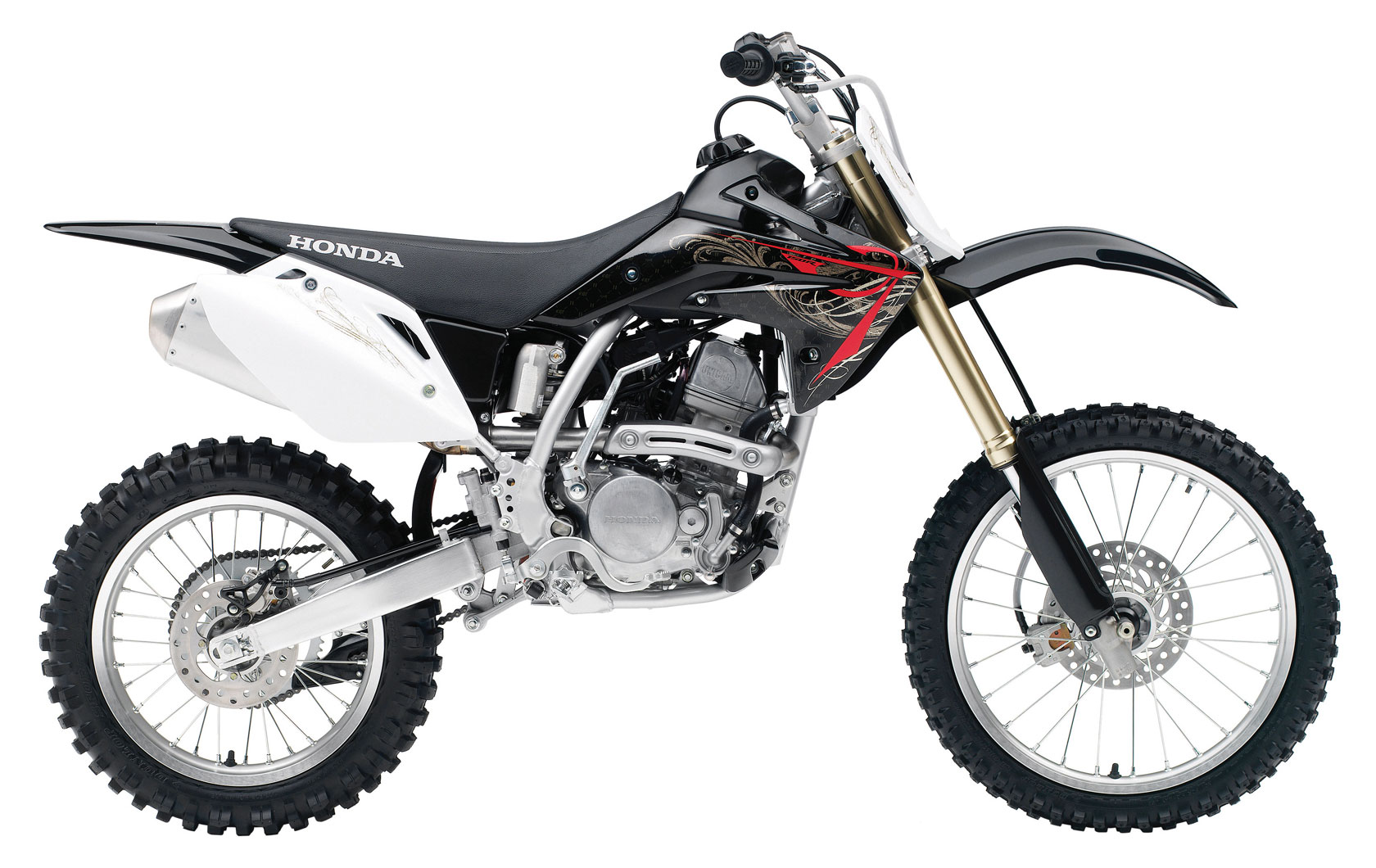

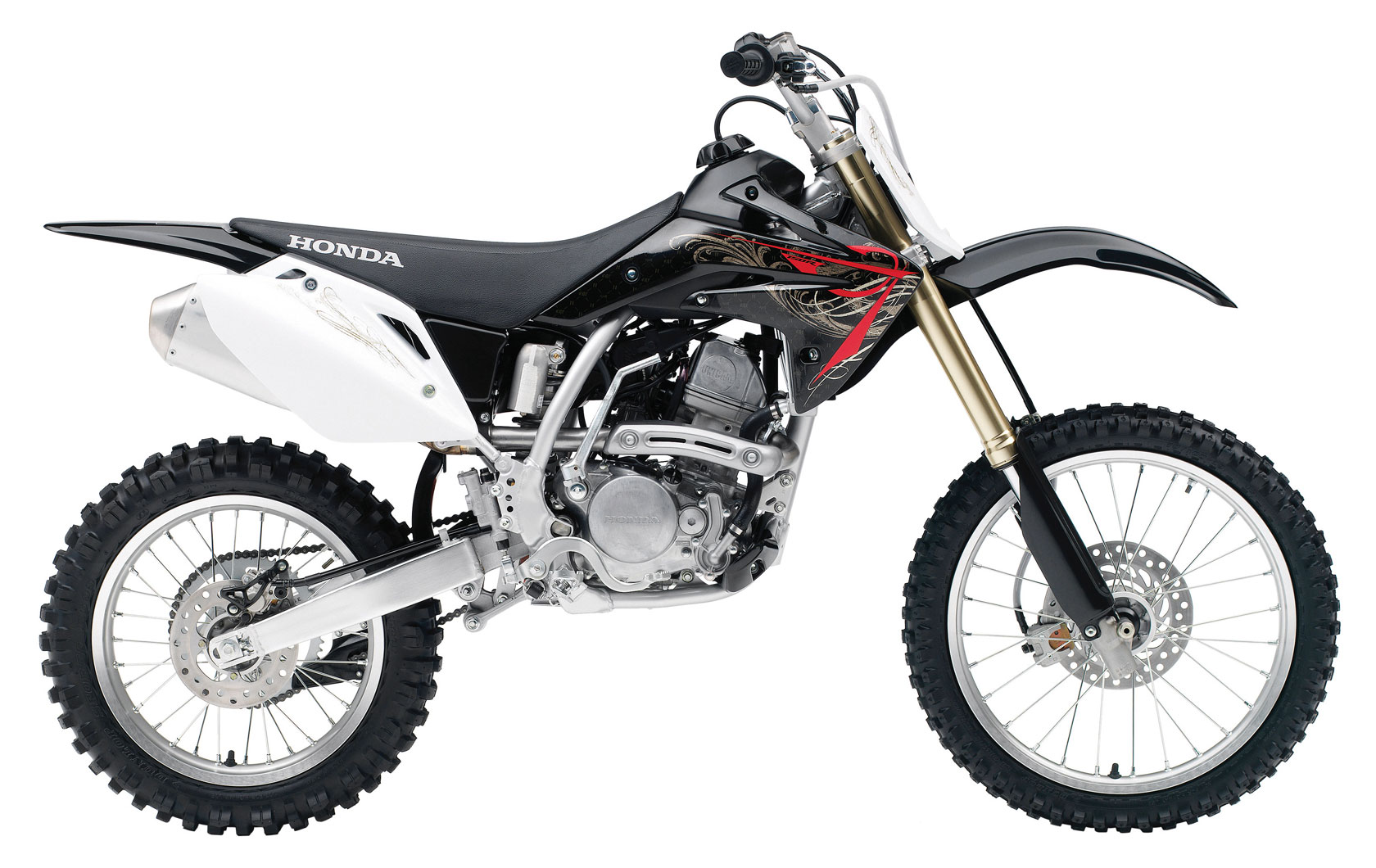

2009 CRF150RB Expert
Engine |
|
| Engine Type | 149cc |
| Bore and Stroke | 66mm x 43.7mm |
| Engine Detail | liquid-cooled single-cylinder four stroke |
| Compression Ratio | 11.7:1 |
| Valve Train | SOHC; four-valve |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) carburetor |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 11.5 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Wheelbase | 50.6 in. |
| Seat Height | 34.1 in. |
| Dry Weight | 187 lbs. |
| Fuel Capacity | 1.14 gal. |
OTHER |
|
| Colors | Red, Black |
| Price | $4399 |

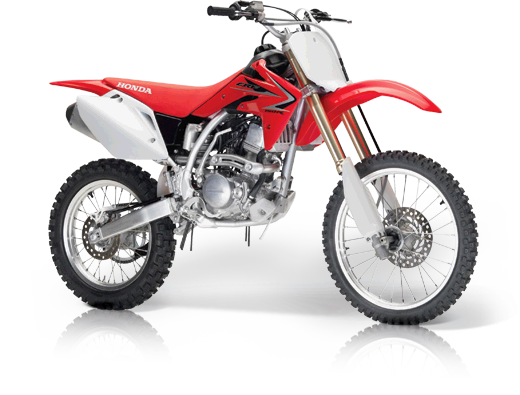

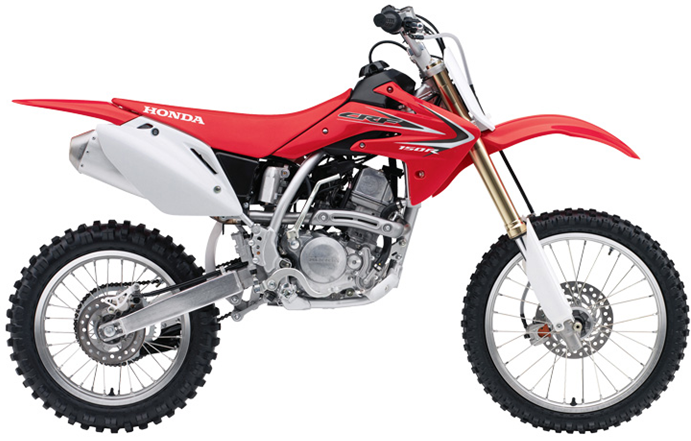

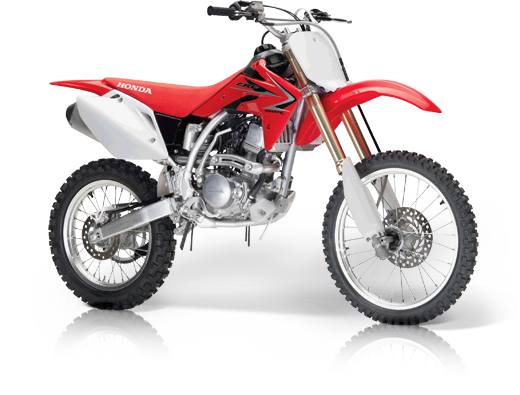

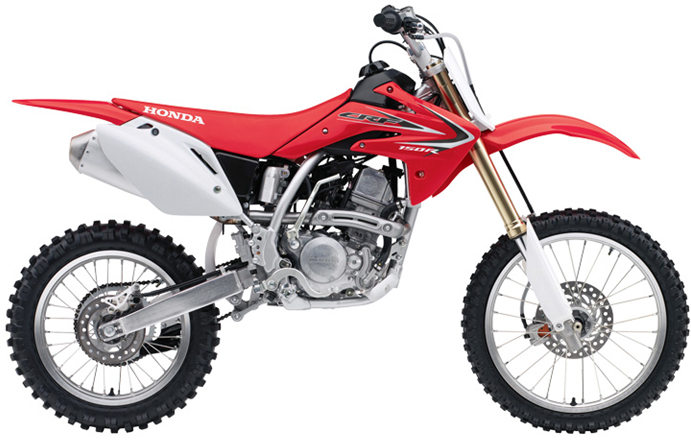

2012 CRF150RB Expert
Engine |
|
| Engine Type | Liquid-cooled 4-stroke 4-valve SOHC single |
| Bore and Stroke | 66 x 43.8mm |
| Engine Displacement | 149.7cc |
| Compression Ratio | 11.7:1 |
| Starter | Primary kick |
| Fuel Delivery | 32mm Keihin FCR flat slide carburetor with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
| Max. Power Output | 17.5kW/12,500min-1 |
| Max. Torque | 14.1Nm/11,000min-1 |
DRIVETRAIN |
|
| Transmission | Type: 5-speed |
| Final Drive | #420 roller chain |
| Final Reduction | 3.733 (56/15) |
| Front Wheels | 19 x 1.4 Aluminium rim/wire spoke |
| Rear Wheels | 16 x 1.85 Aluminium rim/wire spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm inverted Showa leading-axle telescopic fork with adjustable compression and rebound damping; 275mm axle travel |
| Rear Suspension | Pro-Link with single Showa damper, adjustable compression and rebound damping; 282mm axle travel |
| Front Brakes | 220 x 3mm hydraulic disc with single-piston caliper and sintered metal pads |
| Rear Brakes | 190 x 3.5mm hydraulic disc with single-piston caliper and sintered metal pads |
| Front Tire | 70/100-19 (42M) |
| Rear Tire | 90/100-16 (52M) |
DIMENSION |
|
| Wheelbase | 1285mm (50.6 inches) |
| Seat Height | 866mm (34.1 inches) |
| Dry Weight | 84.4 kg (186 lb) |
| Fuel Capacity | 4.3 Litres (1.1 GalUS) |
| Overall Length | 1900mm (74.8 inches) |
| Overall Width | 770mm (30.3 inches) |
| Overall Height | 1171mm (46.1 inches) |
| Ground Clearance | 336mm (13.2 inches) |
OTHER |

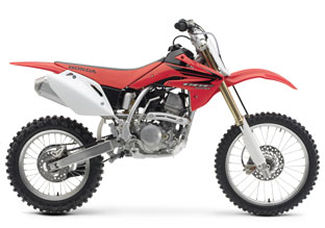

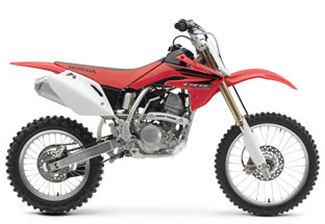

CRF150RB Image Gallery
