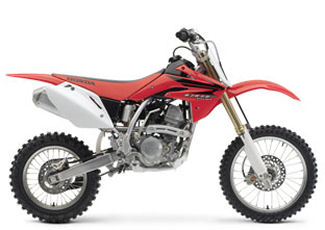

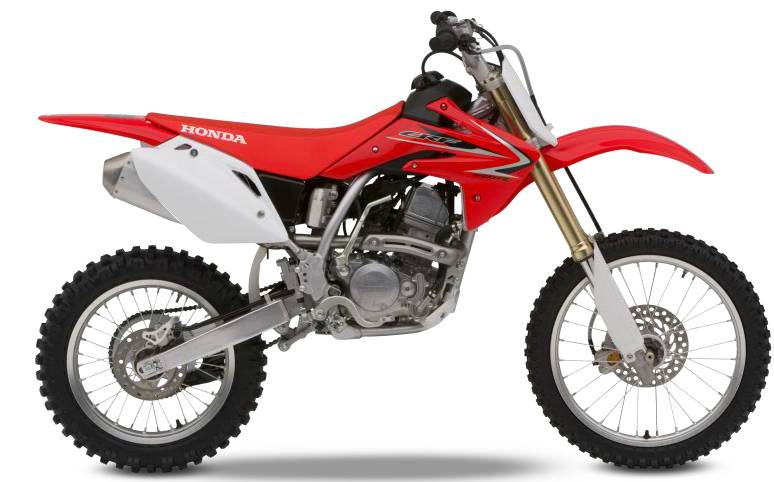

2007 CRF150ROVERVIEW
Overview:
- First came the CRF450R. Then the CRF250R. For 2007, Honda is unleashing its might on the Mini class. Meet the all-new, ready-to-dominate CRF150R. Featuring our revolutionary Unicam® four-valve engine and fully adjustable Showa suspension, this latest Honda MX missile is coming soon to a podium near you.
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 10.8 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 27 02′ |
| Trail | 78mm (3.07 inches) |
| Wheelbase | 49.6 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 11.9 inches |
| Dry Weight | 165.3 pounds |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CRF150R |

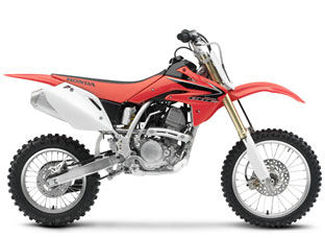

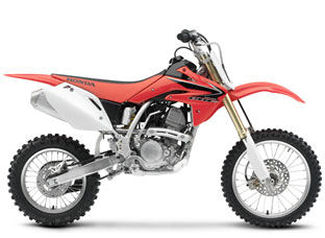

2008 CRF150R
OVERVIEW
- Overview: Transworld Motocross called it arguably one of the trickiest stock Mini bikes out there. No surprise considering its role models: Honda’s championship-winning CRF450R and CRF250R. With its revolutionary Unicam four-valve engine and fully adjustable Showa suspension, the CRF150R was bred for domination. Which, of course, is in perfect keeping with what’s become the Honda four-stroke MX family tradition.
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Valve Train | Unicam, four-valve; steel 26mm intake, 22.5mm exhaust |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 10.8 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 27°02′ |
| Trail | 78mm (3.07 inches) |
| Wheelbase | 49.6 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 11.9 inches |
| Dry Weight | N/A |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Emissions | Consult owners manual for optional racing parts. |
| Colors | Red |
| Price | $4199 |

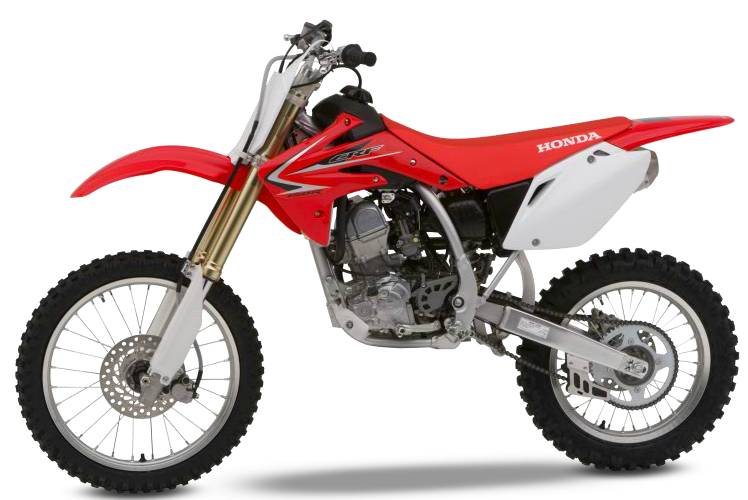

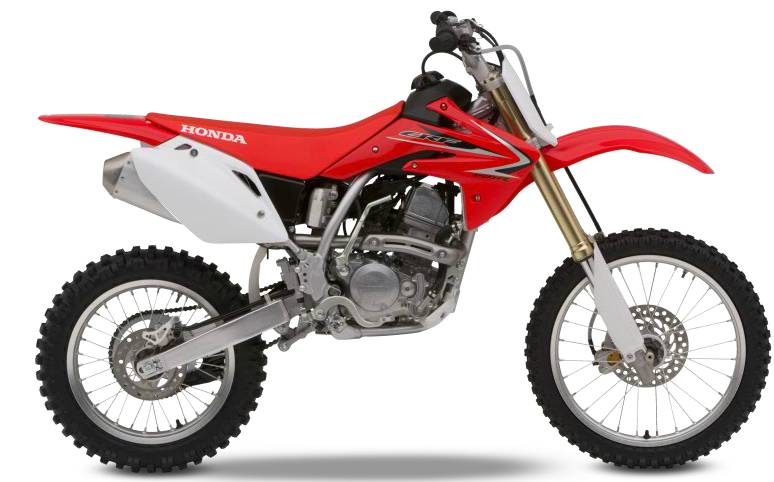

2009 CRF150R
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Valve Train | Unicam, four-valve; steel 26mm intake, 22.5mm exhaust |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain; 15T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 10.8 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 27°02′ (Caster Angle) |
| Trail | 78mm (3.07 inches) |
| Wheelbase | 49.6 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 11.9 inches |
| Dry Weight | 183 pounds |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Emissions | Consult owners manual for optional racing parts. |
| Colors | Red, Black |
| Model Id | CRF150R |

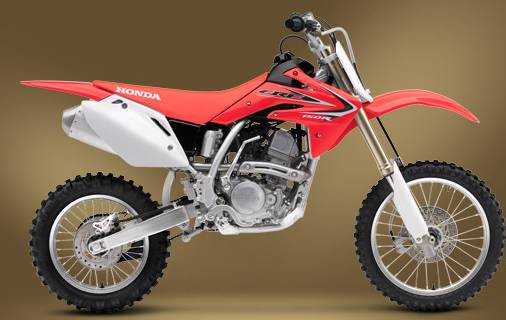

2012 CRF150R
Engine |
|
| Engine Type | 149cc liquid-cooled single-cylinder four stroke |
| Bore and Stroke | 66mm x 43.7mm |
| Compression Ratio | 11.7:1 |
| Valve Train | Unicam, four-valve; steel 26mm intake, 22.5mm exhaust |
| Fuel Delivery | Keihin 32mm flat slide with throttle position sensor (TPS) |
| Ignition | Solid-state CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio five speed |
| Final Drive | #420 chain |
| Front sprocket | 15T |
| Rear sprocket | 50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8 inches travel |
| Rear Suspension | Pro-Link fully adjustable Showa single shock; 10.8 inches travel |
| Front Brakes | Single 220mm disc |
| Rear Brakes | Single 190mm disc |
| Front Tire | 70/100-17 |
| Rear Tire | 90/100-14 |
DIMENSION |
|
| Rake | 7°02′ (Caster Angle) |
| Trail | 78mm (3.07 inches) |
| Wheelbase | 49.6 inches |
| Seat Height | 32.8 inches |
| Ground Clearance | 11.9 inches |
| Curb Weight | 183 pounds (Includes all standard equipment, required fluids and full tank of fuel-ready to ride.) |
| Fuel Capacity | 1.14 gallons |
OTHER |
|
| Emissions | Consult owners manual for optional racing parts. |
| Colors | Red |
| Model Id | CRF150R |
