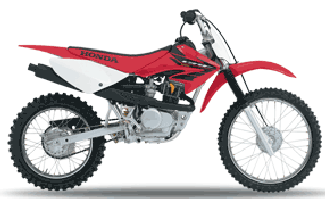

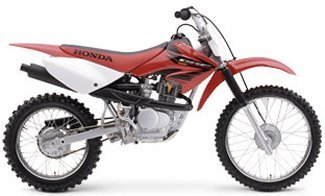

2004 CRF100F
Engine |
|
| Engine Type | 99cc air-cooled single-cylinder four-stroke |
| Compression Ratio | 8.4:1 |
| Bore and Stroke | 53.0mm x 45.0mm |
| Valve Train | OHC; two-valve |
| Fuel Delivery | 22.0mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire | 2.50-19 |
| Rear Tire | 3.00-16 |
DIMENSION |
|
| Rake | 28.50 degrees |
| Trail | 99.0mm (3.9 inches) |
| Wheelbase | 49.2 inches |
| Seat Height | 30.9 inches |
| Ground Clearance | 10.0 inches |
| Dry Weight | 165.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Warranty | 6 months |

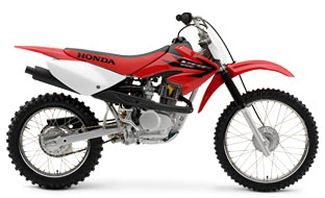

2006 CRF100F
Engine |
|
| Engine Type | 99cc air-cooled single-cylinder four-stroke |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53.0mm x 45.0mm |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 22.0mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire | 2.50-19 |
| Rear Tire | 3.00-16 |
DIMENSION |
|
| Rake | 28.50 degrees |
| Trail | 99.0mm (3.9 inches) |
| Wheelbase | 49.2 inches |
| Seat Height | 30.9 inches |
| Ground Clearance | 10.0 inches |
| Dry Weight | 165.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF100F |

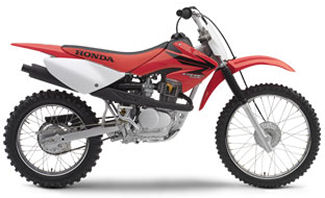

2007 CRF100F
OVERVIEW
- Meet one of the most versatile and popular off-road machines Honda has ever made. With its bulletproof four-stroke engine, smooth five-speed transmission and easy-to-use power, the CRF100F is big enough for most adults to play around on, yet boasts a seat low enough for younger riders, too. Which leaves only one question: Who gets to ride first?
Engine |
|
| Engine Type | 99cc air-cooled single-cylinder four-stroke |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53.0mm x 45.0mm |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 22.0mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire | 2.50-19 |
| Rear Tire | 3.00-16 |
DIMENSION |
|
| Rake | 28.50 degrees |
| Trail | 99.0mm (3.9 inches) |
| Wheelbase | 49.2 inches |
| Seat Height | 30.9 inches |
| Ground Clearance | 10.0 inches |
| Dry Weight | 165.0 pounds |
| Fuel Capacity | 1.5 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF100F |

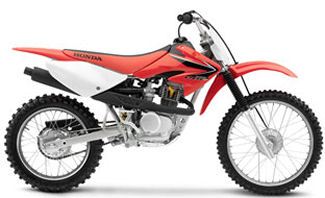

2008 CRF100F
OVERVIEW
- The only thing greater than the CRF100F’s versatility is its popularity as one of the most beloved off-road bikes Honda has ever created. Lightweight, easy to handle and stone-reliable, the CRF100F boasts a bulletproof four-stroke engine, smooth five-speed transmission, and just enough size for adults to have fun on — and a seat height just low enough that younger riders can too. Quite simply, it’s probably one of the greatest off-road teaching tools ever invented.
Engine |
|
| Engine Type | 99cc air-cooled single-cylinder four-stroke |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53.0mm x 45.0mm |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 22.0mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire | 2.50-19 |
| Rear Tire | 3.00-16 |
DIMENSION |
|
| Rake | 28.50 degrees |
| Trail | 99.0mm (3.9 inches) |
| Wheelbase | 49.2 inches |
| Seat Height | 30.9 inches |
| Ground Clearance | 10.0 inches |
| Dry Weight | 165.0 pounds |
| Fuel Capacity | 1.3 gallons, including 0.3-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF100F |
| Emissions | Meets current CARB and EPA standards. |
| Warranty | 6 months Coverage of defects in materials and workmanship |

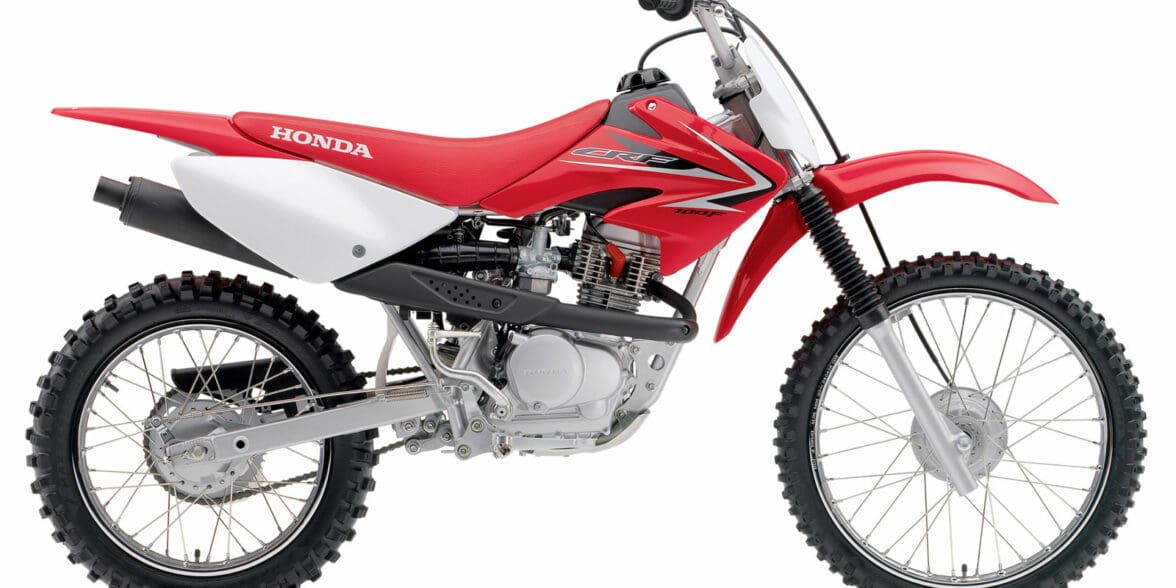

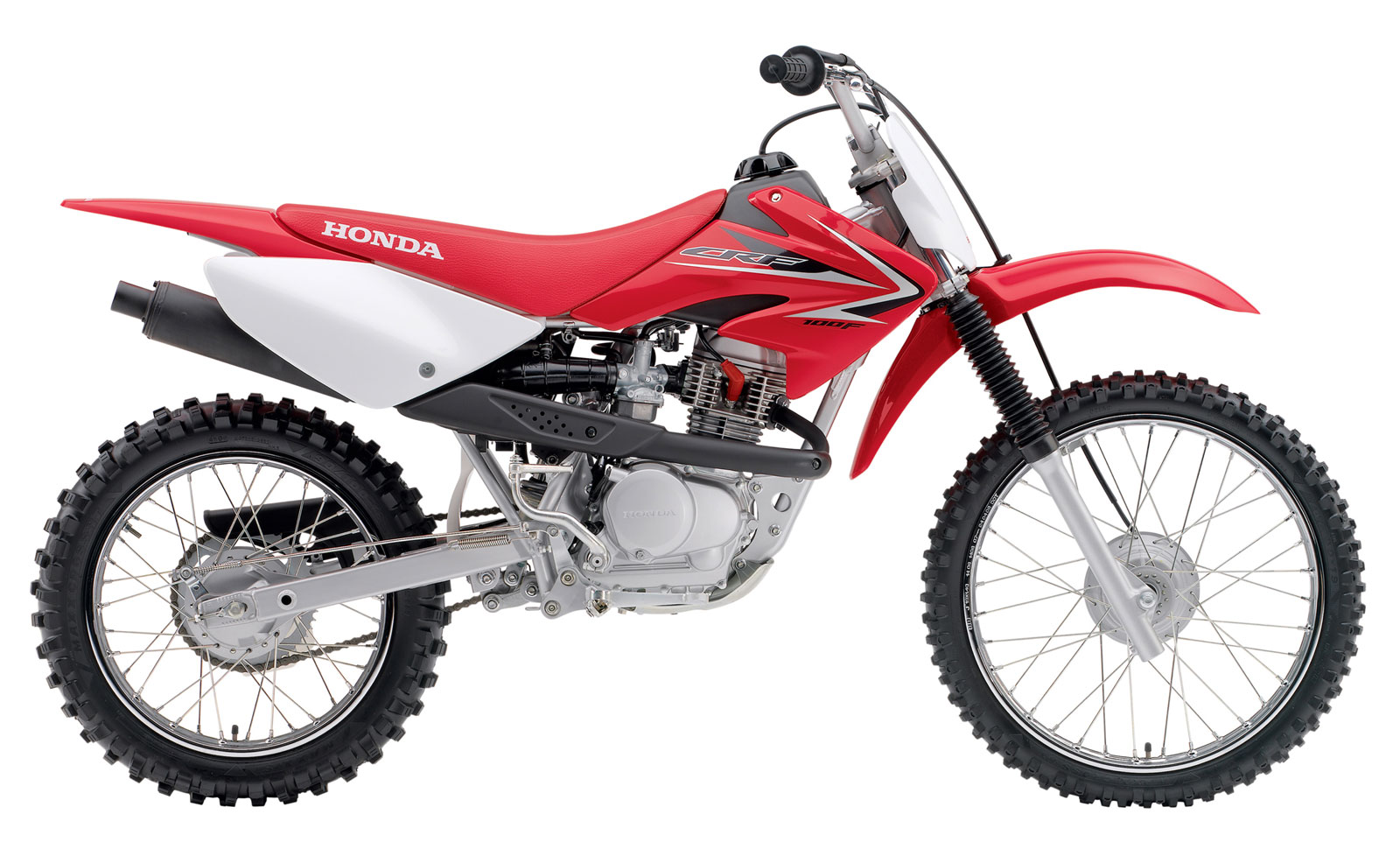

2009 CRF100F
Engine |
|
| Engine Type | 99cc |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53.0mm x 45.0mm |
| Engine Detail | air-cooled single-cylinder four-stroke |
| Fuel System | 22mm piston-valve carburator |
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Five-speed |
| Final Drive | #428 chain; 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire | 2.50-19 |
| Rear Tire | 3.00-16 |
DIMENSION |
|
| Wheelbase | 49.2 in. |
| Seat Height | 30.9 inches |
| Dry Weight | 174 lbs. |
| Fuel Capacity | 1.3 gal. |
OTHER |
|
| Colors | Red |
| Price | $2449 |
| Warranty | 6 Months |

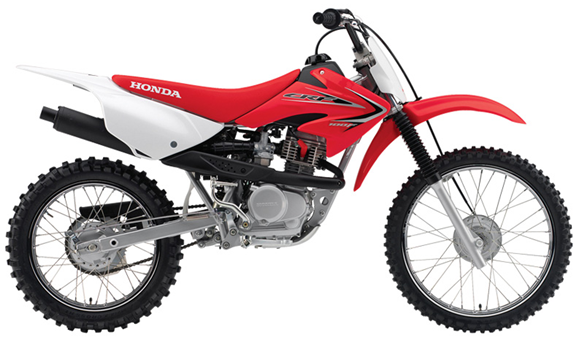

2011 CRF100F
Engine |
|
| Engine Type | Air-cooled single-cylinder four-stroke |
| Displacement | 99 cc |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53 mm x 45 mm |
| Valve Train | SOHC, 2 valves |
| Fuel Delivery |
|
| Ignition | CD |
DRIVETRAIN |
|
| Transmission | Five-speed with manual clutch |
| Final Drive | #428 chain, 14T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27.0mm leading-axle Showa fork; 5.2-inch travel |
| Rear Suspension | Pro-Link Showa single shock; 5.8-inch travel |
| Front Brakes | Drum |
| Front Brakes | Drum |
| Front Tire |
|
| Rear Tire |
|
DIMENSION |
|
| Wheelbase | 1,250 mm (49.2 in.) |
| Seat Height | 785 mm (30.9 in.) |
| Dry Weight | 77 kg (170 lb) including required fluids and full tank of gas – ready to ride |
| Fuel Capacity | 5 litres (1.3 GalUS), including 0.7-litre (0.3 Gal) reserve |
OTHER |
|
| Colors | Extreme Red |
| Model Id | CRF100F |
| Warranty | 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |
| Emissions | Meets current CARB and EPA standards. |
| MSRP | $2,999 |

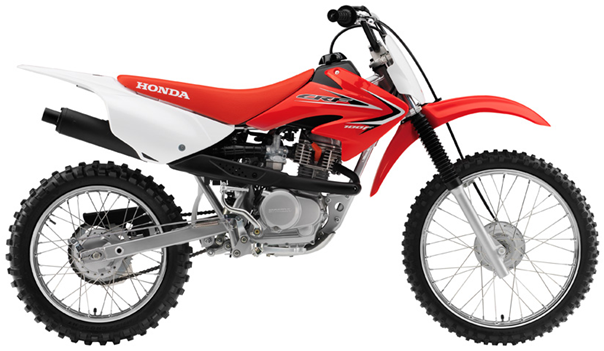

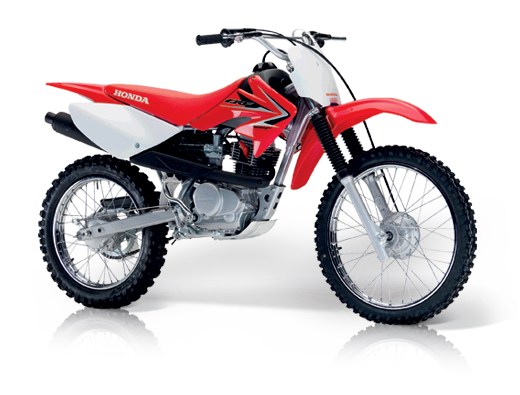

2012 CRF100F
Engine |
|
| Engine Type | Air-cooled single-cylinder four-stroke |
| Displacement | 99.2cc |
| Compression Ratio | 9.4:1 |
| Bore and Stroke | 53 x 45mm |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 22mm piston-valve carburator |
| Ignition | Capacitor Discharge (CDI) |
| Starter | Primary kick |
DRIVETRAIN |
|
| Transmission | 5-speed |
| Final Drive | 428 roller chain |
| Front sprocket | 14T |
| Rear sprocket | 50T |
| Front Wheels | Steel rim/wire spoke |
| Rear Wheels | Steel rim/wire spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 27mm leading-axle fork, 150mm (5.2 inch) axle travel |
| Rear Suspension | Pro-Link, 148mm (5.8 inch) axle travel |
| Front Brakes | Leading/trailing drum |
| Front Brakes | Leading/trailing drum |
| Front Tire |
|
| Rear Tire |
|
DIMENSION |
|
| Rake | 28.50 degrees |
| Trail | 99.0mm (3.9 inches) |
| Overall Length | 1853mm (73 inches) |
| Overall Width | 786mm (30.9 inches) |
| Overall Height | 1046mm (41.2 inches) |
| Wheelbase | 1250 mm (49.2 inches) |
| Seat Height | 775mm (30.5 inches) |
| Dry Weight | 75 kg (165 lb) |
| Fuel Capacity | 5.5 Litres (1.45 GalUS) (including 1.1-Litre reserve) |
OTHER |
|
| Colors | Red |
| Model Id | CRF100F |
| Warranty | 6 months |
| Emissions | Meets current CARB and EPA standards. |
| MSRP | $2,999 |

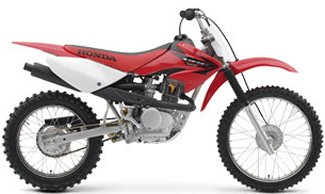

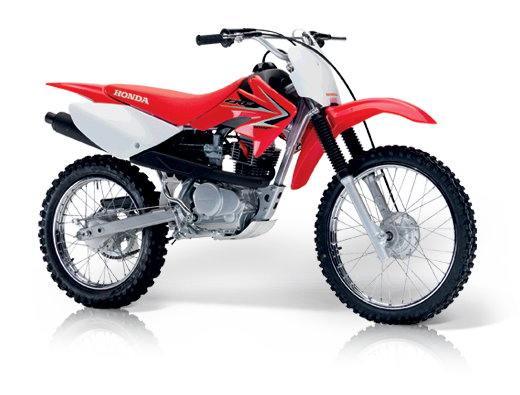

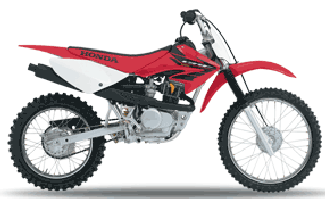

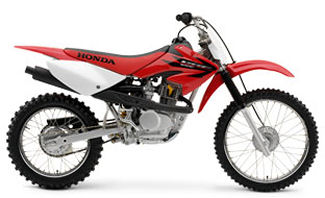

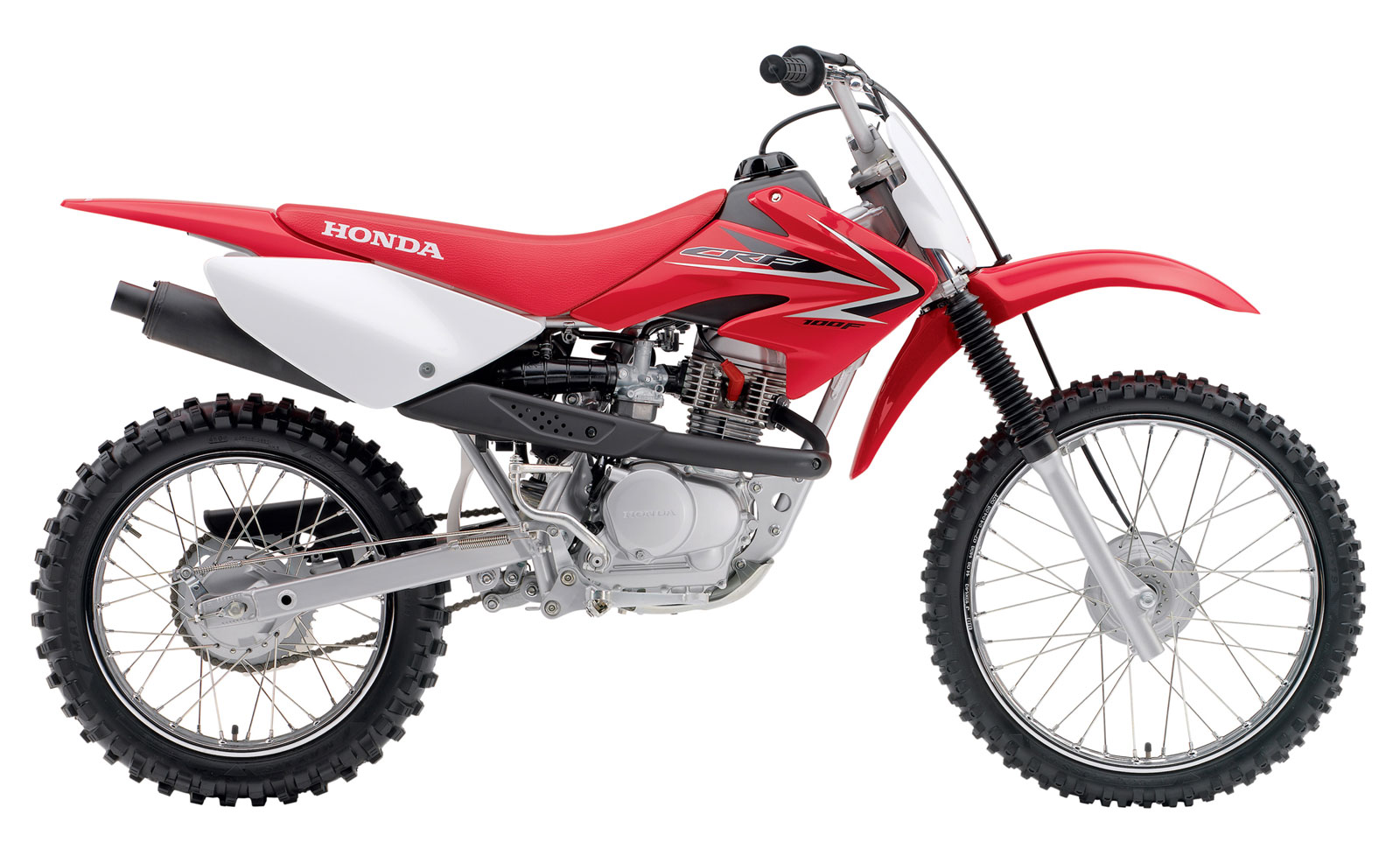

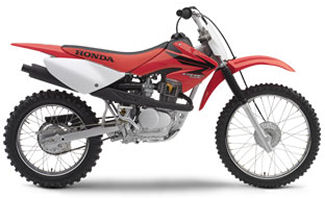

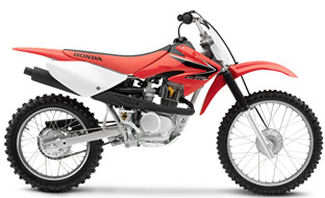

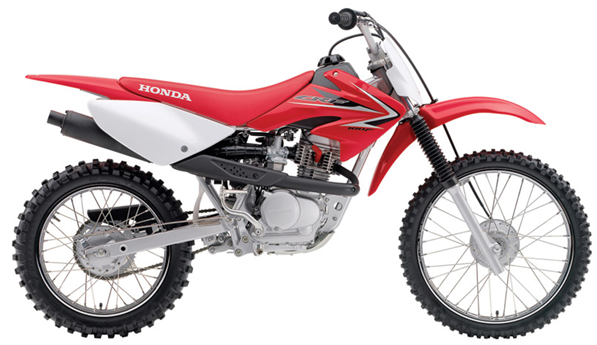

CRF100F Image Gallery
