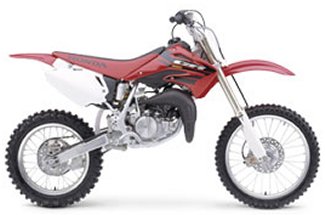

2004 CR85R Expert
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Bore and Stroke | 47.5mm x 47.8mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | Reed-valve |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Honda V-Matic belt-converter automatic transmission |
| Final Drive | #420 chain x 126; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 7mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 11.4-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27.48 degrees |
| Trail | 99.0mm (3.9 inches) |
| Wheelbase | 50.7 inches |
| Seat Height | 34.5 inches |
| Ground Clearance | 14.4 inches |
| Dry Weight | 145.0 pounds |
| Fuel Capacity | 1.4 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85RB |

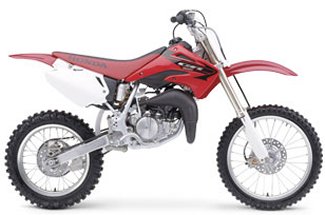

2005 CR85R Expert
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | BR10EG |
| Bore and Stroke | 47.5mm x 47.8mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm flat slide |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain x 126; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 11.4-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27.48 degrees |
| Trail | 92.3mm (3.63 inches) |
| Wheelbase | 49.1 inches |
| Seat Height | 34.0 inches |
| Ground Clearance | 13.9 inches |
| Dry Weight | 145.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85RB |

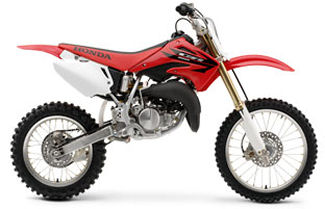

2006 CR85RB Expert
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | .024 |
| Bore and Stroke | 47.5mm x 47.8mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm flat slide |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain x 126; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 11.4-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27.48 degrees |
| Trail | 92.3mm (3.63 inches) |
| Wheelbase | 50.7 inches |
| Seat Height | 34.0 inches |
| Ground Clearance | 13.9 inches |
| Dry Weight | 145.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85RB |

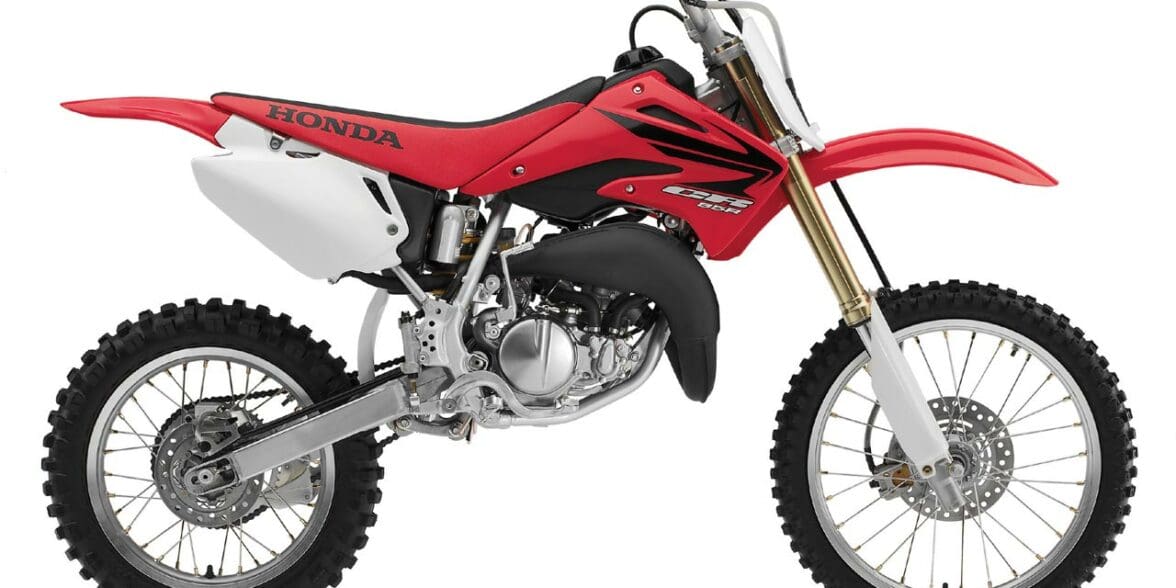

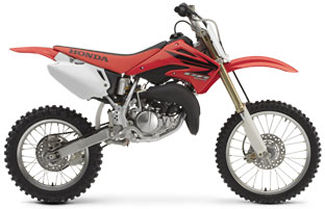

2007 CR85RB Expert
OVERVIEW
- Overview: The CR85R Expert boasts the same engineering and specs as the CR85R, but features bigger wheels, a higher seat and longer swingarm — the perfect step-up for your taller young racer.
Engine |
|
| Engine Type | 84.7cc liquid-cooled single-cylinder two-stroke |
| Spark plug | .024 |
| Bore and Stroke | 47.5mm x 47.8mm |
| Compression Ratio | 8.4:1 |
| Fuel Delivery | 28mm flat slide |
| Ignition | CD with electronic advance |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #420 chain x 126; 15T/56T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel |
| Rear Suspension | Pro-Link fully adjustable Showa single-shock; 11.4-inch travel |
| Front Brakes | Single disc |
| Rear Brakes | Single disc |
| Front Tire | 70/100-19 |
| Rear Tire | 90/100-16 |
DIMENSION |
|
| Rake | 27.25 degrees |
| Trail | 92.3mm (3.63 inches) |
| Wheelbase | 50.7 inches |
| Seat Height | 34.0 inches |
| Ground Clearance | 13.9 inches |
| Dry Weight | 145.0 pounds |
| Fuel Capacity | 1.35 gallons |
OTHER |
|
| Colors | Red |
| Model ID | CR85RB |

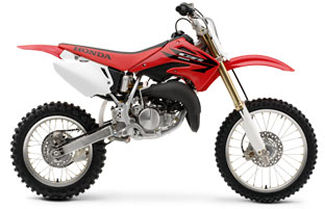

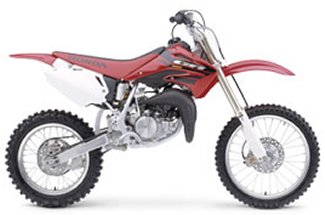

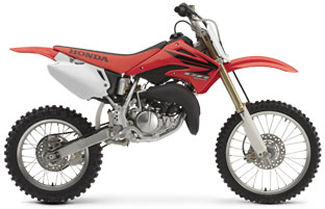

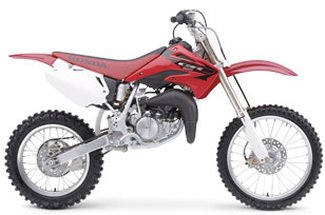

CR85RB Image Gallery
